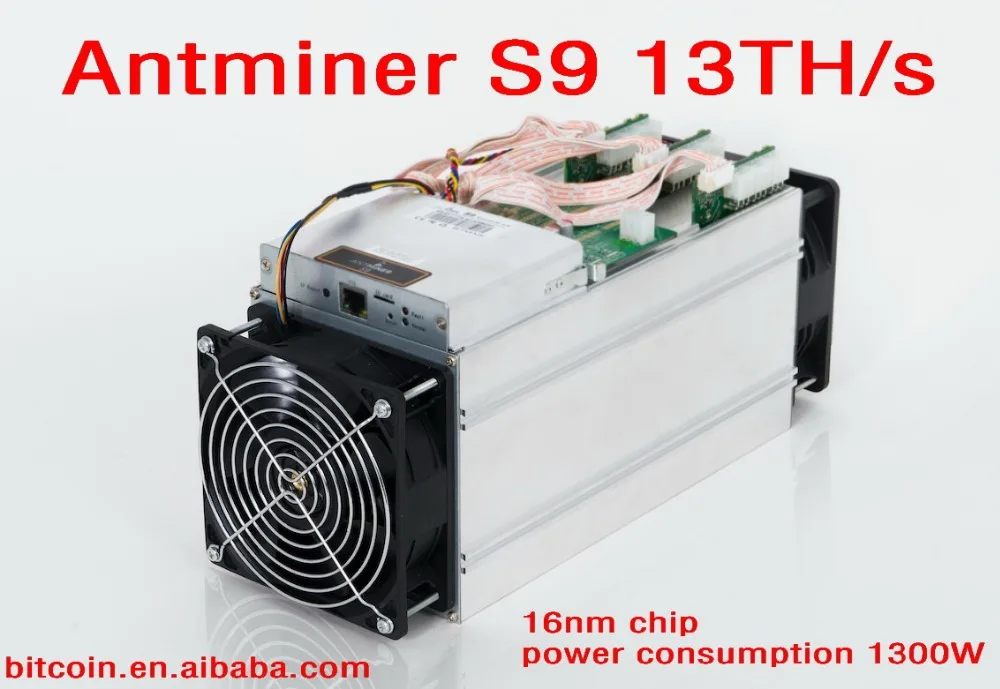

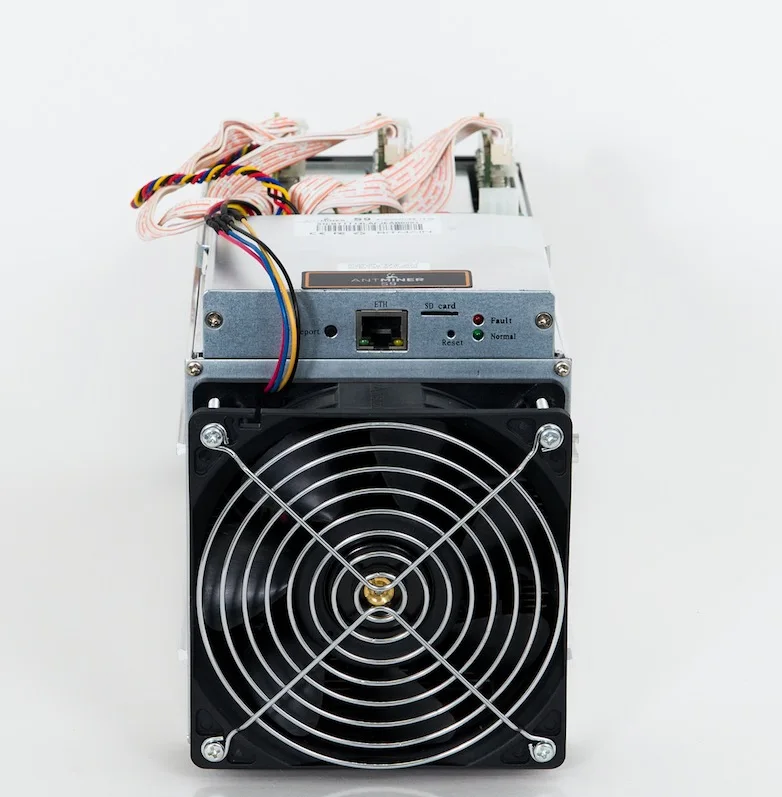

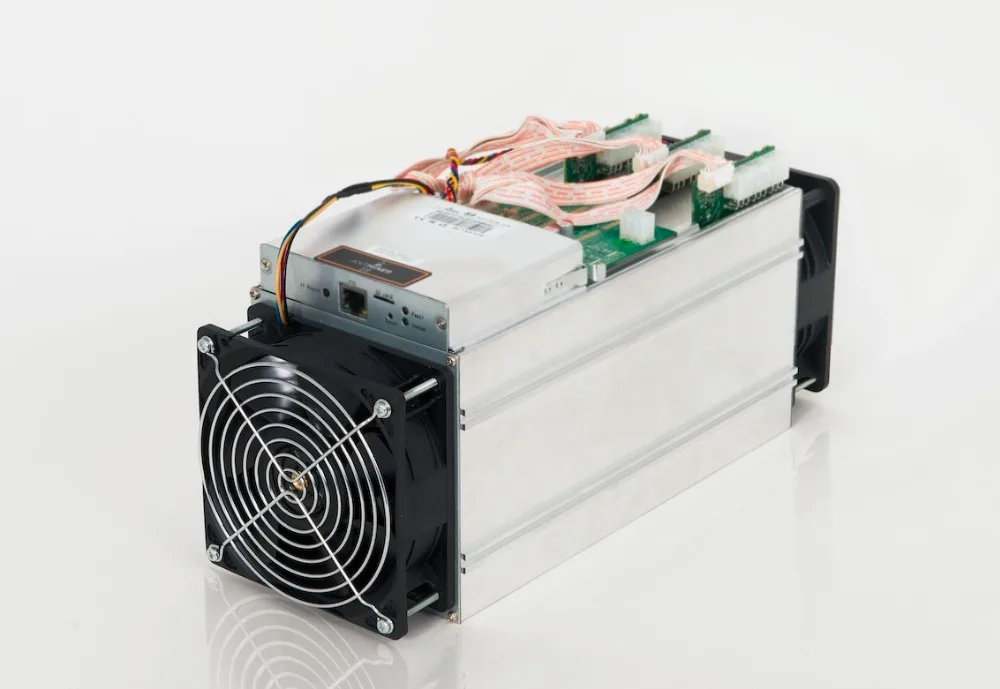

2017 New AntMiner S9 13TH/s 13000GH/s Asic Miner Bitcon 16nm BTC Mining Power Consumption 1300W SHA256 Bitmain BM1387 chip |

Характеристики



Antminer S9 13Th/s Specifications:   1. Hash Rate: 13TH/s ±5% 2. Power Consumption: 1300W + 12% (at the wall, with APW3 ,93% efficiency, 25C ambient temp) 3. Power Efficiency: 0.1 J/GH + 12%(at the wall, with APW3 93% efficiency, 25°C ambient temp) 4. Rated Voltage: 11.60 ~13.00V 5. Chip quantity per unit: 189 x BM1387 6. Dimensions: 350mm(L)*135mm(W)*158mm(H) 7. Cooling: 2 x 12038 fan 8. Operating Temperature: 0 °C to 40 °C 9. Network Connection: Ethernet  10. Default Frequency: 600M      Shipping list:   Antminer S9 Miner 13 TH/s ±5% ( New .  NO PSU ) X 1 piece

Note:

(1) Power consumption figures will vary with your PSU's efficiency, the ambient operating temperature and the accuracy of the power meter.

(2) Power supply unit is not included. You will need an ATX PSU. There are 3 PCI-e connectors for +12V DC input on each hashing board and all 3 need to be connected to the PSU for the hashboard to operate. Do not connect more than one PSU to the same hashing board!

   Bitmain recommends the APW3+-12-1600-A3 power supply for both the S9 and S7 miner. One such PSU cannot power more than one miner.  1600w PSU PSU Link

(3) Separate power supply to control board: there is one additional 6pin PCI-e connector on the IO board which must be connected to the PSU to get power. Be sure to power on the miner after ALL the 10x PCIE connectors connected to power supply.

(4) A 15-day warranty is provided starting from the shipping date. Return to China Shipping paid by the buyer. Return shipping  is paid by the seller. Beyond the warranty period. Provide permanent paid maintenance. Overclocking the miner will void the warranty immediately.

(5)All sales are final. No refunds will be granted. Defective miners can be repaired for free if they fall under the Seller warranty policy. After the warranty period, machines can be repaired at the cost of parts and labor.

(6) The following events will void the warranty:

(a) Customer removes/replaces any components by himself without receiving permission from Seller first;

(b) Damage caused by poor power supply, lightning or voltage surges;

(c) Burnt parts on hash boards or chips;

(d) Miner/boards/components damage due to water immersion or corrosion due to wet environment.

(7) Seller does not take any responsibility for or compensate for any loss as result of downtime caused by delays in transportation as a result of custom formalities or other reasons.

  Product Displaying:
