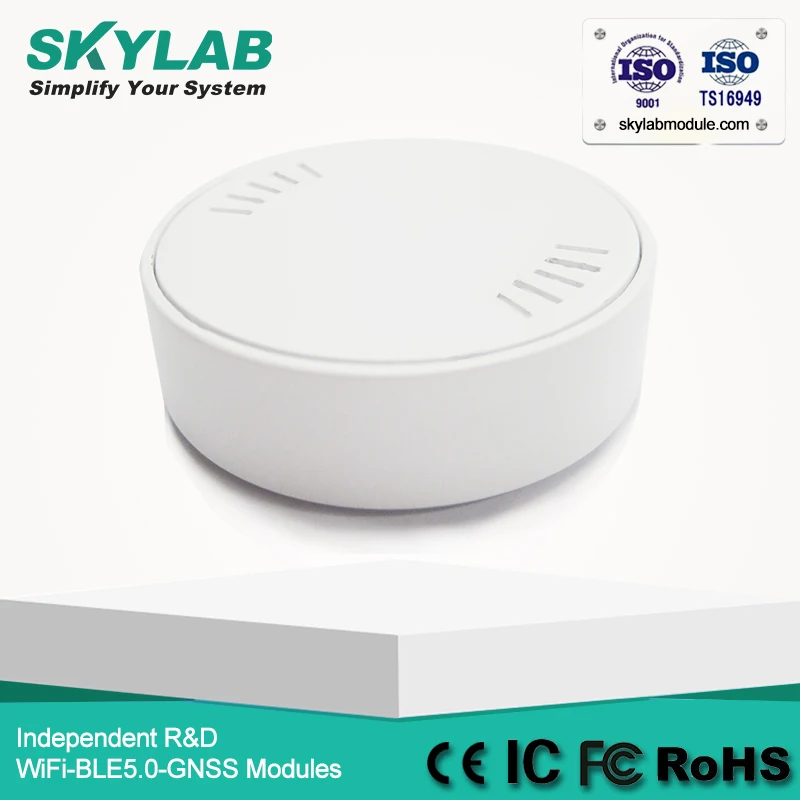

SKYLAB VG01 Low Energy Module Beacon Receivers Nordic nRF51822 Chip Proximity BLE | Автомобили и мотоциклы

Характеристики

Name: SKYLAB UUID major minor programmable ibeacon beacon CR2477 ble firmware nrf51822 bluetooth beacon

Model NO.: VG01

​Beacon is a broadcast protocol based on a low-power Bluetooth protocol, and it is also a low-power Bluetooth device (slave) with this protocol. As a Beacon device, it is usually placed in a fixed position indoors and broadcast continuously to the surrounding, but it can’t connect to any low-power Bluetooth host. All broadcast data is arranged according to certain rules.

SKYLAB Beacon configuration is a phone APP that is configured by the SKYLAB R & D team for "SKYLAB Beacon". Using this phone application can connect the phone with "SKYLAB Beacon" and modify the parameters, such as UUID, Major, Minor, Beacon name, etc. These parameters will be broadcasted after the broadcast mode opening, so it is used for product promotion by large shopping malls.

Two type Bluetooth Beacon which compatible with Eddystone and ibeacon.- Provided by SKYLAB

Battery is not included in shipping

Range : 70 m in the open air

Please contact us to get Configuration APP & communication protocol

APP Main Interface Details

1.Start/Stop scanning icon

2.Settingsicon

3.Beaconname

4.MACaddress

5.Batterylevel

6.RSSIvalue

7.Advertisinginterval

8.Transmissionpower

9.Measuredpower

10.Major&Minorvalue

11.UUID

Application

Indoor position/Wechat Shake around/Shopping Mall

Museum/Car Parking/Hotel and Restaurant

Scenic Spot/Leisure and Amusement/Access Control and Checking Attendance

Default Parameters

Name:Skylab Beacon

UUID:FDA50693A4E24FB1AFCFC6EB07647825

Major:10044

Minor:47558

Advertise interval:200 ms

Measured power:-61 dBm

Transmission power: 0 dBm

Password:1234

Parameters Range

Name:1~12 characters.

UUID:16 bytes Hex String format

Major:0~65535

Minor:0~65535

Advertise interval:100ms~1000ms

Measured power:-100~-30dBm

Tramsmission power:-30,-20,-16,-12,-8,-4,0,4dBm

Password: 4 characters (1234 default)

Connection

The Beacon being connected should be happened with a password required action within 30 seconds, so that user get the operation right. Timeout or a wrong password will cause a disconnection from the Beacon. Configure Beacon’s parameters after connection completed, these parameters will be broadcasted when theBeaconbeingadvertising.

Dimesion: 17.4(L) x 13.7(W) x 1.9(H) mm
