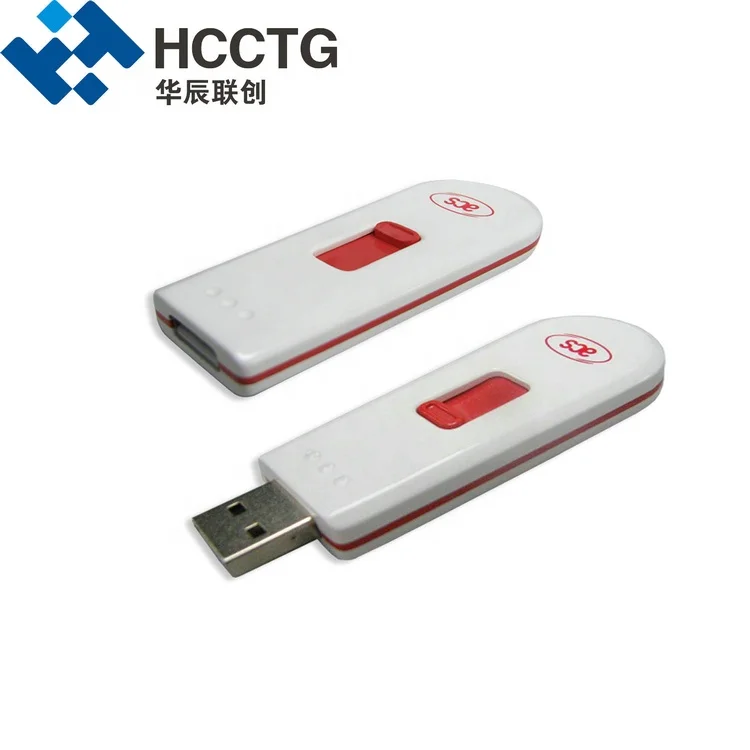

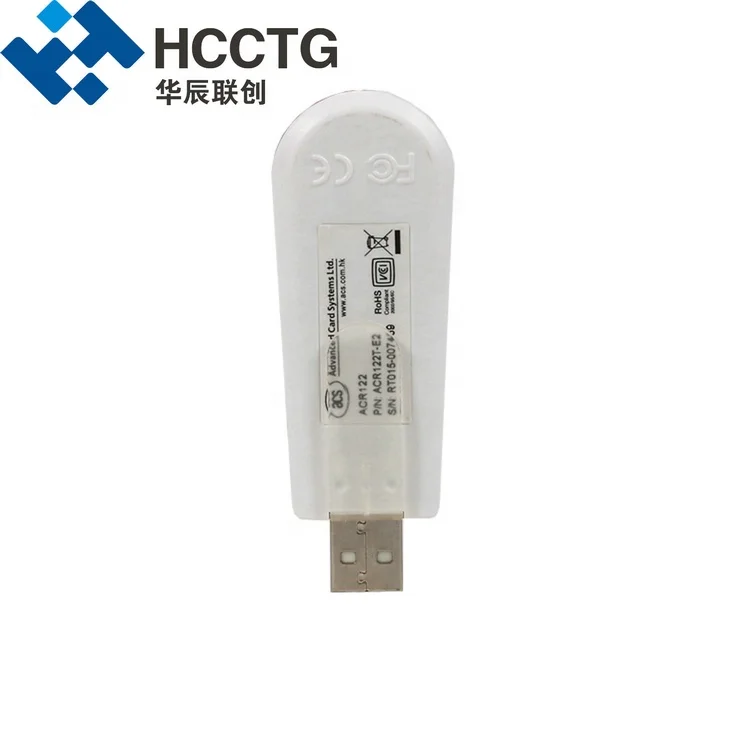

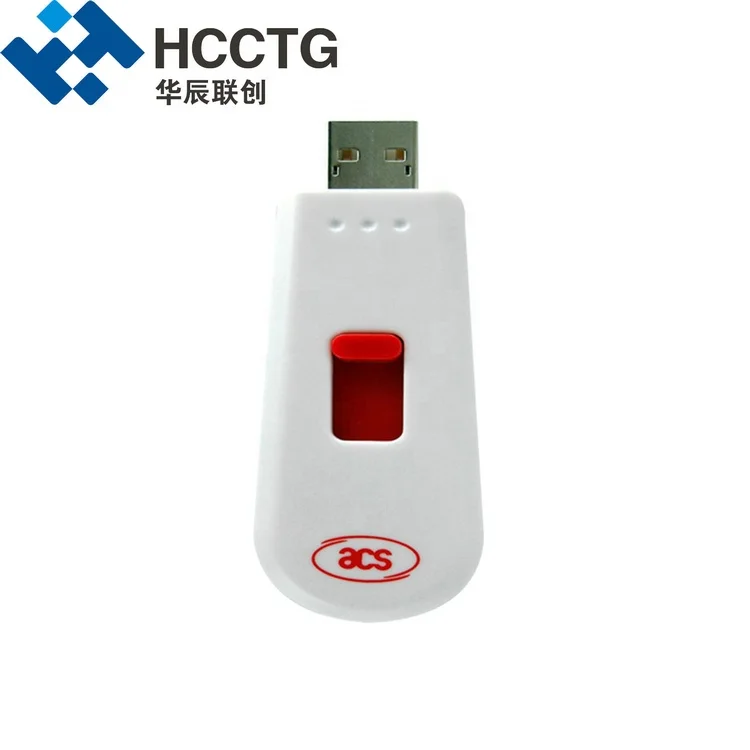

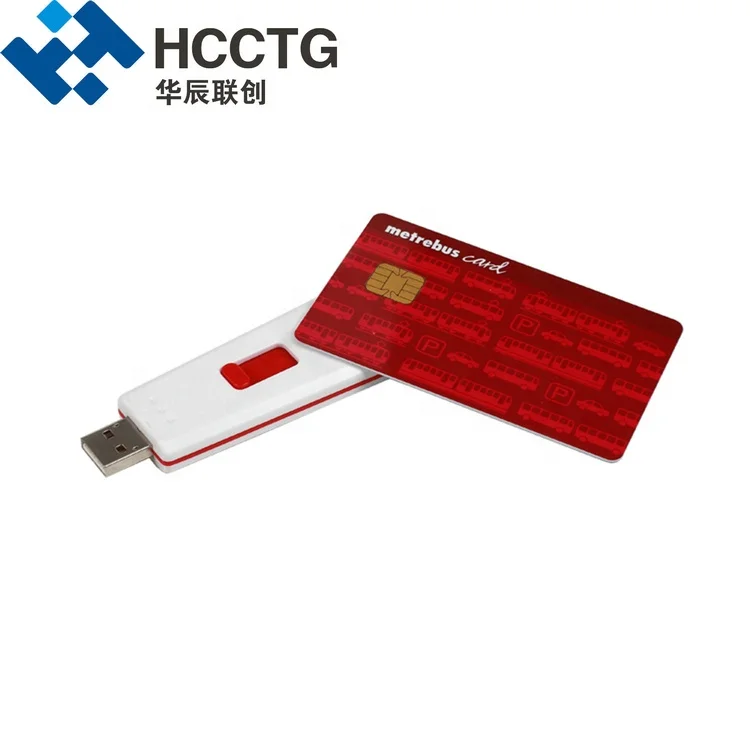

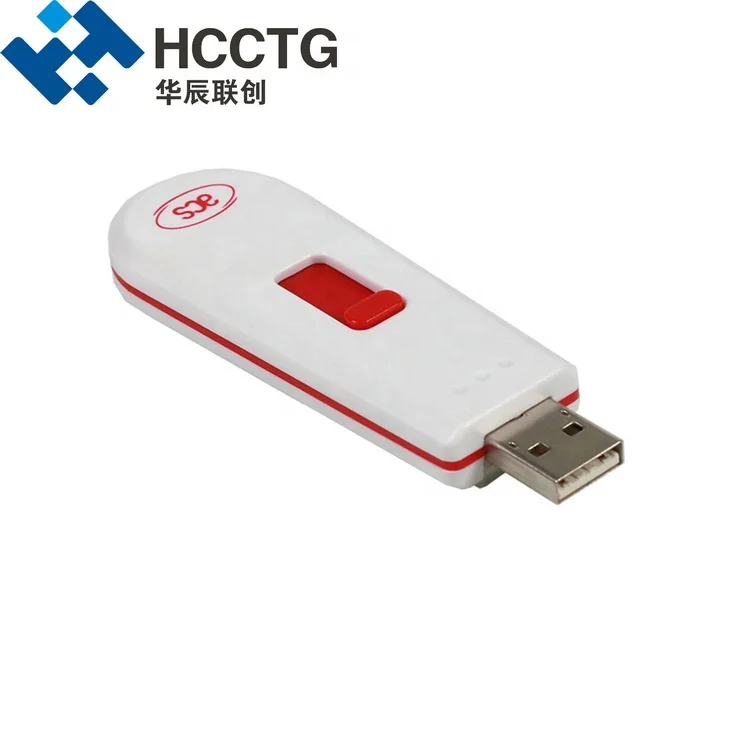

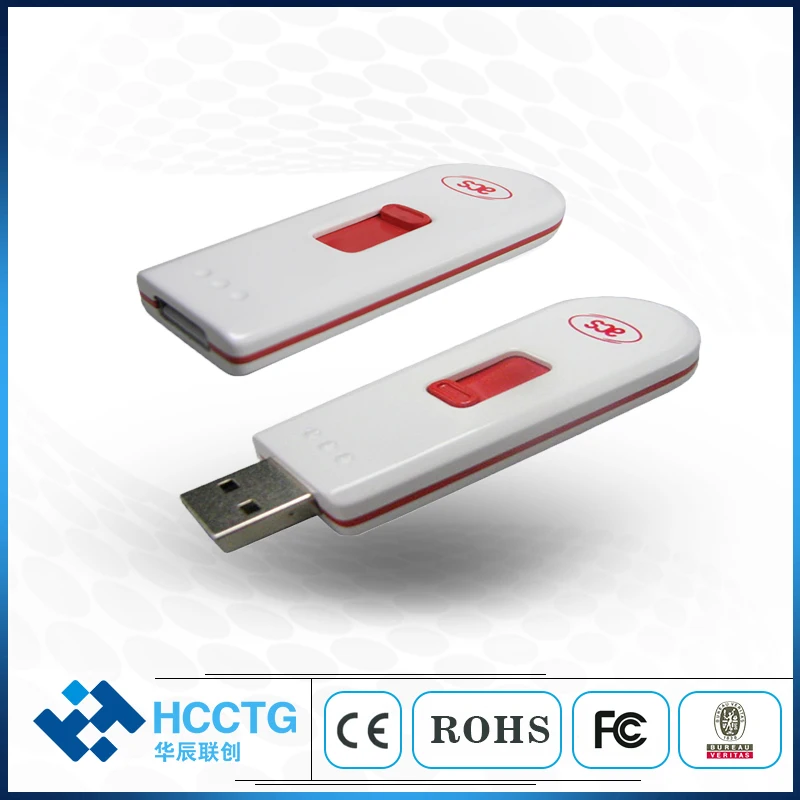

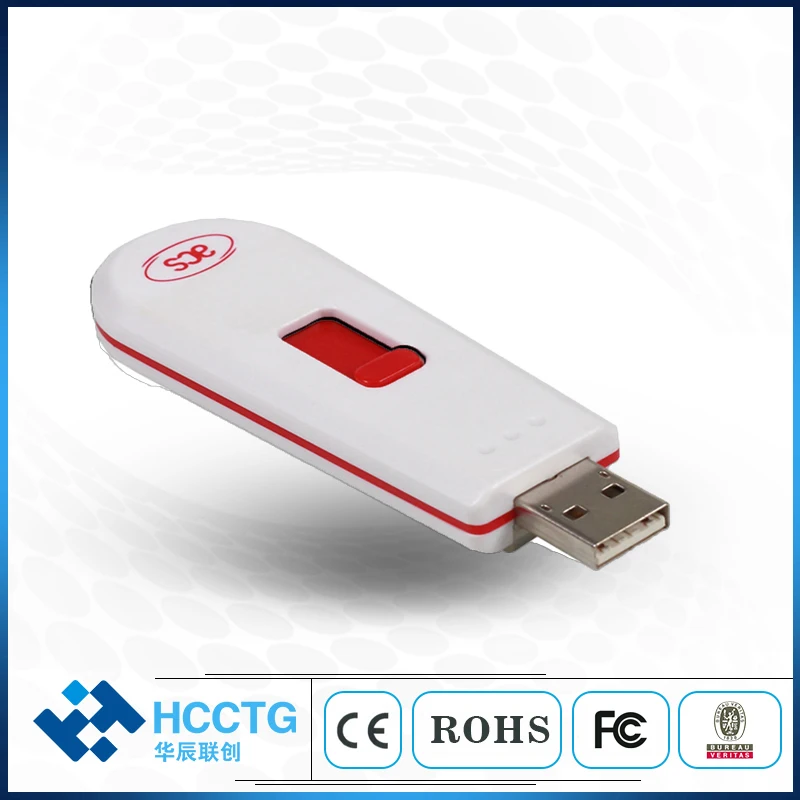

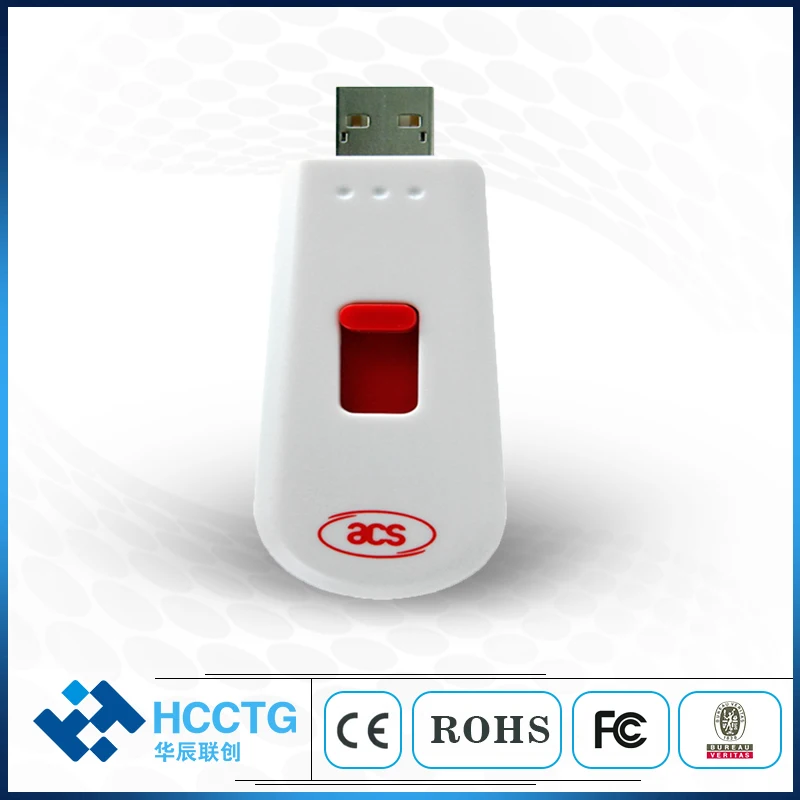

USB 13.56mhz Portable NFC RFID Contactless Reader Support ISO 14443 Type A B Card+free SDK -ACR122T

Product Description

General

ACR122T NFC Contactless Smart Card Reader is the token version of the ACR122U NFC Reader. It is especially designed for NFC applications require great portability and utmost user convenience. Developed on the 13.56 MHz Contactless (RFID) Technology and the ISO/IEC 18092 standard for Near Field Communication (NFC), it supports not only MIFACE® and ISO 14443 Type A and B cards but also NFC and FELICA contactless technologies. It is a Plug-and-Play USB device with CCID and PC/SC compliance, ensuring interoperability with different systems and applications.



Feature

1. CCID-compliant

2. PC/SC-compliant

3. Read/write speed up to 424 kbps

4. Built-in antenna for contactless tag access, with card reading distance of up to 30 mm (depending on tag type)

5. Supports ISO 14443 Type A and B, MIFARE, FELICA, and all 4 types of NFC (ISO/IEC 18092) tags

6. Supports new MIFARE ULTRALIGHT  (via pseudo APDUs) and MIFARE  Plus SL1 (4 Byte UID, via pseudo APDUs) and SL3

7. Supports all 3 modes of NFC: reader, card emulation and peer-to-peer modes

8. Built-in anti-collision feature (at least 1 card is detected when multiple cards are presented)

9. Extractable USB plug

10. USB PnP

11. Bi-color LED



Specification

Dimensions	75 mm (L) x 30 mm (W) x 9.9 mm (H)
Interface	USB Full-Speed
Operating Distance	<= 30mm (depends on tag type)
Supply Voltage	Regulated 5 V DC
Supply Current	200 m A (operating); 50 m A (stand-by); 100 m A (normal)
Operating Temperature	0 - 50°C
Operating Frequency	13.56 MHz
Smart Card Interface Support	-ISO14443 Type A & B -MIFARE FELICA 4 types of NFC (ISO/IEC18092) tags
Compliance/Certifications	PC/SC, CCID, CE, FCC, VCCI, ROHS Compliant, USB Full Speed Microsoft ® WHQL 2000, Server 2003,XP,Vista, Server 2008, Server 2008 R2, 7
Operating System Support	Windows ® 98, ME, 2000, Server 2003, XP, Vista, Server2008, Server 2008 R2, 7 Windows ® CE 5.0 Linux Mac

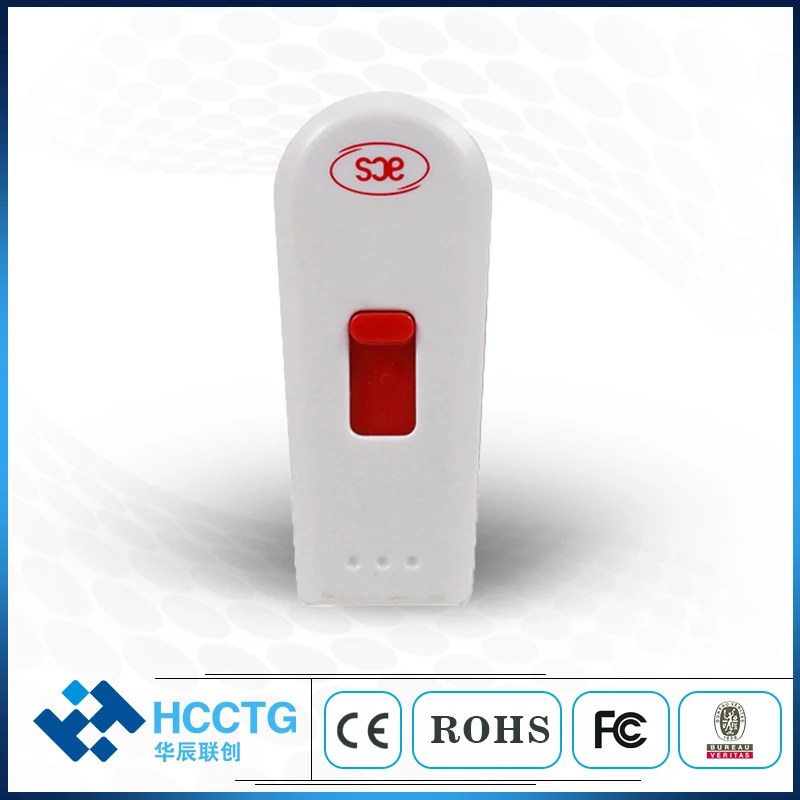

 13.56 mhz USB NFC RFID Contactless Smart Card Reader With Free SDK ACR122U

Application

1. Network access control

2. Computer access control

3. Micro-payment

4. NFC mobile tag

5. Online purchase

6. Customer loyalty

7. Time and attendance

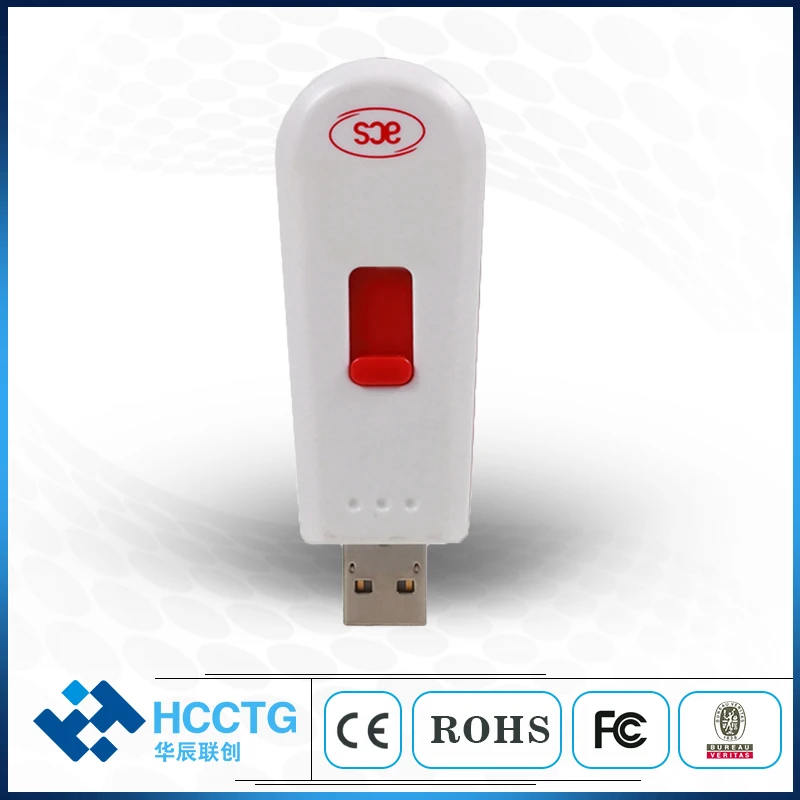

.56 mhz USB NFC RFID Contactless Smart Card Reader With Free SDK ACR122U

FAQ

1.Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
2. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.

3. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.
4. Can we get the free sample?

Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.

5. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C Secure payment (Escrow Service from Alibaba)  and so on.

6.Which way to deliver the goods?

By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.

By Sea: Inform us the Sea Port to check which ship line.

By Air: Inform us the Airport to check which flight.

Or pick up by the customers.

7. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for 9 years. We can provide OEM / ODM customized service according to our customers’ various application and demands.

8. What warranty for the products?

According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.

9. What the after sale service?

a. Our all products will provide 12 months warranty;

b. Enough stock spare parts for guarantee;

c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;

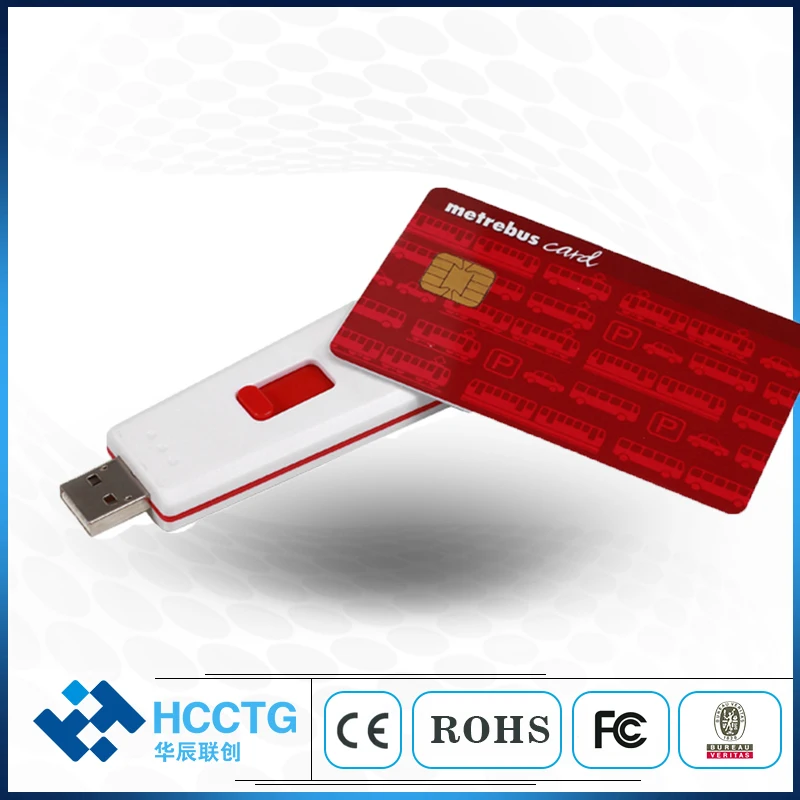

 13.56 mhz USB NFC RFID Contactless Smart Card Reader With Free SDK ACR122U
