JFB253535 / 2535F (Size:25*35*35/45*5mm) Flanged Solid-Lubricanting Oilless Graphite Brass Bushing|Copper Bearing JFB2535 | Автомобили и

Характеристики

Notice:  Most of the size is in stock, if you need it Urgently , Please contact us to confirm if it is in stock;   ---Tom @ TMP

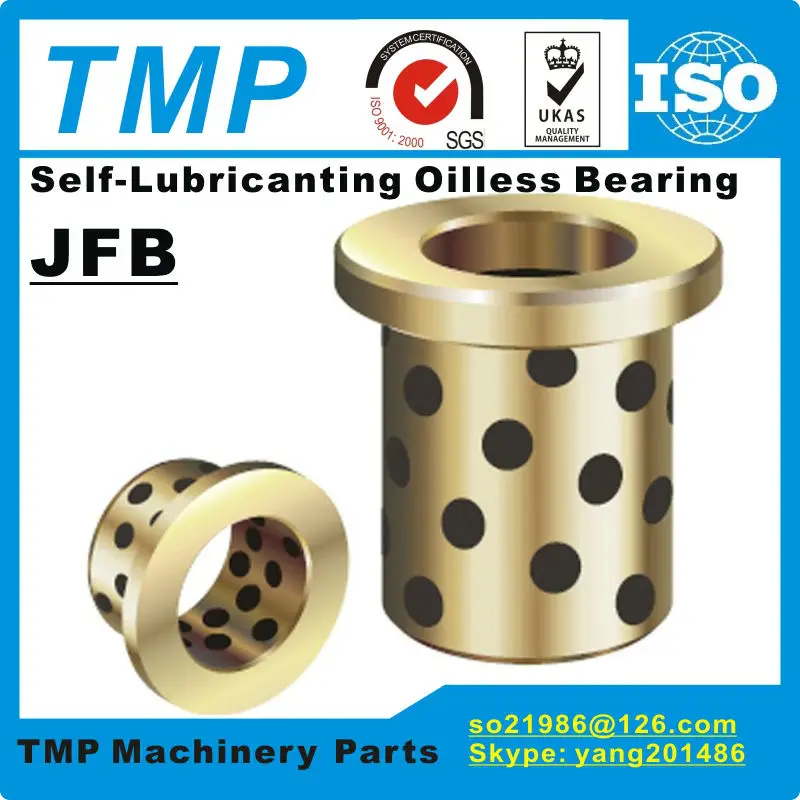

JFB Flanged Solid Lubricant Embedded bronze bushing /Oilless Bearing

TMP- Model Number:

JFB253535 / 2535F   Size: 25*35*35 / 45*5mm (ID*OD*L / F*e1 )

2.Type: Sleeve ,with Flange 3.Material: Copper  4. High load capacity  5. High wear resistence  6. Low coefficients of friction  7. Good heat conductivity

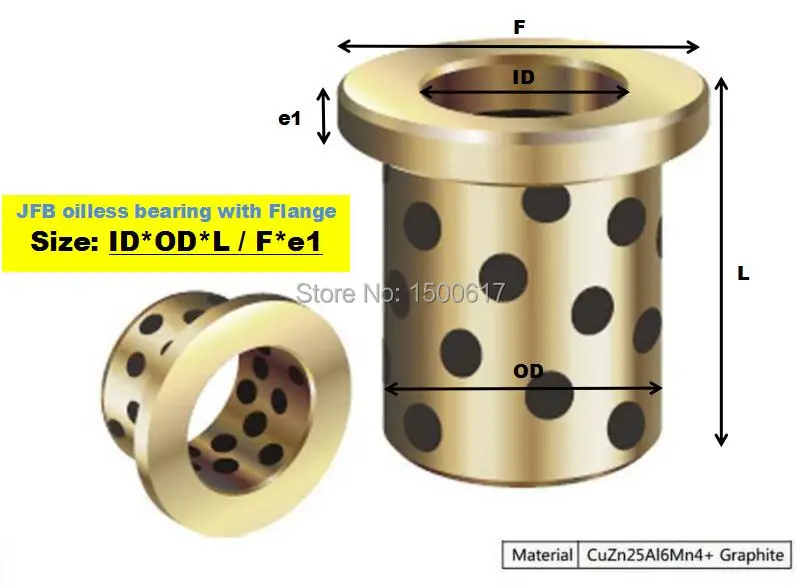

Metric dimensional drawing:

 Technical data:

1. Max move load capacity (static load): 100 N/mm2

2.  Max PV Value Limit :15 m/min

3. Max PV Value Limit : 200 N/mm2·m/min

4. Tensile Strength :  >750 N/mm2

5. Elongation:  > 12 %

6. Hardness :  > 210

7. Working  temperature : -100~ +300 °C

8. Abrasion coefficient: 0.03~ 0.20

9. Heat conducting coefficient : 60W(m.K) -1

10.  Heat expansion coefficient : 19.10-6 K-1





Application of TMP- Oilless Sliding Bearing:     Company Information

      TMP machinery Parts is a professional manufacturer of high precision bearings and other equipment,The main products  are Thin Section Bearings, Crossed roller bearings, Rotary Table Bearings, Oilless Bearings, Angular Contact Ball Bearings, Slewing Bearings, Rod End Bearing, One Way Clutches,One Way Bearings,Overrunning clutches,Indexing clutches,Backstop clutches,Grundfos/Burgmann/Flygt/John Crane Seals,Mechanical shaft seal,Mechanical seal,Cartridge seal,Metal Bellow seal,Full Ceramic Bearings,Rod End Bearings, Machine Tool Parts  etc,Our products are used for Robotics, CNC Machine Tools, You can find all you need in our store, all the bearings and parts here is made in China and can replace with imported parts .
