Низкая стоимость m2m gsm gprs модем rs232 tc/ip maestro 100 бесплатная доставка | Компьютеры и

Характеристики

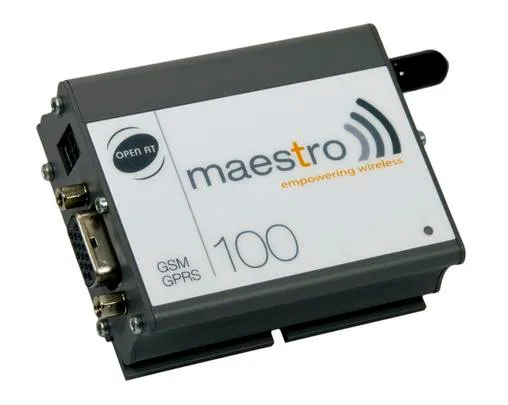

Low cost m2m gsm gprs modem rs232 tc/ip maestro 100

m2m gsm gprs modem rs232 tc/ip maestro 100

Features

M2M Smart 100 modem

the upgraded version

higher than WMP 100

with tcp/ip protocol

supreme being usb internet modem with sim

Maestro 100 lite
GSM antenna 850/900/1800/1900Mhz
AT command set
GSM Quad-band

Main Specifacation

• Maestro100 lite
• Features
• GSM Quad-band
• GPRS class 10
• Voice/Data/Fax/SMS
• TCP/IP: Full (FTP and E-mail added)
• Functional Features
• Input/Output.Digital : 1
• Download Over The Air: Optional
• AT command set( GSM 07.05,GSM 07.07 and Wavecom ): >300
• Autorestore.timer reset: yes
• Voice,Data And SMS Features
• Data circuit asynchronous, transparent and non-transparent up to 14,400bit/s
• Automatic fax group 3(Class 1 and Class 2)
• MNP2, V.42bis
• Text and PDU SMS(MT/MO)
• UCS2 Character Set Management
• Other Features:
• Operating status LED
• Casing: Metal
• DIN rail mounting
• Interface:
• SIM Plug-in card reader : 1.8/3V

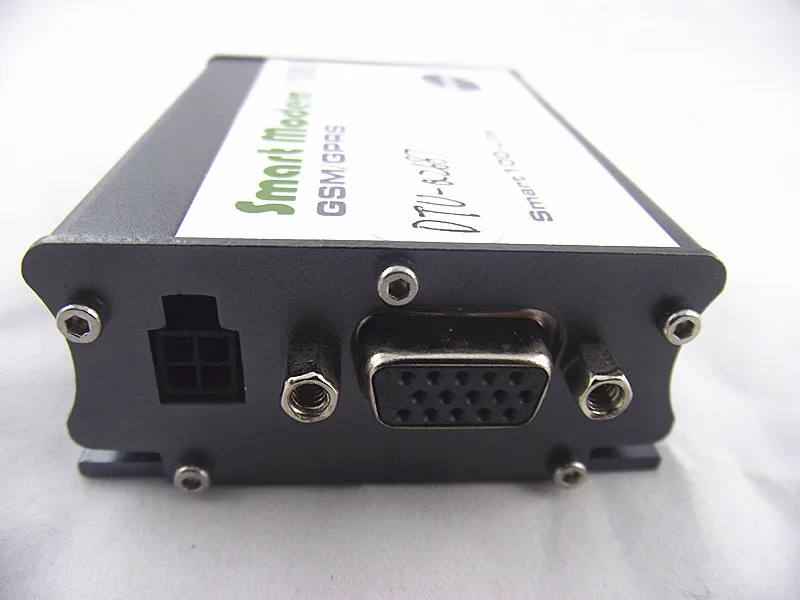

• RS232 on 15pin Sub-D connector
• Pin power supply connector: 4pin DC
• SMA antenna connector(50 ohm)

Basic Specifacation

• Dimension Metal
• Size(mm) : 88x66x26
• Weight(g) : 100
• Temperature Range
• Operating/Storage: -20~+55 centigrade/-25~70 centigrade
• Power Supply
• Input voltage: 5 to 32V DC
• Power Consumption
• GSM 850/900(PCL 5): 310mA at 5V
• DCS 1800/PCS 1900(PCL0): 240mA at 5V
• GPRS 850/900 CL10(PCL5) : 520mA at 5V
• GPRS 1800/1900 CL10(PCL0): 390mA at 5V
• Idle consumption: 35mA at 5V
• Certifications/Compliances
• CE Certification
• GCF Certification
• ROHS Compliance
• Optional Accessories(Additional Accessories Are Also Available Upon Request)
• GSM antenna 900/1800Mhz
• GSM antenna 850/1900Mhz
• RS232 cable
• Din Clip(metal casing only)

Details of pictures :

Function :

Accessories  :

Remarks:

1. When you place an order, please choose a shipping method and pay for the order  including the shipping fee. We will send the items within 3 days once your payment is completed.

2. We do not guarantee delivery time on all international shipments due to differences in customs    clearing times in individual countries, which may affect how quickly your product is inspected. Please note that buyers are responsible for all additional customs fees, brokerage,fees, duties, and taxes for importation into your country. These additional fees may be collected at time of delivery. We will not refund shipping charges for refused shipments.

3. The shipping cost does not include any import taxes, and buyers are responsible for customs duties.

ps : Usually we will send out within 3-5 days after getting your payment.  we are looking forward the agency from all over the world!!
