For ASUS A40 A41 A42 A43 A45 A52 A53 A54 A55 A56 Series New Internal Optical Drive CD DVD-RW Burner | Компьютеры и офис

Характеристики

100% Brand New, 1 year warranty Before resorting to negative feedback please give us a chance to resolve the issue. Please contact us If you want to buy bulk, you will get very good wholesale price.

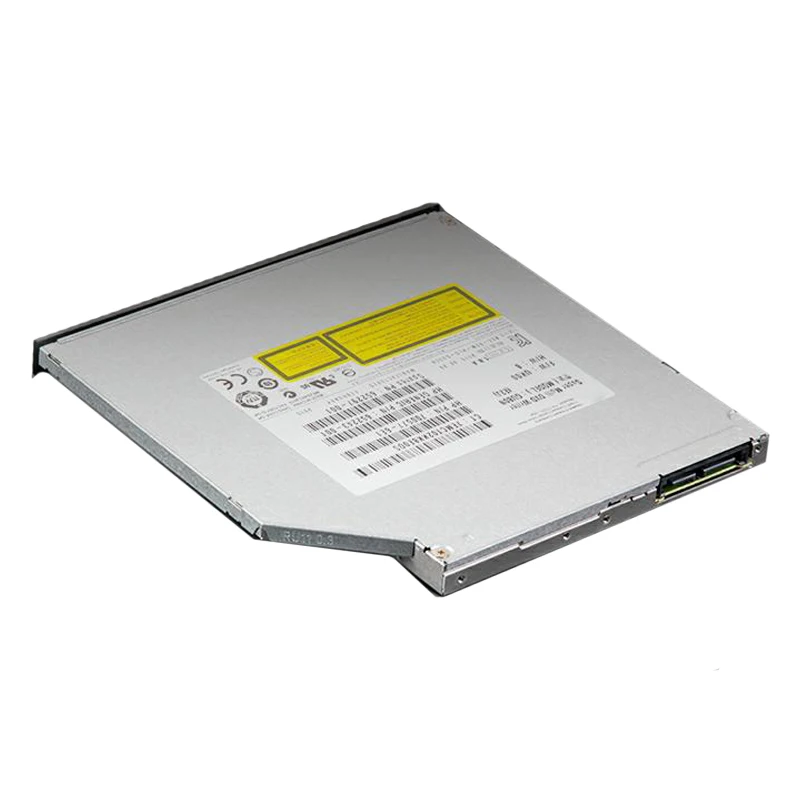

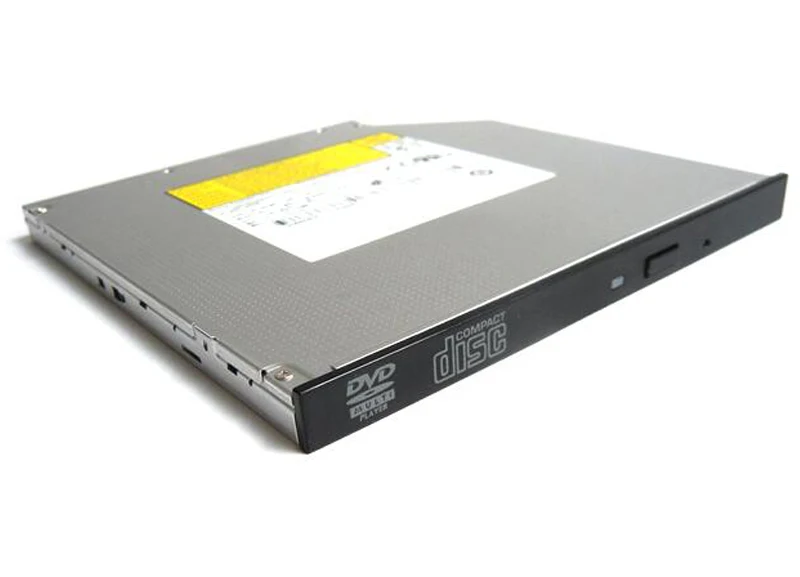

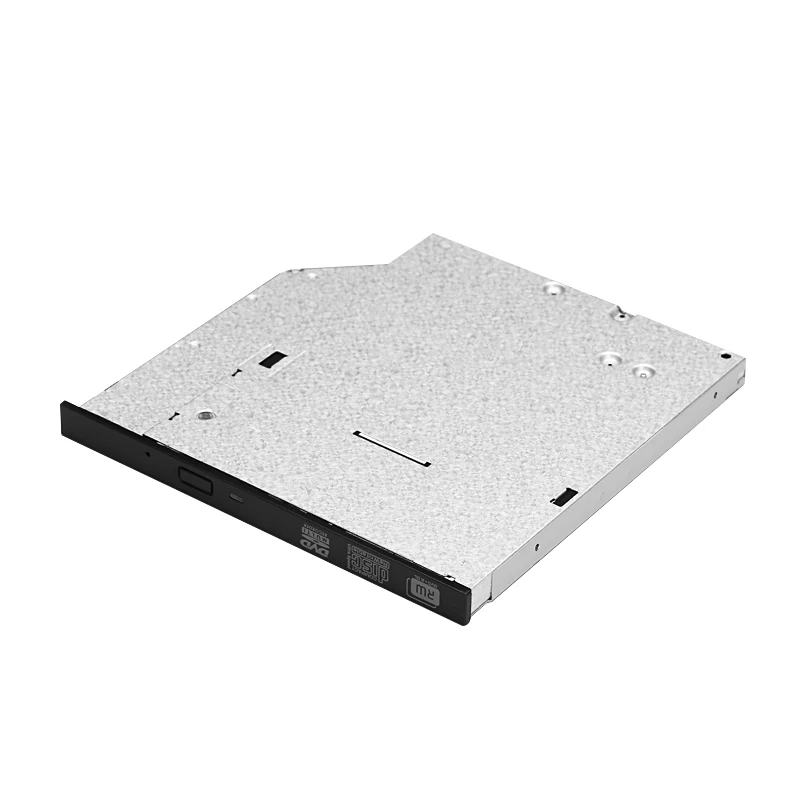

For ASUS A40 A41 A42 A43 A45 A52 A53 A54 A55 A56 Series New Internal Optical Drive CD DVD-RW Burner Drive

 Please tell me the specific model, thank you

General Device Type:CD DVD±RW R DL Drive Enclosure Type Internal Interface:SATA   Optical Storage Type:DVD±RW R DL Drive (Burner, Rewriter) Maximum Read Speed DVD: 8x max. CD: 24x max; Maximum Write Speed DVD-R: 8x max. DVD+R: 8x max. DVD-RW: 6x max. DVD+RW: 8x max. DVD-R DL: 6x max. DVD+R9: 6x max. DVD-RAM: 5x max. CD-R: 24x max. CD-RW: 24x max.; Supported Media Types DVD-ROM, DVD-R, DVD-R DL, DVD-RW, DVD-RAM, DVD+R, DVD+RW, DVD+R9, CD-ROM, CD-R, CD-RW; Supported Modes Types DVD-Video, CD-ROM XA, CD-Audio, CD Extra, CD Text, CD-I Ready, CD-Bridge, PhotoCD, Video CD, Hybrid CD Access Time:180 ms (DVD), 150 ms (CD) Media Load Type:Tray - Loading Buffer Size:2 MB Software / System Requirements OS Required: MultiRead, PC2001, Windows XP, Windows Vista , Windows 7, Windows 8, OS  Environmental Parameters Min Operating Temperature:41 °F Max Operating Temperature:122 °F Humidity Range Operating:10 - 80% Packing 1x bare DVD±RW drive with a manual. Fi ts laptop model number: For ASUS A40DE For ASUS A40DR For ASUS A40DY For ASUS A40F For ASUS A40JA For ASUS A40JB For ASUS A40JC For ASUS A40JE For ASUS A40JK For ASUS A40JP For ASUS A40JR For ASUS A40JV For ASUS A40JY For ASUS A40JZ For ASUS A40N For ASUS A41ID For ASUS A41IE For ASUS A41IN For ASUS A42DE For ASUS A42DQ For ASUS A42DR For ASUS A42DY For ASUS A42F For ASUS A42JA For ASUS A42JB For ASUS A42JC For ASUS A42JE For ASUS A42JK For ASUS A42JP For ASUS A42Jr For ASUS A42JV For ASUS A42JY For ASUS A42JZ For ASUS A42N For ASUS A43BE For ASUS A43BR For ASUS A43BY For ASUS A43E For ASUS A43SA For ASUS A43SD For ASUS A43SJ For ASUS A43SM For ASUS A43SV For ASUS A43TA For ASUS A43TK For ASUS A43U For ASUS A45A For ASUS A45DE For ASUS A45DR For ASUS A45N For ASUS A45VD For ASUS A45VG For ASUS A45VJ For ASUS A45VM For ASUS A45VS For ASUS A52BY
For ASUS A52DE For ASUS A52Dr For ASUS A52DY For ASUS A52F For ASUS A52JB For ASUS A52JC For ASUS A52JE For ASUS A52JK For ASUS A52JR For ASUS A52JT For ASUS A52JU For ASUS A52JV For ASUS A52N For ASUS A53BE For ASUS A53BR For ASUS A53BY For ASUS A53E For ASUS A53SC For ASUS A53SD For ASUS A53SJ For ASUS A53SK For ASUS A53SM For ASUS A53SV For ASUS A53TA For ASUS A53TK For ASUS A53U For ASUS A53Z For ASUS A54C For ASUS A54H For ASUS A54HR For ASUS A54HY For ASUS A54L For ASUS A54LY For ASUS A55A For ASUS A55DE For ASUS A55DR For ASUS A55N For ASUS A55VD For ASUS A55VJ For ASUS A55VM For ASUS A55VS For ASUS A56CA For ASUS A56CM



NOTE: Some laptop may use some mounting frames or a caddy around the bare CD drive for easy swap. You need to re-use the mounting frames or caddy in order to use this new drive. Some laptop may also use a rear connector adapter to change the position and shape of the rear connector. If your original CD drive rear connector looks different from this drive, it most likely has a special rear connector adapter added to the drive. In this case, you just need to remove the rear connector adapter from original drive and re-use it on the new drive. It's easy. First, use a straightened paper clip or something similar to open the tray (there's a small hole in the drive front for that purpose). Slide the tray front up and off (you can see how it's constructed by looking at the replacement tray front). Slide the new front on until it snaps into place. Then close the tray   The drive faceplate is held by catches at three points: each side and either the top or bottom. Use a screwdriver or something similar to push the catches in one at a time, and pull the faceplate off the drive a little at each point until it's completely released and can easily be lifted off the drive. Then attach the new faceplate, snapping it into place at all three points.
