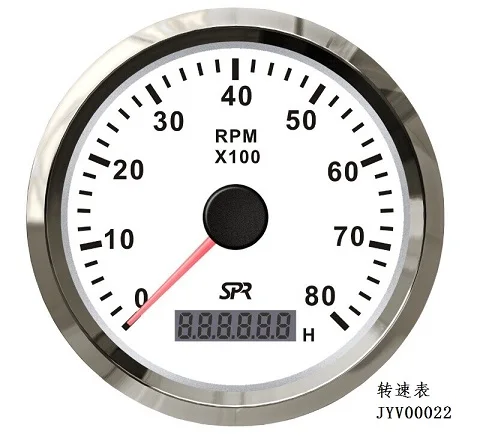

85mm white SPR tachometer 0-8000rpm for diesel engine (P/N: JYV00022)

Model No. ZMHB-WS-8KL

Specifications:

1.Indicating Range: 0-8000rpm
2.Working Voltage: 12V/24V
3.Installation Dimension:85mm
4.Speed Ratio: 0.5-250

• Be suitable for all kinds of tacho sensors, and display the rotation speed of the engine
• Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.
• Operating temperature: -40°C  ~+85°C
• Protection rank : IP67.

Product Detail

  Product Information

• Product Name: ZMHB-WS-8KL
• Art No.  JYV00022
• Operating voltage: 12V/24V
• Fixing dimension: 85mm.
• Scale Part: 0-4/4
• Description: Magnet Movement gauge
• Weight: 100g/each one pcs
• Resistance output: 0-8000rpm
• Bezels with black, white plastic and stainless steel can be customized, and faceplate with white, black can be choosed.
• MOQ : 50~100pcs. In the beginning, we can suppose you order small quantity for your test."OEM" can be customized.
• Accessories: Installation Instructions;  Wires and resistance.

 Warranty Time:  Within one year after shipment, except for improper installation and operations by user.

 Product Features

1. Protection grade is IP67, the whole body is completely waterproof;
2. Excellent antifogging function;
3. 316 Stainless steel bezel with curved glass;
4. Convenient Installation by multi-pliug socket connecting way;
5. Red and yellow dual-color background light can be choosed;
6. The moving magnet gauge need to connect to extra resistors for 8V-16V working voltage.
