Nurse call system K-F2-H installed on each patient bed and room light with 3 color to show and alert for nurse from outside

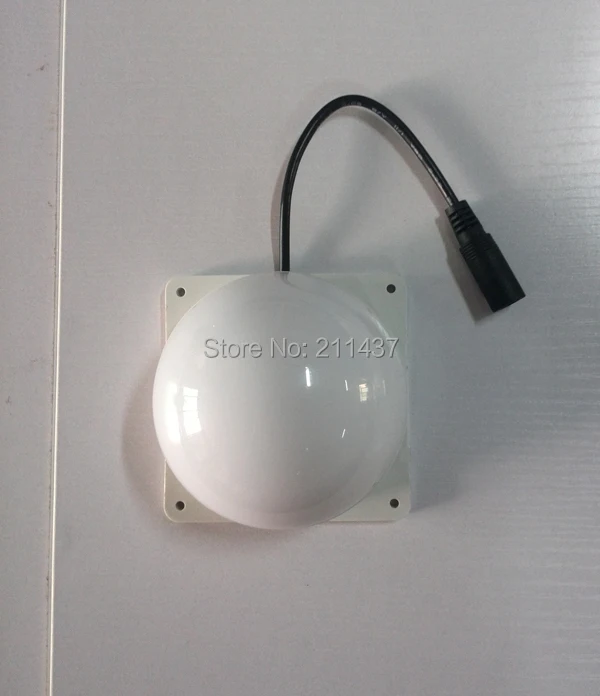

Corridor lights K-3L usually installed on the top of sickroom door. When somone call from sickroom, the corridor light will keep on till it be cancelled . The passer(nurse) from outside will  know have patient need help from this sickroom . Corridor light K-3L has 3 colors to show different serivce type.

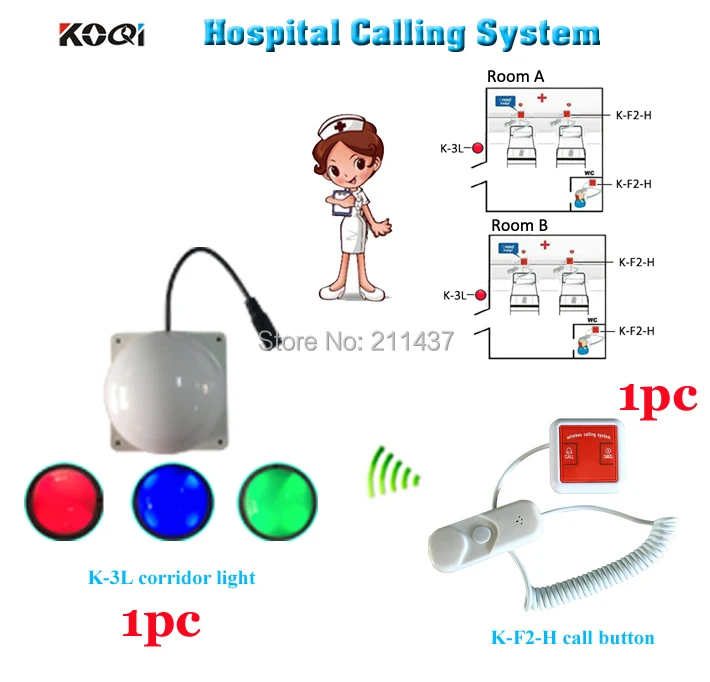

Nurse call system package included:

1*Wireless call receiver K-3L with separate output power supply

1*Wireless call button K-F2-H

1. With 3 color: Red, Blue, Green and DI-DI sound at the same time.
2. Different color for different service type or service area.
3. It can work with 30 transmitter in max.
4. With separate output power supply.
5. Dimension: 78*78*60mm

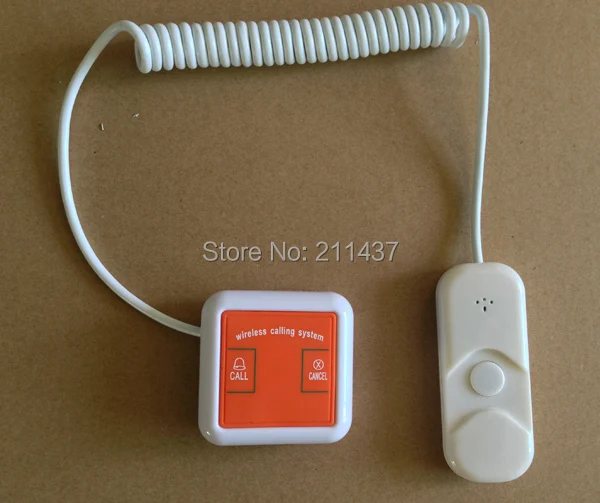

The Specification of call button K-F2-H:

1.100%  Water-proof

2. Work with our receiver to combined the wireless calling system

3. Can be installed on each sickroom, when the patient need help only press the button,

the corridor light will will keep on till it be cancelled,The nurse from outside will  know have patient need help from this sickroom.

4.Multi-key: Call;Cancel;Call from cord

5. Material: PC

6. Color:white case + orange button

Technical Parameter:

Working voltage: DC12V

Working current: ≤35mA

Use Frequency: 315MHz±75k

Transmitted Power: ≤20mW

Transmitted Distance>300m in open area

Dimension : 60*60*20mm

Any language any LOGO acceptable

FAQ

Applications

Wireless calling system can be used in restaurants, hotels, hospitals, tea house, coffee shops, health clubs, beauty salon, spa center, bars, swimming pool, beach, etc

What are the components of the wireless calling system?

1. Wireless receiver, Corridor lights usually installed on the top of sickroom door .

2. Call button, installed on each patient bed

3. Signal repeater (optional), enhance the signal

How does the system works?

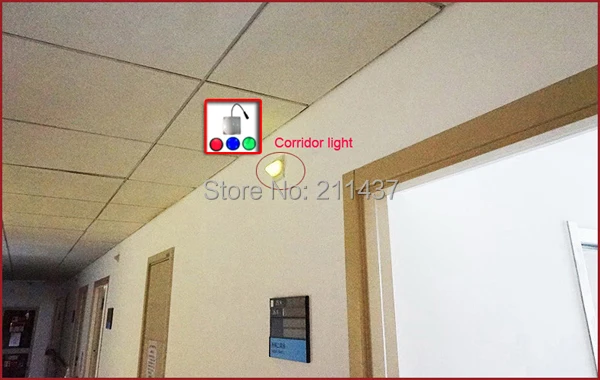

Corridor lights K-3L usually installed on the top of sickroom door. When somone call from sickroom, the corridor light will keep on till it be cancelled . The passer(nurse) from outside will  know have patient need help from this sickroom . Corridor light K-3L has 3 colors to show different serivce type.

Nurse call system more picture :

If you need any Hotsale Nurse call system . pls feel free to contact me.

I will offer best price for you.
