    Характеристики

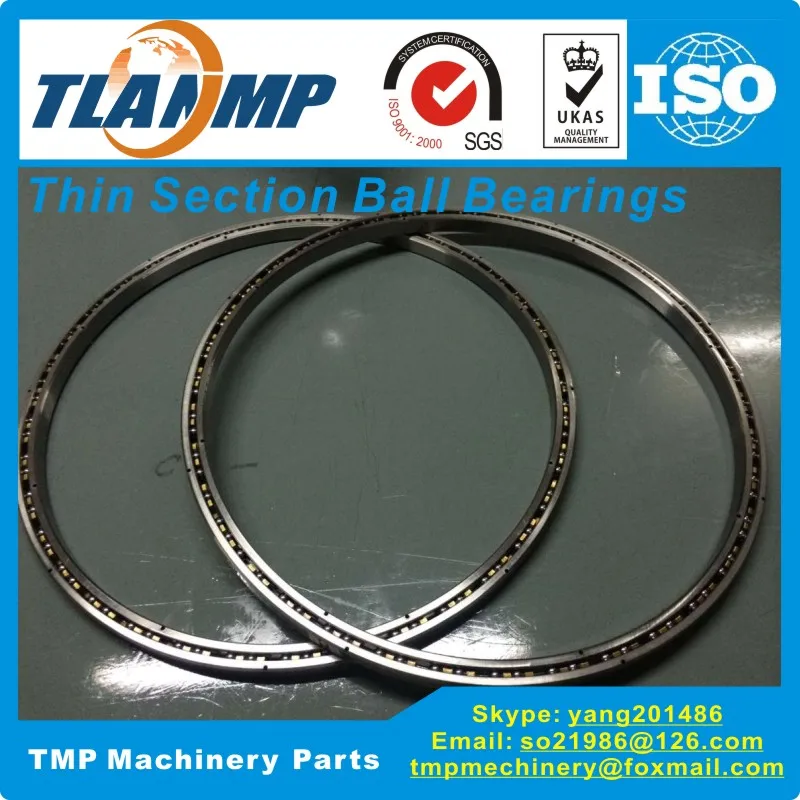

    KA025AR0/KA025CP0/KA025XP0 Reail-silm Thin-section bearings (2.5x3x0.25 in)(63.5x76.2x6.35 mm)     Robotic Bearings
     A . Reail-silm Thin-section bearings Parameters
    Brand- TLANMP
    Structure- Angular Contact Ball/Deep Groove Ball/Four-Point Contact Ball
    Model number- KA025AR0/KA025CP0/KA025XP0
    Inner ring(in)- 2.5
    Outer ring(in)- 3
    Width(in)- 0.25
    Weight(lb)- 0.12
    Materials- Chrome steel/GCR15/Stainless steel
    Precision grade- P0
    Lubrication type- Oil
    Material(Ball)- Steel ball/Ceramic ball
    Number of Row- Single rows
    Section Type- Thin section
    Quality- High speed, Low noise and Long life

     B . KA025AR0/KA025CP0/KA025XP0 Reail-silm Thin-section bearings Specification Sheet
    Model
    Number     		Size(in) Land Diameters (in) Capacities in Pounds1 Weight
    in
    Pounds     		Limiting
    Speeds
    (RPM)     		Torque
    Max. No
    Load
    (in-oz)
    Bore Outside
    Diameter     		Land
    Dia. L1     		Land
    Dia. L2     		C'bore
    Dia. L3     		Radial Thrust Moment
    Static Dyn. Static Dyn. Static Dyn.
    KA025AR0 2.5 3 2.686 2.814 2.869 960 459 2780 1100 - - 0.12 - -
    KA025CP0 2.5 3 2.686 2.814 - 830 442 - - - - 0.13 - -
    KA025XP0 2.5 3 2.686 2.814 - 960 459 2780 1100 0 0 0.12 - -
    KA thin section ball bearing 1
     C . Type A-KA/Type C-KA/Type X-KA series Reail-silm Thin-section bearings Details

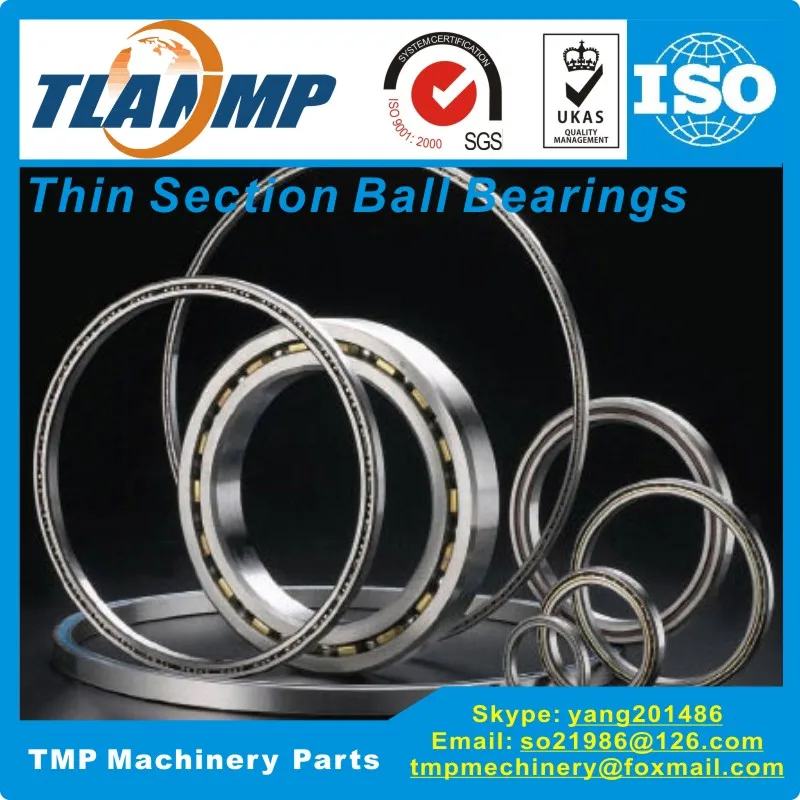

    Product Features

    To support various load scenarios,Reail-SlIM Thin section ball bearings are available in three basic

    types: radial contact (type C), angular contact (type A), and fourpoint contact (type X) and in a variety

    of sizes ,or series (e.g., KA, KB, KC, etc.). Reail-SlIM Thin section ball bearings are available with

    various separator options to space the rolling elements uniformly and prevent contact between them.

    Applications

    Applications in Robotics, inspection equipment, satellites, cameras… anywhere precise positioning

    and lightweight designs are critical.

     C . Type A-KA/Type C-KA/Type X-KA series Reail-silm Thin-section bearings 3 types
    Type A-KA

    Open REALI-SLIM Bearing Selections Type A Angular Contact, Snapover assembly permits use of a onepiece

    circular pocket ring separator and greater ball complement. These bearings will accept radial load and

     single direction thrust load and are normally used in conjunction with another bearing of similar

    construction. Type A bearings require the application of thrust to establish contact angle.

    Type C-KA

    A Conrad assembled bearing designed primarily for application of radial load—deep ball grooves also

    permit application of thrust load in
    either direction – often used in conjunction with another bearing.

    Type X-KA

    Standard bearing lines are most often designed to handle either radial or axial load conditions. The

     unique feature about the  REALI-SLIM Type X four-point contact bearing line is that the gothic arch

    geometry of the inner and outer races enables a single bearing to carry three types of
    loading (radial, axial and moment) simultaneously. This makes it the bearing of choice for many

    applicationssince a single fourpoint contact bearing can often replace two bearings, providing a simplified design.
    Type X bearings may also be furnished with an internal diametral preload for those applications requiring greater

    stiffness or zero free play. This is accomplished by using balls that are larger than the space provided in the raceways. The balls and raceways, therefore, have some elastic deformation in the absence of an external load

     C . Type A-KA/Type C-KA/Type X-KA series Reail-silm Thin-section bearings Model Number
    Type A-KA

    KA020AR0 KA025AR0 KA030AR0 KA035AR0 KA040AR0 KA042AR0 KA045AR0 KA047AR0 KA050AR0

    KA055AR0 KA060AR0 KA065AR0 KA070AR0 KA075AR0 KA080AR0 KA090AR0 KA100AR0 KA110AR0 KA120AR0

    Type C-KA

    KA020CP0.KA025CP0.KA030CP0.KA035CP0.KA040CP0.KA042CP0.KA045CP0.KA047CP0.KA050CP0.KA055CP0.

    KA060CP0.KA065CP0.KA070CP0.KA075CP0.KA080CP0.KA090CP0 .KA100CP0.KA110CP0.KA120CP0

    Type X-KA

    KA020XP0,KA025XP0,KA030XP0,KA035XP0,KA040XP0,KA042XP0,KA045XP0,KA047XP0,KA050XP0,KA055XP0,

    KA060XP0,KA065XP0,KA070XP0,KA075XP0,KA080XP0,KA090XP0,KA100XP0,KA110XP0,KA120XP0

        TMP Bearrings, Crossed roller bearing , Thin section bearing , Turntable bearing , Roller Bearing ,Bearing ,Slewing bearing ,Robotic bearing ,Rotary Table Bearing , YRT Rotary Table Bearing ,Angular Contact Ball Bearing,Thin section ball bearing    Company Information

          TMP Machinery Parts Co.,Ltd  (TLANMP) is a professional manufacturer of high precision bearings and other equipment,The main products  are Thin Section Bearings, Crossed roller bearings, Rotary Table Bearings, Tapered Roller Bearings, Angular Contact Ball Bearings, Slewing Bearings, Sports equipment accessories etc,Our products are used for Robotics, CNC Machine Tools, You can find all you need in our store, all the bearings and parts here is made in China and can replace with imported parts .
