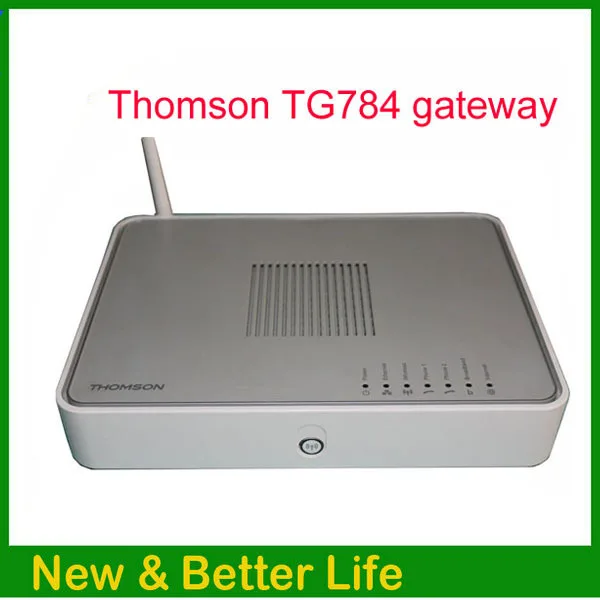

Free Shipping! Unlocked THOMSON TG784 ADSL2 Modem VOIP WIFI Router Voice gateway

Notice: This modem is refurbishment,90% new!But working fine! If you need 100% new,pls don't order!Thanks for your time!

Best in Class Service Platform

The THOMSON TG784 is a triple-play Service Gateway providing VoIP and Home Networking Connectivity via LAN,WAN and Wi-Fi.The THOMSON TG784 can be used in different deployment models, as it can handle multiple access technologies viathe ADSL2+ interface or ETH WAN uplink port.This service platform offers next to 4 Ethernet ports, also an additional 802.11b/g wireless LAN interface. This ADSL2+ Gateway is backwards compatible with ADSL offering autonegotiation capability.

More Bandwidth to the Home

This unique product has an extra WAN Ethernet port with auto-WAN function to connect to any PON or WiMAX Network Terminator for Fiber or WiMAX solutions.The auto-WAN function ensures automatic detection of the WAN switch and will immediately activate the existing WAN profile, such as firewall enabling, intruision detection...

Features in a Glance

- Wireless networking on-board: 11b/g

- ADSL2+ with integrated modem

- 1 FXO analogue port

- 2 FXS ports for phone and/or fax

- 4 Ethernet ports to connect multiple devices, such as PCs,laptops, set top boxes...

- 1 Ethernet WAN 10/100 BaseT port

- 1 USB 2.0 master for hard disk, printer, DECT dongle...

- Home entertainment ready

- Media sharing

- UPnP A/V

- Remotely manageable - TR-069, TR-104, TR-098, TR-111

- Built-in firewall

- Optional integrated filter

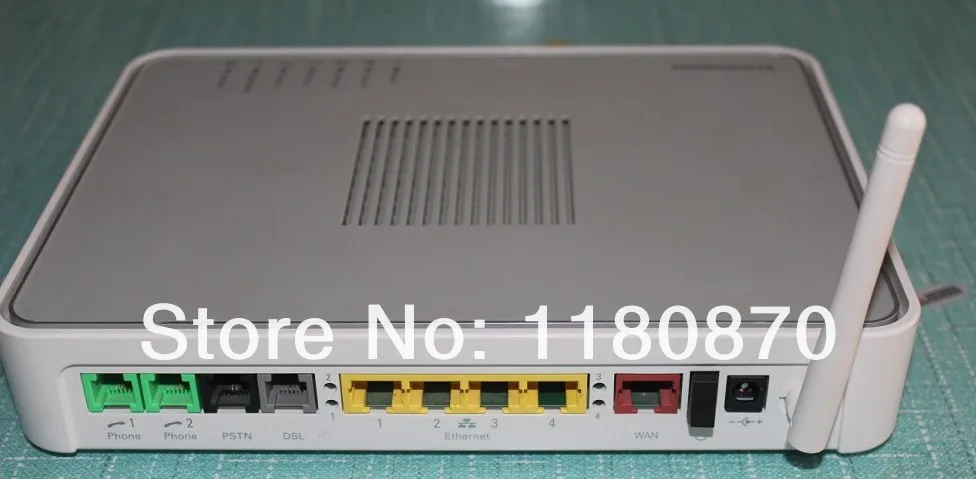

|Hardware Specifications

Interfaces

WAN

• RJ11 DSL line port

• Optional ISDN (Annex B)

• Full FXO

• Ethernet WAN 10/100 BaseT LAN

• 4-port autosensing 10/100Base-T auto-MDI/MDI-X Ethernet switch

• 2 FXS POTS interfaces

• 1 USB 2.0 master

• Wi-Fi IEEE 802.11b/g on board

Extras

Restore factory defaults button

WLAN registration button (WPS)

Dimensions (h x d x w)

41 x 167 x 223 mm (1.6 x 6.6 x 8.8 in.)

AC Voltage

100-240 VAC (switched mode power supply)

Temperature

0° - 40° C (32 - 104 F)

Humidity

20% to 80%

|DSL Modem Specifications

• Supports Multi Mode Standard

• ADSL compliance: ANSI T1.413 Issue 2, ITU-T G.992.1 Annex A, B (G.dmt), ITU-T G.992.2 Annex A, B (G.lite), ITU-T G.994.1 (G.hs)

- Maximum Rate: 8 Mbps for downstream and 1 Mbps for upstream

• ADSL2 compliance: ITU-T G.992.3 Annex A, B, L, M (G.dmt.bis), ITU-T G.992.4 Annex A, B, L,M (G.lite.bis)

- Maximum Rate: 12 Mbps for downstream and 1.5 Mbps for upstream

• ADSL2+ compliance: ITU-T G.992.5 Annex A, B, M

- Maximum Rate: 24 Mbps for downstream and 3 Mbps upstream

• Supports dying gasp

|Firewall Security

• Firewall with Stateful Packet Inspection

• Protection of Denial of Service (DoS) such as SYN Flood, Ping of Death, Fraggle, LAND,Teardrop, etc.

• Content filtering: URL blocking

• IP and generic packet filtering, based on IP address/port number/protocol type

• Real-time attack alert and logging

Management

• User Friendly GUI via HTTP and HTTPS

• (Wireless) Home Network Install Wizard

• Embedded web-based easy installation (OS independent)

• On demand Remote Management

• TR-69 Remote Manageable

• TR-104 Voice Provisioning

• TR-98 Queue Management

• TR-111 Home Network Device Management

Services

• Printer sharing

• Content sharing (UPnP A/V + SMB)

• Webcam control and display

• Secure Remote File Acess

• PC-less Peer-2-Peer

• Personal Web Gallery

• Shared HD with Access Rights

• Gateway Secured Storage

• Central PVR

• DECT dongle support

• SIP server

Wireless Performance and Security

• Wi-Fi CERTIFIED* 802.11b/g access point

- data rates up to 54Mb/s

• Wi-Fi Multimedia - WMMTM (802.11i)

• Supports 802.1x/ PSK WPATM

• WPATM-Personal / WPA2TM-Personal (802.11i)

• Supports wireless repeater function to extend the coverage area

• Dynamic rate switching for optimal wireless data rates up to 54 Mb/s

• Manual/auto radio channel selection

• Manual/auto selection of pure 802.11g/mixed mode (802.11b/g) network

• Wireless Distribution System (WDS)

• 64/128bit WEP encryption

• Wireless client MAC or hardware address-based access control (with physical registration button)

Enabling Technologies

• Qos: ATM, Ethernet, Wi-Fi, IP

• FLEXIBundLE

• Hyper-Nat

• «SIM-lock»

• Virtual bridges - portmapping

• Flexiport

• Smart DHCP, DNS

• IGMPv3 proxy (Fastleave)

• IGMP snooping

• VLAN bridging - tagging

• Auto WAN detect

Voice over IP Features

Voice Functionality

• Signalling: SIP, MGCP, H.323(O)

• Codecs: G.711, G.723, G.726, G.729, Wideband (G.722), T.38

• Flexible Telephone number per FXS and DECT Handsets, including Common Numbers

• Interop with main market softswitches

FXO

• Dial map for PSTN/VoIP outgoing calls

• Prefix for PSTN/VoIP switch

• Lifeline backup: manual and automatic PSTN / VoIP

• Incoming call detection on PSTN

Supplementary and Advanced Services

• Call waiting (on call basis)

• Caller Identification

• Call forwarding (No answer/Busy/Unconditional)

• Call transferring

• CLIP (Calling Line Identification Presentation)

• CLIR (Calling Line Identification Restriction)

• Fax transparency

• 3-way conference

• MWI (Message Waiting Indicator)

• Missed call e-mail

• Click to dial

• Warm line

• Call Completion to Busy Subscriber

• Forced FXO

• Abbreviated number

• Common DECT number

• Common number in/outgoing Call
