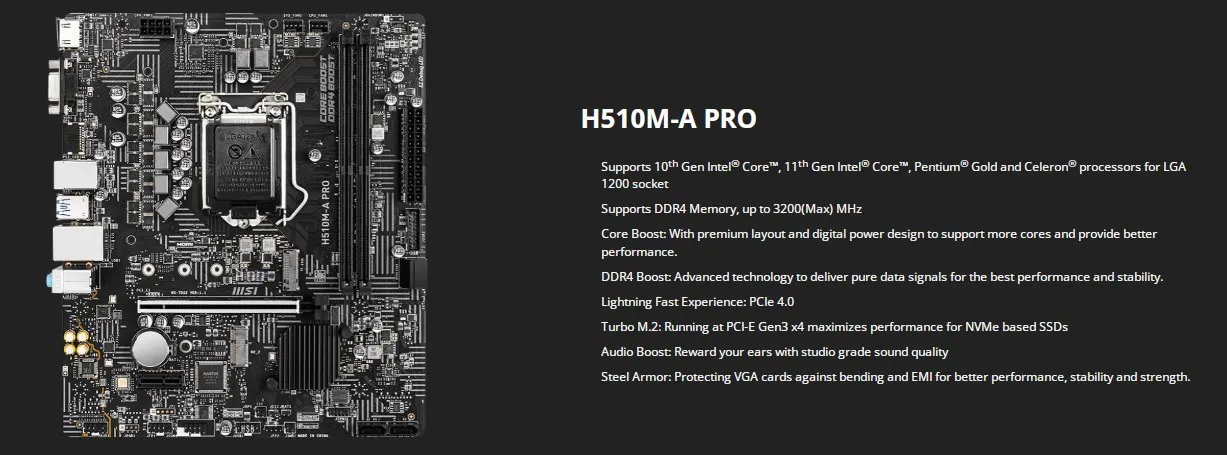

Материнская плата MSI H510M-A PRO с LGA 1200 использует чип Intel H510 поддерживает процессор

Характеристики

Описание

motherboard chip

Integrated chip sound card/network card

Main Chipset Intel H510

Chipset Description Using Intel H510 Chipset

Display chip CPU built-in display chip (requires CPU support)

Audio chip Integrated Realtek ALC897 7.1 channel sound chip

Network card chip Onboard Intel I219V Gigabit network card

Processor Specifications

CPU type 11th generation/10th generation Core/Pentium/Celeron

CPU socket LGA 1200

Memory Specifications

Memory type 2×DDR4 DIMM

Maximum memory capacity 64GB

Memory description Support dual-channel DDR4 3200/3000/2933/2800/2666/2400/2133MHz memory

Supports ECC UDIMM memory modules (operating in non-ECC mode)

Support Intel Extreme Memory Profile (XMP) 2.0 technology

storage expansion

PCI-E Standard PCI-E 4.0

PCI-E X16 slot 1

PCI-E X1 slot 1

Storage interface 1×M.2 interface, 4×SATA III interface

I/O interface

USB interface 4×USB3.2 Gen1 interface

6×USB2.0 interface

Video interface 1 × VGA interface, 1 × HDMI interface

Power connector One 8-pin, one 24-pin power connector

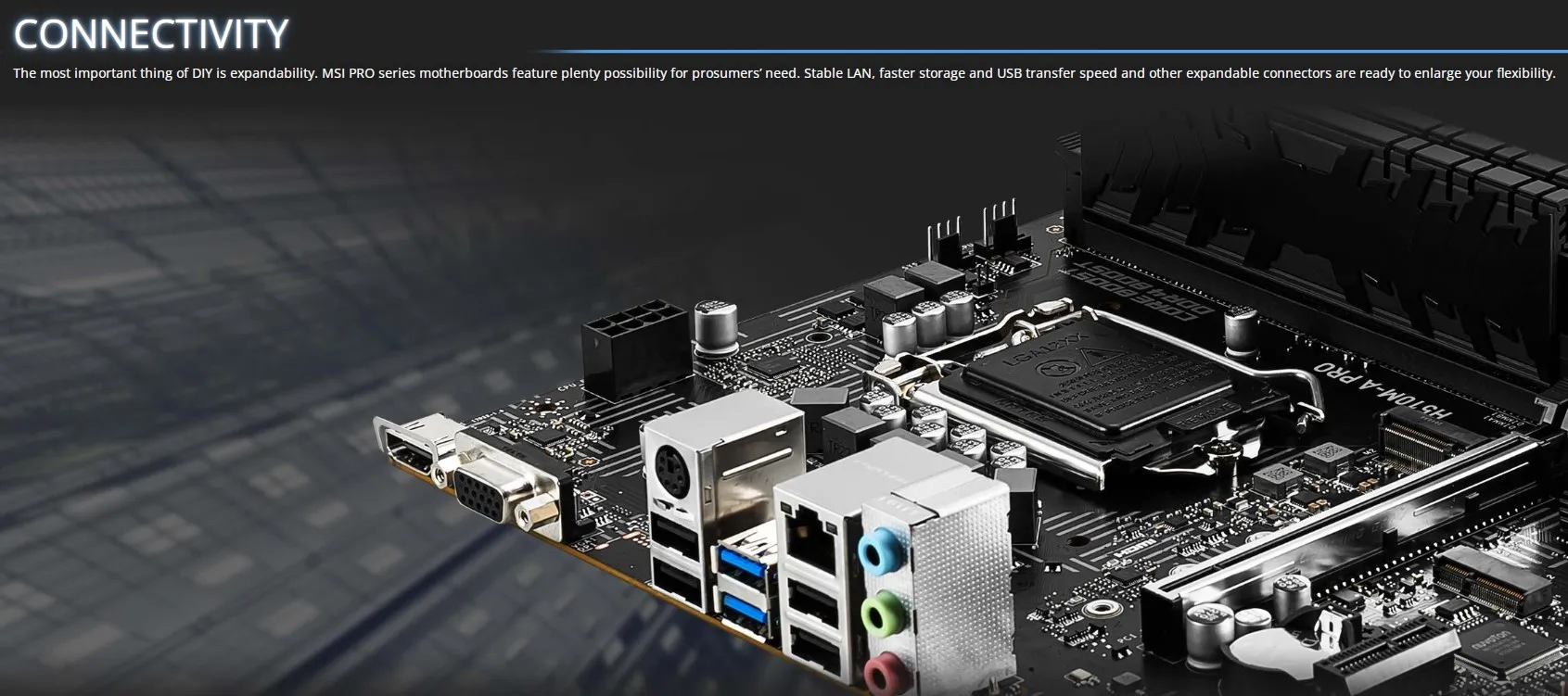

Other interfaces: 1 x PS/2 keyboard and mouse general interface, 1 x RJ45 network interface, 3 x audio interface

plate type

Mainboard form factor Micro ATX form factor

Dimensions 23.6×20.2cm
