☆ DESCRIPTION

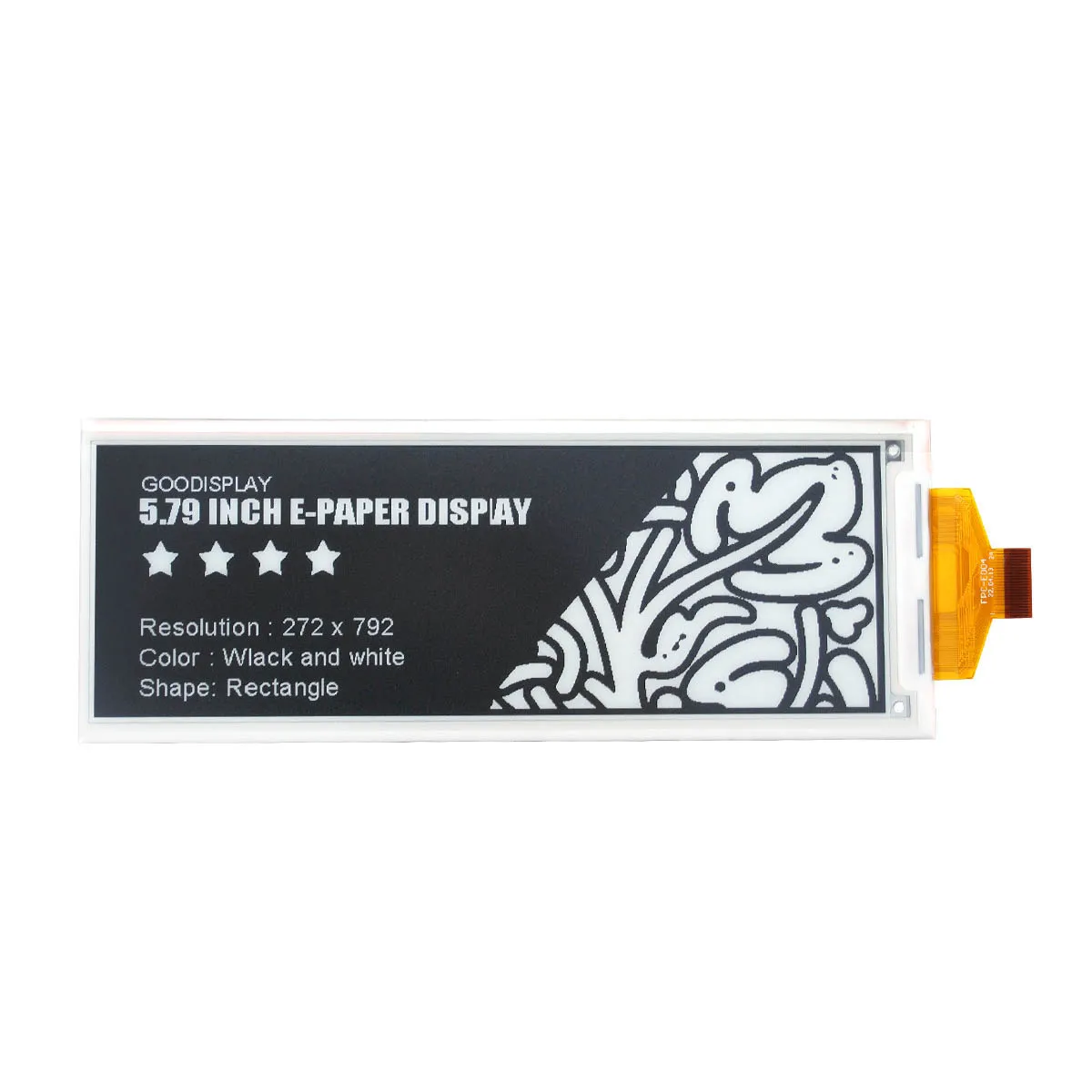

This is a set of epaper display module consist of 5.79 inch eink EPD epaper and its connector board DESPI-C579, 792x272 resolution, SPI interface, and the electronic paper screen is capable to display images with black and white content. Once these e-ink display modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. Your image holds indefinitely without power – put up your image, then shut down the power.
This 5.79 inch e-ink display GDEY0579T93 is perfect for low power devices powered by solar or batteries, or the products that require slow updates or semi-static content such as digital price tags, electronic shelf labels or signage.
Use our free e-paper software to prepare your bitmap image for this display, we could provide sample code and datasheet: www.good-display.com/product/439
☆ PACKAGE
1) 5.79 Inch E-Paper Screen 792x272 Raspberry Pi SPI Eink Display * 1pc
2) FPC Connector * 1pc
3) Epaper HAT connectiron adapter board * 1pc
| + |
| + |
|
☆ MAIN PARAMETER
PART NUMBER: GDEY0579T93
SIZE: 5.79inch
TYPE: Dot Matrix
IC: SSD1683
RESOLUTION: 792x272

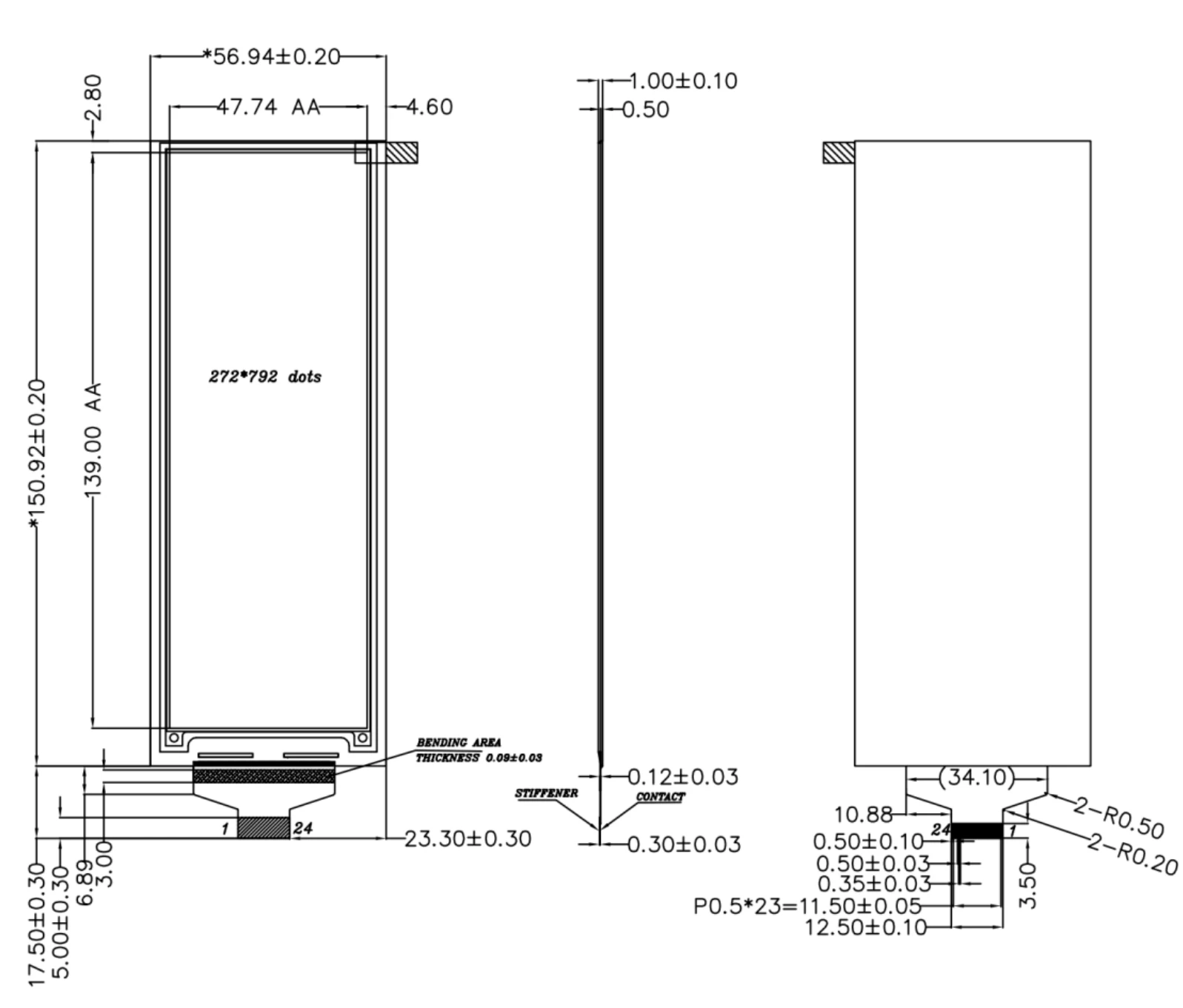

OUTLINE SIZE(mm):150.92x56.94x1.0
ACTIVE SIZE(mm): 139.00×47.74
PIXEL PITCH(mm): 0.1755×0.1755
OPERATING TEMP.: 0℃~50℃
STORAGE TEMP.: -25℃~70℃

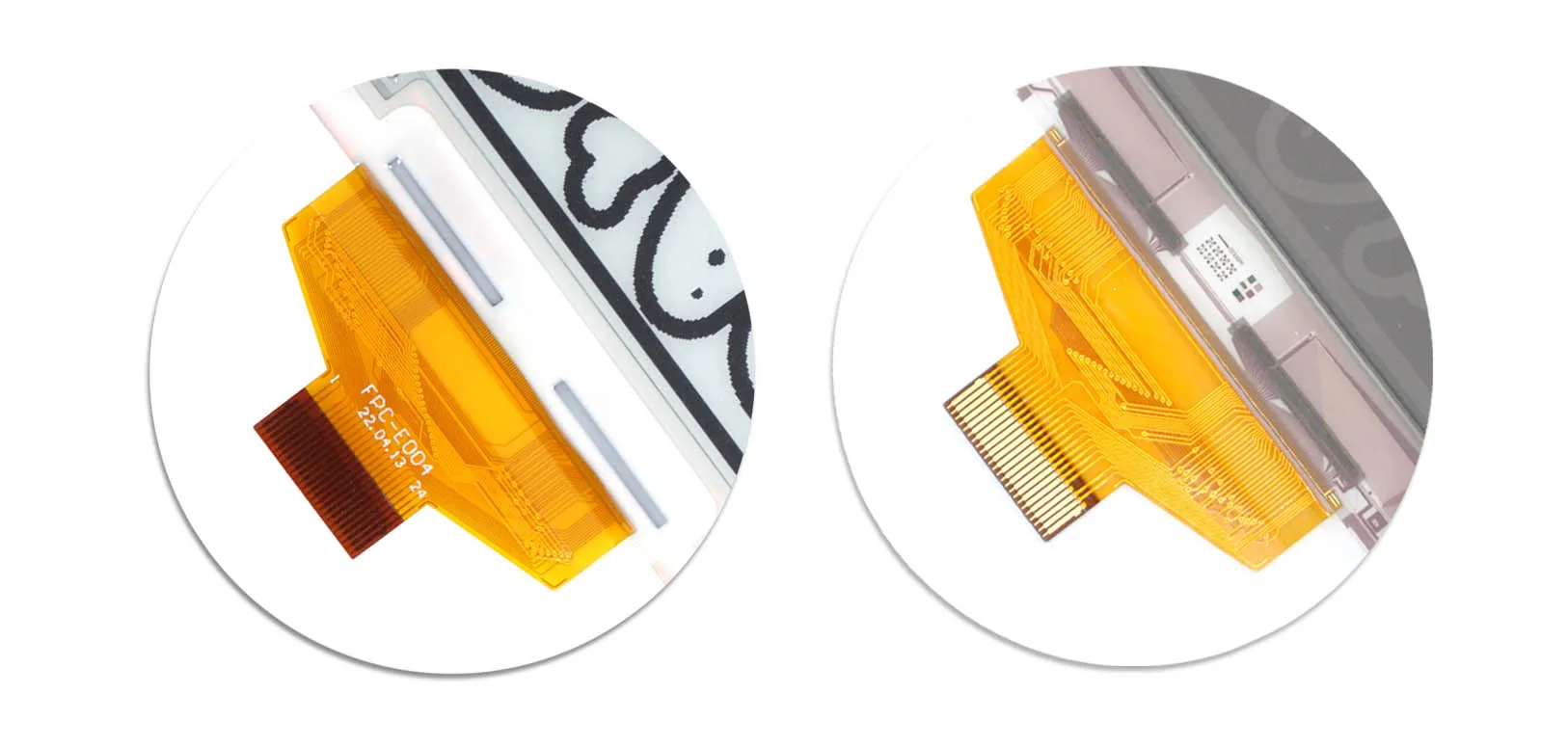

CONNECTOR: 24 Pin FPC
COLOR: Black, white
INTERFACE: SPI
FULL REFRESH(s): 3
PARTIAL REFRESH(s): 0.42
FAST REFRESH(s): 2
POWER CONSUMPTION OF THE REFRESH(mW): 21
STANDBY POWER CONSUMPTION(mW): 0.0165

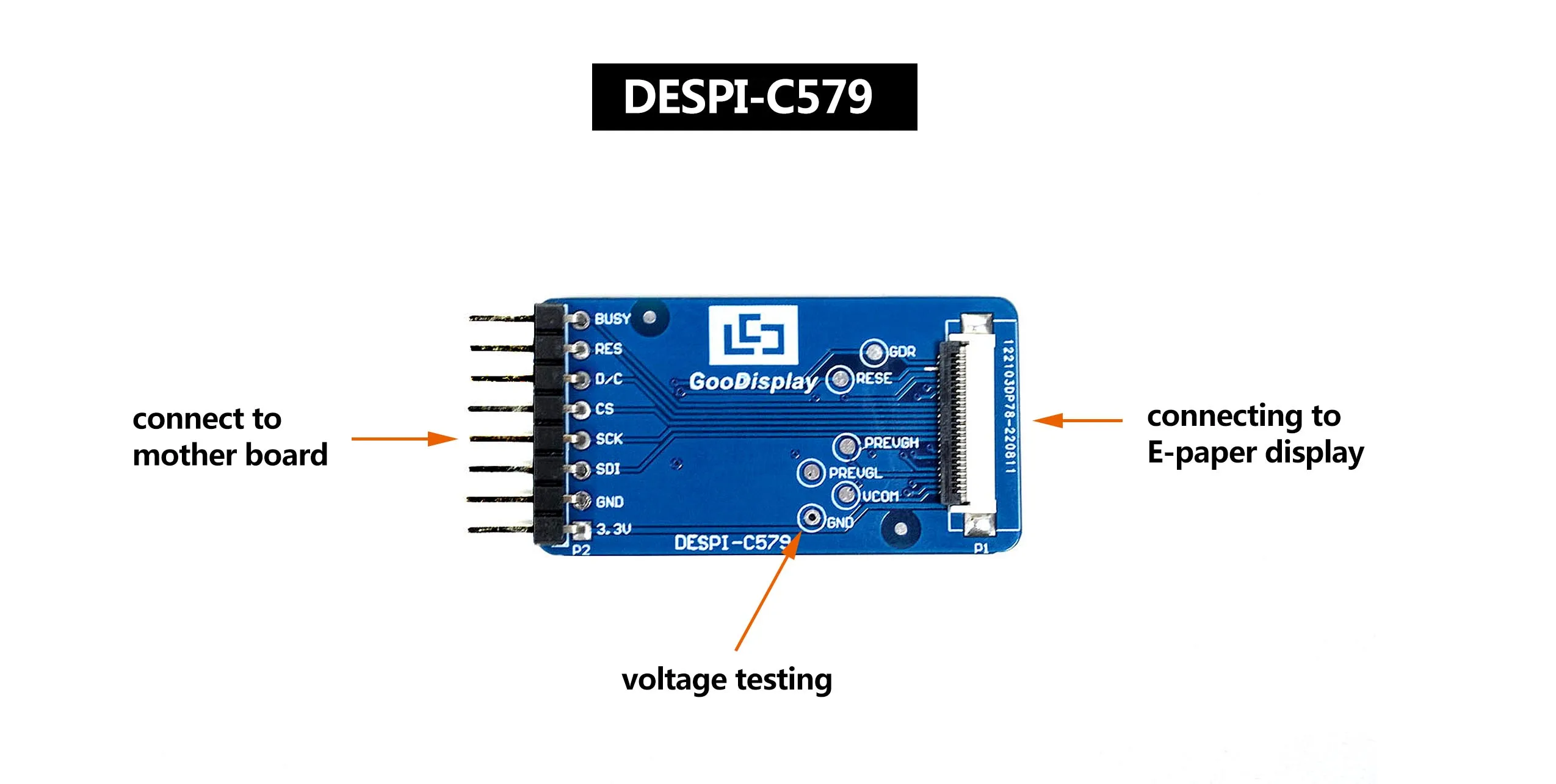

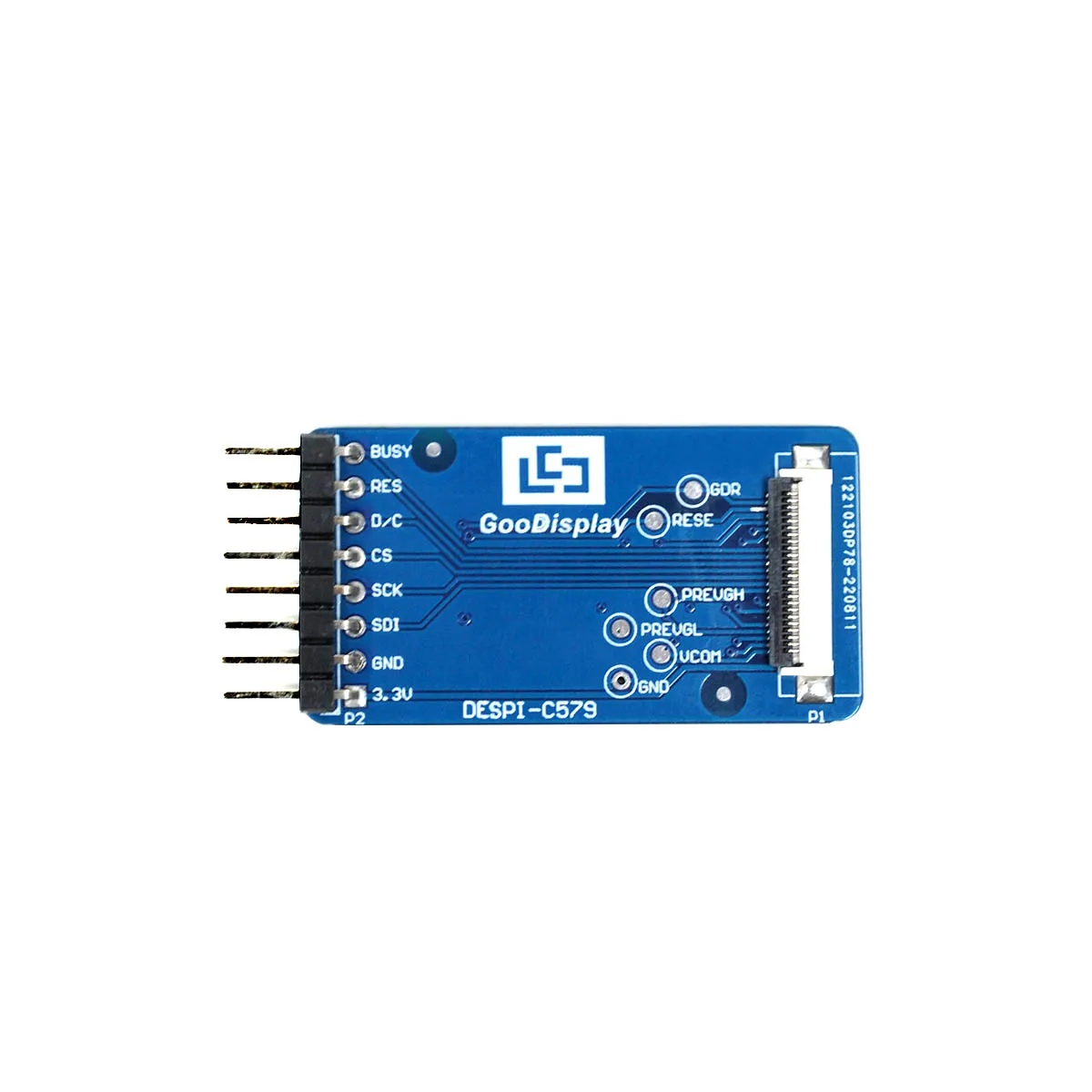

PART NUMBER: DESPI-C579
FUNCTION: Connecting driving borad and 5.79 inch e-paper display
OUTSIDE DIMENSION: 41x22mm
POWER INPUT: DC3.3V
OPERATING TEMP.: -20℃~70℃
☆ FEATURE
● Support fast refresh
● Black and white monochrome is easy to read

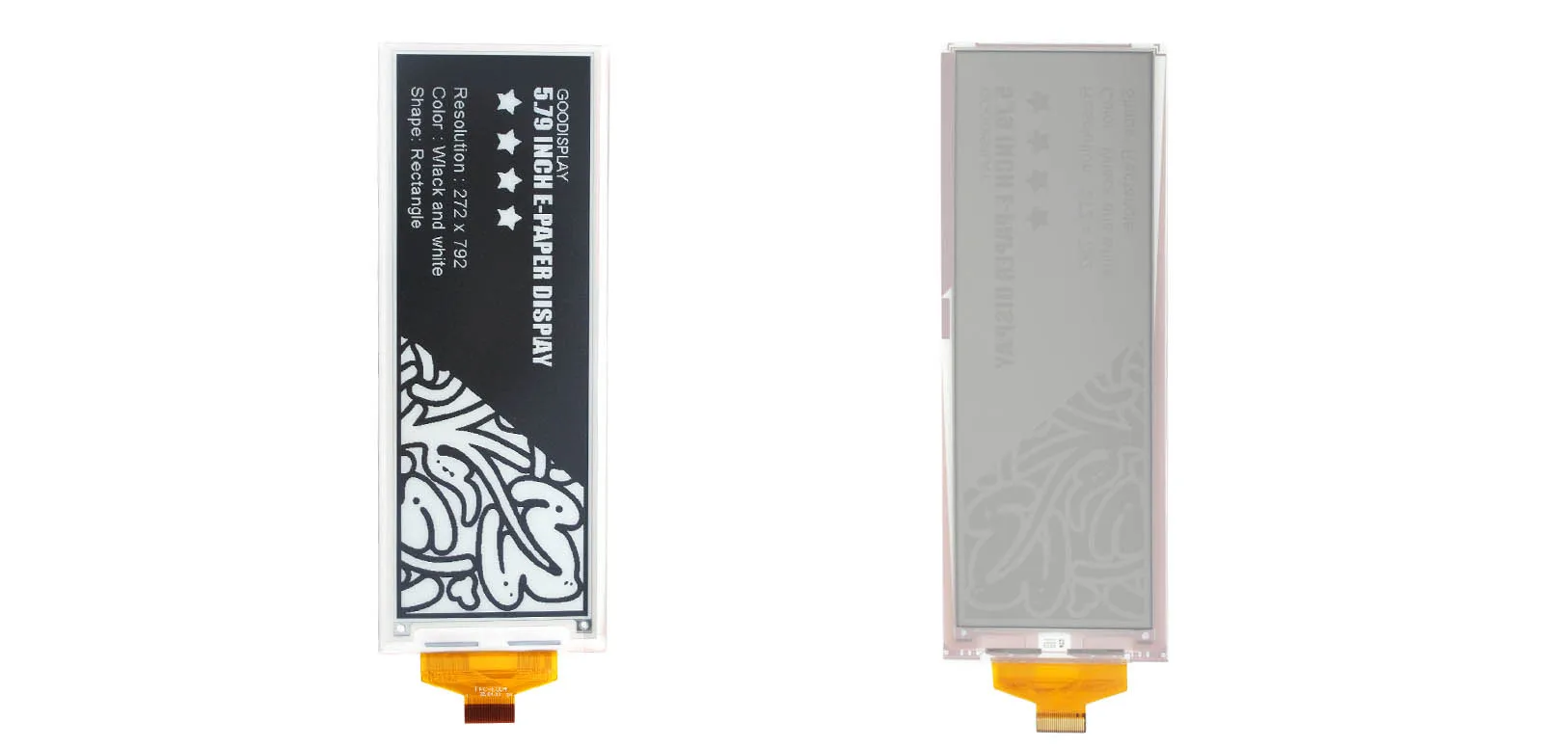

● Versatile. Use in portrait or landscape format.
● Bistable. (Will continue to display with no power source)
● Support partial refresh. The partial refresh rate is 0.42s/frame
