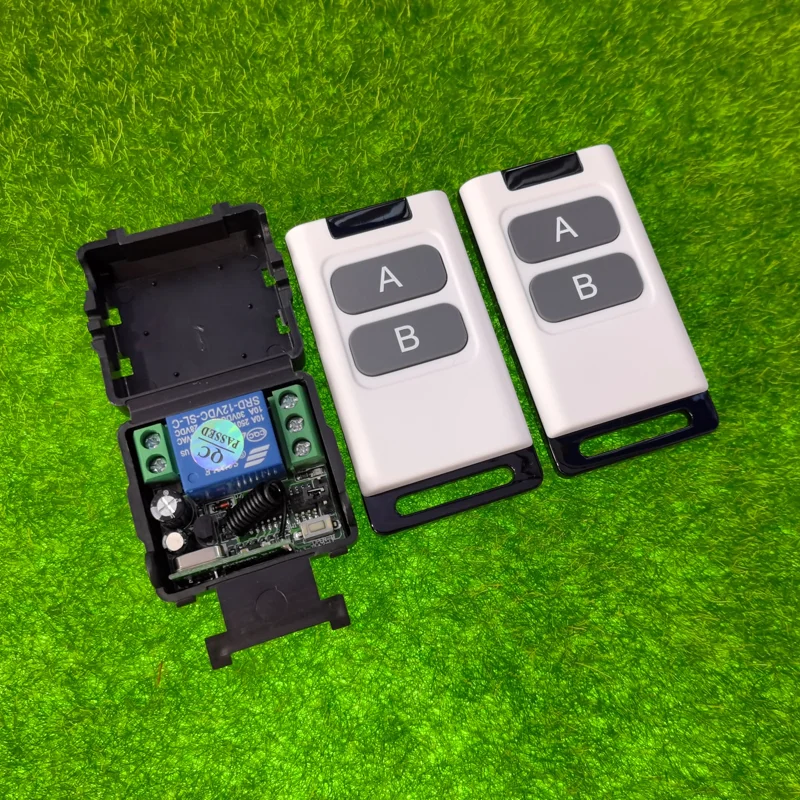

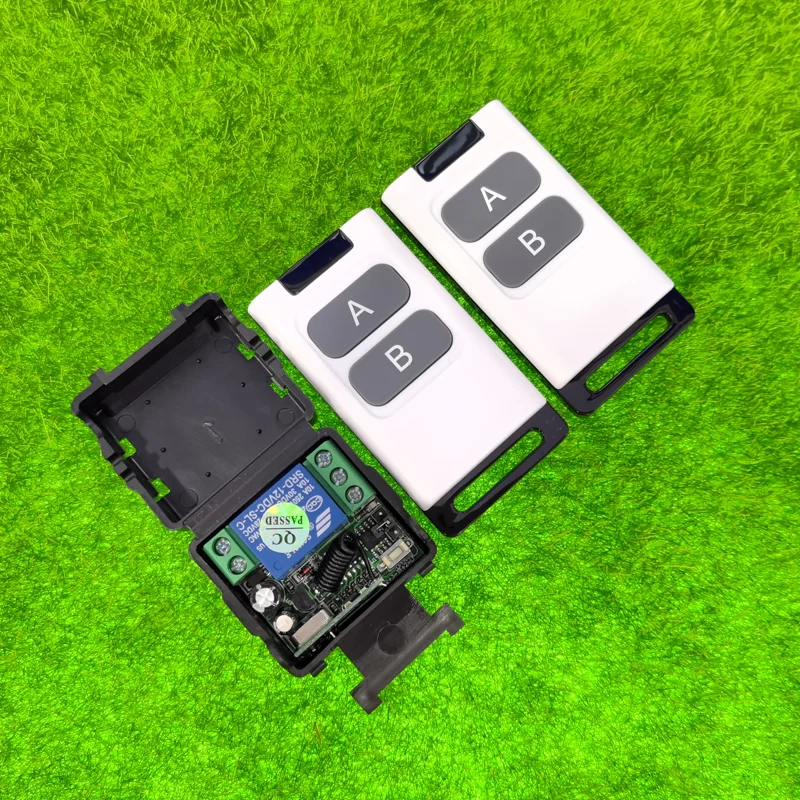

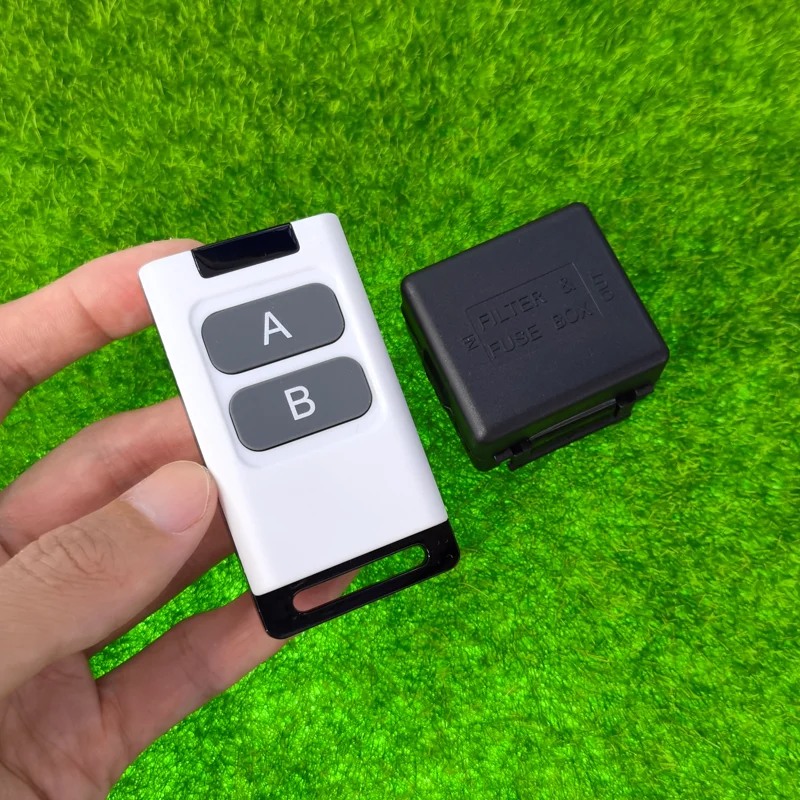

Free shipping DC 12V 1 CH RF Wireless Remote Control Switch System,315/433 MHZ Receiver And Transmitter ( include battery)

Specifications:

Operating Voltage:DC12V

Operating Current:≤ 6Ma

Operating Frequency:315,433 MHz

Operating Temperature:-40°C ~ +80°C

Receiver Sensitivity:≥-105dBm

Output Voltage:AC / DC (optional)

Output Current:≤ 10A

Code :Learning code .(jog/Non-Latched .inter-lock/Latched .self-lock /Self Latched )

Size: 35MM*32MM*17MM

Output working way:

Jog/Non-Latched: press one button is working /ON. loosen your finger on the same button is stop/OFF .one channel switch need one buttons remote control

Self -lock/Self-Latched: press one button for one time is working/ON .press the same button again is stop/OFF .(one channel switch need one buttons remote control

Inter-lock /Latched : press one button is working/ON ,press another button is stop/OFF . ( one channel switchneed 2 buttons remote control )

Remove code:

press the learning button about 8 seconds , the indicator turn on to off to on , it means the information that you keep have been removed successfully .

Package Include:

A:

1x Receiver(with cover)
