DTK Тайвань SFU3210 скрученный свинцовый C7 10 мм R32 шариковый винт 800 резьбовой вал

Характеристики

Описание

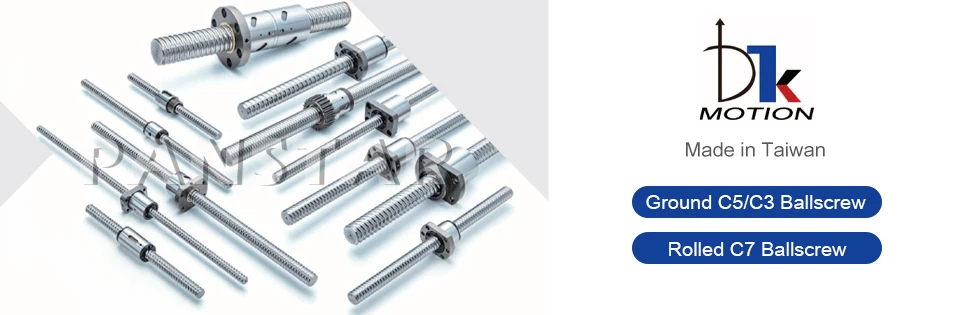

SFU series DTK MOTION Made in Taiwan

DTK Taiwan SFU3210 Rolled C7 Lead 10mm R32 Ball Screw 800mm Thread Shaft High Precision Flange CNC Replace TBI Spindles Panstar
● Delicated diameter of screw takes only little space.
● Suitable for conventional lead, the most traditional structure
● Suitable for non - high speed, non - heavy duty general purpose

Item List

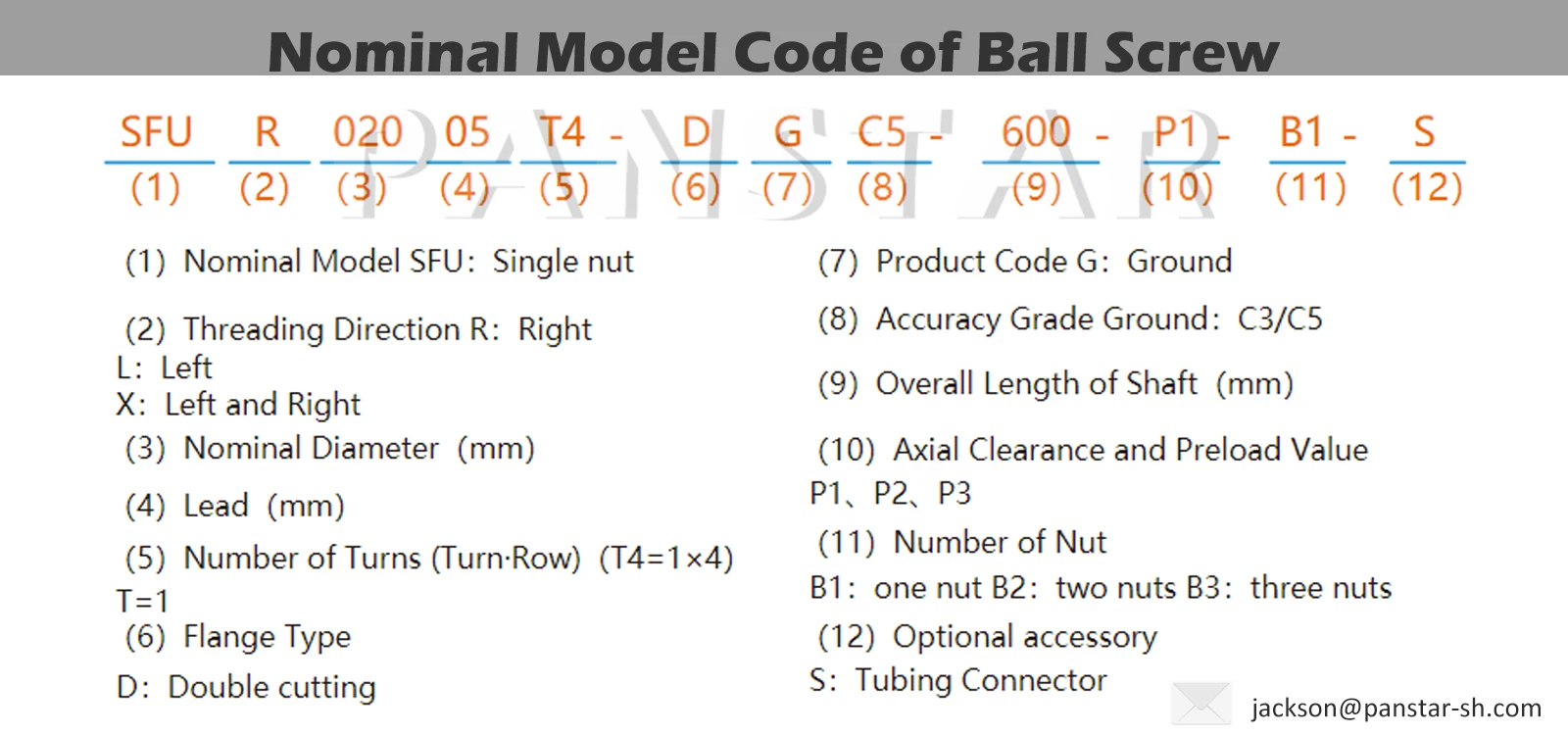

Model: (DTK)SFUR3210DFC7-800-P1

QTY: Screw x 1PCS + Nut x 1PCS = ONE SET
Accuracy: Rolled C7
Preload Value: P1

Manufacturer: DTK MOTION
Origin: 100% Made in Taiwan

Ballscrew End Machining

Contact us for end machining in Aliexpress or jackson@panstar-sh.com
We provide high standard end machining service according to your drawings, please contact us if you need.
It will takes10-12 business days to complete the machining, the inspection and adjustment.
