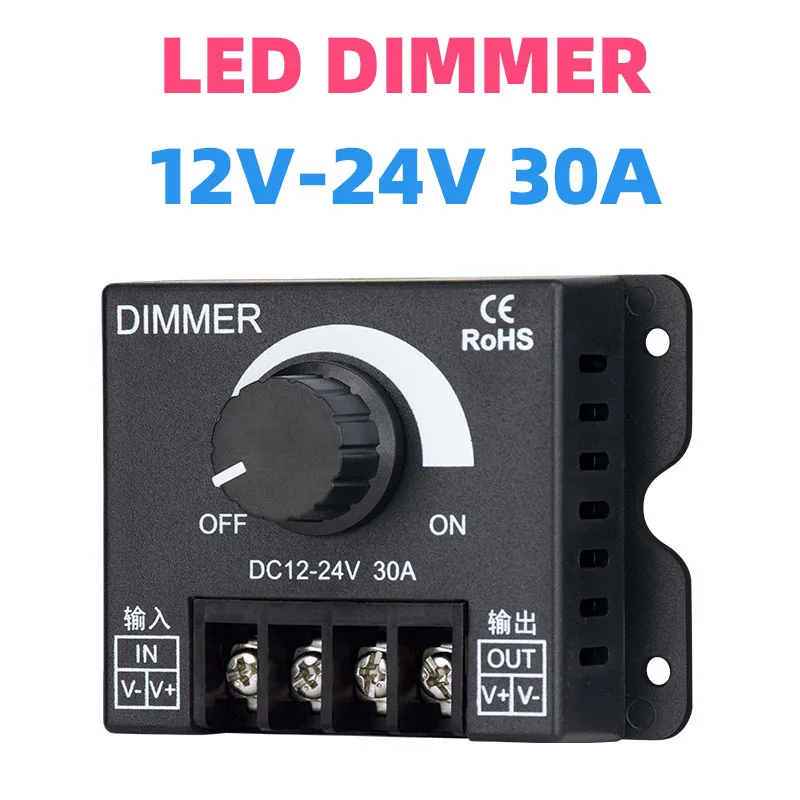

LED Dimmer Brightness Adjustment Control Knob Voltage Regulating Electrodeless Switch DC12v-24v 30a | Освещение

Характеристики

CHARACTERISTIC

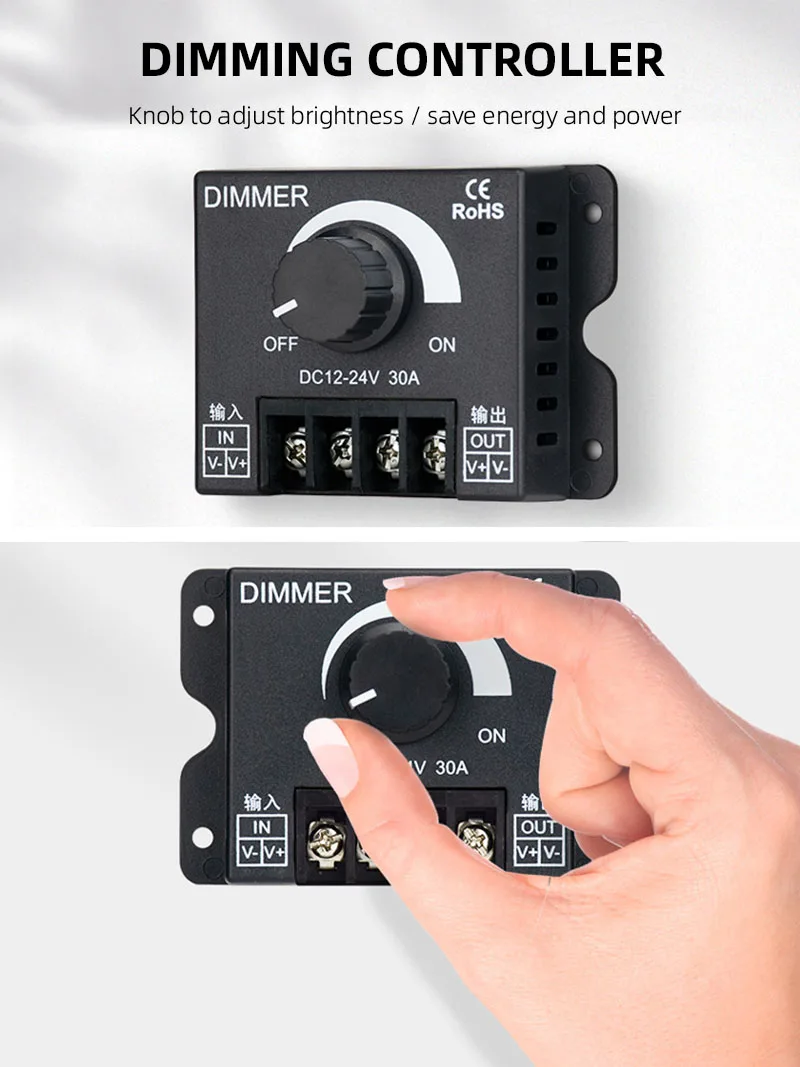

0 ~ 100% brightness adjustable. Adjust the light to be soft and stable without flicker.

PWM digital dimming to avoid impulse current and protect your led.

By controlling the voltage and current output, the brightness of the lamp can be changed.

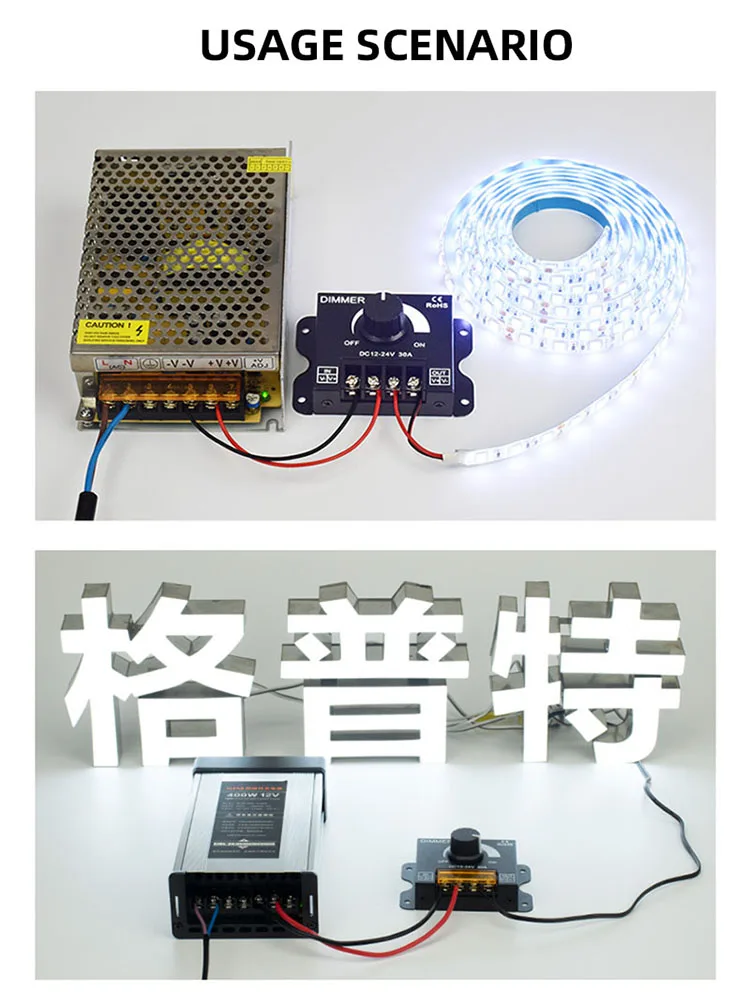

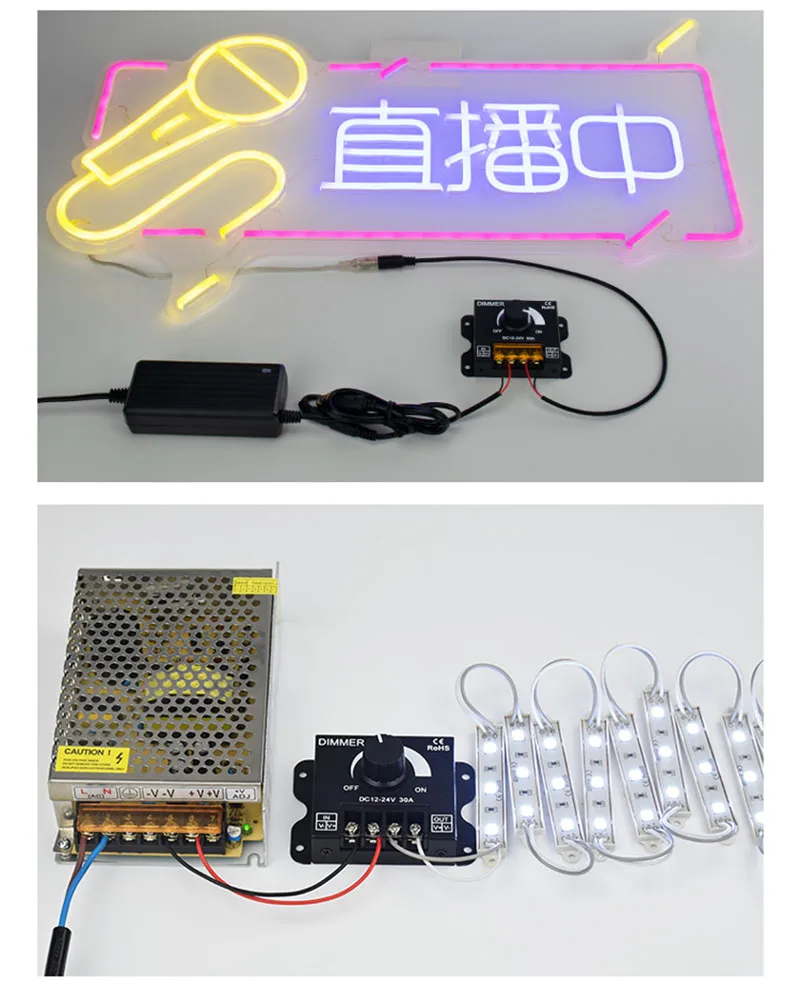

It is mainly used to adjust the single color LED lighting lamp / light bar. The single color 5050 3528 light bar. LED lamps not suitable for multi-color mixing (such as RGB lamp strip / lamp, table lamp, fan, energy-saving lamp, bulb, etc.)

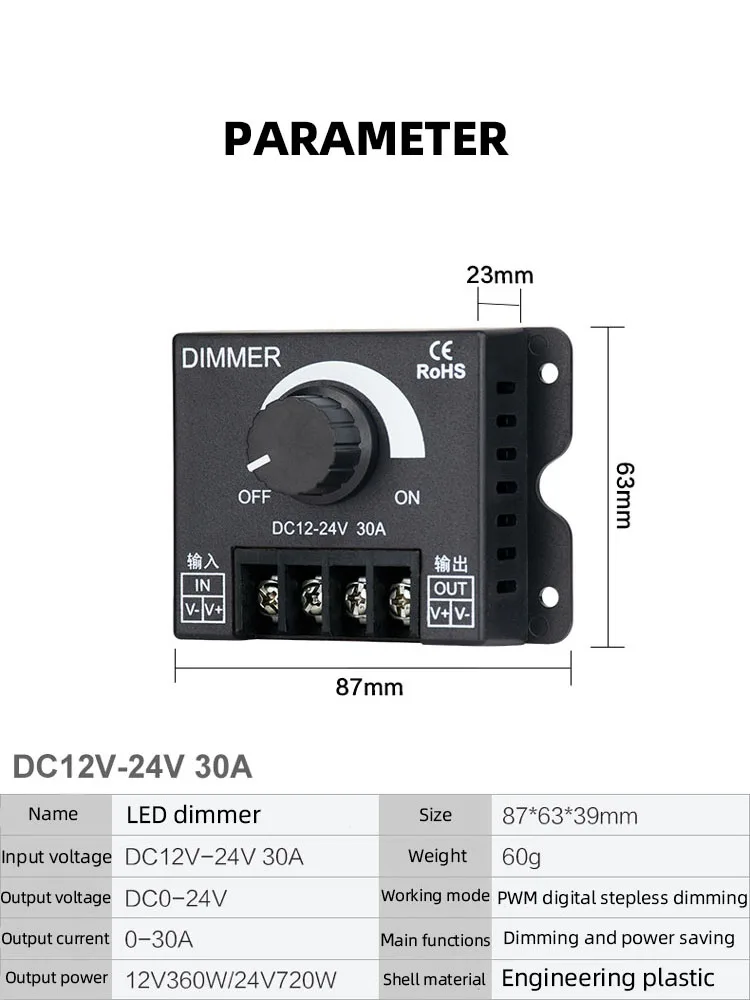

PARAMETER

Dimming range: 0-3% - 100% stepless dimming

Input voltage: DC 12-24V 30A

Input current: 0-30a less than 30A

Power: 12V 360W (W) 24V 720W, minimum power greater than 1W.

Operating temperature: - 20 ~ 60 ℃

Dimensions: 67mm (L) x 62mm (W) x 20mm (H)

Weight: 90g

Packaged product: 110g

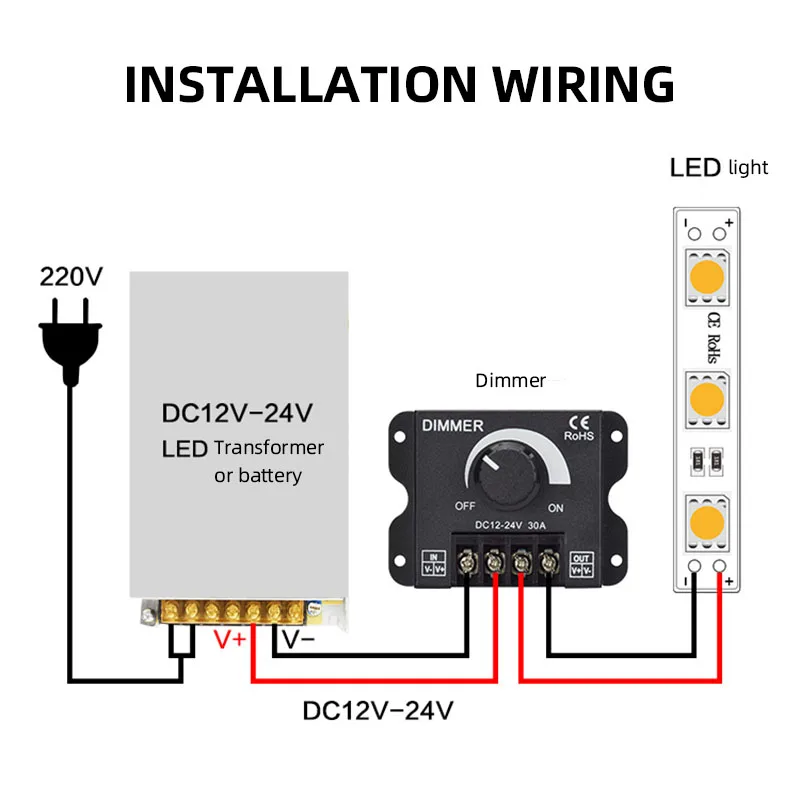

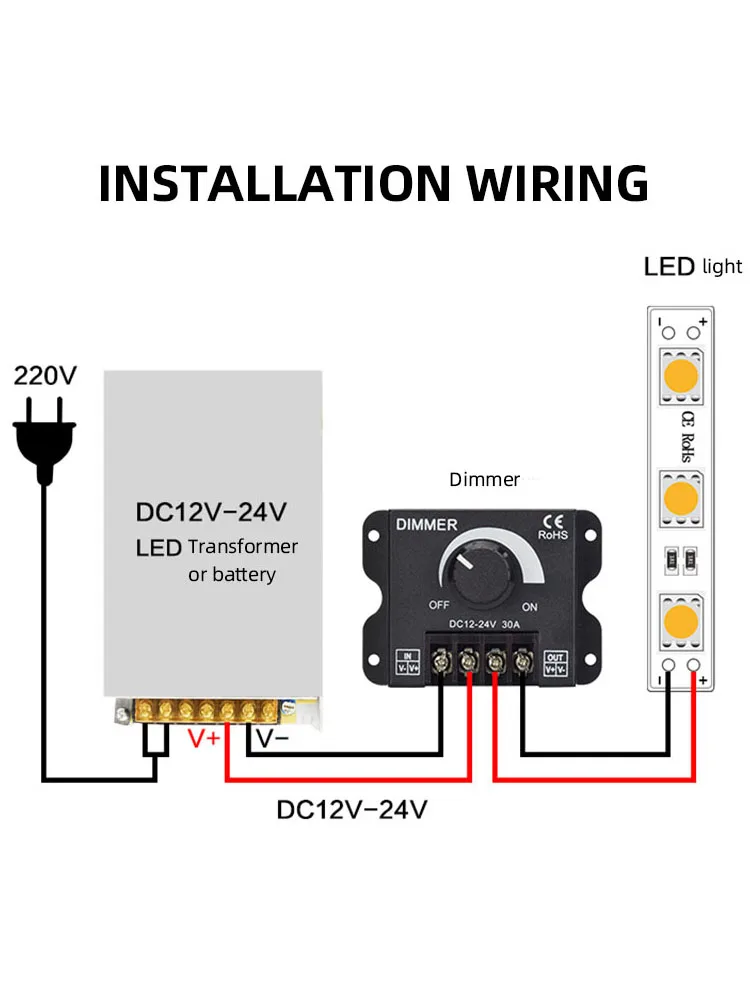

WIRING INSTRUCTIONS

MATTERS NEEDING ATTENTION:

1. The power supply voltage of this product is DC12 ~ 24V and shall not be connected to other voltages;

2. The outgoing line shall be correctly wired according to the color and label provided in the wiring diagram;

3. This product should not be overloaded.

4. Do not use the controller in a wide range of metal areas or areas with strong electromagnetic waves nearby, otherwise the communication distance will be seriously affected.
