Digital audio effects processor Biema dsp2401iii | Электроника

Характеристики

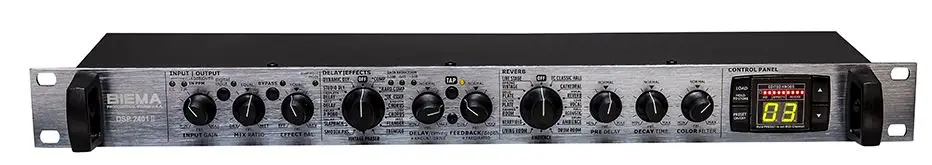

Dsp2401iii digital audio effects processor, Biema

Processor: 24bit 48 kHz analog to digital and digital to analog converter. 48 presets and 48 custom presets.
9 Effects configurations.
All effects are customizable, more than 700 options.
3-band parametric equalizer.
Control midi.

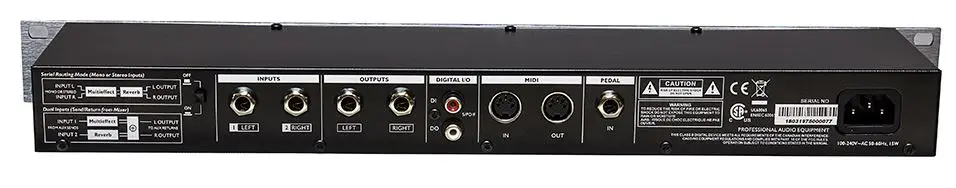

Inputs: XLR and 3,6mm.
Outputs: XLR and 3,6mm.
Non-linear distortion ratio (THD): <0.0065% @ + 4DB 1 kHz.
Signal to noise ratio: > 98 dB.
Frequency response: 20Hz-20 kHz +/- 1 dB.
Cross interference: -95dB.
MIDI 5-pin in/out/thru.
Converter: 24bit.
Sampling rate: 48 kHz.
Dimensions: 482x175x44 (520x330x60) mm.
Net/Gross weight: 3 kg/3.6 kg ..
.
Enter 1/4 ”TS unbalanced.
Input impedance Around 30 Kohm.
Maximum input level + 15 DBU.
Output 1/4 ”TRS balanced.
Output impedance Around 150 Ohm.
Maximum output level + 21 DBU.
Effect / bypass interface 1/4 "TS line Jack female connector.
Music equipment Digital Interface 2x5p standard connector.
USB model Standard USB connector, type A.
Processing accuracy Excellent sonic performance with 24x32 bit.
Converter 24bit Delta-Sigma converter.
Sampling rate 128 over sampling 48kHz sample rate.
Frequency response 10Hz to 22 kHz, -3 dB.
Dynamic range 103 DB, 10Hz to 22 kHz A-weighted.
Distortion 0,01% Typ. @ 0 dBFS.
Crosstalk -75 dB @ 1 kHz.
Signal-to-noise ratio 10Hz to 22 kHz >100 dB @ 0 dBu, A-weighted.
Power mains IEC C-13 cable.
Main power 230 V, 50Hz.
Power consumption Approx. 15 W.
Product Size/transport size 483x44x229(540x245x105)mm.
Net weight/gross weight 3.5kg/4.0kg.
