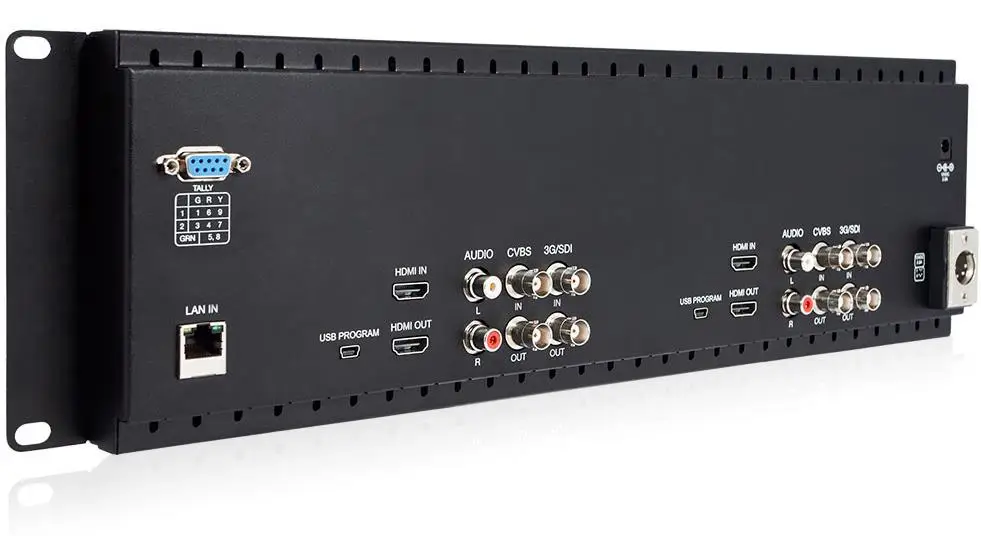

Multiple Inputs and Outputs

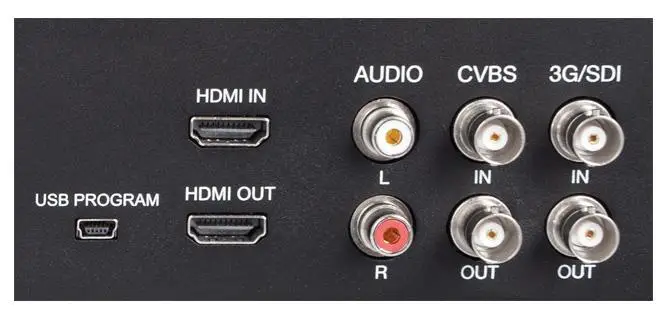

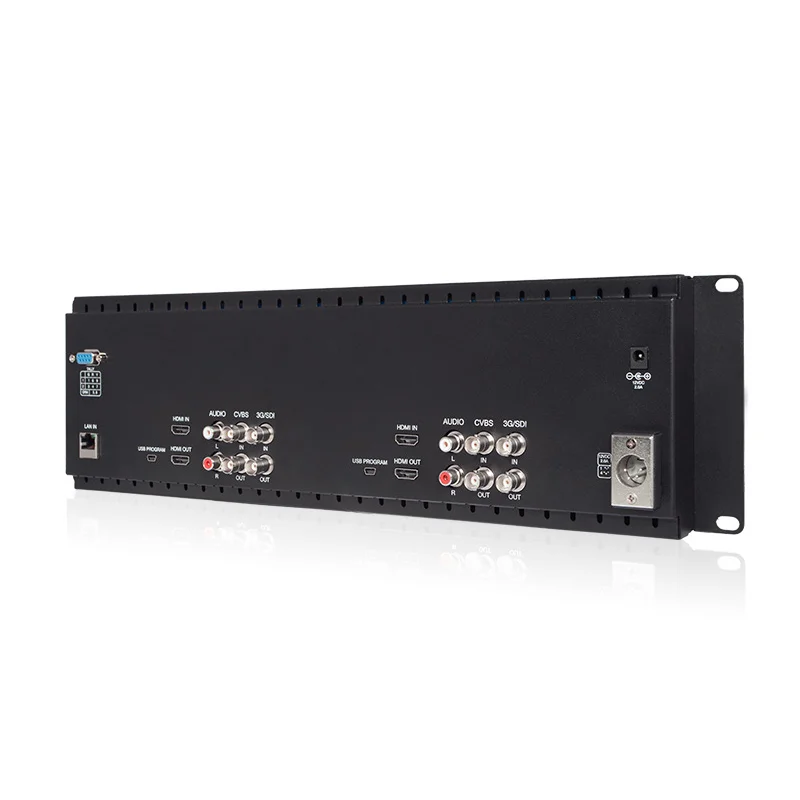

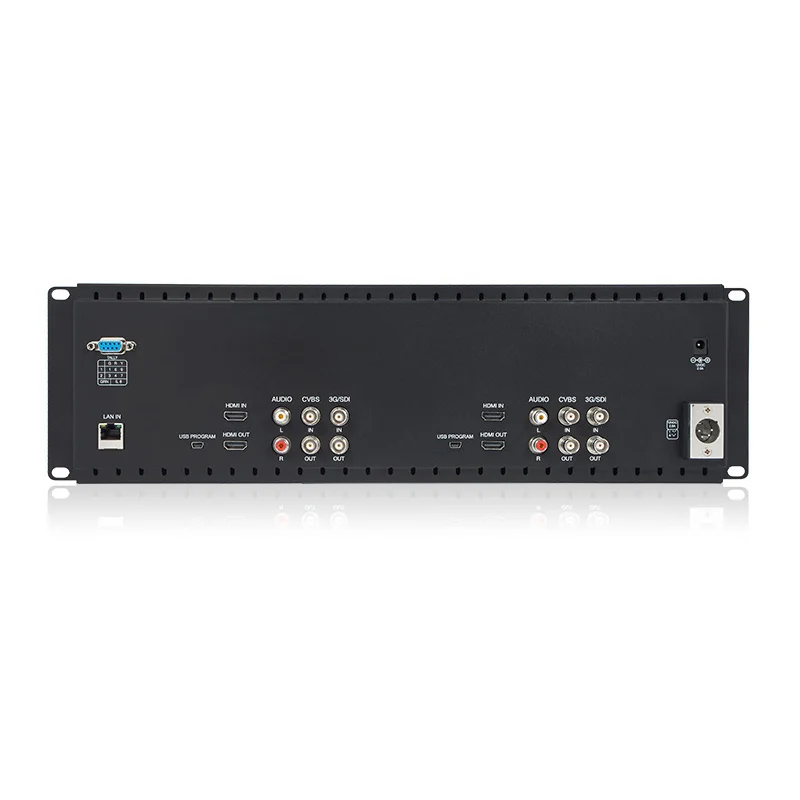

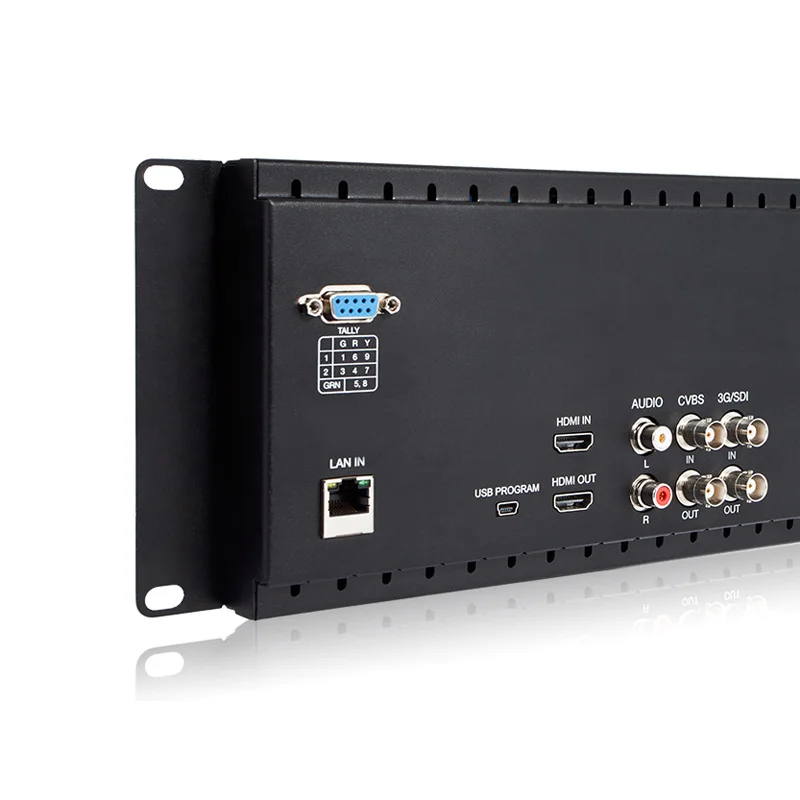

SDI / HDMI / CVBS / AudioEach LCD of D71 monitor supports:Multiple Inputs and OutputsSDI / HDMI / CVBS / AudioEach LCD of D71 monitor supports:Input:3G-SDI X 1HDMI X 1CVBS X 1Auido (L/R) X 2Output:3G-SDI X 1HDMI X 1Video X 1Audio:Stereo Headphone

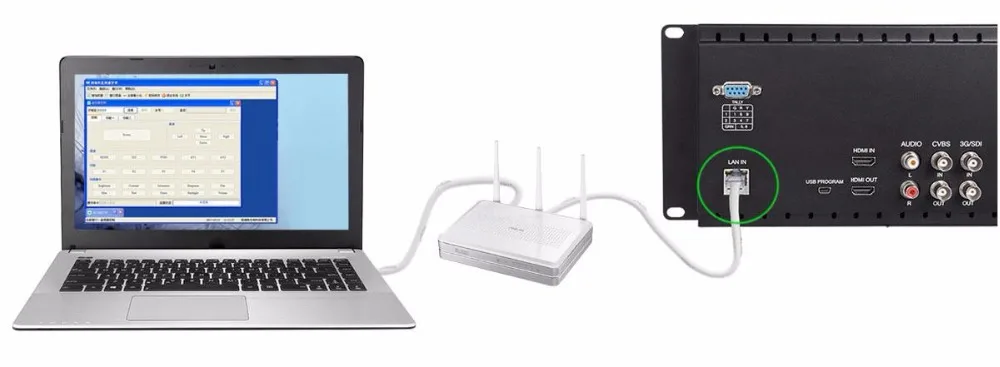

Network ControlD71 rack mount Monitor includes a LAN port,This allows the operator to Software control via Ethernet connection (software included). The rear panel LAN 100 port connects the unit to the LAN. Once connected, the user simply locates the IP address of any one of the units connected to the LAN. This is accomplished by going to the MAIN MENU of any of the connected units and selecting the NETWORK CONFIGURATION submenu. This willthen display the IP address of that unit. Simply type this IP address into the address bar of your Software. It is possible to poll your LAN for all other units connected by accessing the NETWORK tab from the Top Menu.The user can then control multiple networked D71 monitor at once using a single Software. The user may select which monitor(s) they wish to control and send commands to those particular monitors. The browser provides real-time status of any connected monitor, ensuring consistent signals / feeds and so forth.

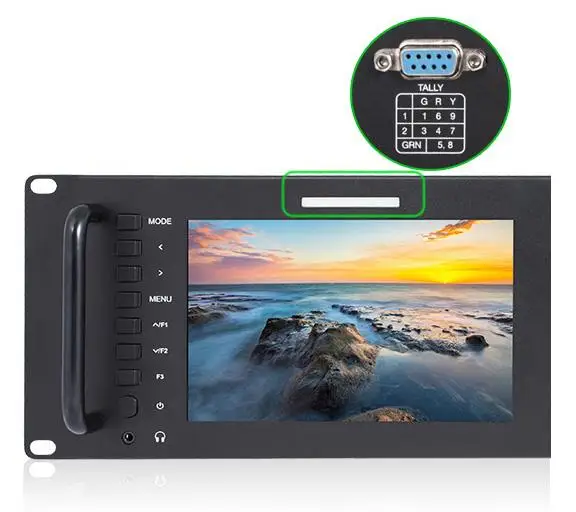

3-color Tally LightDB-9 input signal
There are front TALLY lights for each screen, with 3 colors display (Red,Green,Yellow), and controlled via DB-9 ports on the rear panel.

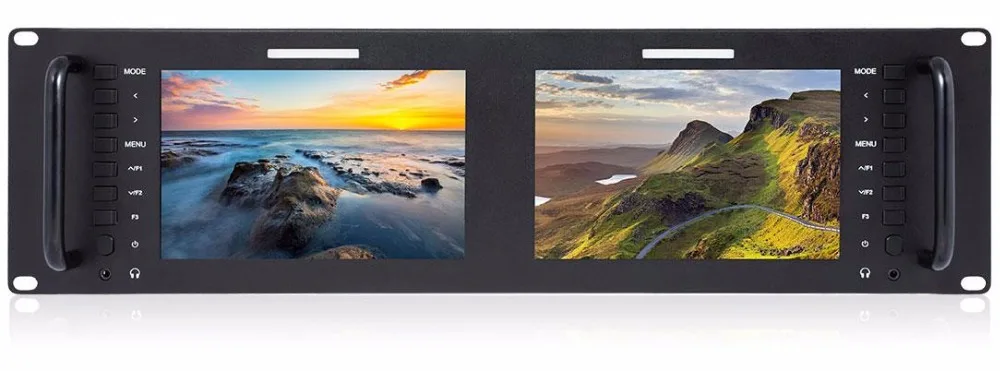

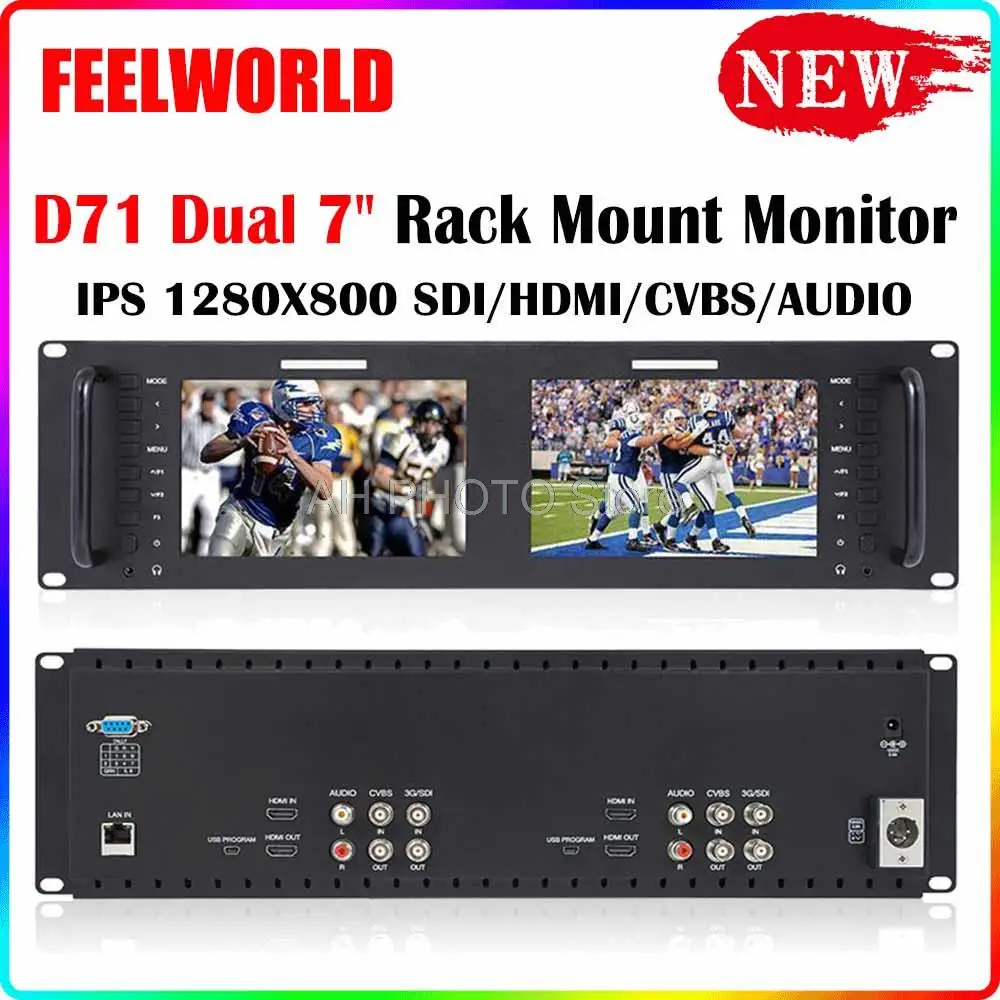

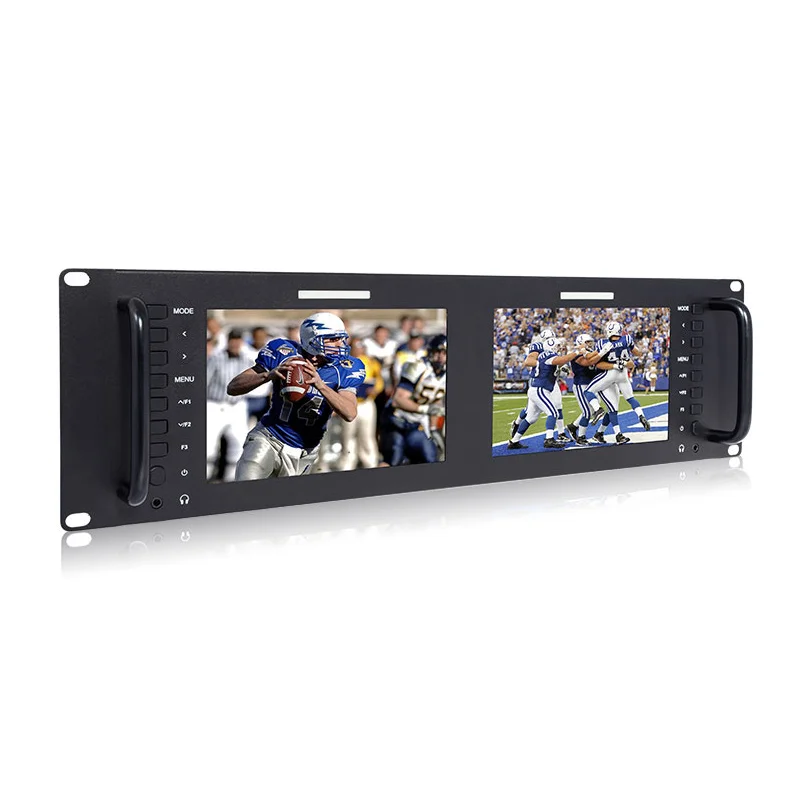

Stablity and ReliabilityAs rack mount LCD monitors usually in a continuous working condition, all components including LCD panel must be accordance with industrial quality standard. Full Metal case not only makes the product more robust, and durable, but also is a good solution to the heat dissipation problem. Features:1. Wide view angle IPS Screen, High resolution 1280x800, bright, colorful display
2. Slim design and 3RU size

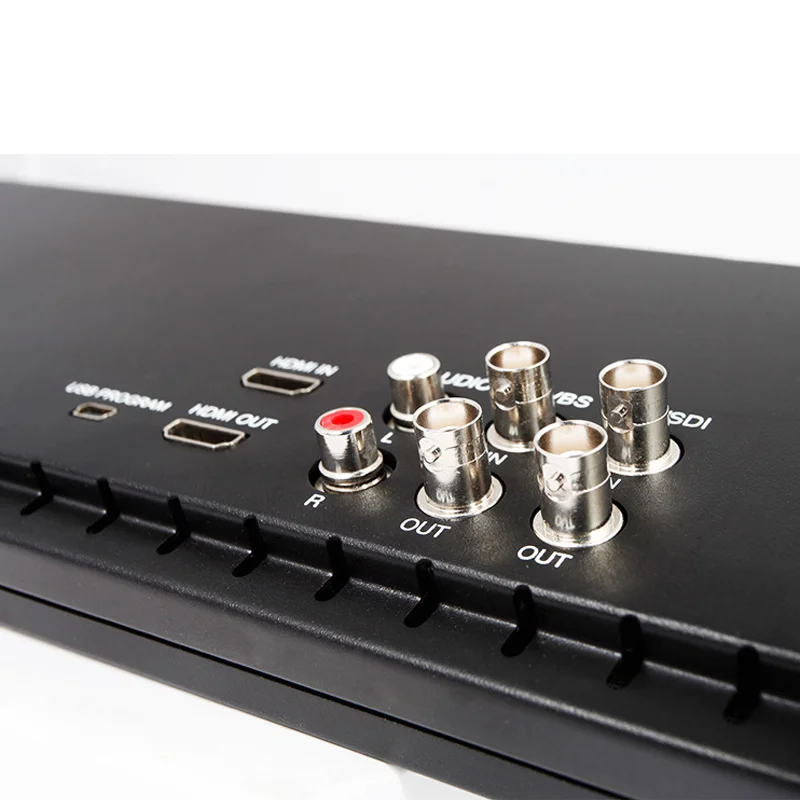

3. 3G-SDI, HDMI, Video, Audio(L/R) and 3G-SDI, HDMI, Video loop-through output
4. Software control via Ethernet connection
5. Special Features:
* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Zoom All
* U/D & L/R Zoom
* Custom Color Temperature
6. Monitoring via front panel 3.5mm stereo headphone jacks
7. Built-in LED tally indicators (Red, Green, Yellow)

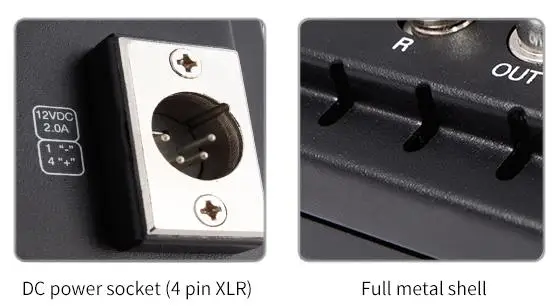

8. Power using included 12-volt supply or use standard 4-pin XLR
Specification:
Model | D71 (D71-H: W/O SDI) |
Screen Size | 7''×2 IPS |
Resolution | 1280×800 pixels |
Dot pitch | 0.117 (H)×0.117 (V) mm |
Aspect Ratio | 16:10 |
Brightness | 400cd/m⊃2; |
Contrast Ratio | 800:1 |
Backlight | LED |
Viewing Angle | 89°/89°(L/R) 89°/89°(U/D) |
1 X BNC | 3G-SDI |
1 X HDMI | HDMI |
1 X BNC | Video |
2 X RCA | Audio(L/R) |
1 X BNC | 3G-SDI |
1 X HDMI | HDMI |
1 X BNC | Video |
Audio Out | Stereo Headphone × 1 |
480i/576i |
720p(60/59.94/50/30/29/25/24/23.98) |
1080i(60/59.94/50) |
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
480i/576i/480p/576p |
1080i (60/59.94/50) |
720p (60/59.94/50/30/29/25/24/23.98) |
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
Input Voltage | DC9～24V |
Power Consumption | ≤20W |
Power Connector | DC/ 4-pin XLR |
Working Temperature | -20°C~55°C |
Storage Temperature | -30°C~65°C |
Install Way | Rack Mount |

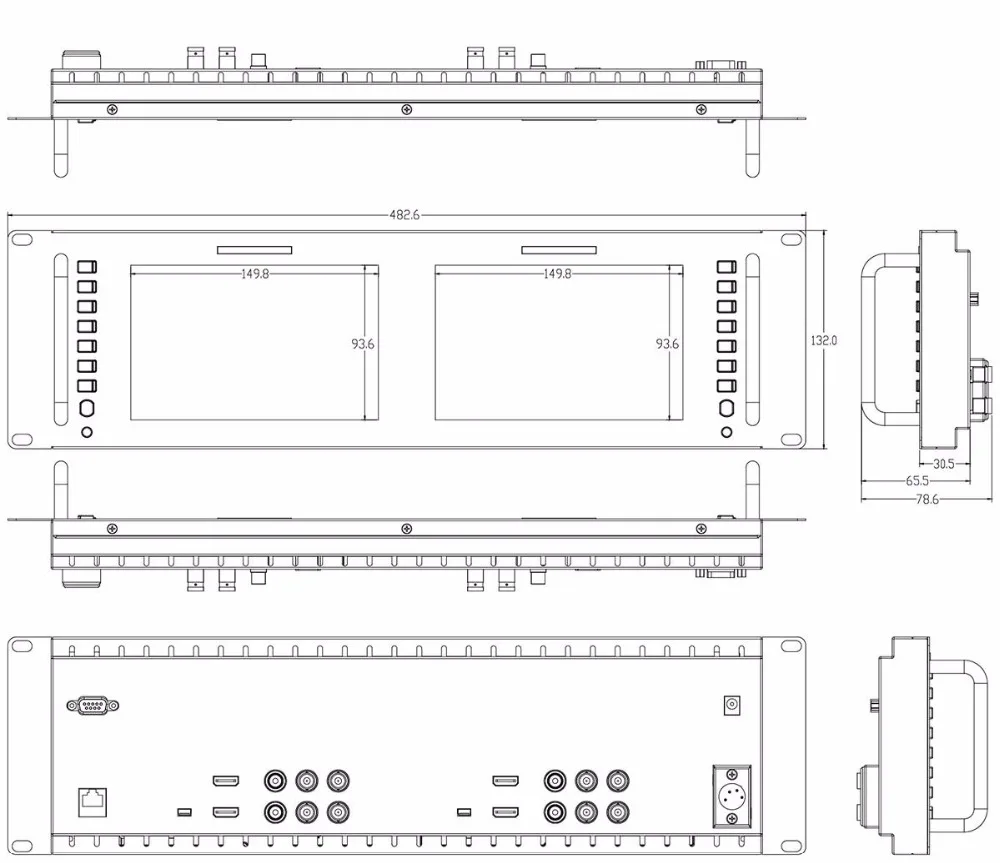

Unit Size | 482.6Lx132Hx30.5D mm |
Unit Weight | 1890g |
* Peaking Focus Assist(Red highlight over parts of the monochrome image in focus) |
* Check Field (Red,Green,Blue,Mono) |
* Pixel to Pixel |
* Center Marker |
* Screen Marker (80%,85%,90%,93%,96%,2.35:1) |
* Image Flip (H, V, H/V) |
* Image Freeze |
* Zoom All |
* U/D & L/R Zoom |
* Custom Color Temperature |
* Built-in LED tally indicators (Red, Green, Yellow) |

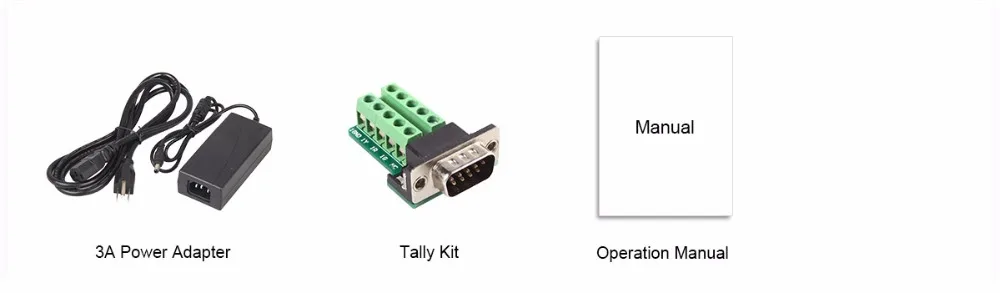

Accesorry
