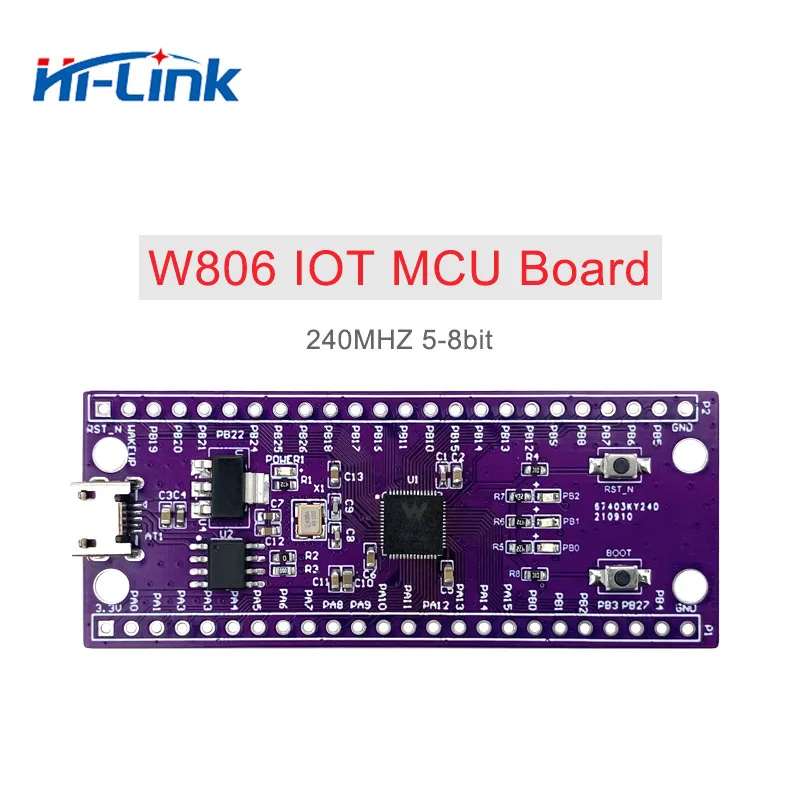

W806 chip is a secure IoT MCU chip. The chip integrates 32-bit CPU processor, built-in UART, GPIO, SPI, SDIO, I2C, I 2S, PSRAM, 7816, ADC, LCD, TouchSensor and other digital interfaces; supports TEE security engine, supports a variety of hardware encryption and decryption algorithms, built-in DSP, floating-point computing unit and security engine. Supports code security permissions settings. Built-in 1MB Flash memory, support firmware encryption storage, firmware signature, security debugging, security upgrade and many other security measures to ensure product security features. It is applicable to a wide range of IOT fields such as small home appliances, smart home, smart toys, industrial control, medical monitoring, etc.
2. Product Characteristics

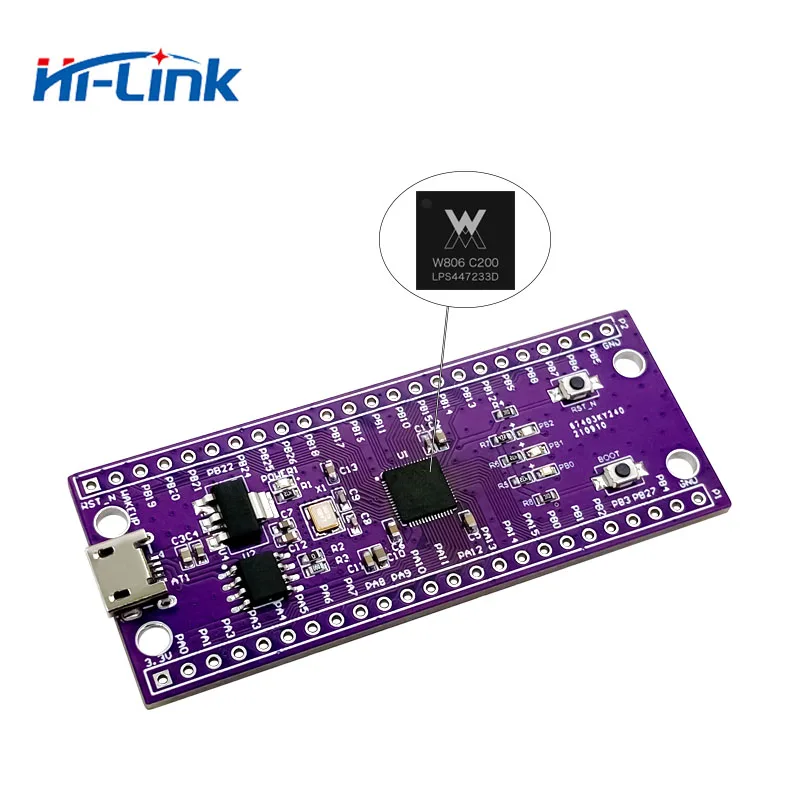

◼ Chip appearance

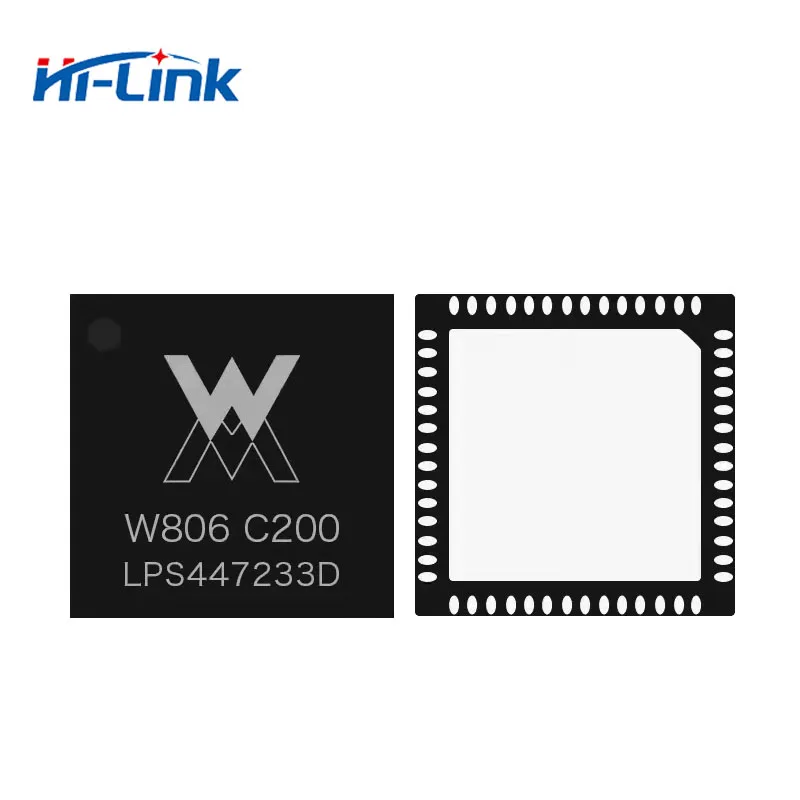

✓ QFN56 package, 6mm x 6mm
◼ MCU features

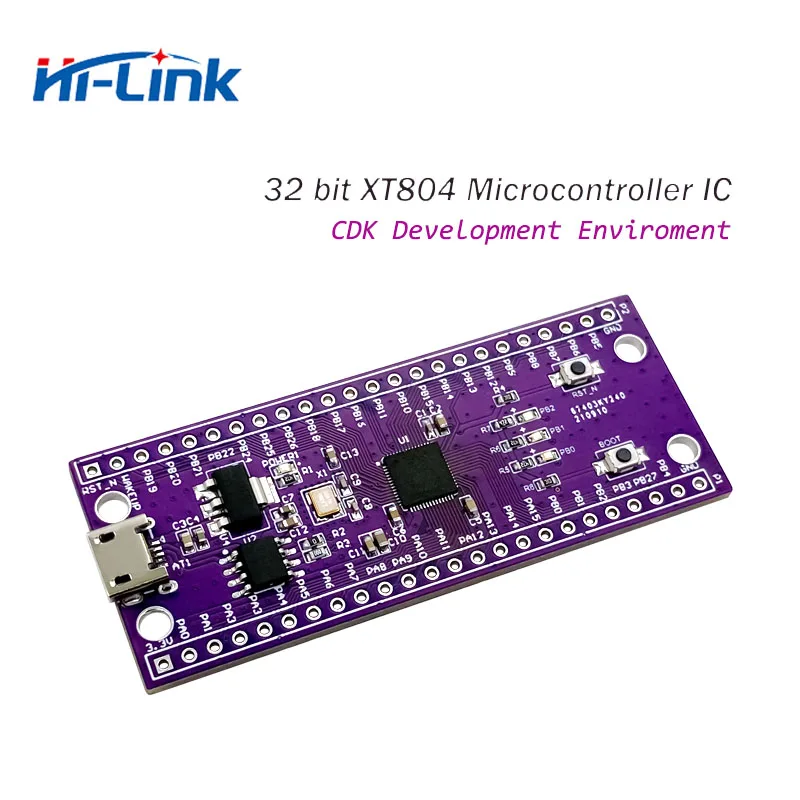

✓ Integrated 32-bit XT804 processor operating at 240MHz with built-in DSP, floating point unit and security engine
✓ Built-in 1MB Flash, 288KB RAM
✓ Integrated PSRAM interface, supports up to 64MB external PSRAM memory
✓ Integrated 6-channel UART high-speed interface
✓ Integrated 4-way 16-bit ADC with maximum sampling rate of 1KHz
✓ Integrated 1 high-speed SPI interface (slave interface) supporting up to 50MHz
✓ Integrated 1 master/slave SPI interface
✓ Integrated 1 SDIO_HOST interface, supporting SDIO2.0, SDHC, MMC4.2
✓ Integrated 1 SDIO_DEVICE with SDIO2.0 support and maximum throughput rate of 200Mbps
✓ Integrated 1 I 2C controller
✓ Integrated GPIO controller, supporting up to 44 GPIOs
✓ Integrated 5-way PWM interface
✓ Integrated 1-way Duplex I2S controller
✓ Integrated LCD controller with 4x32 interfaces
✓ Integrated 1 7816 interface
✓ Integrated 15 Touch Sensors
◼ Security Features
✓ MCU built-in Tee security engine, code can distinguish between secure world/non-secure world
✓ Integrated SASC/TIPC, memory and internal modules/interfaces can be configured with security attributes to prevent non-secure code access
✓ Firmware signature mechanism enabled for secure boot/upgrade
✓ Firmware encryption capability for enhanced code security
✓ Firmware encryption keys distributed using asymmetric algorithms for enhanced key security
✓ Hardware encryption modules: RC4256, AES128, DES/3DES, SHA1/MD5, CRC32, 2048 RSA, real random number generator.
◼ Low power mode
✓ 3.3V single power supply
✓ Supports work, sleep, standby, and shutdown modes
✓ Standby power consumption less than 10uA
If you have more questions, welcome to contact us directly, thank you very much and enjoy shopping.

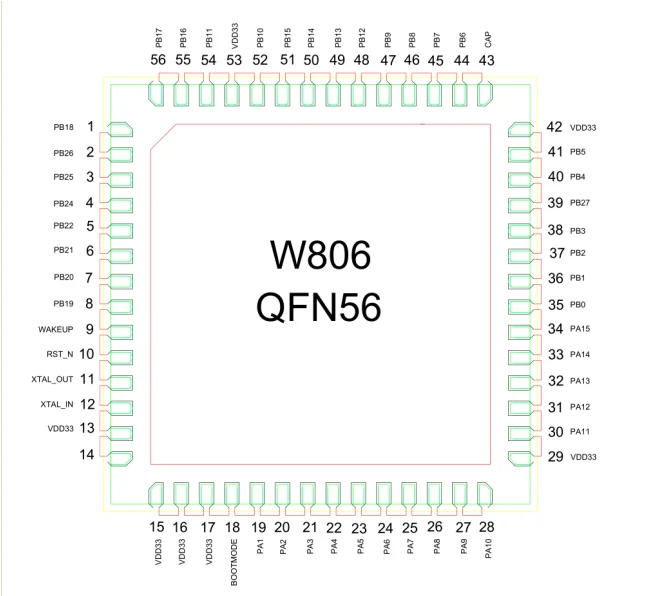

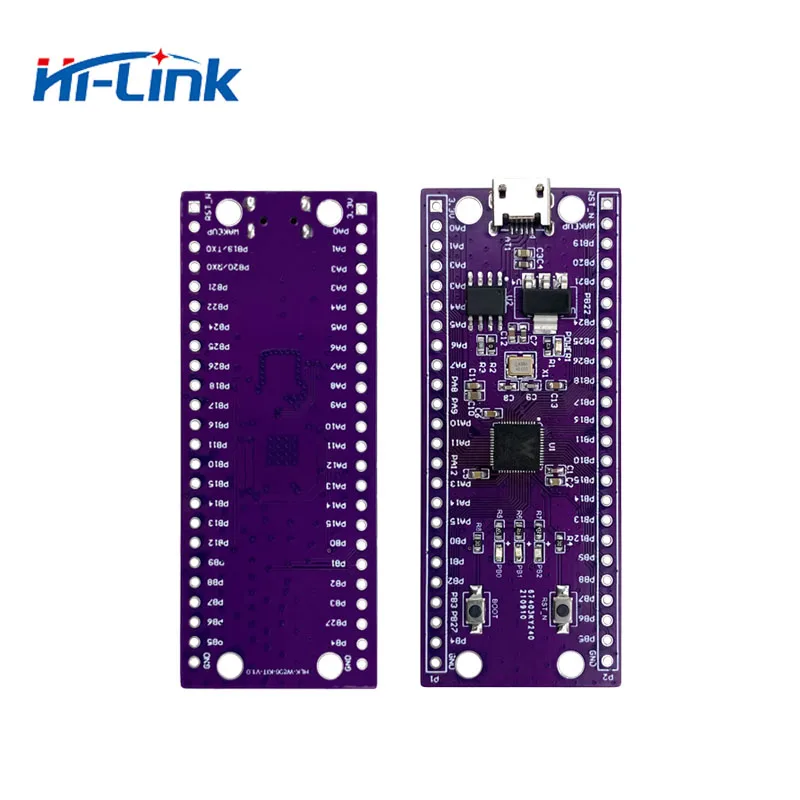

3.Pin Definition
4.Chip structure
1.We are the manufacturer . Can offer bottom price .
2.We only sell what we developed , can offer technical support for each item .3.11 years of export experience.
