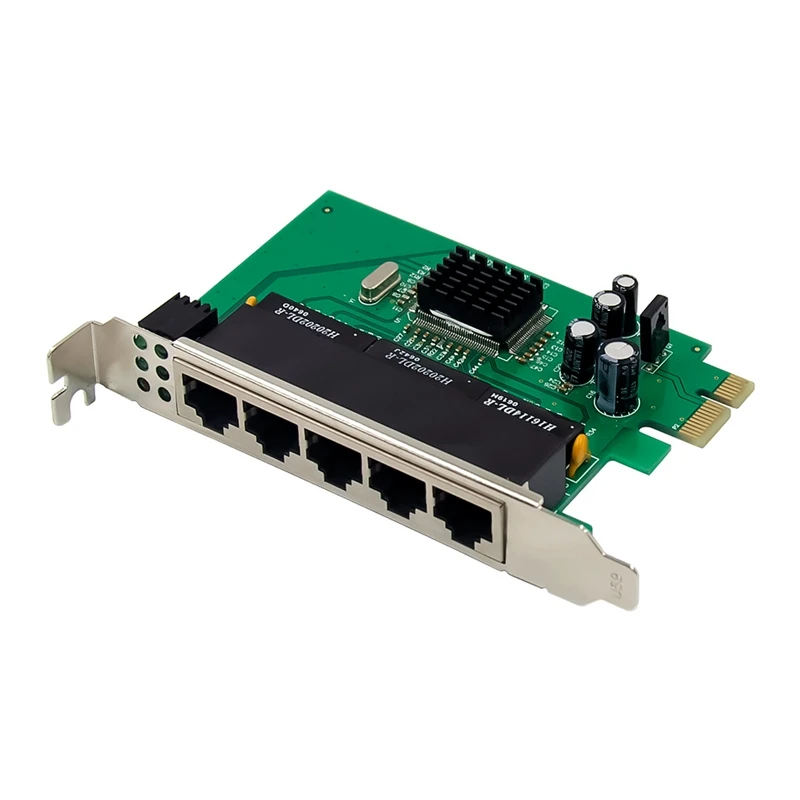

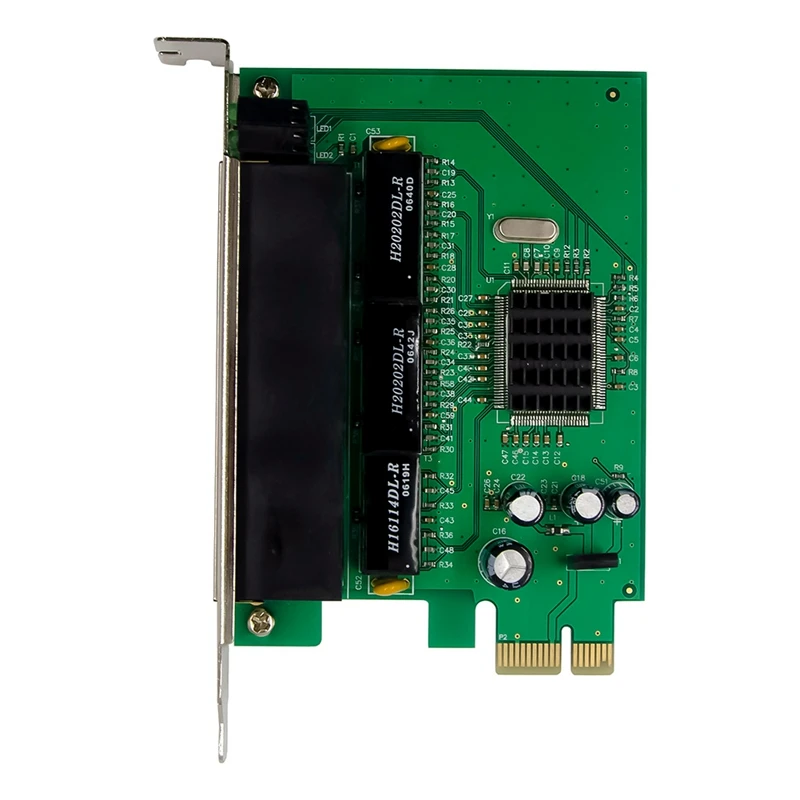

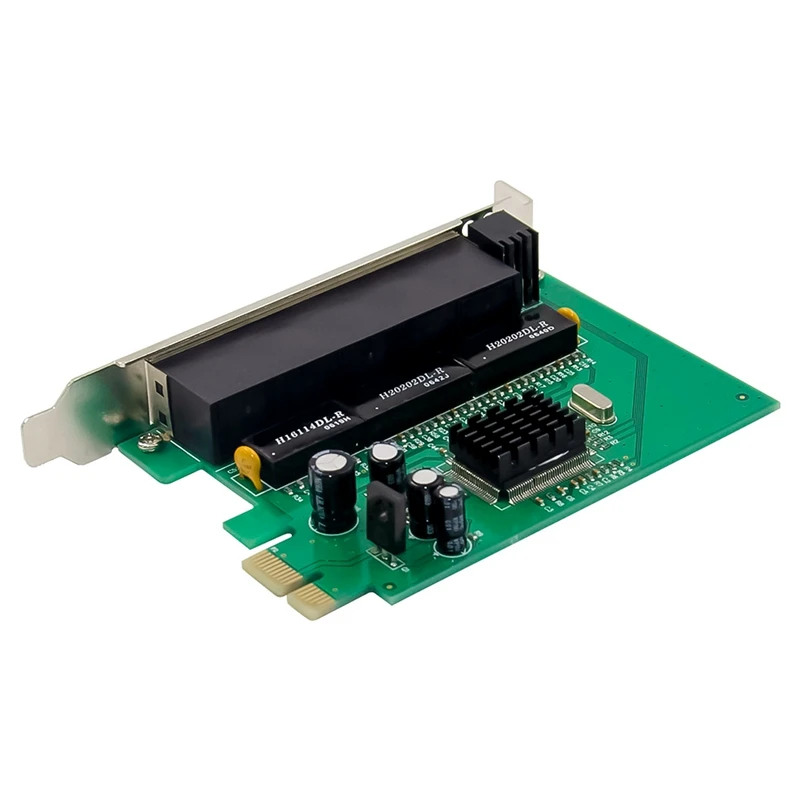

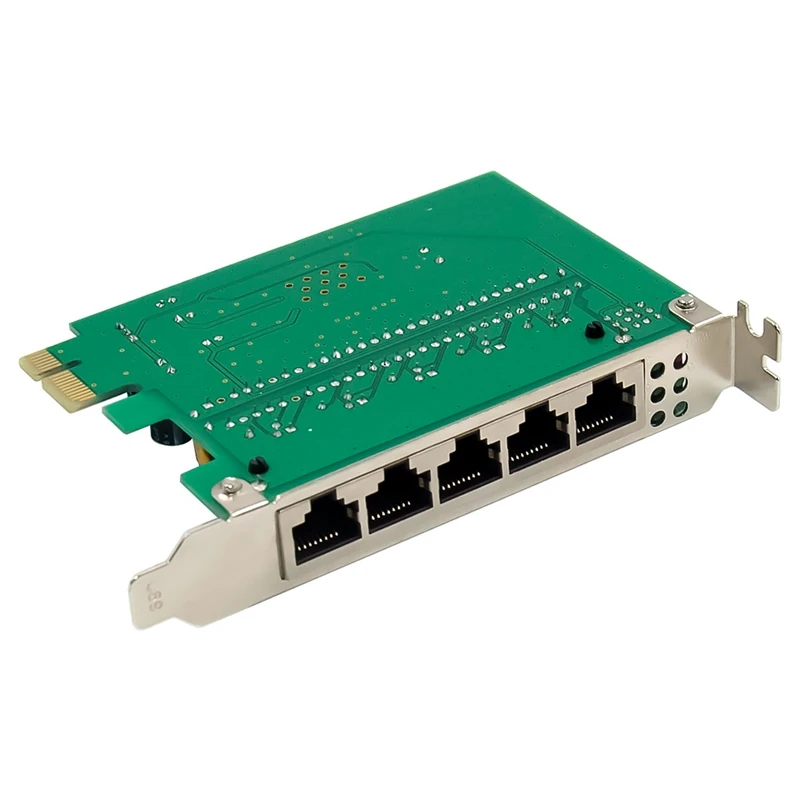

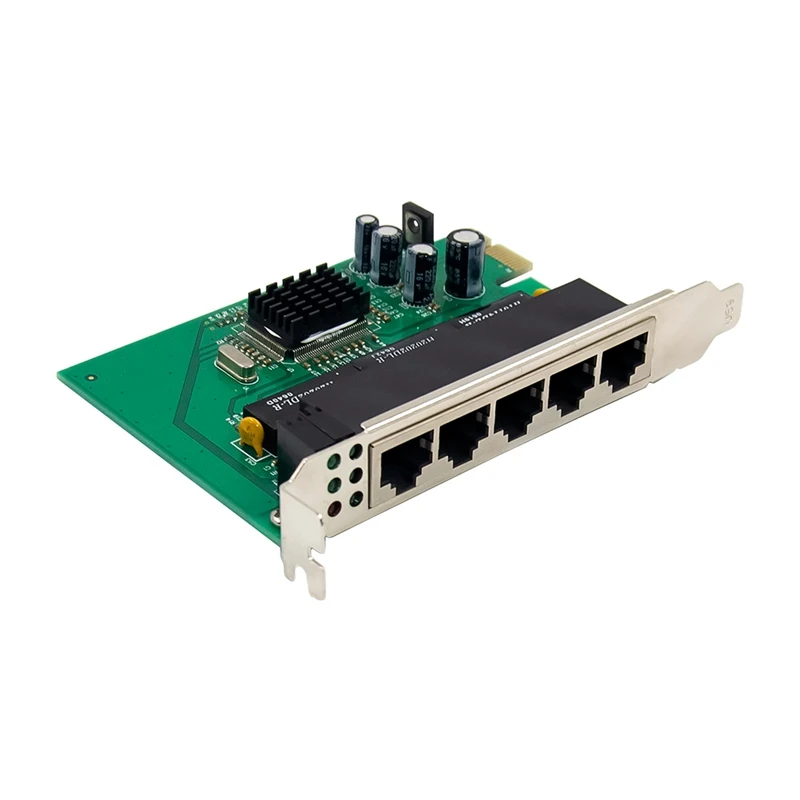

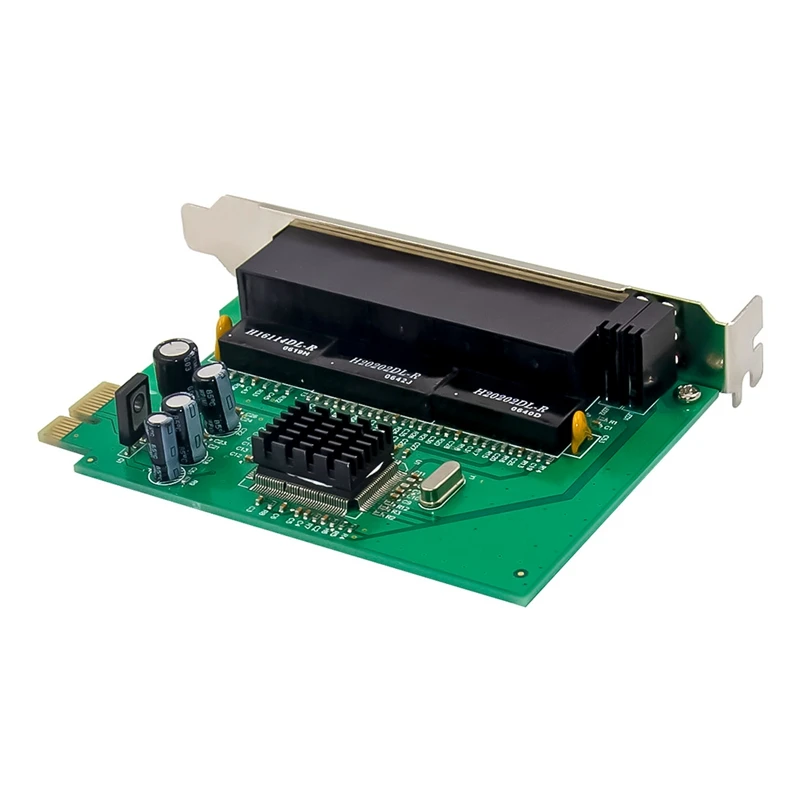

PCIe Fast Ethernet 10/100Mbps Switch Board Card IC Plus IP175 Chipset 5 Port RJ45 Network Lan | Компьютеры и офис

Характеристики

PCIe Fast Ethernet 10/100Mbps Switch Board Card IC Plus IP175 Chipset 5 Port RJ45 Network Switch Lan Card Performance characteristics
Low power consumption
Built-in linear regulator control circuit
Built-in 6 MAC and 5 PHY
Each port can be configured as 10Base-T, 100Base-TX

2K MAC address
Support 10Mbps automatic
Filter/forward reserved address options
Broadcast storm protection
Automatic MDI-MDIX
Support three MII/RMII ports
Support SMI MDC up to 12.5 Mhz
Support mark and unmark
Support port base VLAN and tagged VLAN
Support CoS
Support port options
Support SMART MAC function
Support Spanning Tree Protocol
Data packet length 1552/1536 bytes
Support 8-level bandwidth control
Support 100Mbps link quality LED
Support direct, serial and bi-color mode LED
Colour: picture color
Material: ABS
Size: 10.4x7.2cm

Package Contents:
1 * Ethernet Switch Board card

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
