1 Pcs Mini Camera IMX219 Module & Set 5MP OV5640 USB Fixed Focus With 160 Degree Wide Angle Lens | Электроника

Характеристики

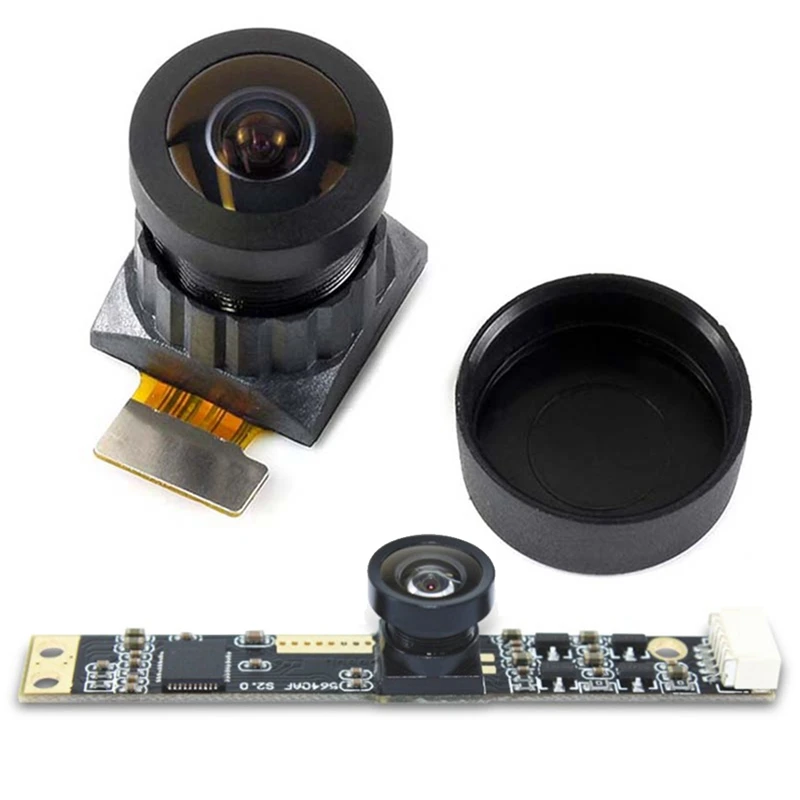

1 pcs Mini Camera IMX219 Camera Module & 1 set 5MP OV5640 USB Camera Module

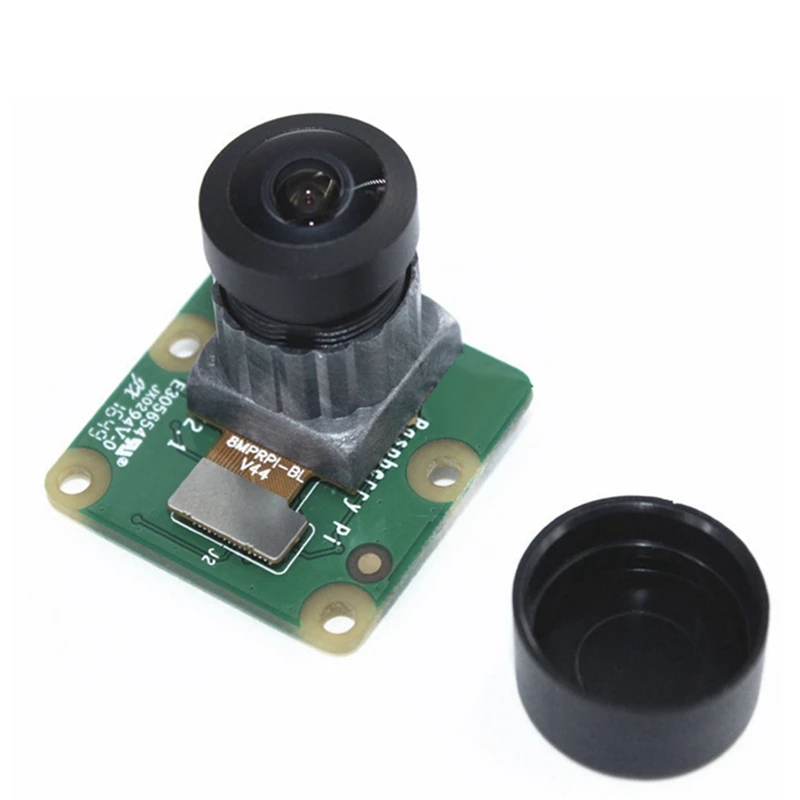

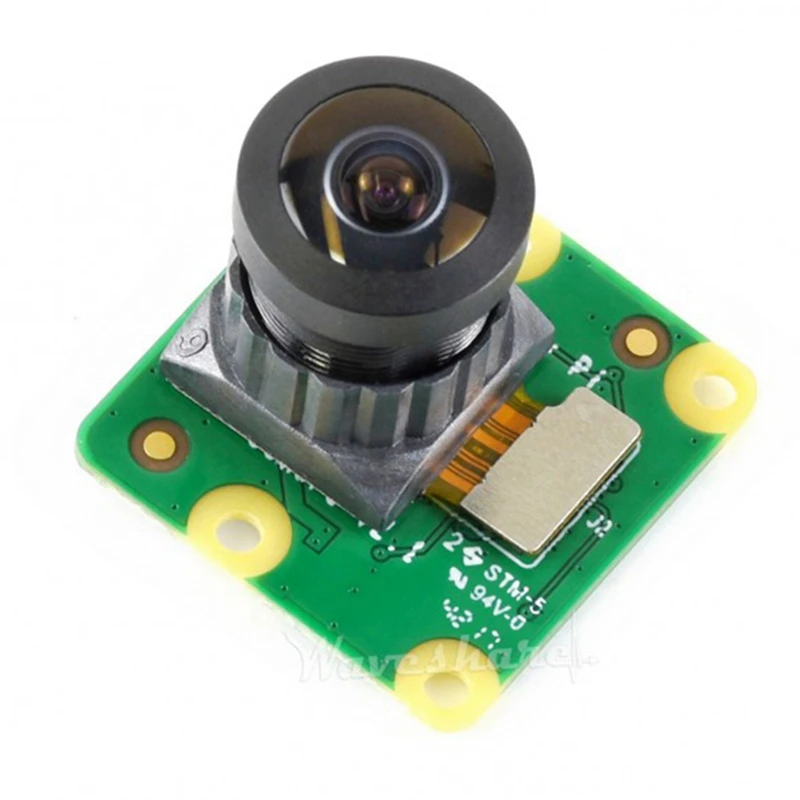

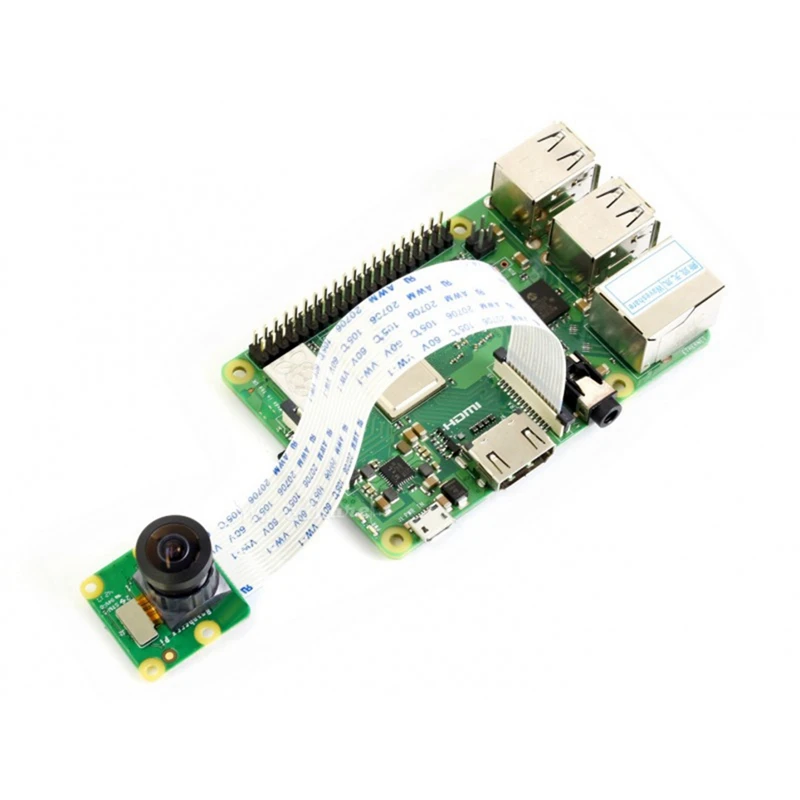

This is a camera module (without driver PCB) compatible with the official Raspberry Pi Camera Board V2, with 8-megapixel IMX219 sensor and features 160 degree field of view.
IMX219 8-megapixel sensor. Focusing Range: 20cm ~ infinity
3280 x2464 still picture resolution
Support 1080p30, 720p60 and 640x480p90 video record

color:black

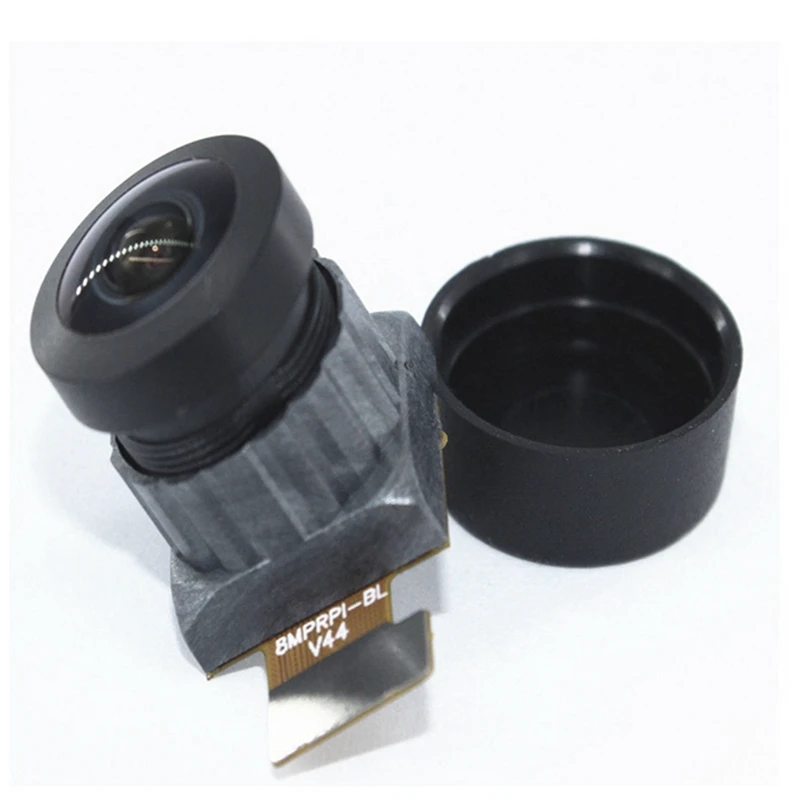

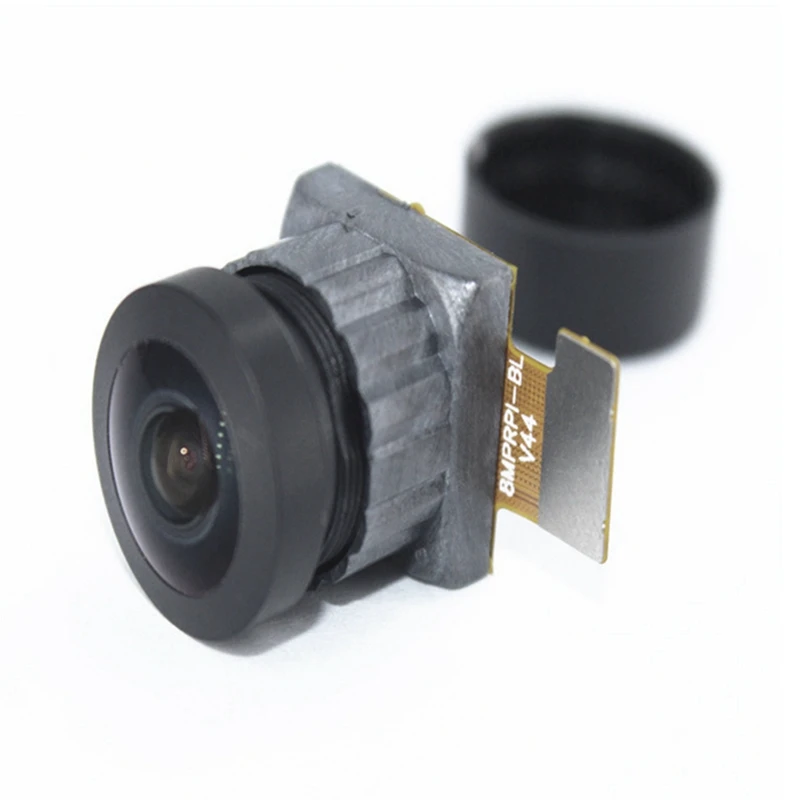

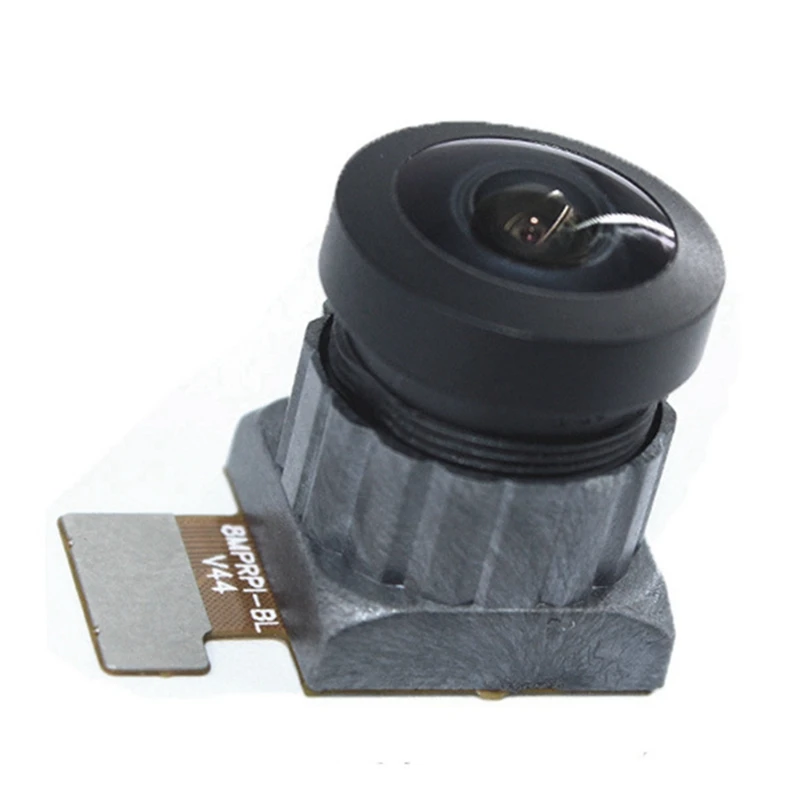

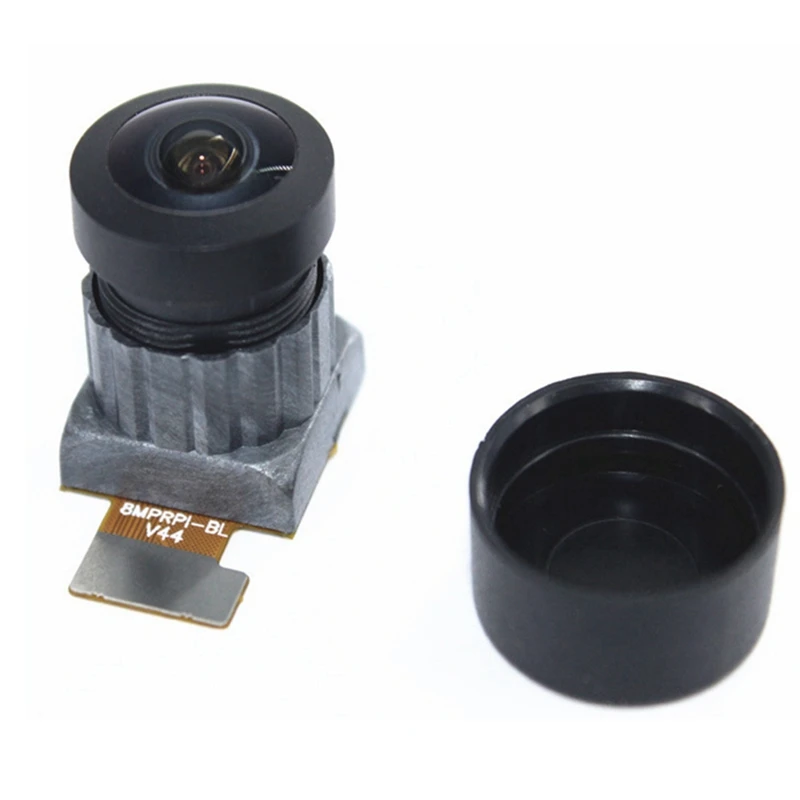

IMX219 Camera Module:
Model Number: IMX219
Demo Board Type: ARM
CMOS size: 1/4inch
Material: ABS
Aperture (F): 2.35
Focal Length: 3.15mm
Angle of View (diagonal): 160 degree (while the original V2 camera is only 62.2 degree)
Distortion: Less than 14.3%

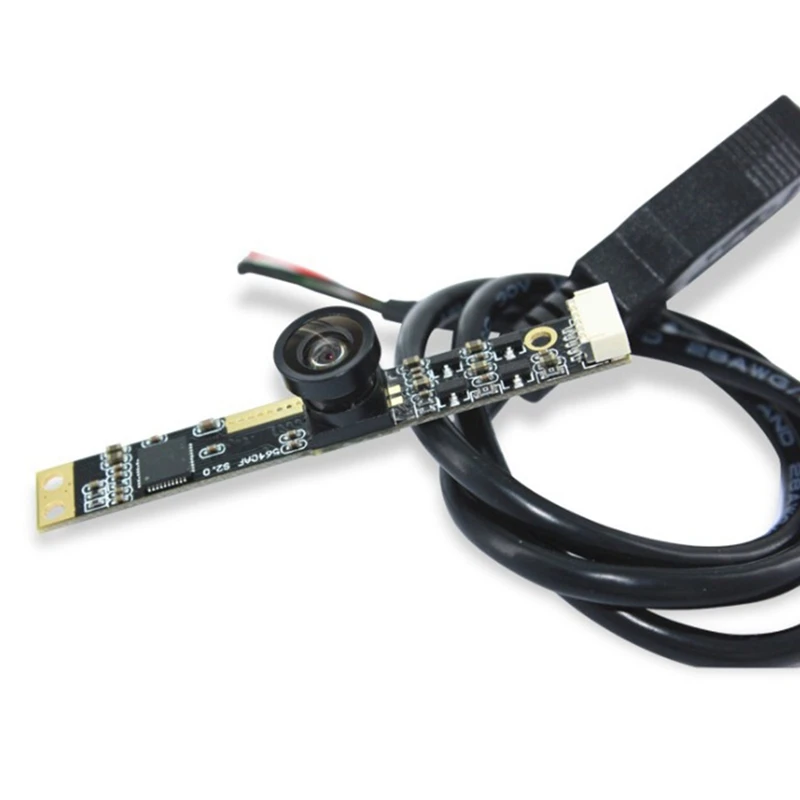

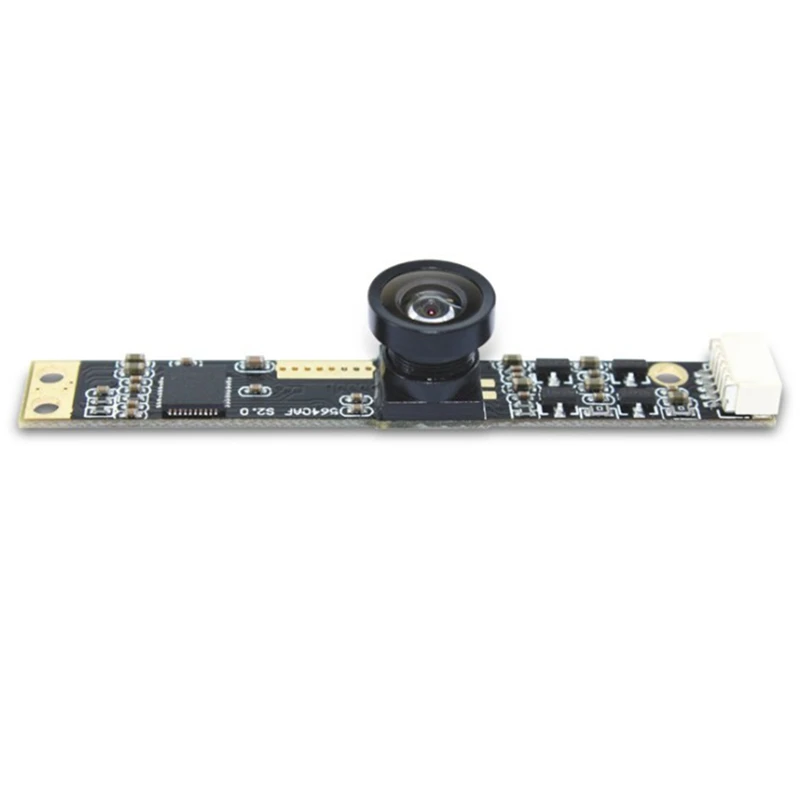

OV5640 camera module:
Module Size: 60mm x 8.5mm x 12.8mm
Temperature (Operation): -20°C to 70°C
Temperature (Stable Image): 0°C to 50°C
Assembly technique: SMT (ROSH)
Focus: Fixed
Object distance:30CM-200CM
Resolution: 600LW/PH (Center)
interface: USB 2.0
Power: USB bus power
Power consumption:150mW (VGA); 200 mW (QSXGA);
Operating system request: Windows 2000/ Windows XP/Windows 7
Sensor Type: OV5640 (1/4inch)
Active Array Size: 2592 x 1944
Pixel Size: 1.4µm x1.4µm
Maximum Image Transfer Rate: 15 fps for QSXGA;
Lens Type
Lens Construction: 4G1P+IR
F/No: 2.4
EFL: 1.6mm
BFL(Optical): 2.5mm
FOV: 160°
TV Distortion: less than -35%
Relative Illumination (Sensor): 70%
IR Filter: 650 +/- 10nm
DSP Type
AGC/AEC/Whiter balance: Auto
Output Formats: USB suspend out
Fixed Pattern Noise: less than 0.03% of VPEAK-TO-PEAK
Package: LQFN-40pin
Material: plastic

Package Contents:
1 x IMX219 Camera Module
1 x camera module
1 x USB cable

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

1 Pcs Mini Camera IMX219 Camera Module & 1 Set 5MP OV5640 USB Camera Module Fixed Focus With 160 Degree Wide Angle Lens
