ADS1298 Module 1298 Full Lead Holter12 ECG Dynamic Electrocardiogram Difference EMG Electromyography Collection V3.1 | Дом и сад

Характеристики

modname=ckeditor Chip: ADS1298 Interface: DB15 Number of channels: all leads (12 leads) Sampling rate: Bluetooth 500 WIFI up to 2K More than 6h battery life Accessories: STLINK downloader + TYPEC cable + Bluetooth receiver + electrode pad Provide: schematic diagram + STM32 source program + PC drawing test software     For customization, please determine the following parameters: interface, sampling rate (default 500), number of channels (1/2/4/8/16/32), noise, data transmission method (Bluetooth, WIFI, TF card), battery life, size, The number of PCB layers and whether a shielding cover is needed.

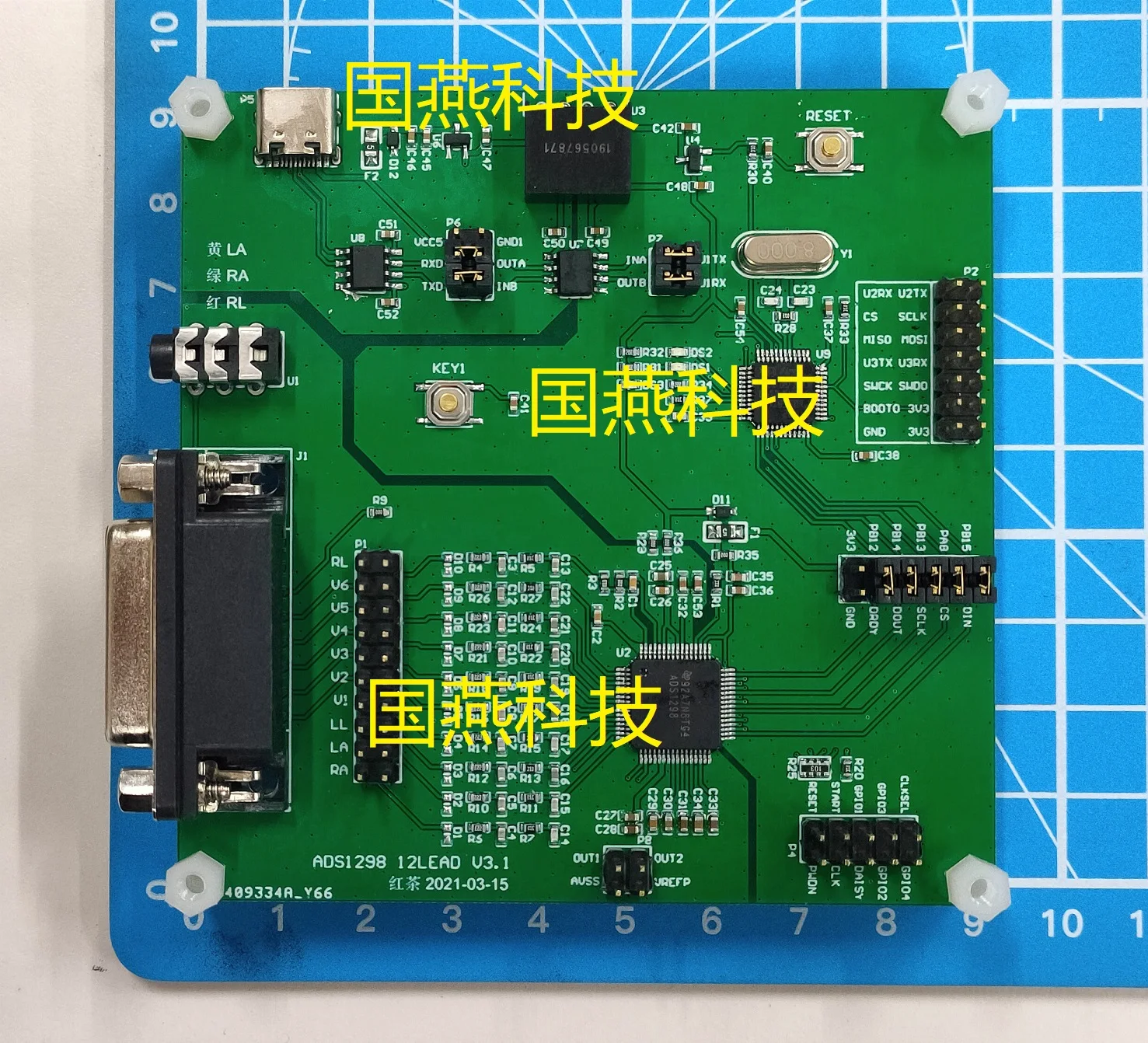

12-lead ECG evaluation board



Acquisition front-end + integrated control board, integrated STM32F103C8 chip + CH340 USB to serial port chip, can communicate with the host computer by connecting a computer via a USB cable.



The SPI interface of the 1298 chip is reserved, which can be controlled by an external single-chip microcomputer.



Lead out some pins of STM32 microcontroller, which is convenient to connect to other peripherals







You can contact customer service to customize other functions.







parameter:



250SPS to 32kSPS default 500



Input reference noise: 4 μVPP (bandwidth is 150Hz)



Programmable gain: 1, 2, 4, 6, 8, 12



ADC: 24 bits



CMRR:-115dB



Number of channels: 8



Commodities include:

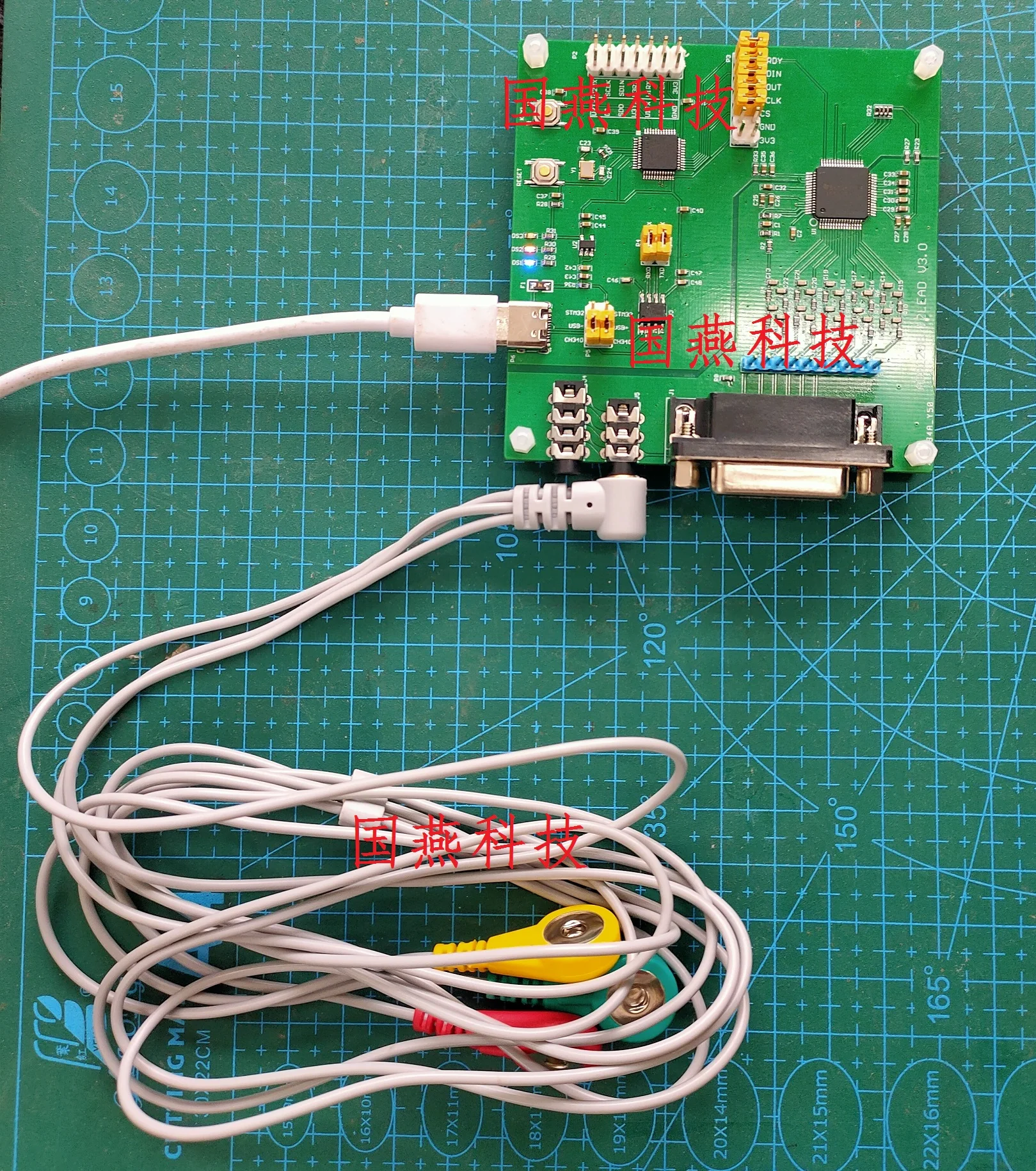

1 Acquisition module



2 TYPEC line+DuPont line+



3 Earphone lead wire (single lead wire) + 20 disposable ECG electrodes



4 Electronic data (you can contact customer service to request after receiving the goods)



Electronic data includes program source code + circuit schematic diagram + drawing software + instructions for use + other test materials (not including PCB diagram); (Note: the software only has the function of drawing and recording, not filtering)



Note The chip used in the source program in the data is STM32F103C8 or T8. Please transplant other models by yourself.



Note that the module uses the DB15 interface ECG full-lead cable, you need to prepare your own

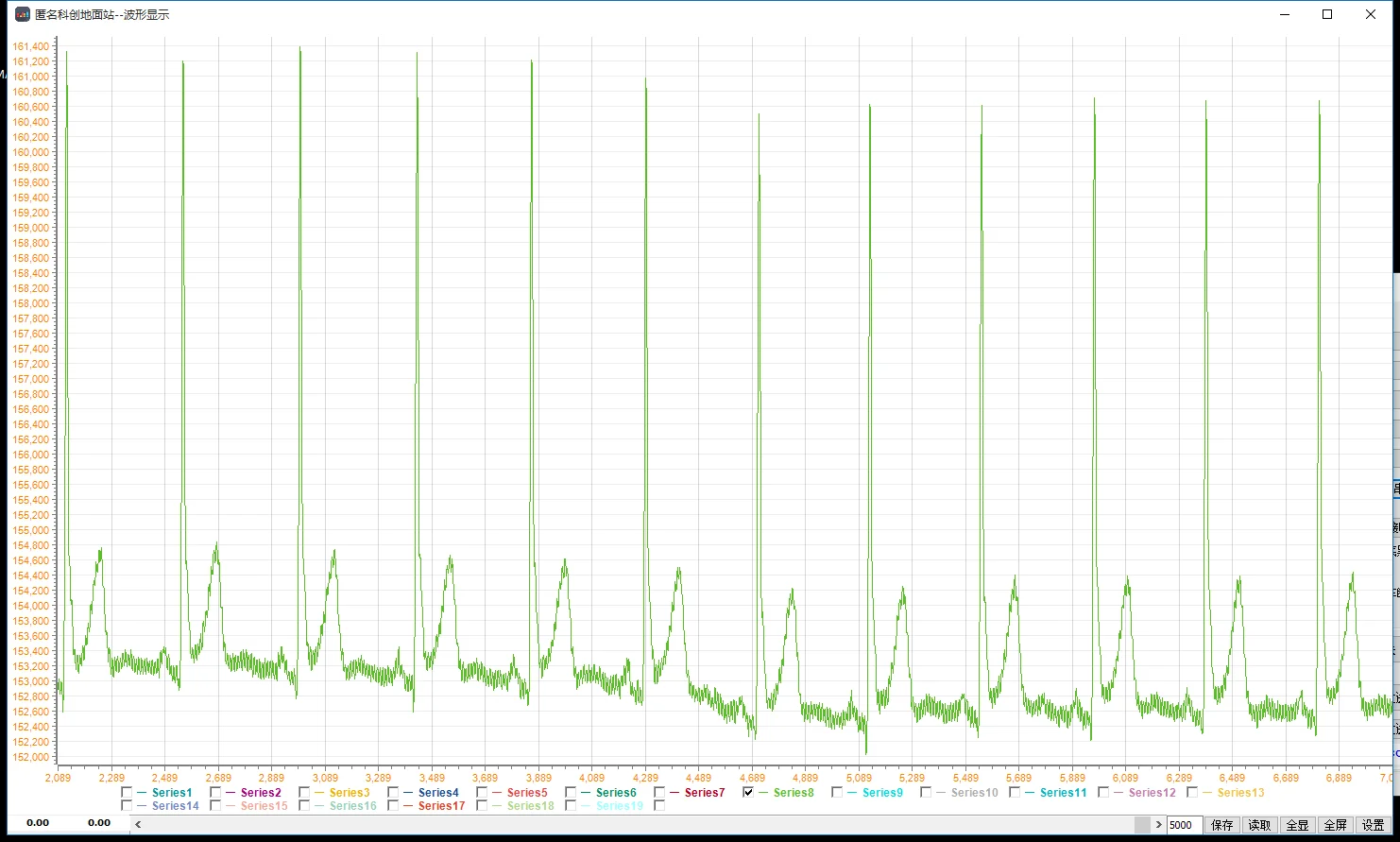

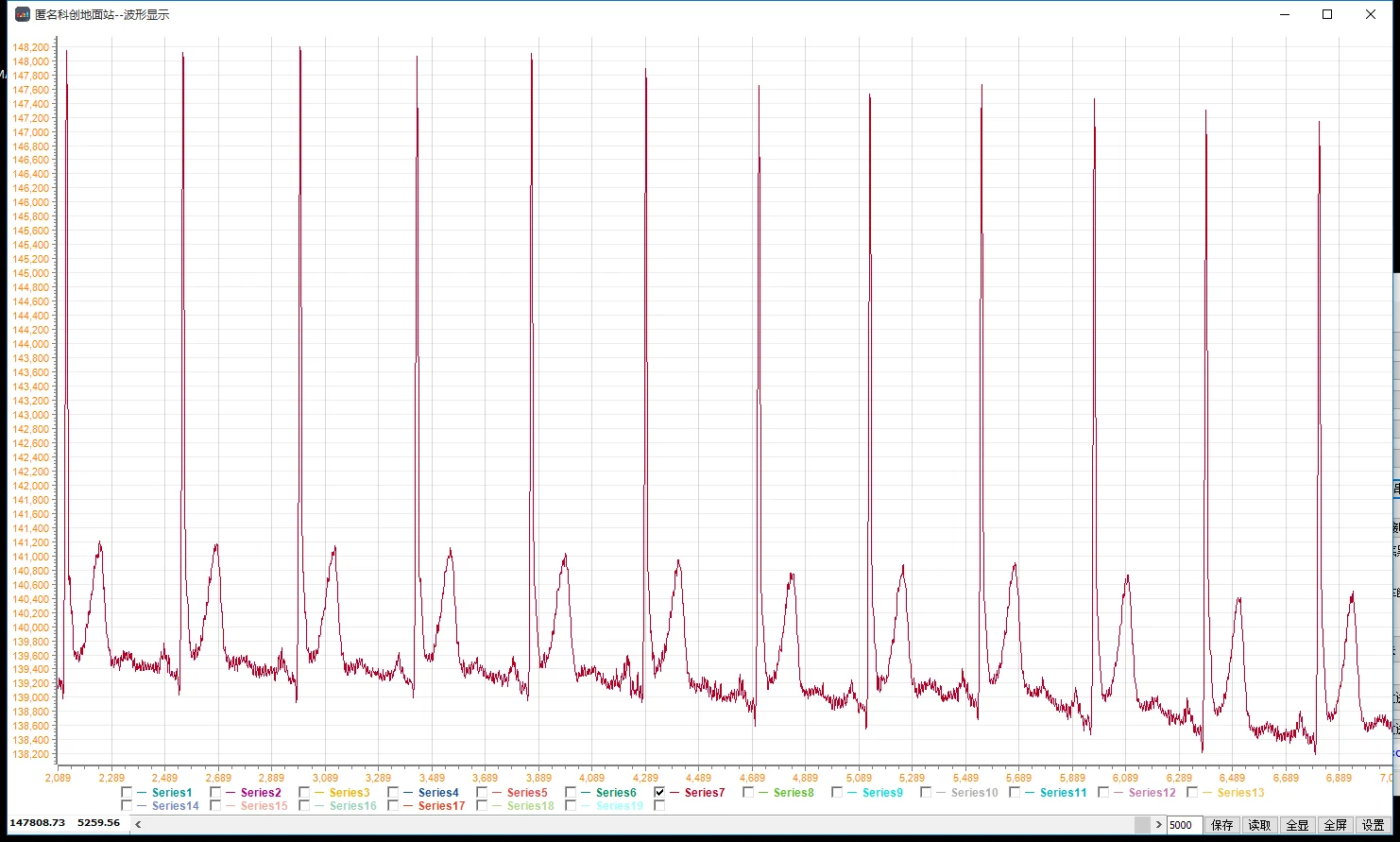

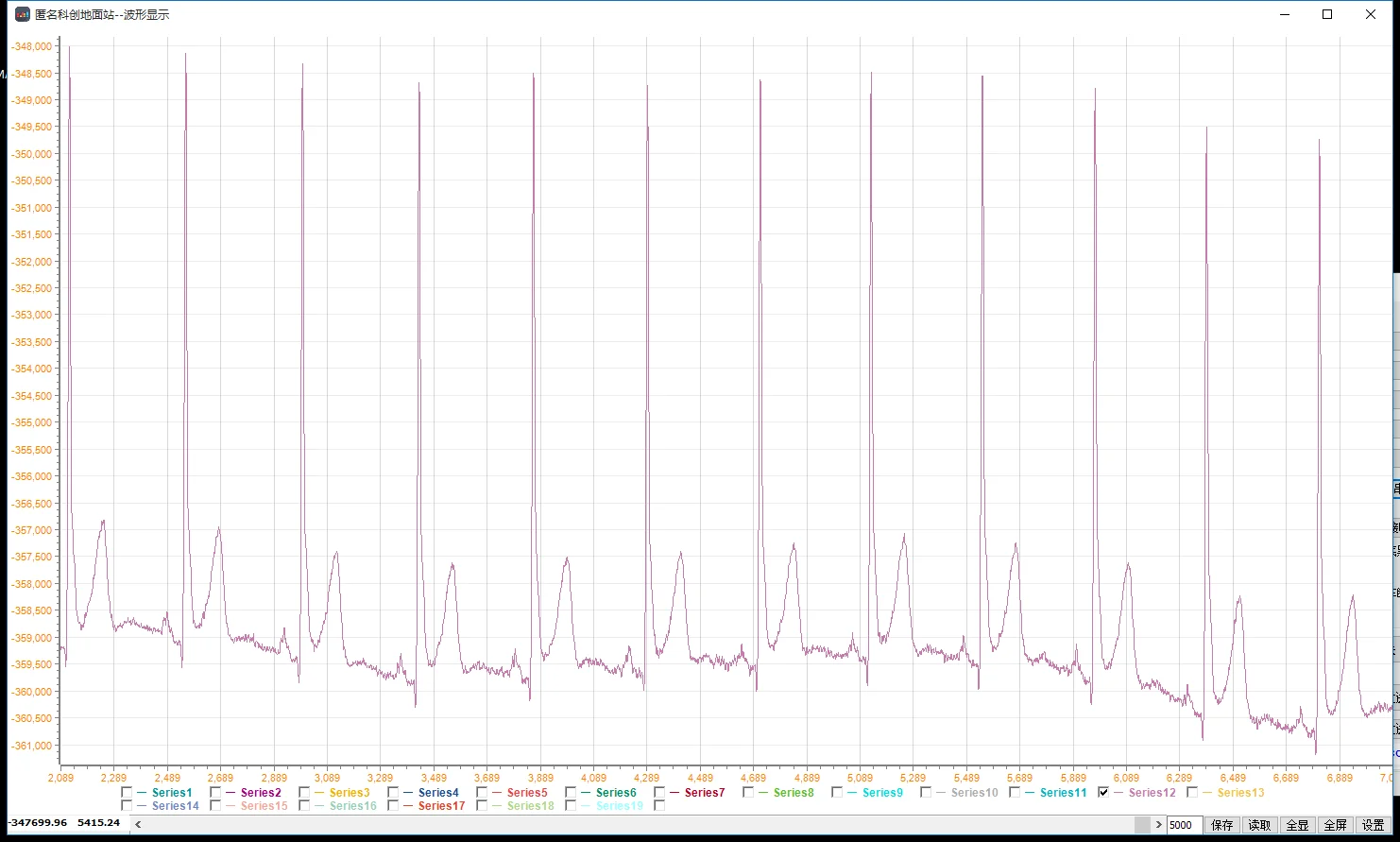

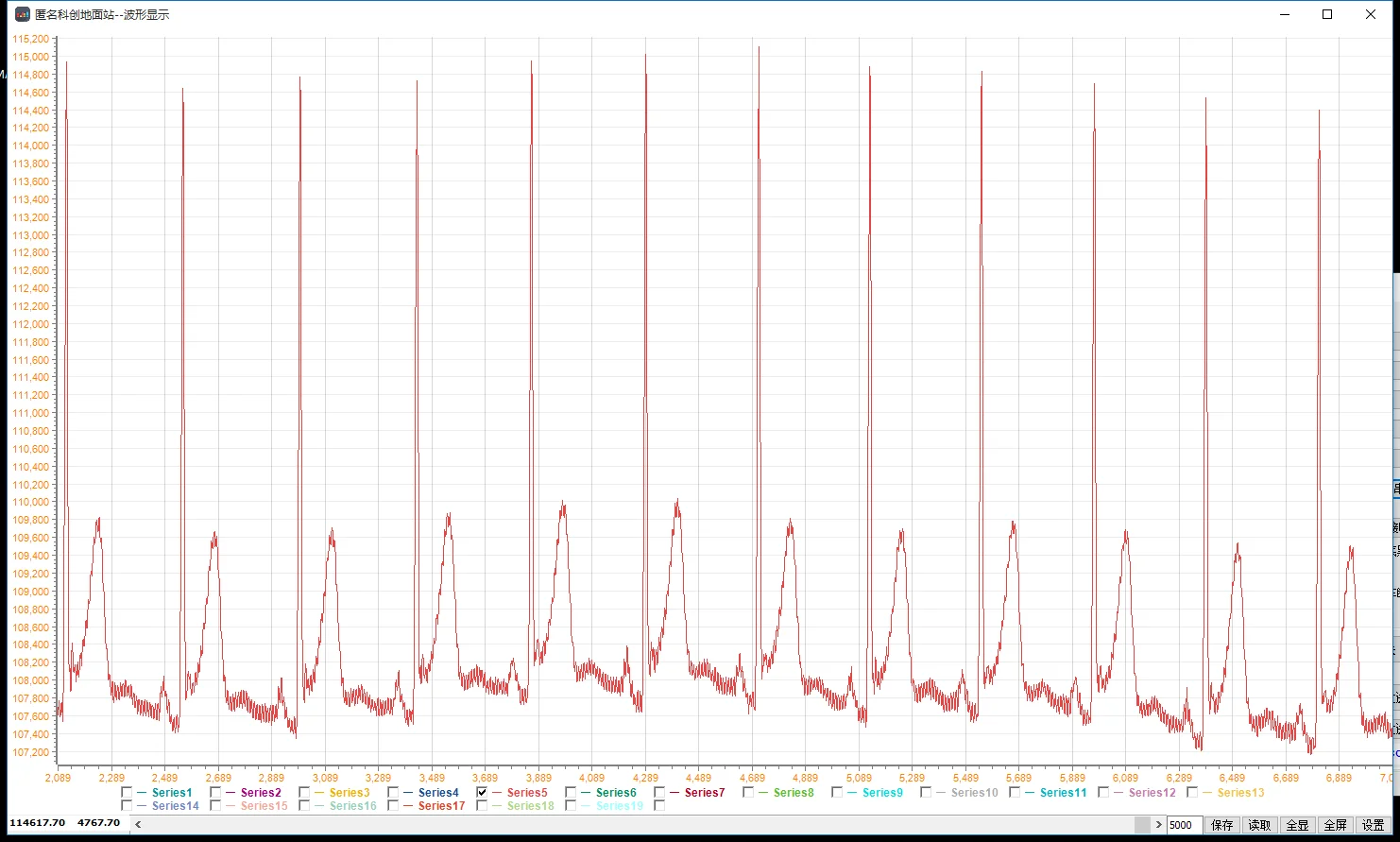

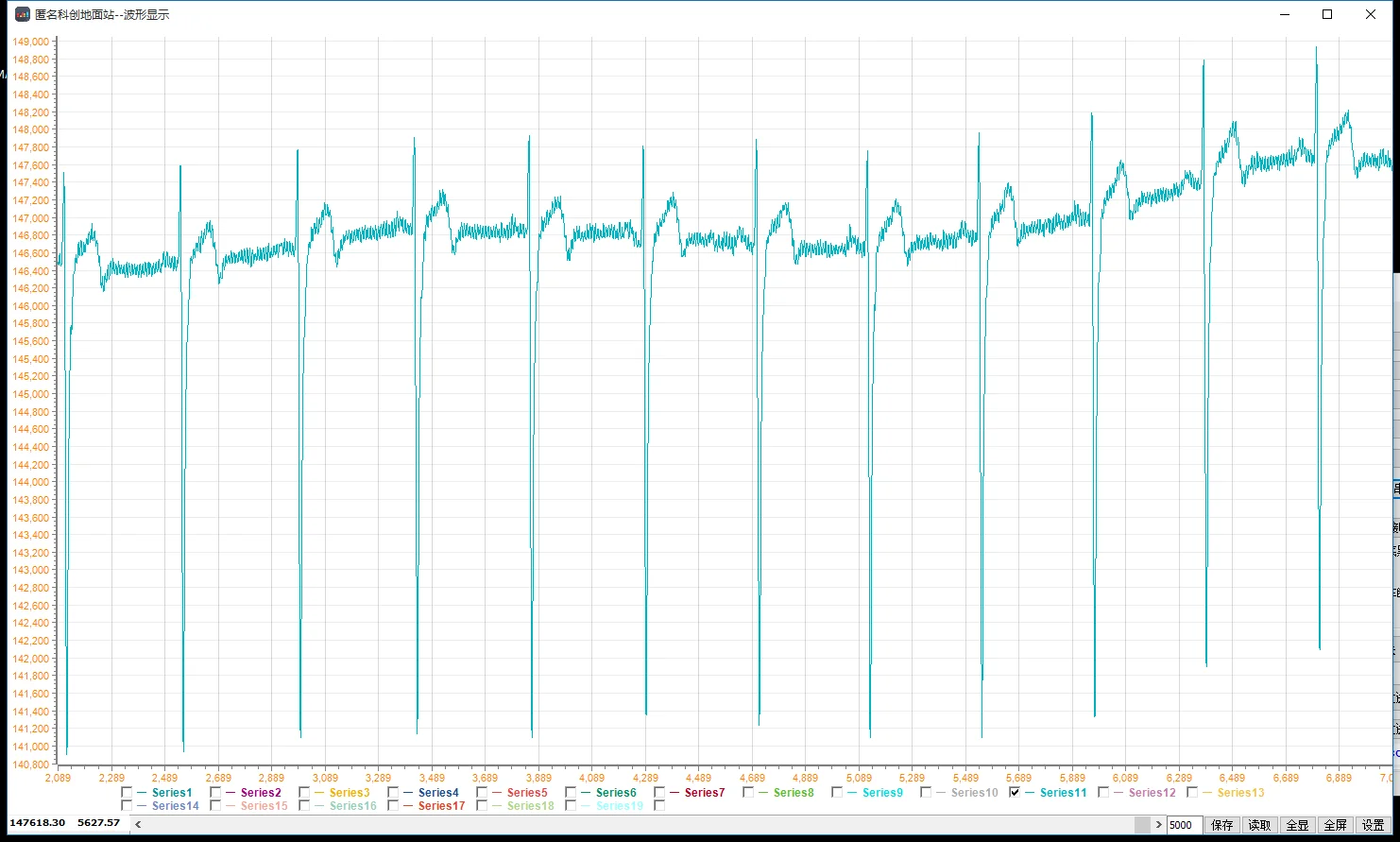

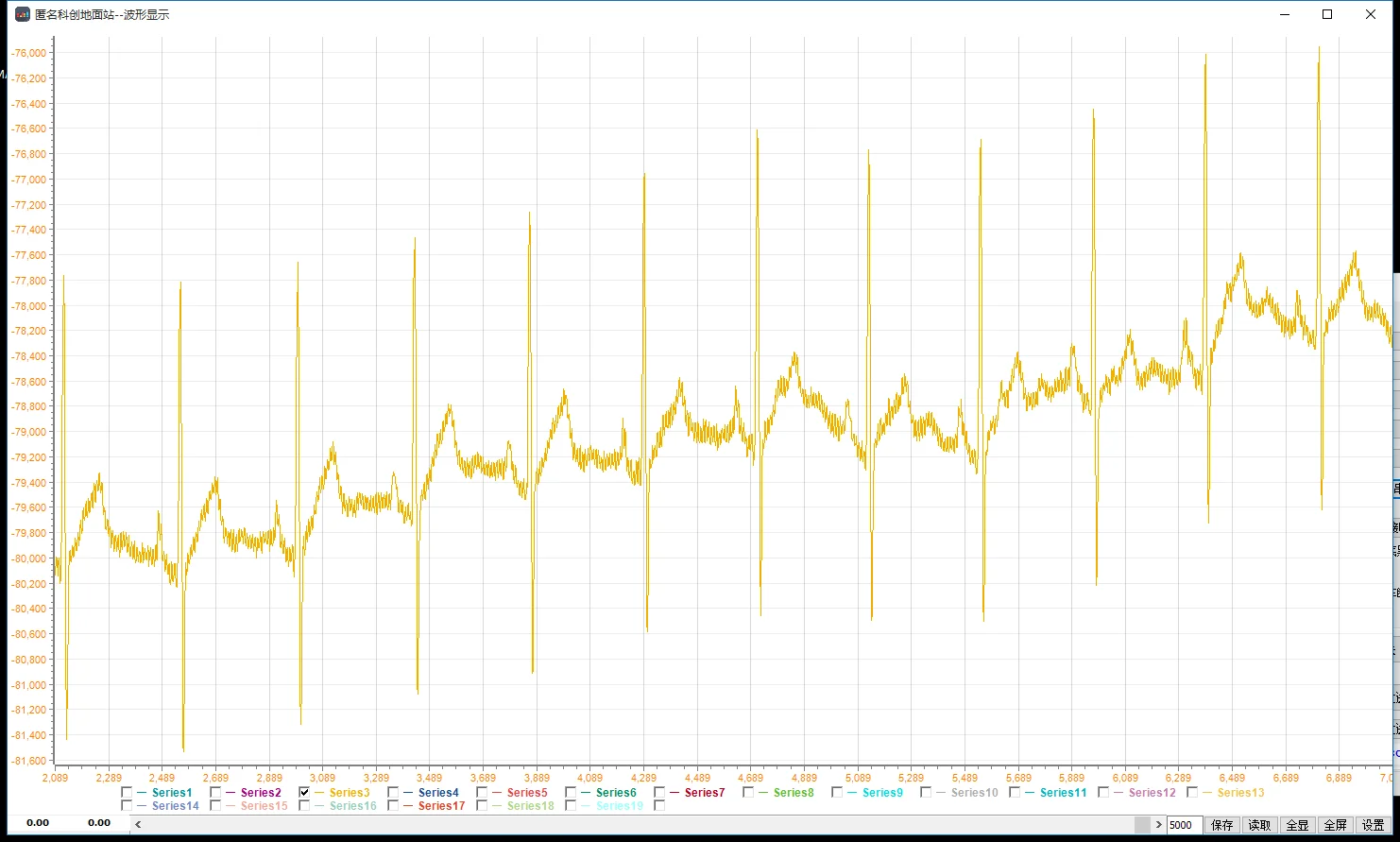

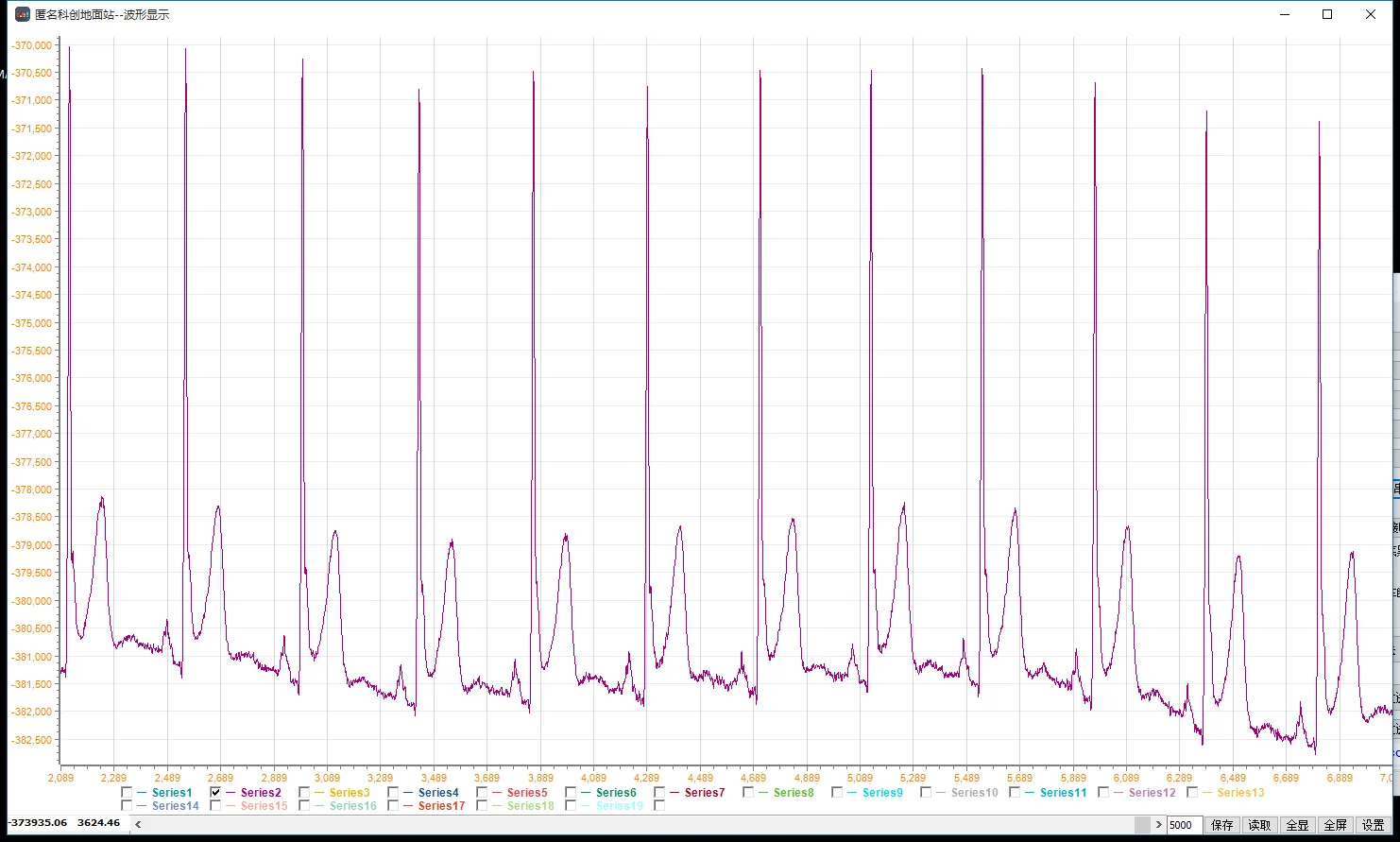

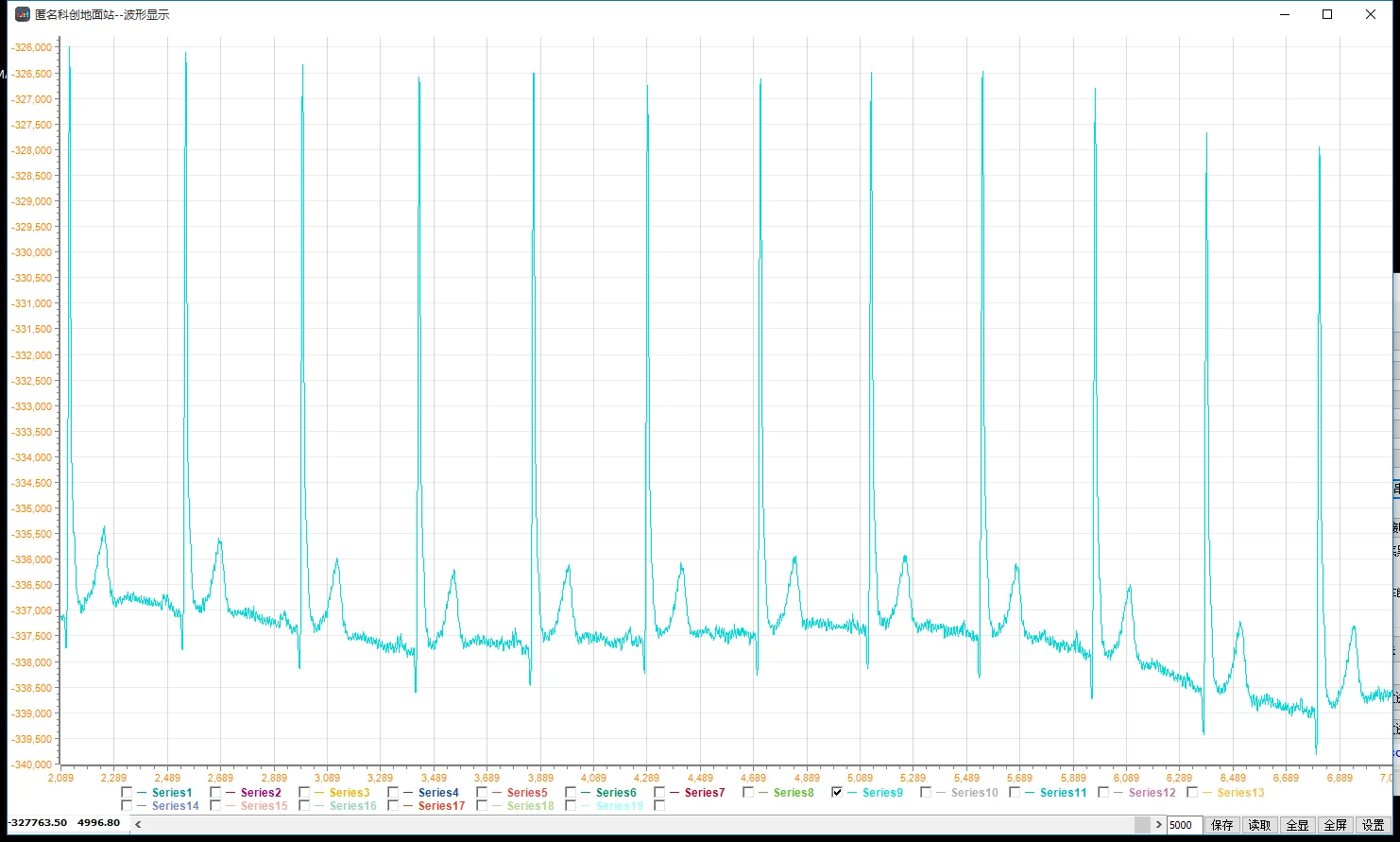

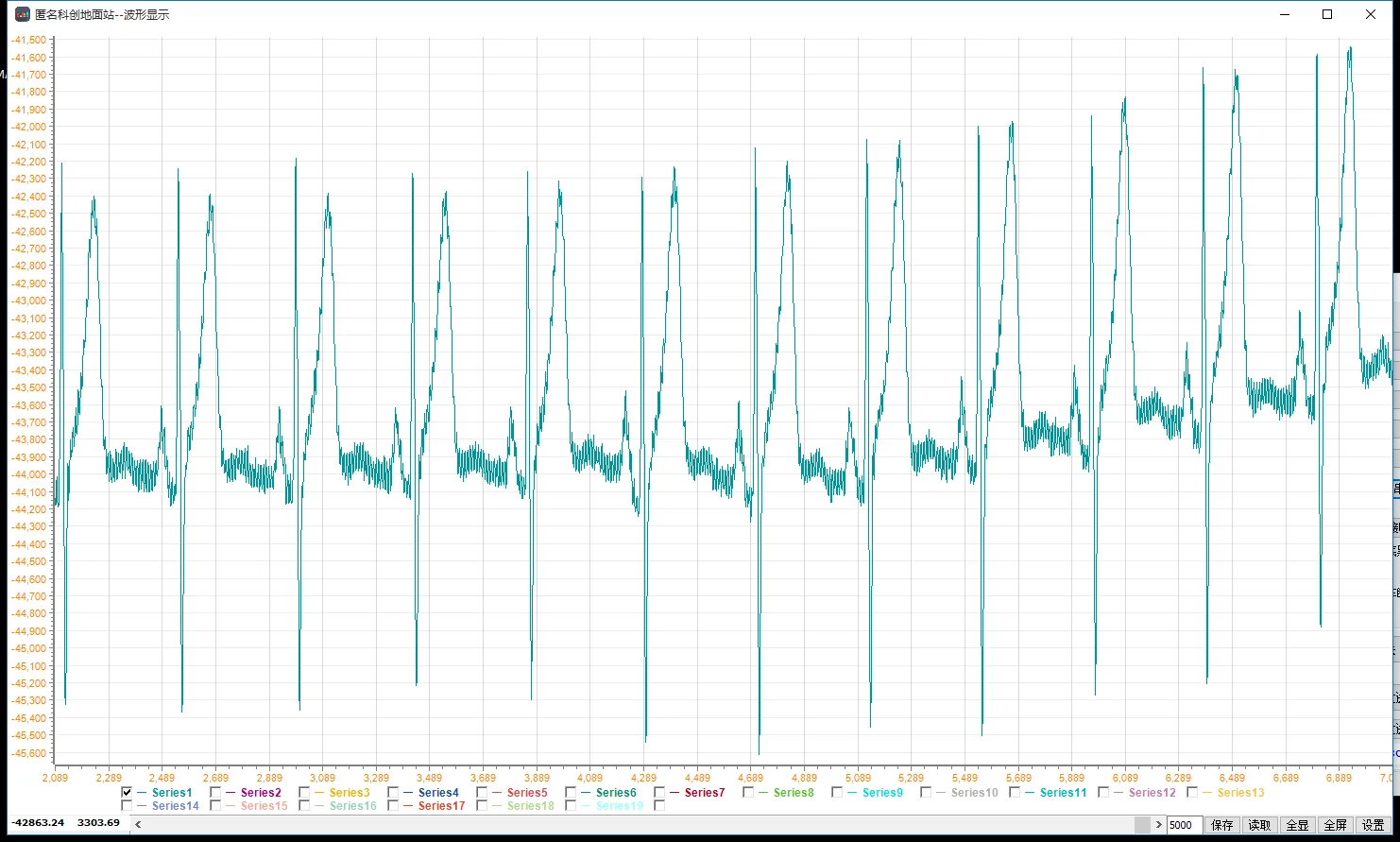

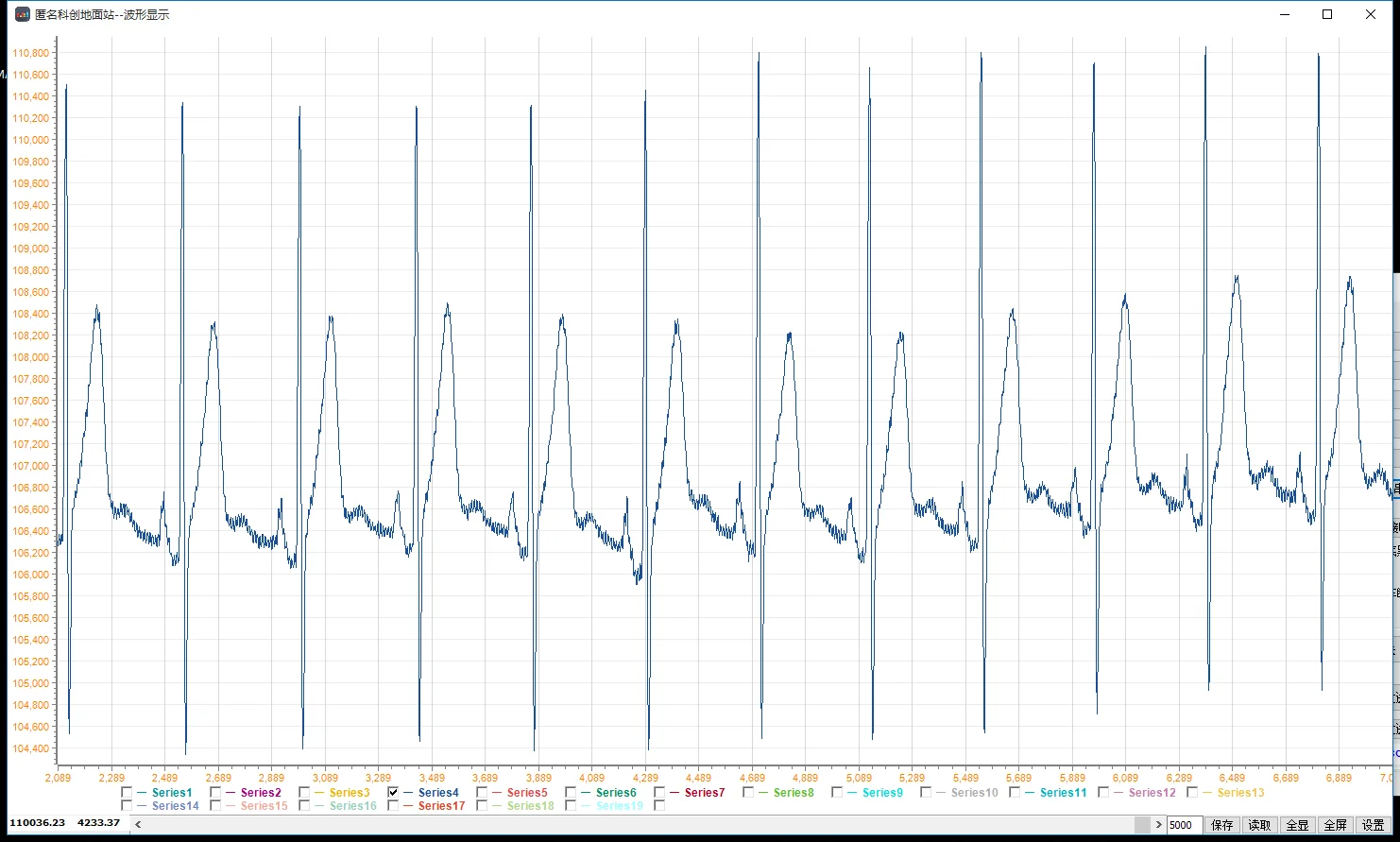

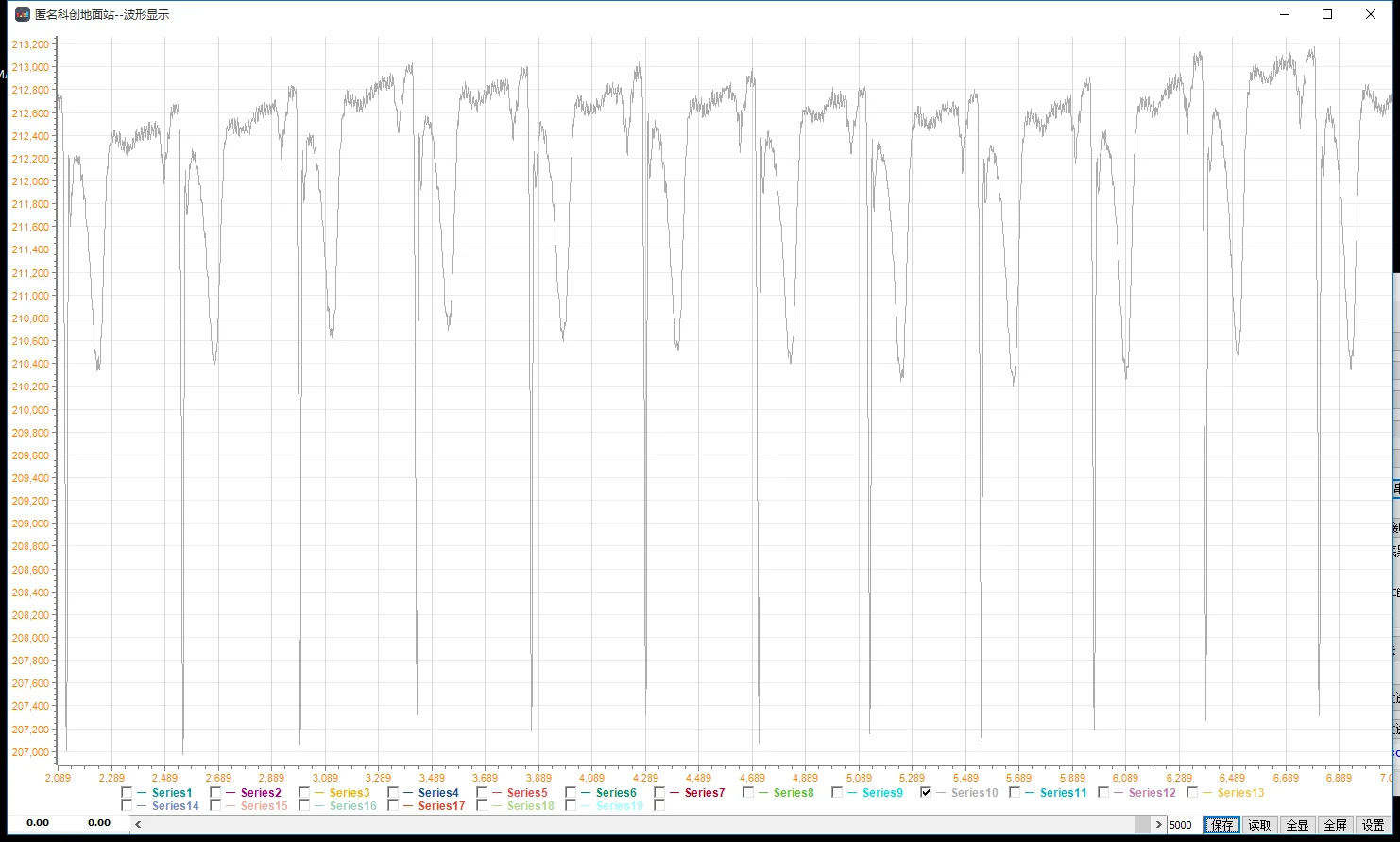

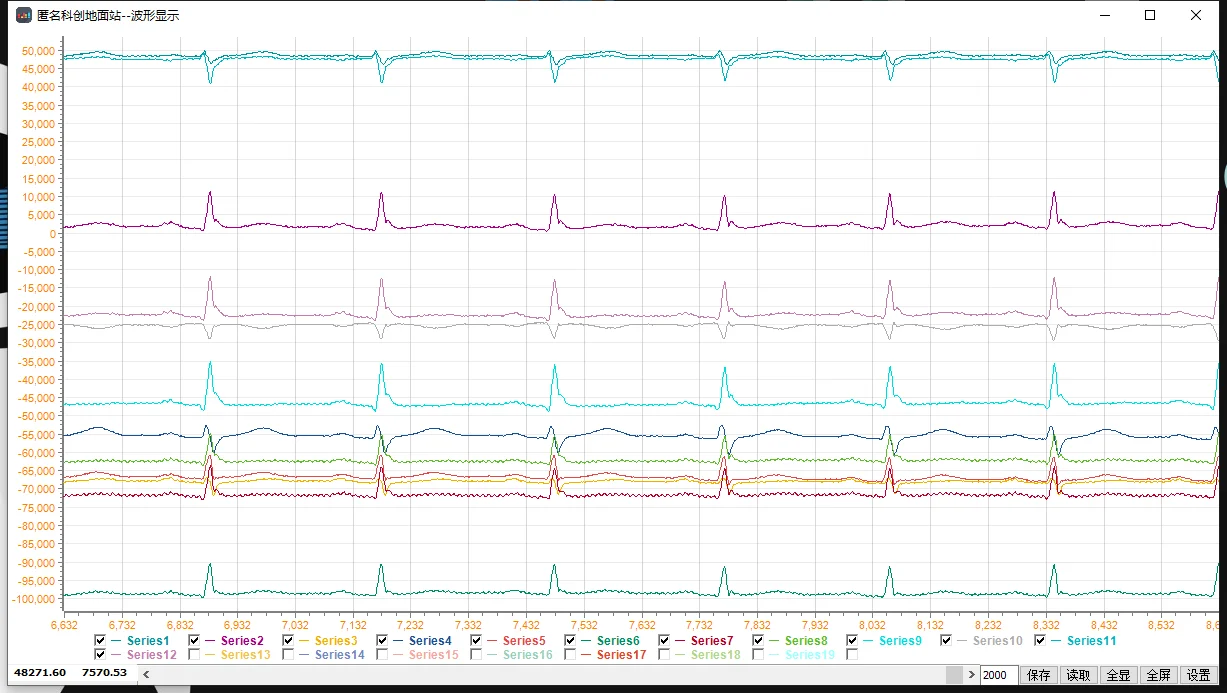

• Test data

Note:No technical support is provided,The use of this module needs to have a certain hardware foundation, please be careful to purchasing
