Характеристики

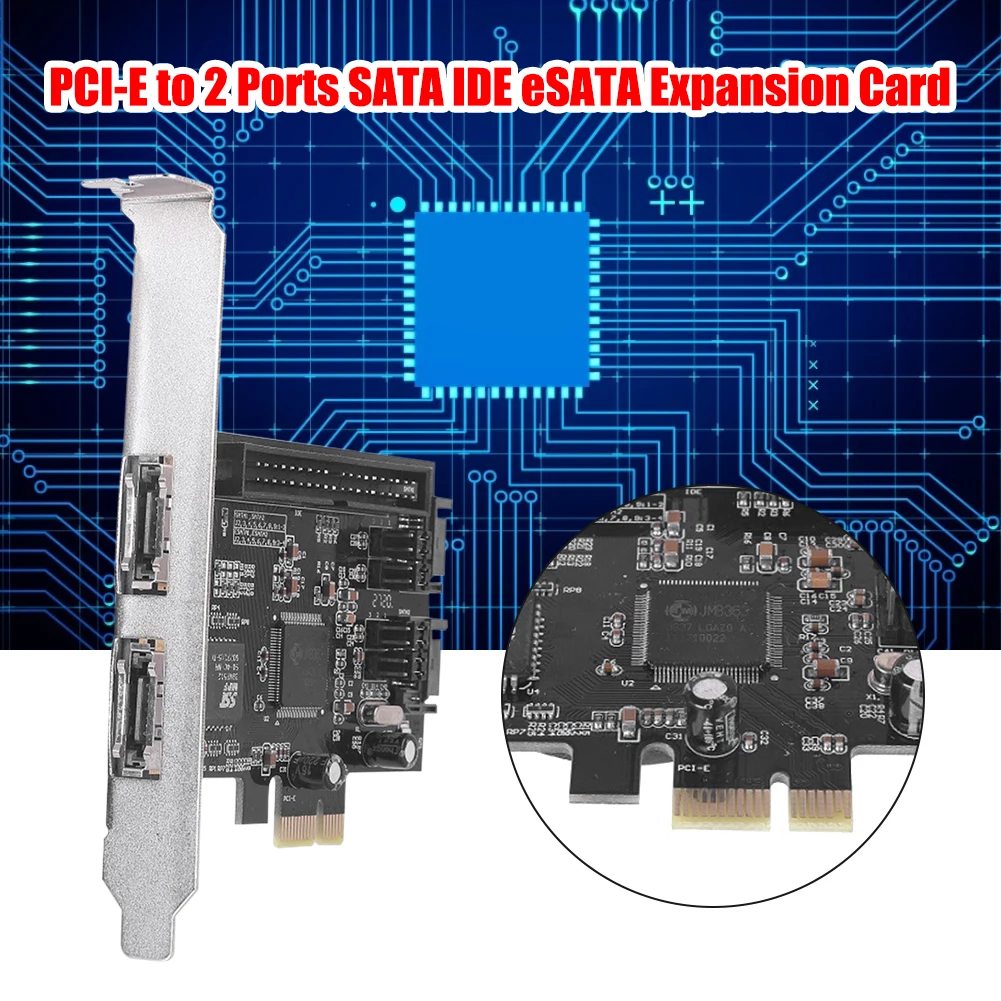

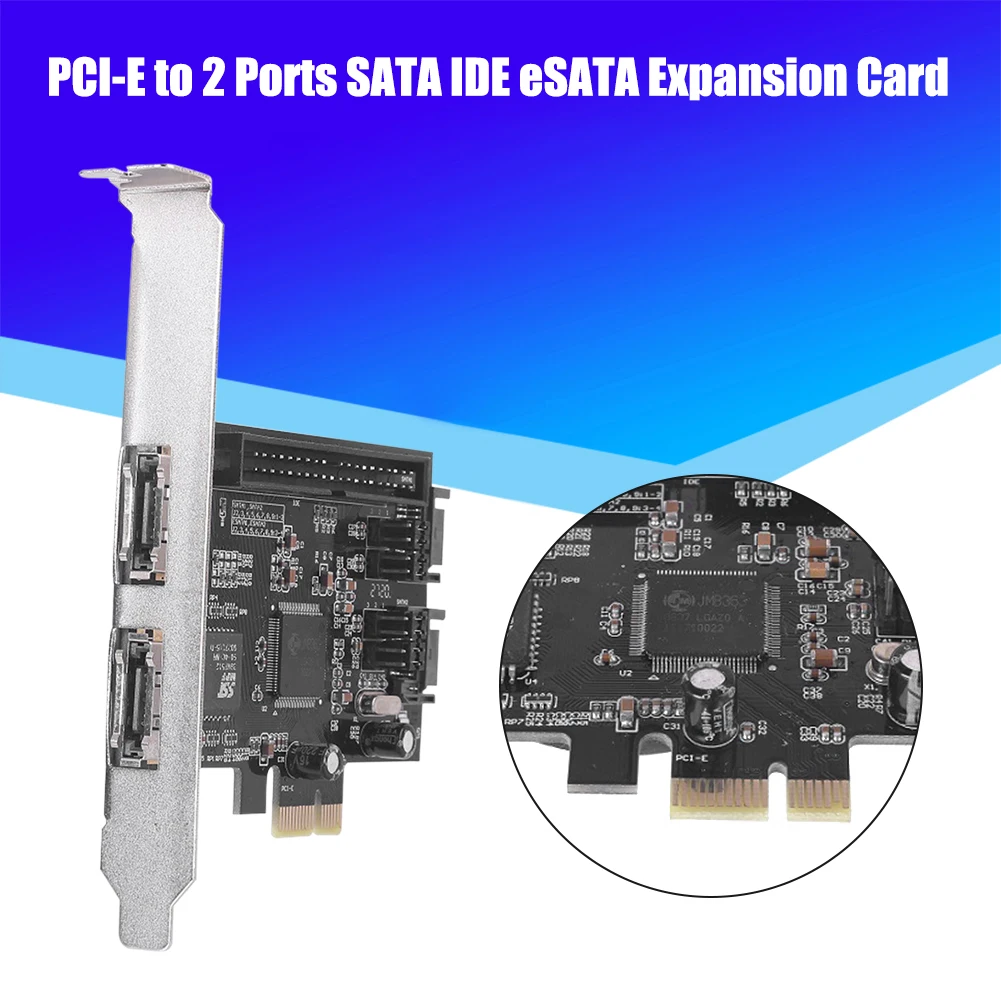

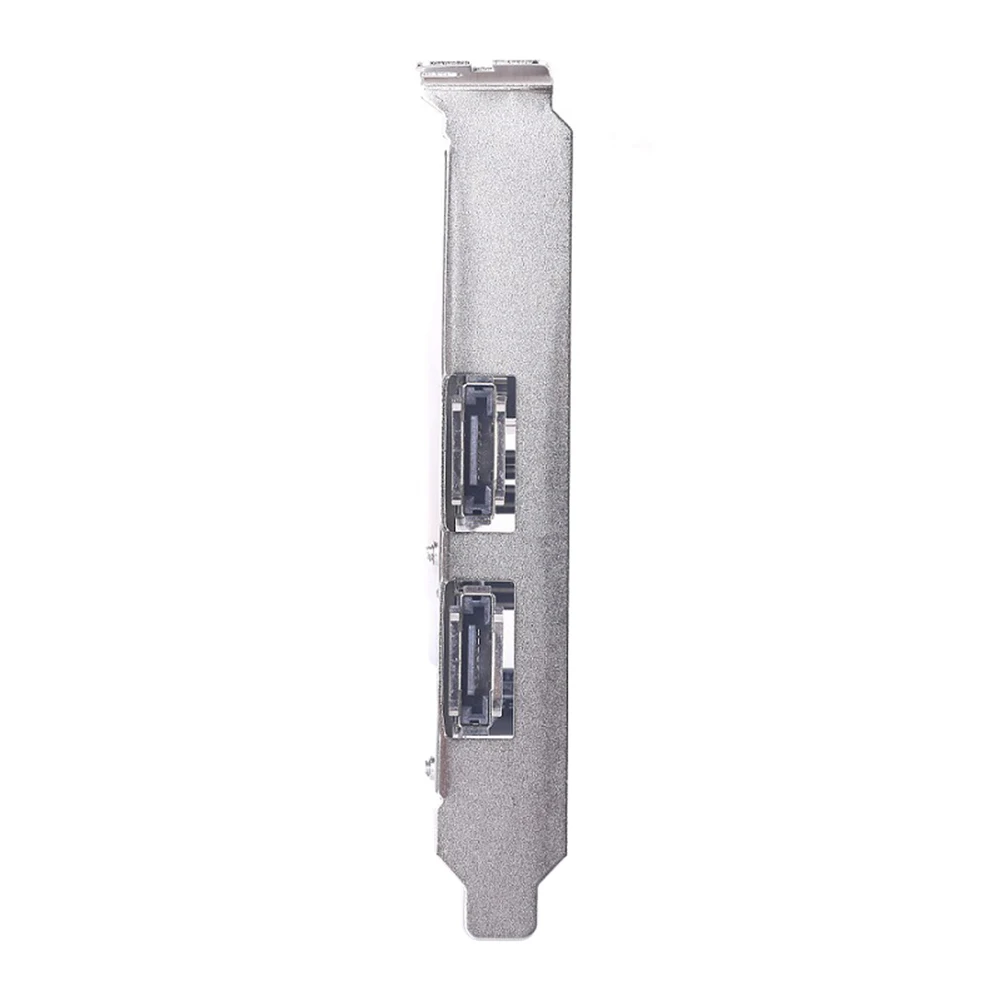

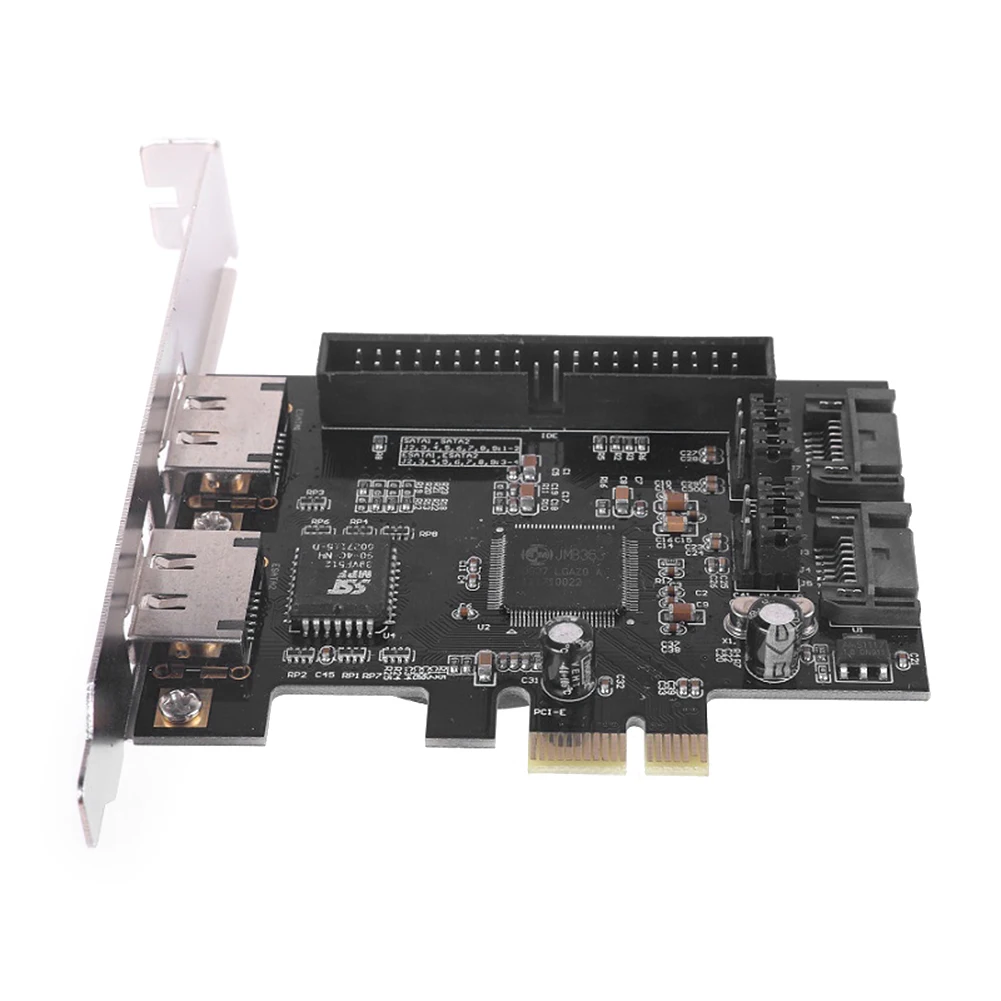

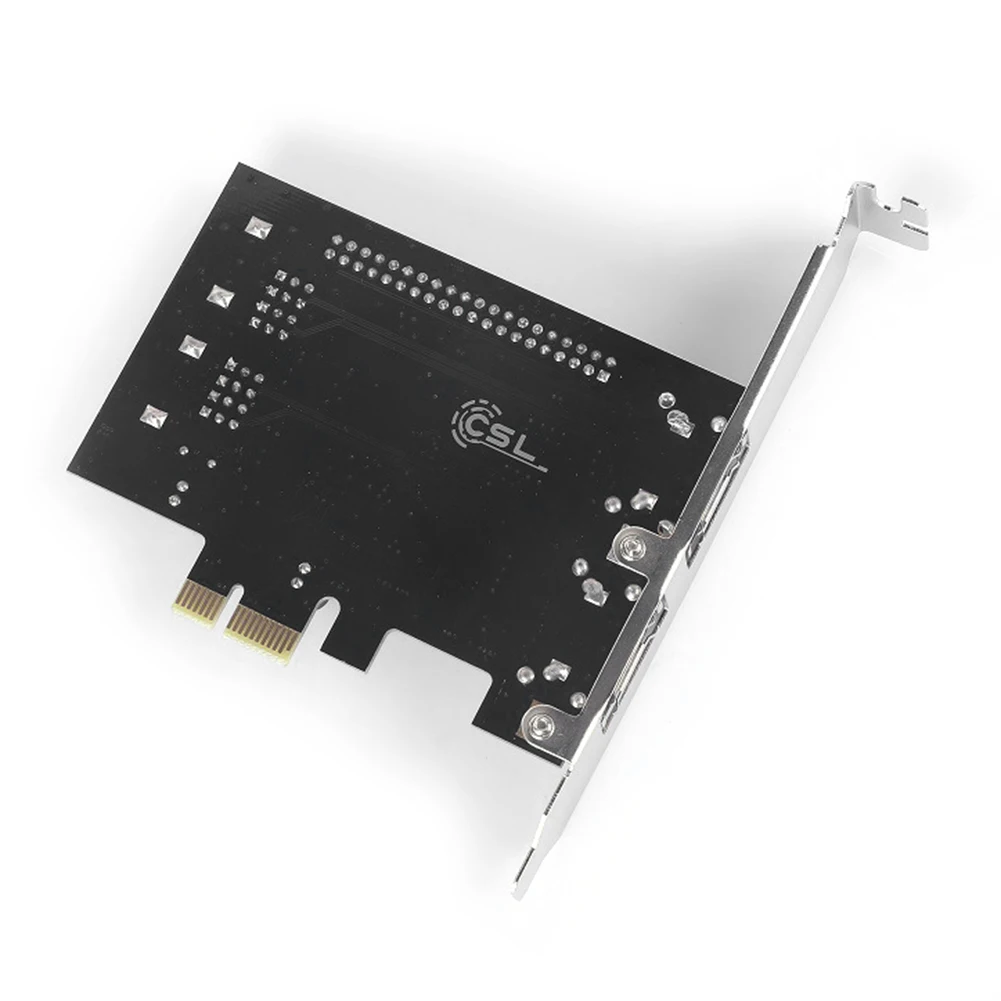

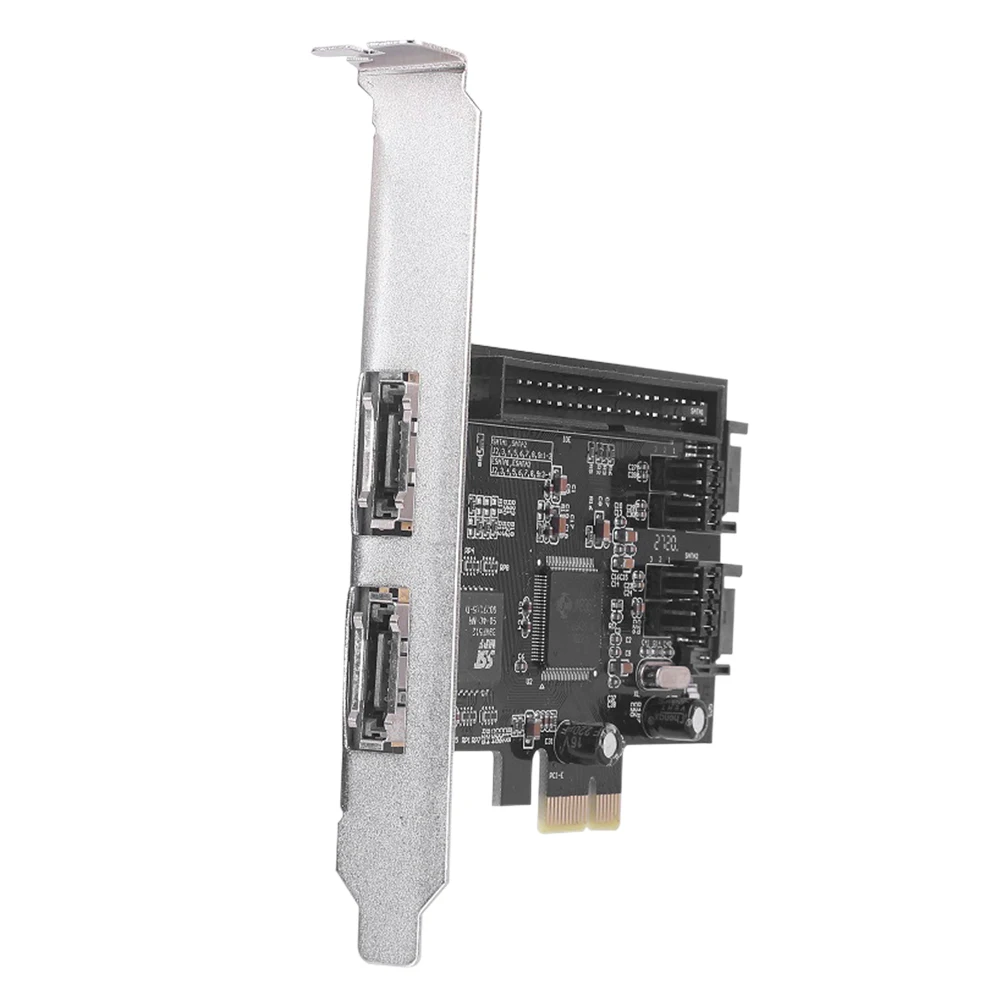

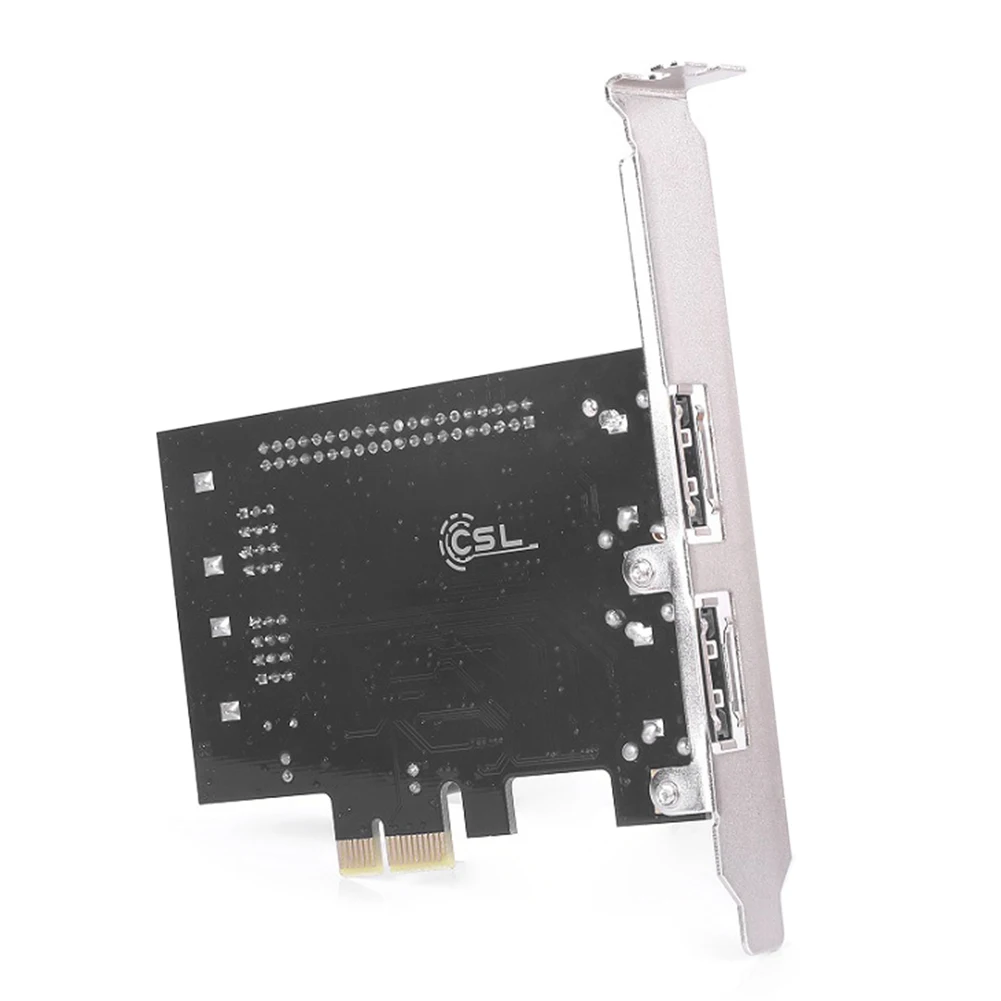

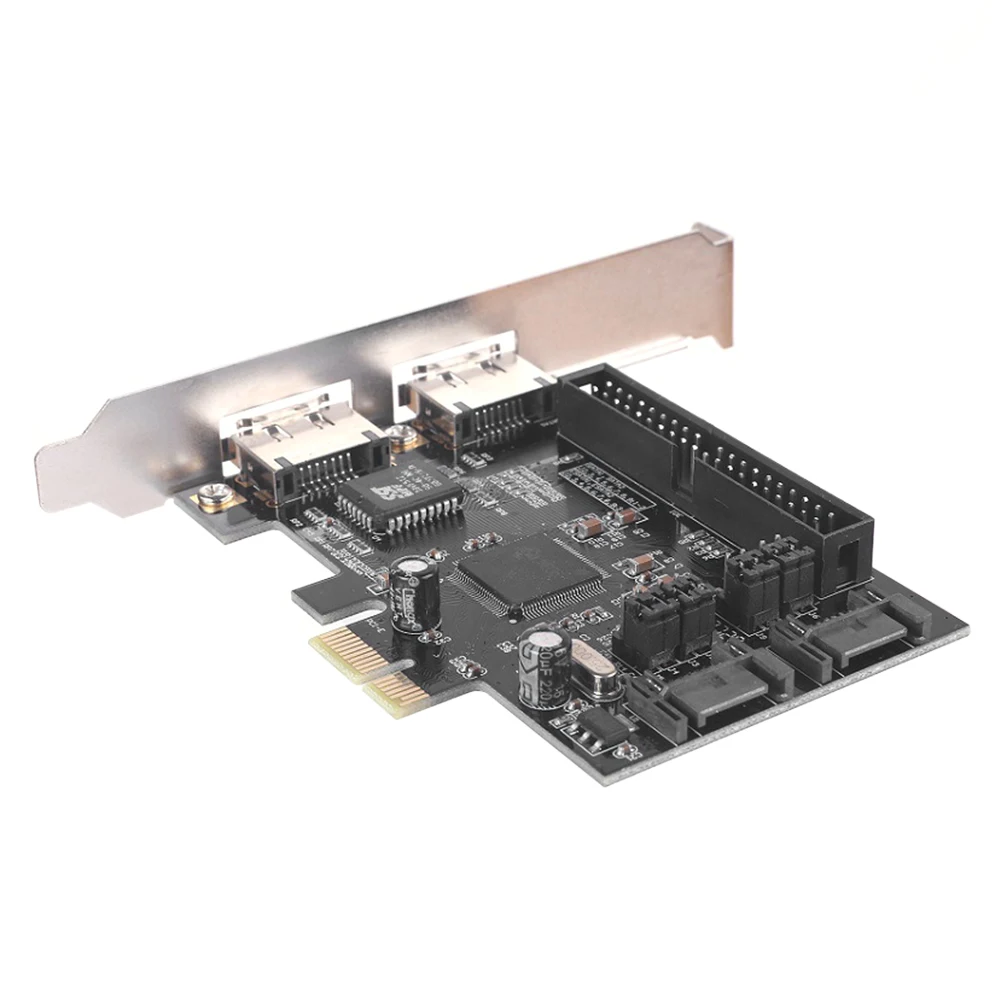

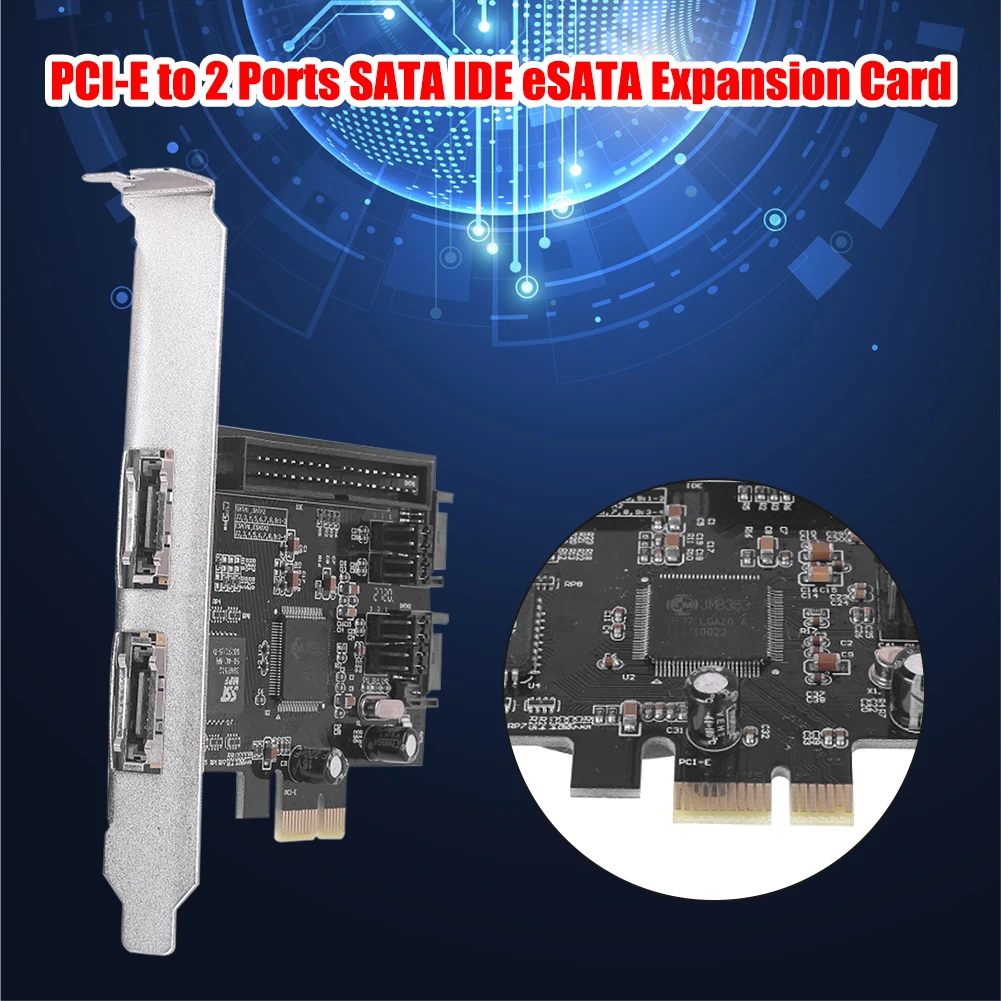

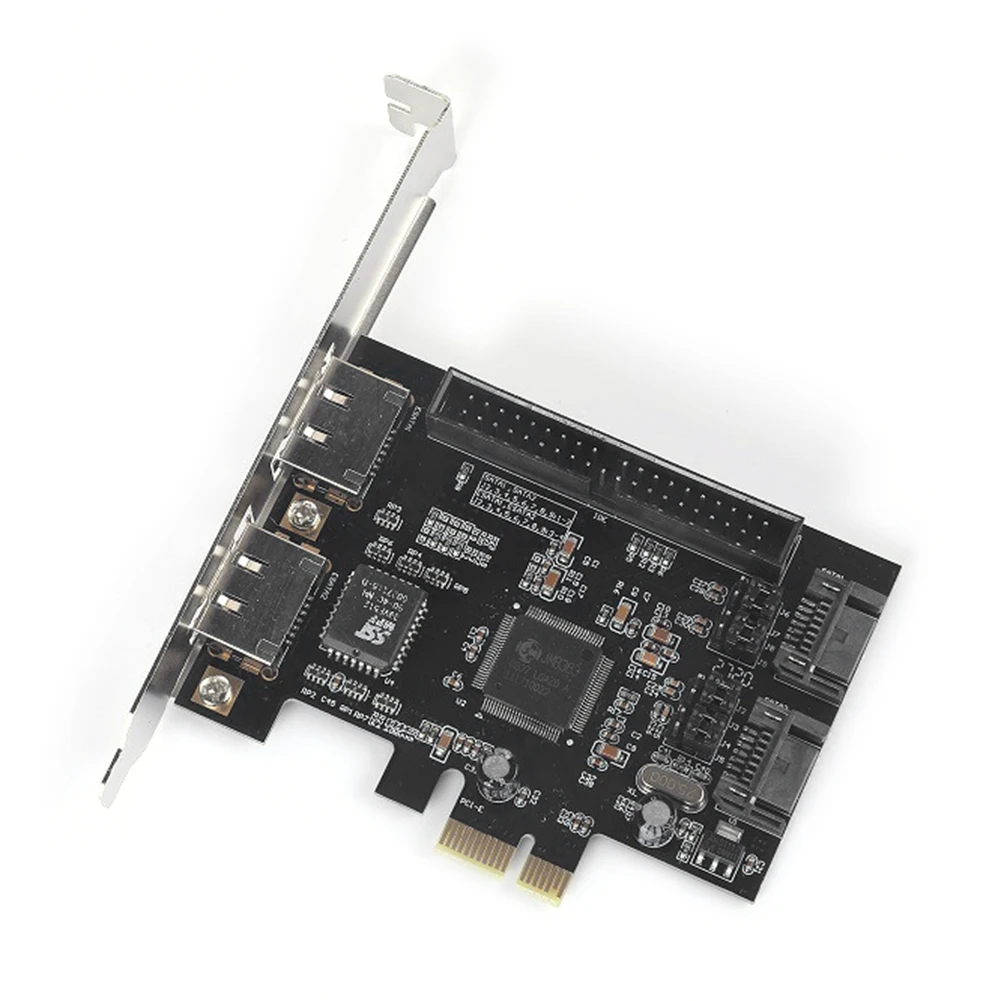

 PCI Express Expansion Card JMB363 PCI-E PCIe to 2 Ports SATA IDE eSATA Adapter Converter RAID Controller Cards Feature: Interface: 2 internal SATA interfaces, 1 ATA133 interface, 2 external ESATA interfaces (external ESATA and internal SATA can only use 2 at the same time, select through jumpers, the default is 2 internal SATA interfaces) Chip: JMB363 Ordinary: Compliant with PCI-Express 1.0 a standard PCI-Express speed 2.5/s full duplex channel Support plug and play Driver support for Windows 2000/xp/7/8/server 2003/xp 64bit/ Vista, for Linux, for Mac, for Dos PATA Support Ultra ATA 133 hard drives, and down support Ultra ATA 100/66/33 standards Transmission rate 133MB/sec, ATA133 Supports hard drives with a capacity of 137 GB or more (48-bit LBA mode) 1 IDE interface supports up to 2 IDE devices SATA II Support 1 external ESATA interface 1 internal SATA interface, transfer rate up to 3Gb/s Support SATA 1.0 standard 256-byte FIFO port fast read/write operation RAID array Support RAID 0, RAID 1, RAID 0+1 mode, support JBOD Specification: Product weight: 70g Product size: 150x120x30mm/5.91x4.72x1.18in Product description: JMB363-PCIe to SATAII x2 and PATA disk array card. PCI-Express to ATA133, SATA II disk array card. Support RAID 0, RAID 1, RAID 0+1 mode, support JBOD. Note: Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! Please allow 1-2cm measuring deviation due to manual measurement.
1 X Expansion Card
|
