WB-SG1 1Hz-8GHz Signal Source Generator On-off Modulation High Frequency HF RF 8G | Дом и сад

Характеристики

modname=ckeditor

type:WB-SG1



overview:1Hz-8GHz wide band output,with OOK modulation,OCXO inside,

support extern connectfrequency stanard



CH1 frequency range:1Hz-200MHz



CH1 step:1Hz-19.999999MHz/1Hz,20MHz-200MHz/10Hz



CH2 output amplifiler:3.3Vpp



CH1 plug type:BNC

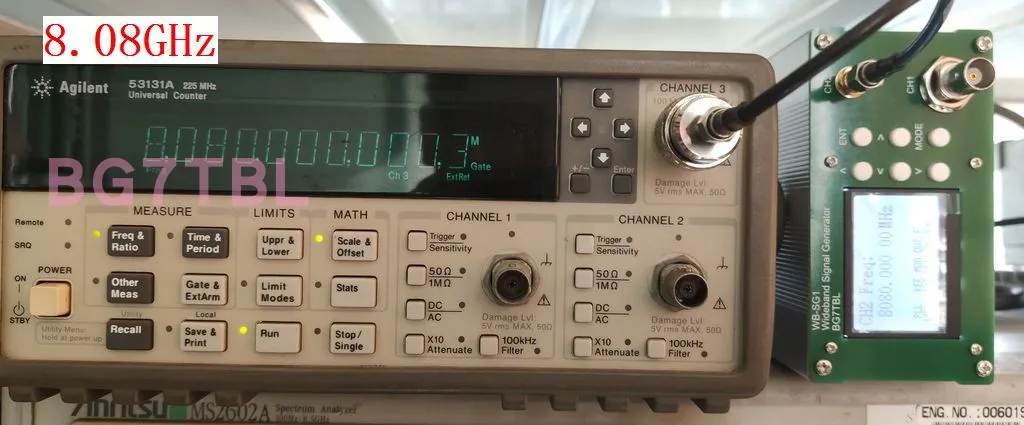

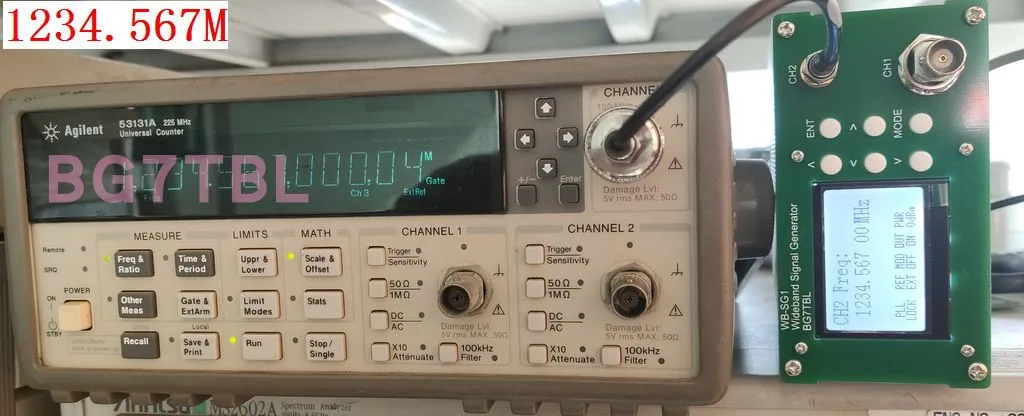

CH2 frequency range:35MHz8GHz



CH2 step:35MHz-4G/0.5KHz, 4G-8G/1KHz



CH2 modulation:ON/OFF modulation,modulation frequency 1Hz-1MHz,step1Hz



CH2 output impedance:50 OHM



CH2 plug type:SMA



inside frequency stadnard:10MHz



inside frequency stadnard type:OCXO



inside frequency stadnard ageing:0.5Hz/year



10M frequency output power:5dBm



extern frequency input range:0dBm to +20dBm



run mode:CH1 frequency mode,CH2 frequency mode,CH1 sweep mode,CH2 sweep mode

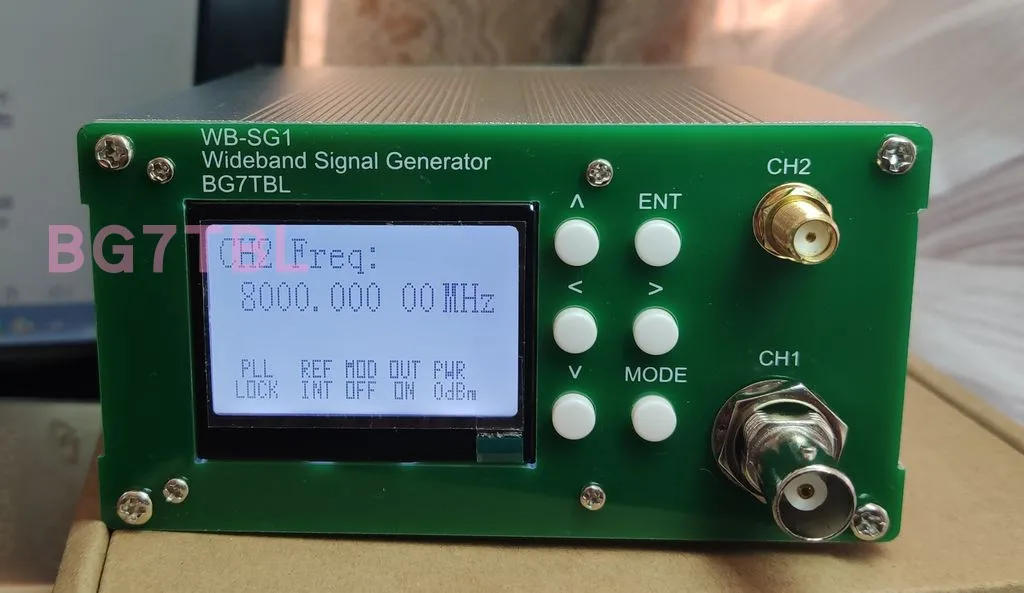

front panel:MODE,change mode

ENT:input data

<>^V:left/right/up/down key

CH1:channel 1 output

CH2:channel 2 output

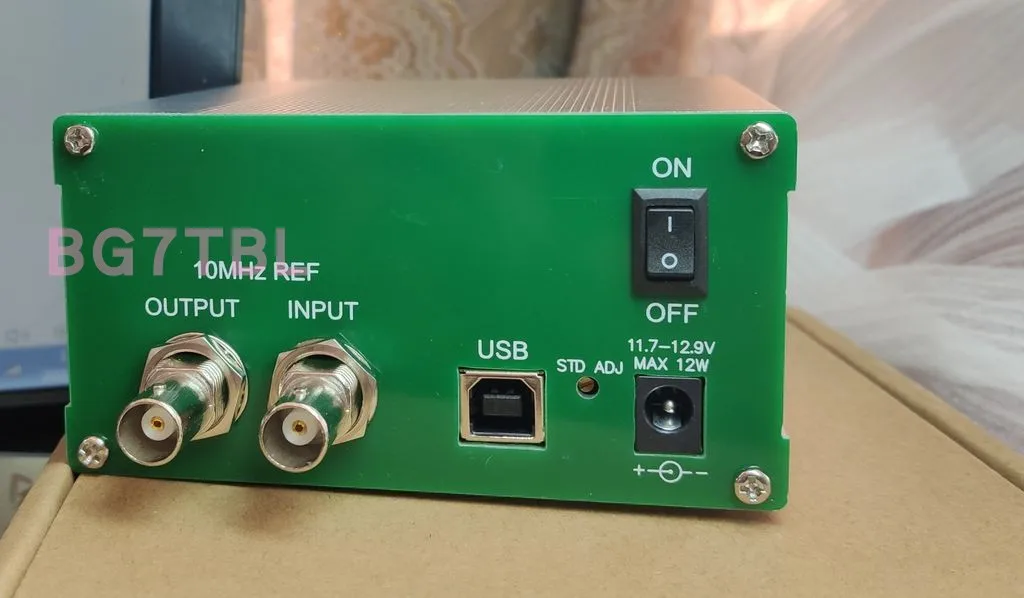

rear panel:10M REF INPUT:extern 10M input

10M REF OUTPU:10M output

USB:USB port

STD ADJ:inside OCXO frequency adjust

power switch

dc plug





power :DC11.7-12.5V,star:less than 0.5A,stabilize:less than 0.25A



size:L*H*D=106*55*105mm



weight:350g



accessory: DC12V adapter 1pcs
