Mini ENC28J60 Ethernet Shield/Ethernet Shield For Nano SPI Interface LAN Network Module | Компьютеры и офис

Характеристики

Welcome to our store.

Our products have affordable prices and good quality. We support dropshipping and wholesale. If you want to work with us for a long time, please contact us and we will give you a very favorable price.Best Regards!

Brand new and high quality.

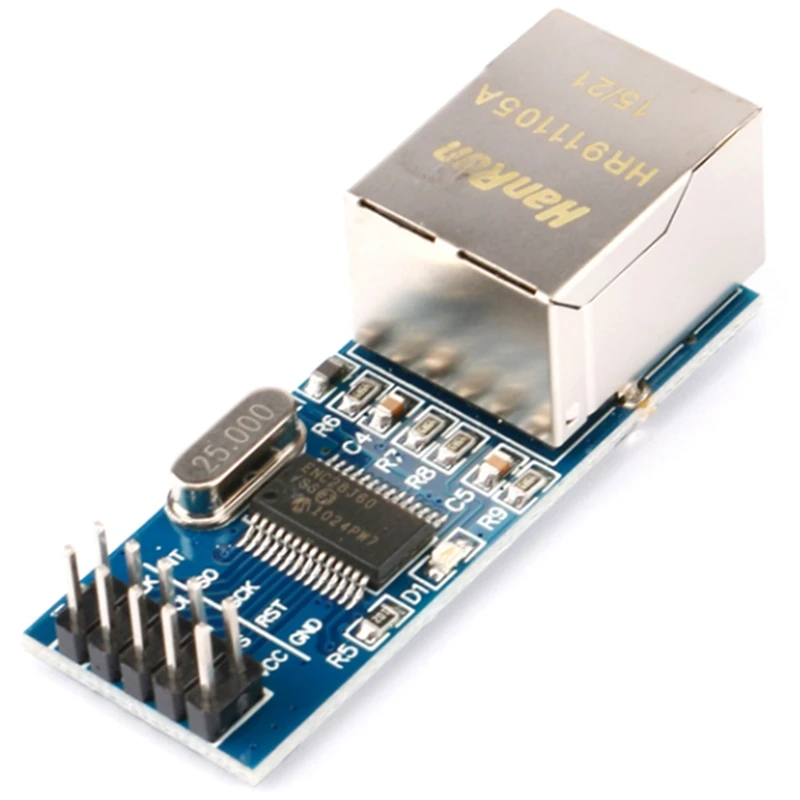

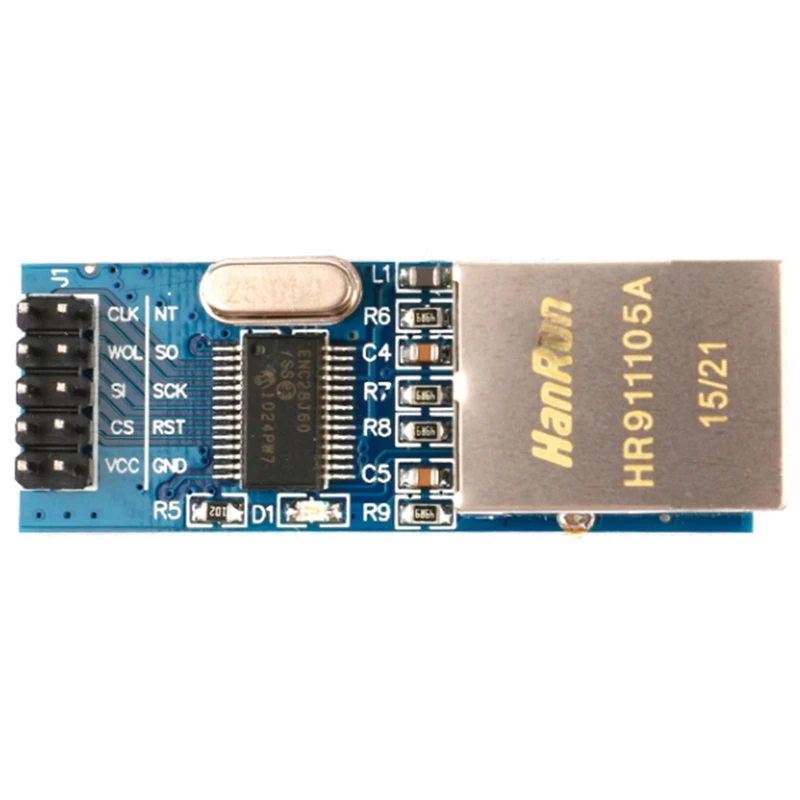

Chip board ENC28J60-I/SO.
The board 25MHZ crystal.

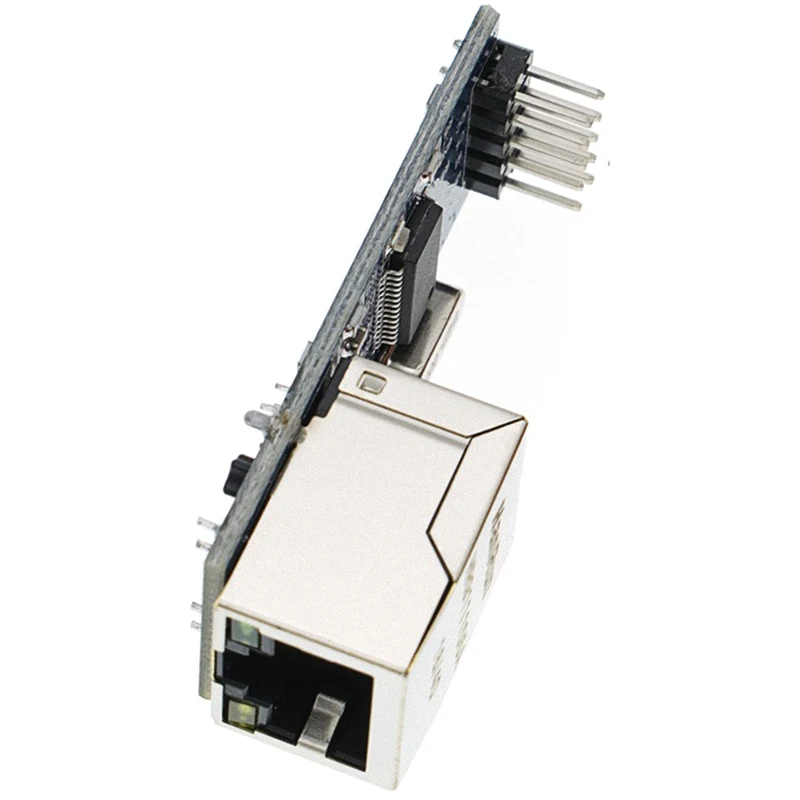

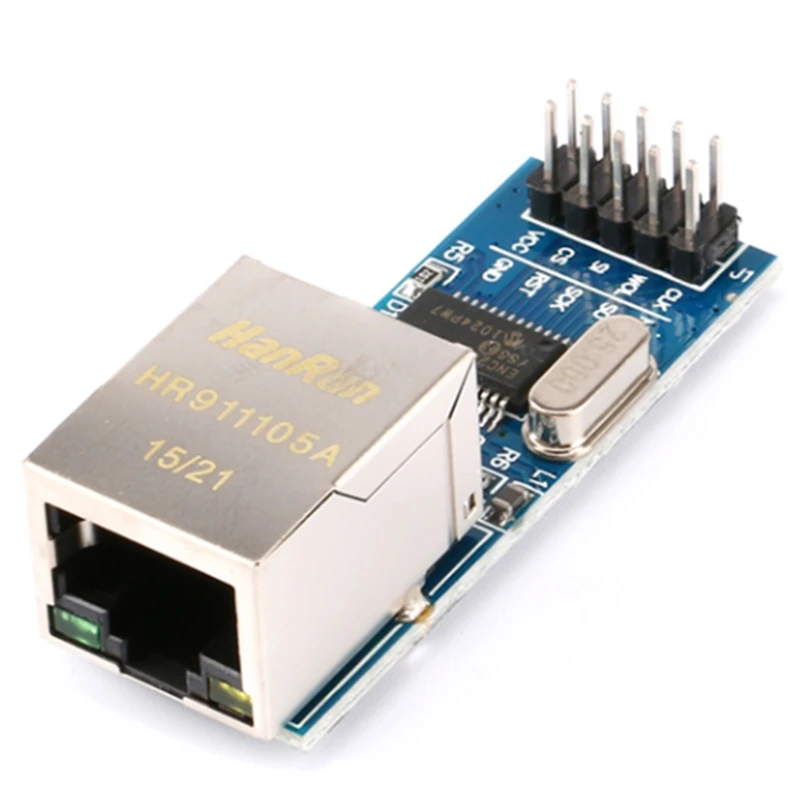

The network interface board HR911105A.
3.3 V power supply pin.

Debug reminder:
1, the IP address of the computer to a network segment and module such as IP module 192.168.1.2, IP computer set: 192.168.1.3; 192.168.1 is the 3 section;
2, cross the network cable connected to the mouth of the computer network module and mouth; (that is, the cable network 1 3,2 cross, and then do not understand that there are pictures Baidu);
3, the module and the MCU connection should pay attention to the connection of each line is reliable (the surface is not even connected to the good);
4, and the MCU port IO to confirm that is right;
5, the program recompile, download, confirm whether to download! STM32 and 51 IO
size:48 x 18mm
Material:plastic
colour:blue

Package Contents:
1 x Ethernet Shield

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
