ES9018K2M Audio DAC Board Of amplifier Player upgrade decoder I2S Input ES9018 9018 | Электроника

Характеристики

Note:This is  Finished  board

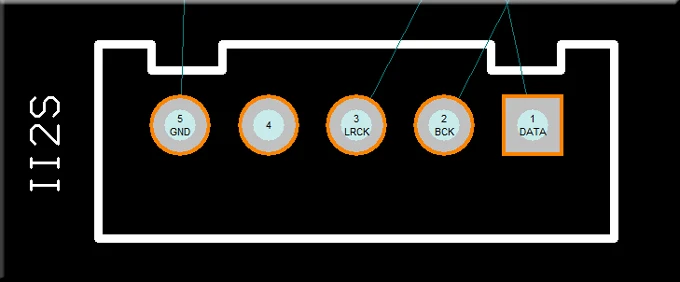

IIS :

USB sound card link :

Descriptions:
1: perfect seamless interface with the use of PCM DSD switch without defects.
2: can exchange DC power supply, easy to use

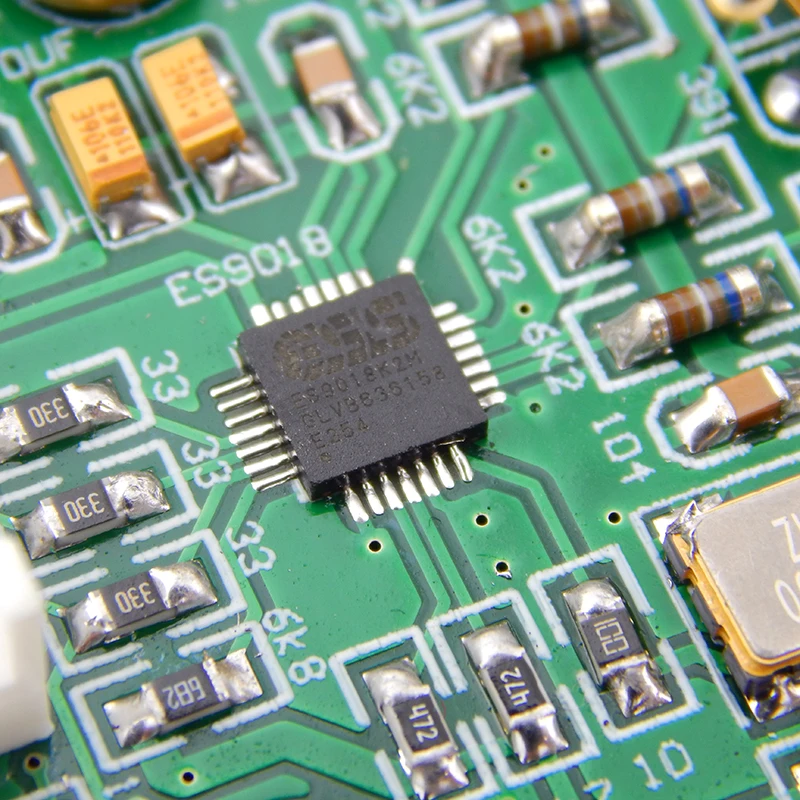

3: ES9018K2M parameters are relatively perfect, 127dB DNR -120dB THD+N is not the old chip can be compared.

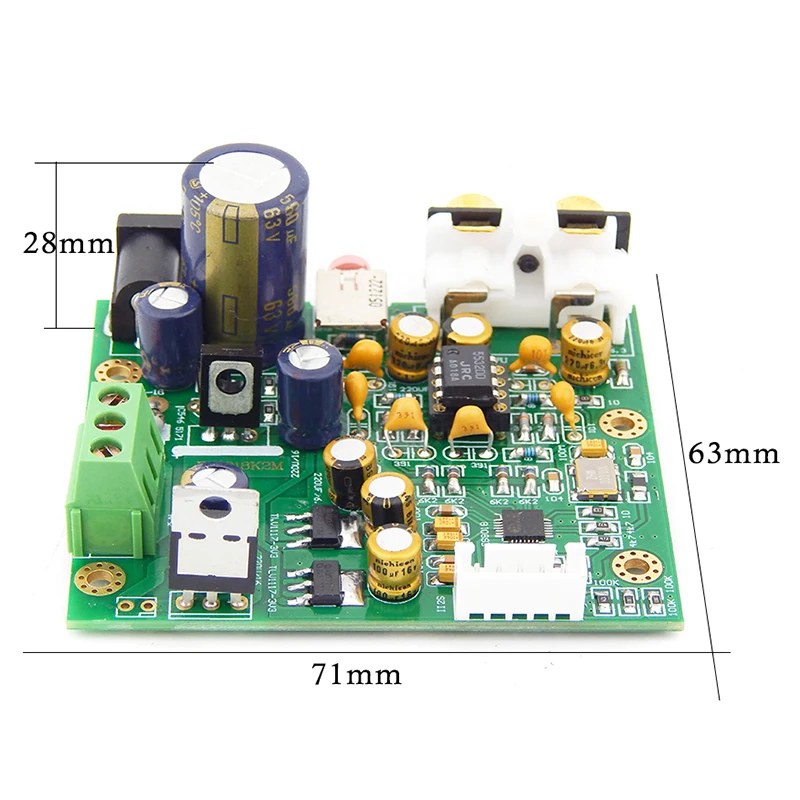

4: board size 72X63 easy to install

5: support IIS-32bit  384K /DSD64 128 256

Board power supply: DC 9-18V (2 lines) or AC 7-15V (3 lines)

Output terminal: RCA + 3.5 terminal can be directly connected to the amplifier, amp, direct access to headphones can also

Because the MC9018 MCK is independent clock 100M, so only need to enter DATA BCK LRCK is enough very convenient. Polished CD DVD old decoding effect is very good. Delicate rounded, very good extension. Default with NE5532 op amp, to upgrade the opener can choose their own fever opener
Main capacitor for the genuine r"uby belt K explosion-proof network, high-precision active crystal, op amp is double precision 5532DD ,regulator is low noise BB-TI LTV1117. Headphone terminal is F"oxconn full shield
Crystal for imported parts, specially designed 100M low jitter and low noise special, not an ordinary active crystal
Packaging:
1pc *  ES9018K2M ES9018 I2S Input Decoding Board Mill Plate DAC

Wires *1pc
