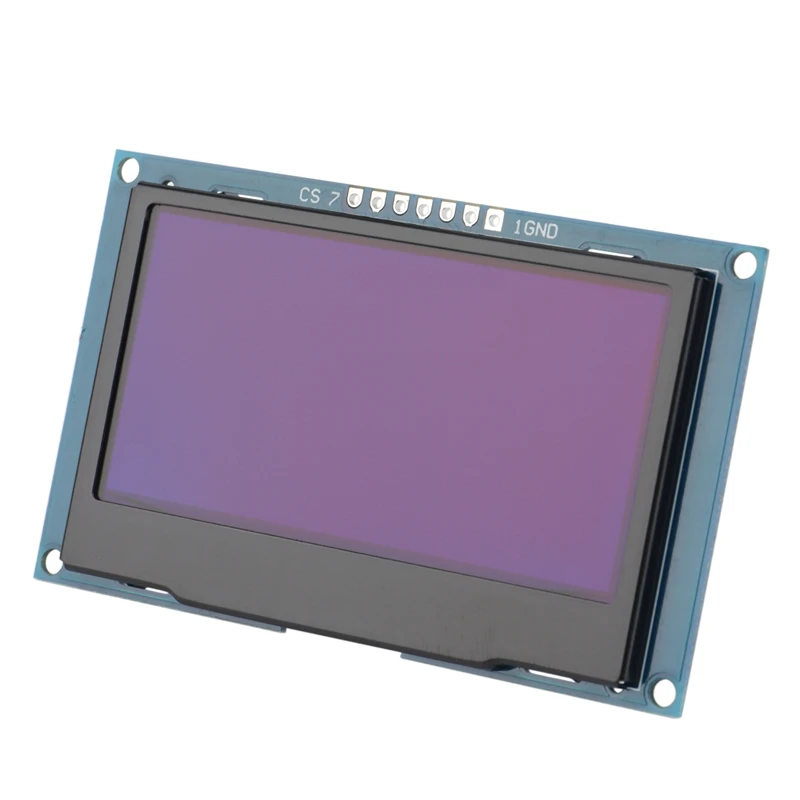

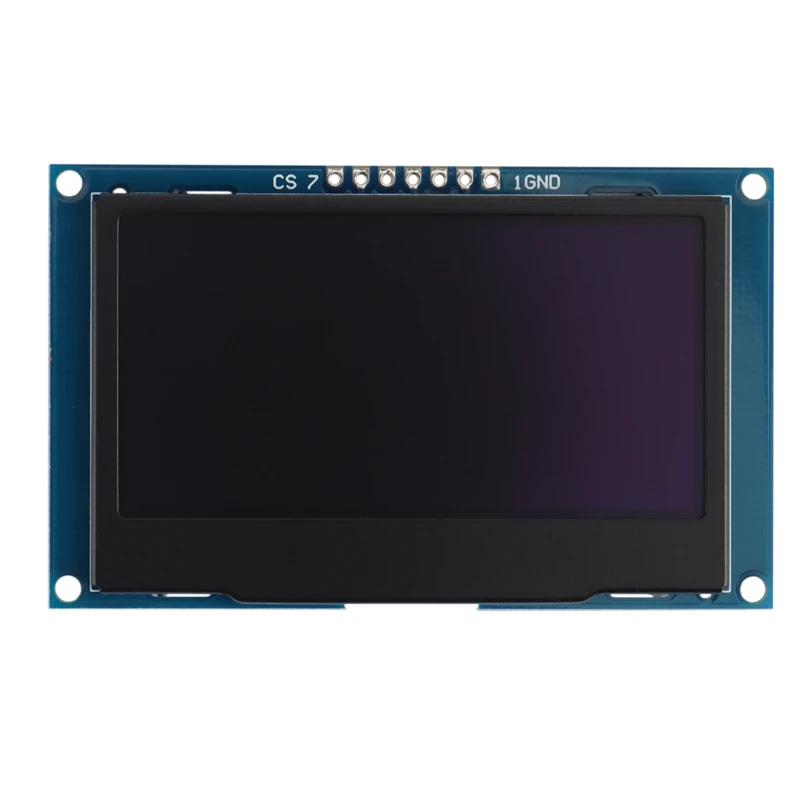

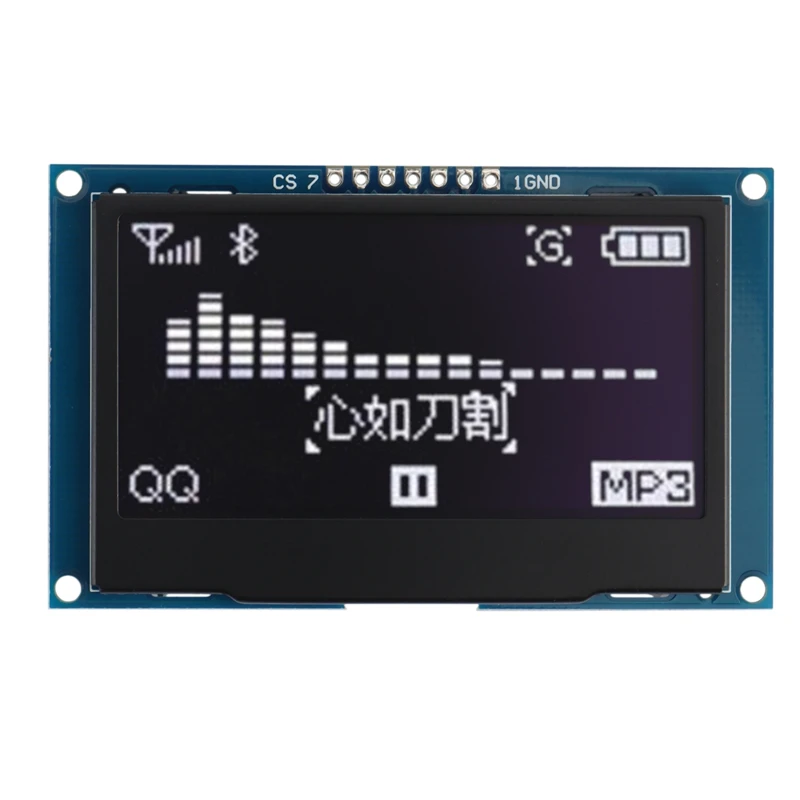

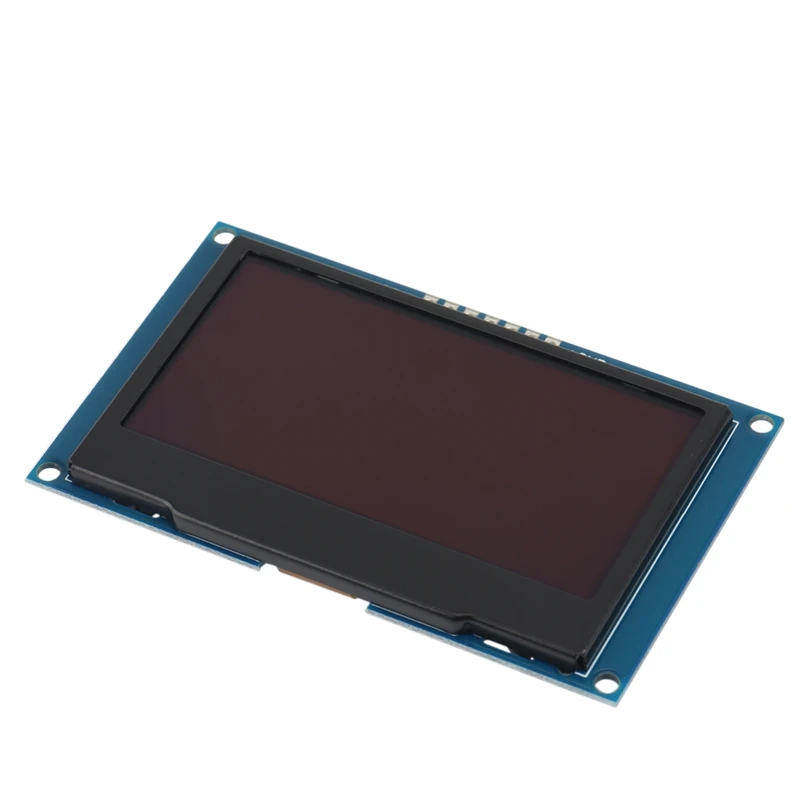

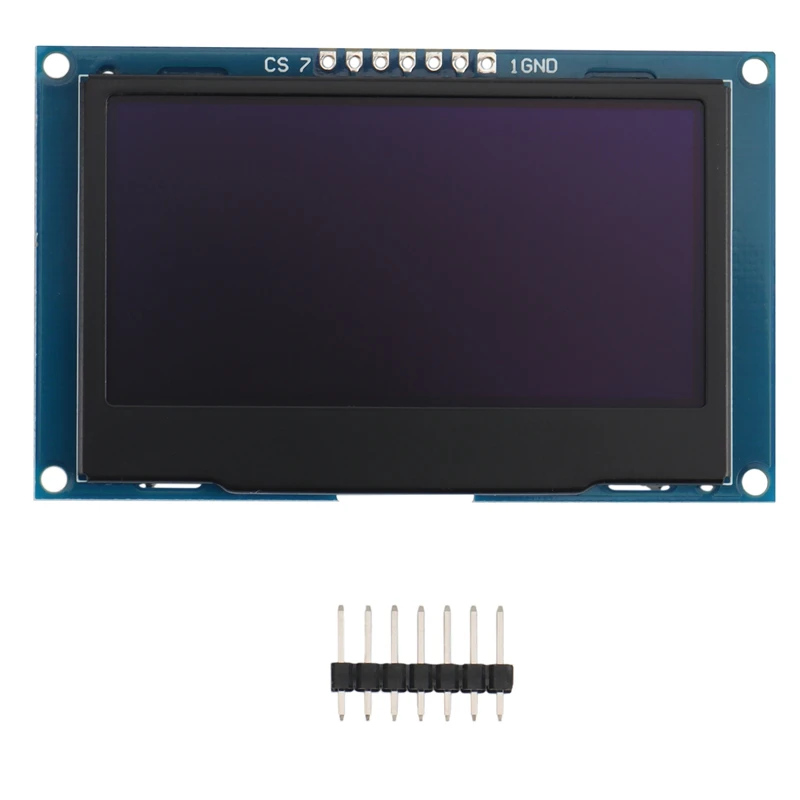

2.42 Inch 12864 128x64 OLED Display Module IIC I2C SPI Serial LCD Screen for C51 STM32 SSD1309
Convenience.

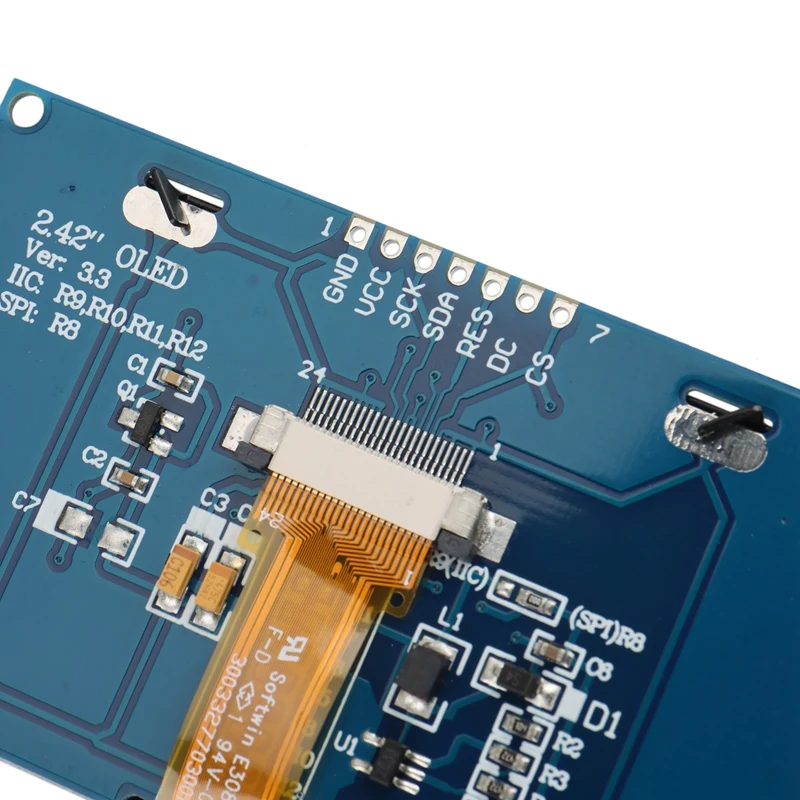

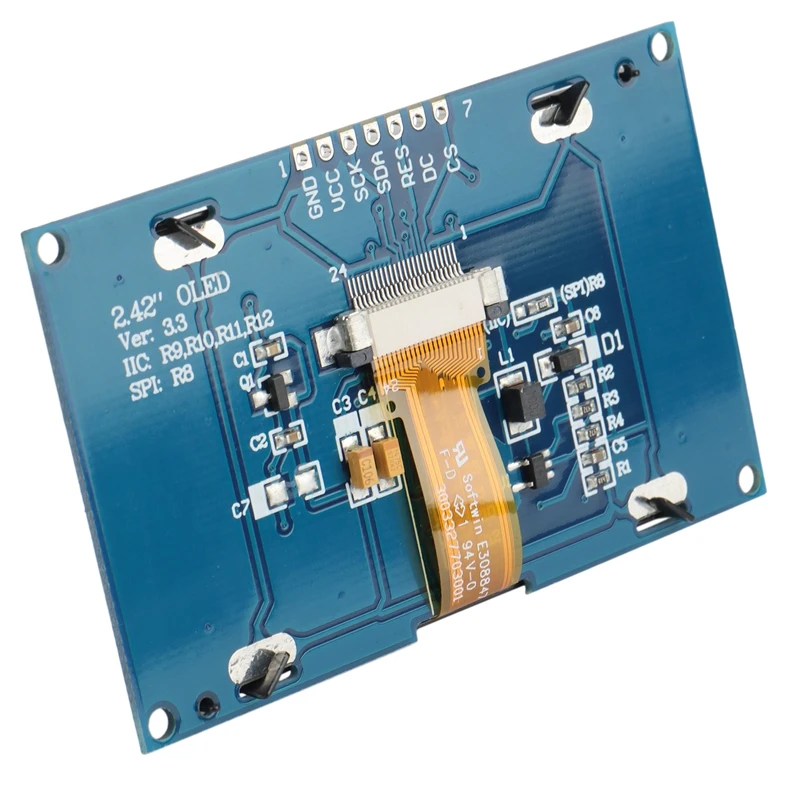

Interface Selection: to choose SPI or IIC interface through R3, R4, R5
For IIC communication, it is necessary to move the resistor on R4 to R3, and R5 is soldered with 0 ohm resistor.
SPI communication or I2C communication can be switched by configuring three resistors R3 R4 R5
Driver IC: SSD1309
Resolution: 128 x 64
SPI interface definition:
1.GND (power ground)
2.VCC (power supply positive)
3.SCL (clock line)
4.SDA (data line)
5.RES (reset line)
6.DC (data / command)
7.CS (chip select)
Types: yellow font/white font
Colour:blue
Material:plastic
Size:Diagonal Screen Size: 2.42 inch
Package Contents:
1 x Display Module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
