Product Description
CX3G Series Advantages
Compatible with FX3G/FX3U/FX3S
Highly integrated DI/ DO/ AI/ AO/ COM/ USB/ CAN (48M supports Ethernet port)
Max 30DI/ 30DO
Max 16AI/ 8AO
Support PID function
Support customized PNP input
Support high speed functions
Parameters

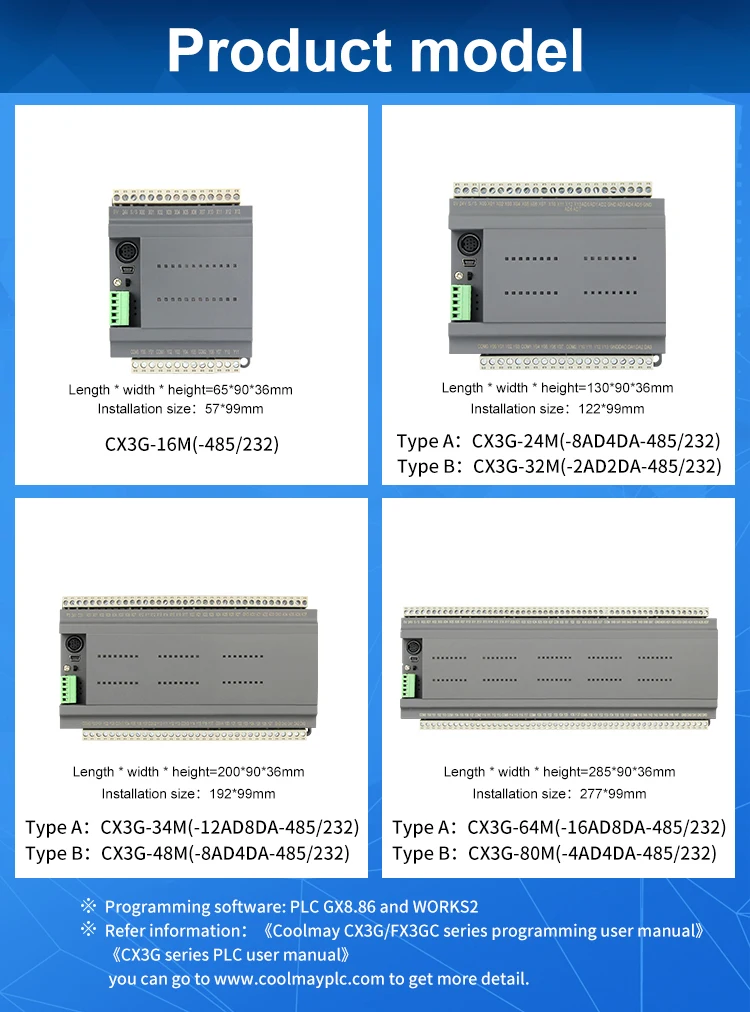

Model | CX3G-16M | CX3G-24M | CX3G-32M | CX3G-48M | CX3G-34M | CX3G-64M | CX3G-80M |
Dimension | 85*90*36mm | 130*90*36mm | 200*90*36mm | 285*90*36mm | |||
Cutout size | 77*99mm | 122*99mm | 192*99mm | 277*99mm | |||
Installation | Fixed hole installation and DIN-Rail (35mm ) | ||||||
Features | Support interrupt, linear arc interpolation, PID auto-tuning. 32K program capacity, 32K retentive register | ||||||

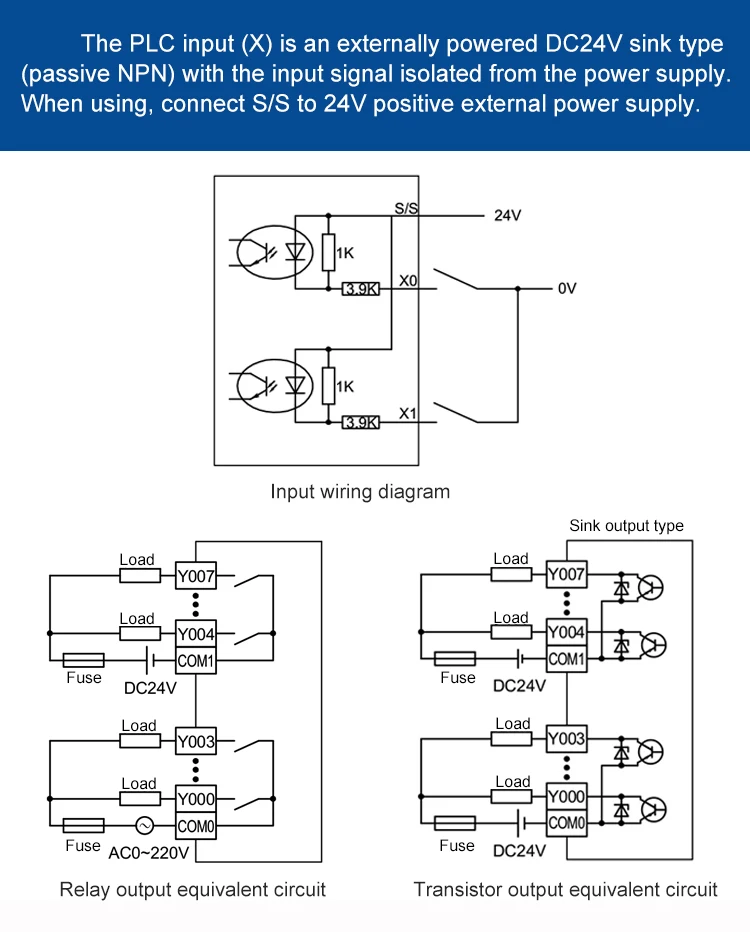

I/O level | Input: Passive NPN, public terminal isolated | ||||||
Transistor output: NPN | |||||||
Relay output: Normally open dry contact | |||||||
Digital I/O | 8DI/8DO | 12DI/12DO | 16DI/16DO | 24DI/24DO | 18DI/16DO | 32DI/32DO | 40DI/40DO |
DO type | Transistor(MT) or mixed(2T6R) | Relay(MR) or transistor(MT) or mixed(MRT) | |||||
(Relay output: max load 5A/ transistor output: max load 500mA) | |||||||
High speed counting | Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz | ||||||
High speed pulse | 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz | ||||||
High-speed counting + high-speed pulse < 480KHz | |||||||
Analog I/O | Null | 6AI/4AO | 2AI | 8AI/4AO | 12AI/8AO | 16AI/8AO | 4AI/4AO |
(optional) | |||||||
AI type | Type E/K/S/T/J thermocouple/ PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ | ||||||
(optional) | 0~10V/ 0~5V/ 0-20mA/ 4-20mA | ||||||
-5V~5V/ -10V~10V(except for CX3G-16M) | |||||||
AO type | 0~10V/ 0-~5V/ 0~20mA/ 4~20mA | ||||||
(optional) | -5~5V/ -10~10V (2DA for 1 minus temperature) | ||||||

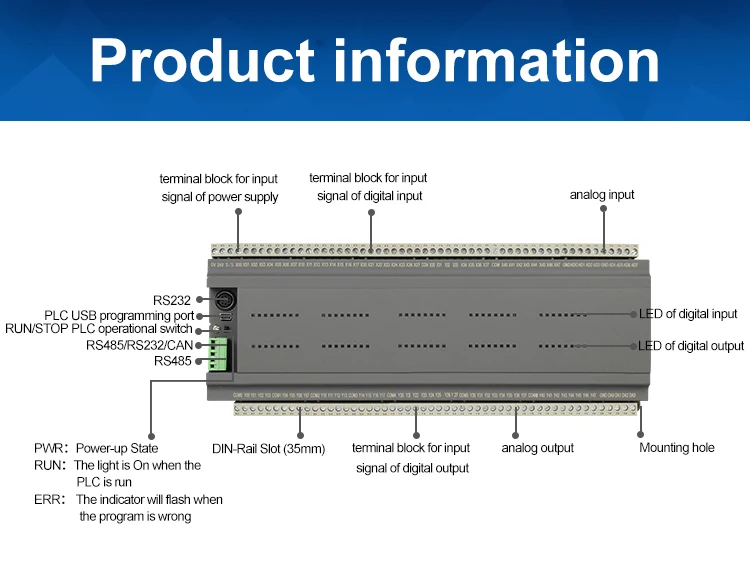

Default COM port | 1 Mini type B USB port, 1 Rs232(Interface terminal is mouse female port with 8 holes), 2 RS485 ports | ||||||
Optional | Default 2 RS485 ports can be customized as | Default 2 RS485 ports can be customized as 1 RS485, 1 RS232, | |||||
1 RS485, 1 RS232, | CAN (2.0A/B) port is optional | ||||||
or 1 RS485, 1 CAN (2.0A/B), | |||||||
or 1 RS232, 1 CAN (2.0A/B) | |||||||
CX3G-48M can add Ethernet port. | |||||||
Software | |||||||
Suggested models: CX3G-16MT/MRT(-485/232) CX3G-24MT/MR/MRT(-6AD4DA -485/232) | |||||||
CX3G-32MT/MR/MRT(-2AD -485/232) CX3G-34MT/MR/MRT(-12AD8DA -485/232) | |||||||
CX3G-48MT/MR/MRT(-8AD4DA -485/232) CX3G-64MT/MR/MRT(-16AD8DA -485/232) | |||||||
CX3G-80MT/MR/MRT(-4AD4DA -485/232) | |||||||
Detailed info. refer to:COOLMAY CX3G PLC Programming Manual CX3G PLC user manual | |||||||
Packaging
The products will be under testing for 1-3 days and packed with carton box .
Shipping
By courier, door to door
For samples, the package will be delivered by DHL/UPS/FedEx/EMS express. Usually it will take 3-7 days to your location.
Post service
If you are not hurry but need economical delivery, we can go with packet channel. The delivery time depends on your location.
Air shipping or by sea
If bulk order, the packages will be delivered by air shipping or by ship.
