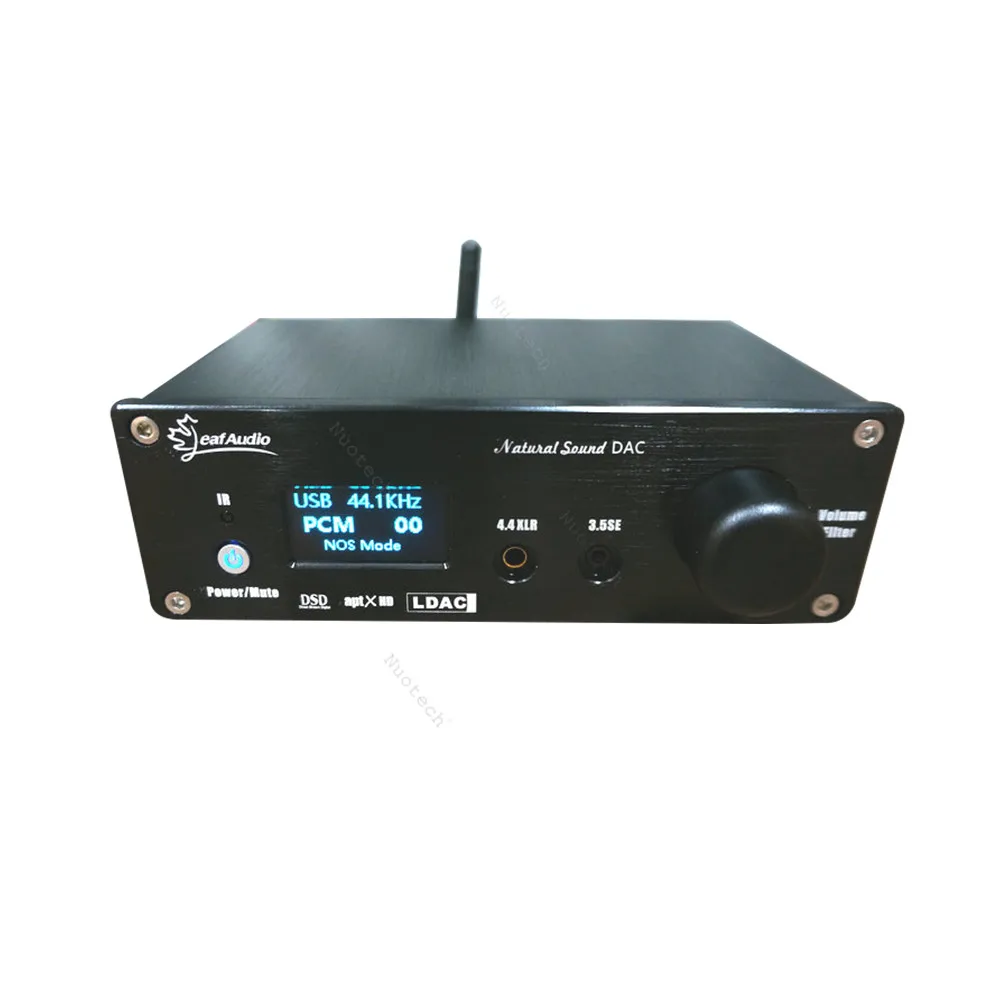

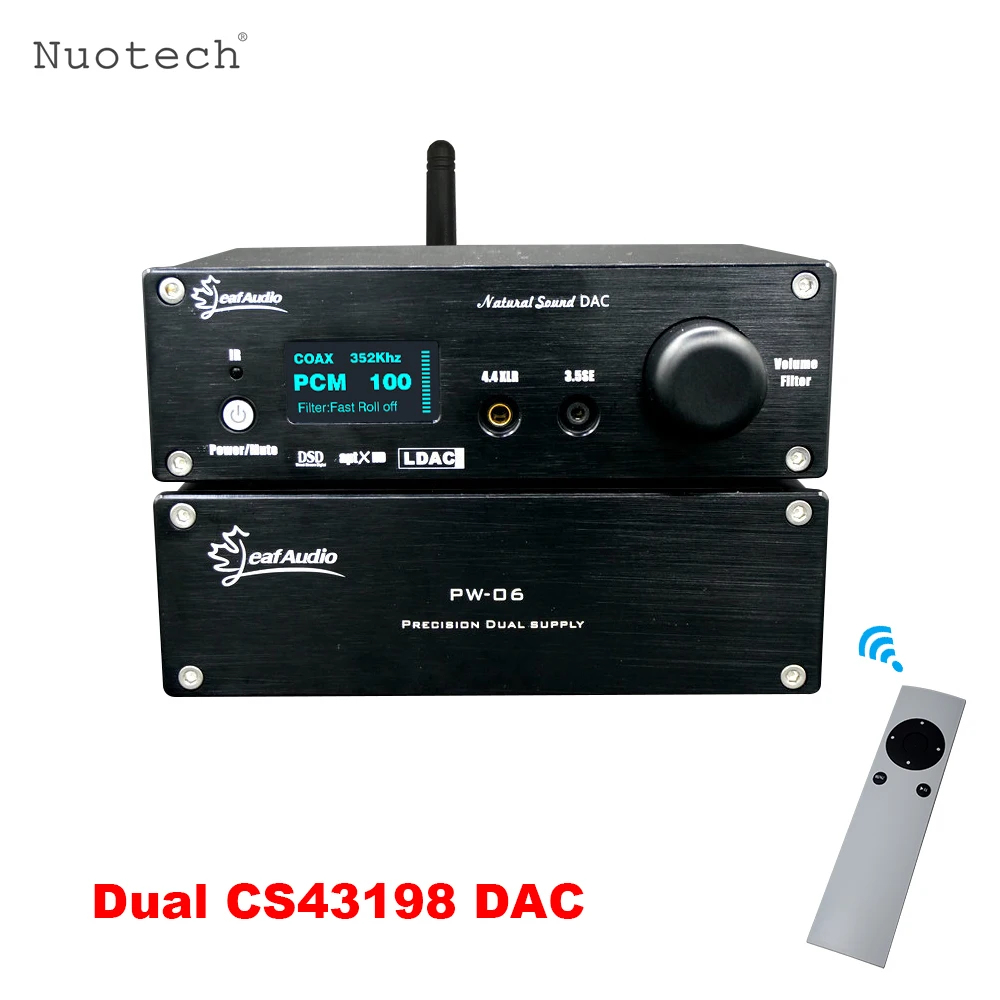

Nuotech Dual CS43198 DAC Fever Remote Control Bluetooth Decoder Split Power Supply DSD256 Balanced Headphone Amplifier with OLED |

Характеристики

Features:

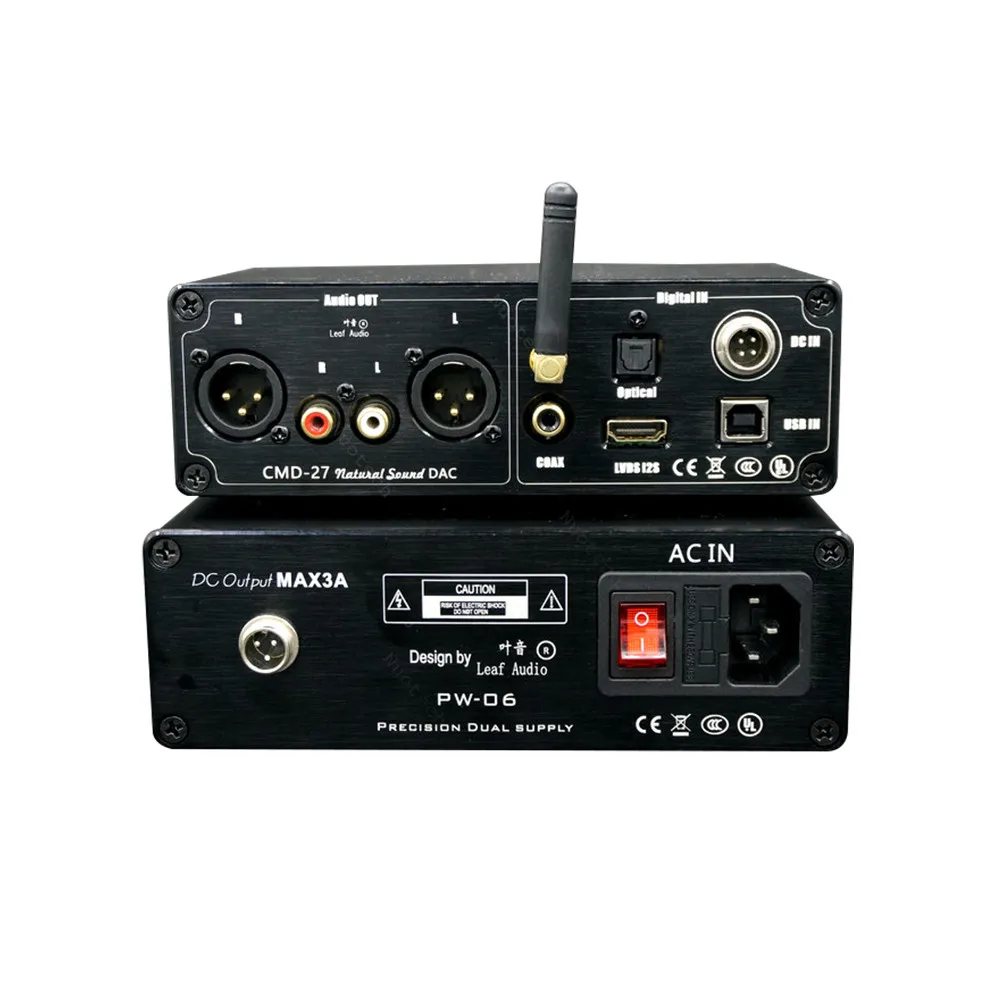

▶ Input: Bluetooth,USB,LVDS,Optical,Coaxial
▶ Output: Stereo RCA,XLR,Balanced Headphone Jack(4.4XLR+3.5 Stereo)
▶ DAC Chips: 2*CS43198
▶ OP Amp Chips: JRC4580*5(can be upgraded)
▶ Bluetooth: CSR8675(support LDAC and APTX-HD 5.0)
▶ USB Card: XMOS XU208(support DSD256,support OTG)

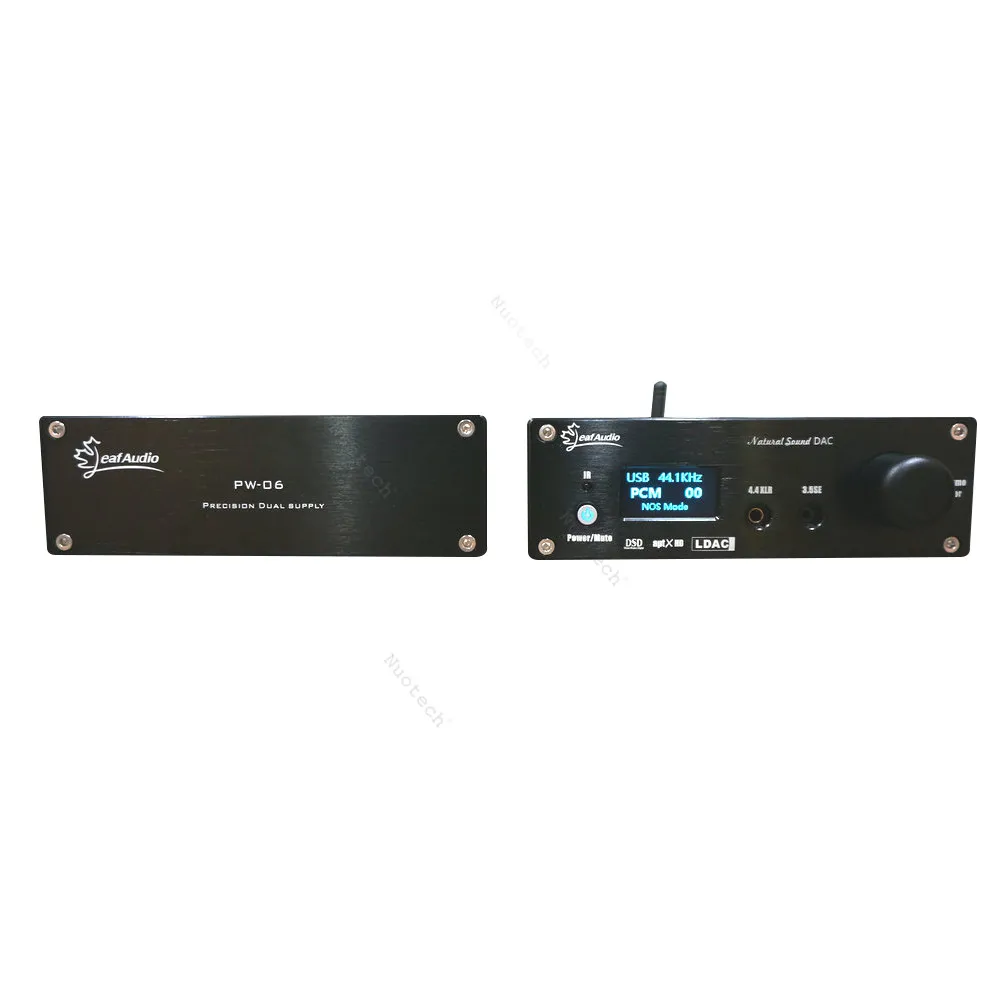

▶ Split linear power supply: 50W large sealed transformer,LT low-ripple voltage regulator chip output ±12V to supply power to the decoder

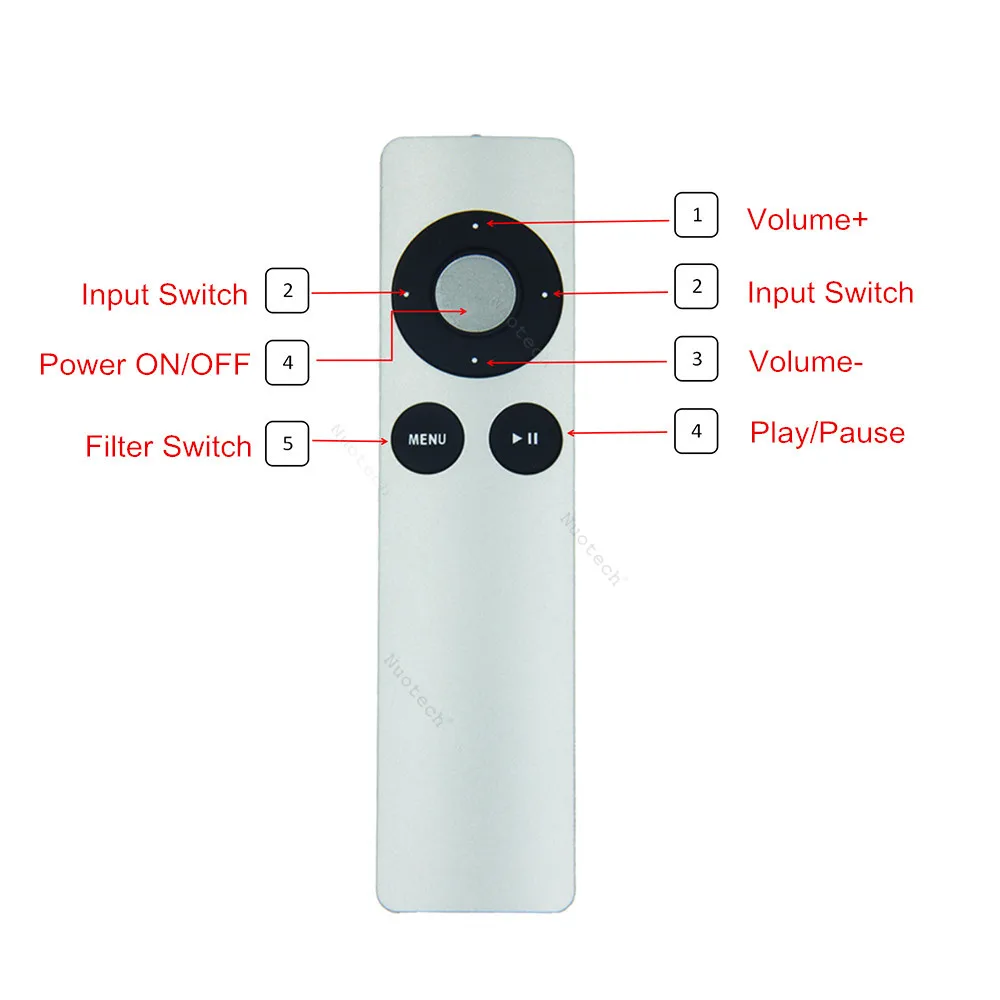

▶ Remote Control: It can realize full-function remote control of the whole machine(switch,volume,filter,input switch,mute)

Parameters:
▶ Headphone power: 1.5W/32 ohms,200mW/300 ohms
▶ Audio output distortion: 0.00035%
▶ RCA amplitude: 2.3V RMS
▶ XLR amplitude: 3.45V RMS
▶ SNR: 120dB
▶ Working voltage: ±12~±13.5V 3A
▶ Size: 173*110*55mm
▶ Coaxial support format: PCM 44.1K-192K/24bit,DSD64 DOP.
▶ Optical fiber support format: PCM 44.1K-192K/24bit,DSD64 DOP.
▶ USB decoding support format: PCM 44.1K-384K/32bit,DSD64-DSD256 automatic identification and decoding.
▶ IIS support format: PCM 44.1K-384K/32bit,DSD64-DSD512 automatic recognition and decoding.

Download:
▶ The Manual,USB drive,player,plug-in download link: //pan.baidu.com/s/1Mg2dH5l7M7jF9-UW_pSqow
▶ DSD64: http://pan.baidu.com/s/1bnGWI2V
▶ DSD128: //pan.baidu.com/s/1GWZT4eP8PN_C9F0Kx76eJg
▶ If you need a cracked version of the Native playback driver,please contact us,only for systems below Win7, Win10 is not supported

Driver installation and FOOBAR player settings:
▶ Connect the USB cable to the computer and install the driver.This is very simple and will not be introduced.Note: When installing FOOBAR,choose "Full Installation"

FOOBAR player settings:
▶ 1.First open the player "File-Parameter Options",click "Components" on the left, and then click "Install" in the lower right corner to install the downloaded ASIO plug in:foo_out_asio.fb2k-component(first unzip the downloaded plug-in package),press "OK" and restart FOOBAR,after the installation is complete.
▶ 2.Install the "ASIO Proxy Install-0.7.1.2.EXE file" in the folder "foo_input_sacd-0.7.1" in the plug-in package.
▶ 3.On the "Parameter Options" page of FOOBAR, click "Play" --- "Output" on the left,and select the output device on the right:ASIO:foo_dsd_asio,(When the WIN10 system uses FOOABR1.3.14,the output device selects "DSD:ASIO:XMOS USB AUDIO 2.0 ST 3004 ASIO 1.03").
▶ 4.Click "ASIO" in the "Output" drop-down menu on the left,double-click on the right:foo_dsd_asio.
▶ 5.After double-clicking foo_dsd_asio,the menu that pops up is set as follows and closed.
▶ 6.Then click "Tools" on the left,and select "SACD Decoder" in the drop-down menu.In the right menu,select "DSD" as the first item,keep
the others unchanged,and then press "OK" to complete the setting.

Package:
▶ 1 * DAC
▶ 1 * Split Power Supply
▶ 1 * USB Cable
▶ 1 * DC Cable
▶ 1 * Remote Control
