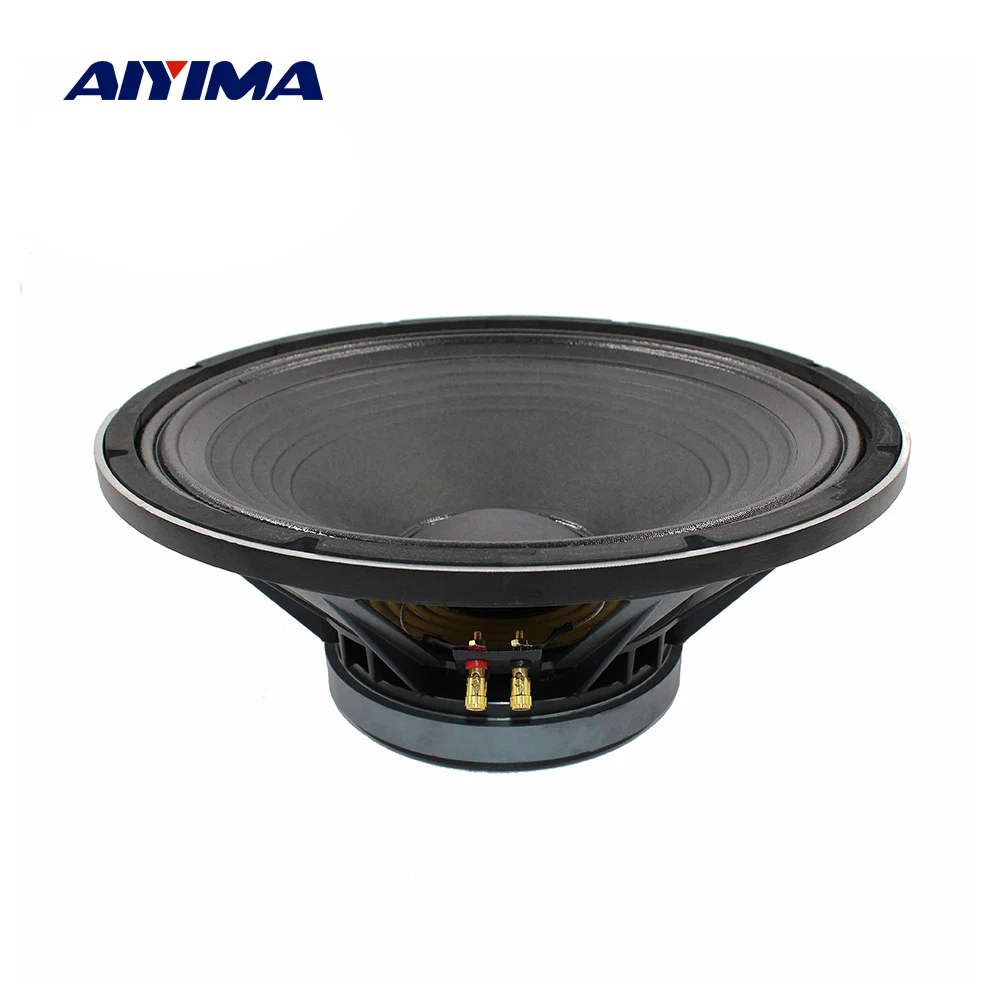

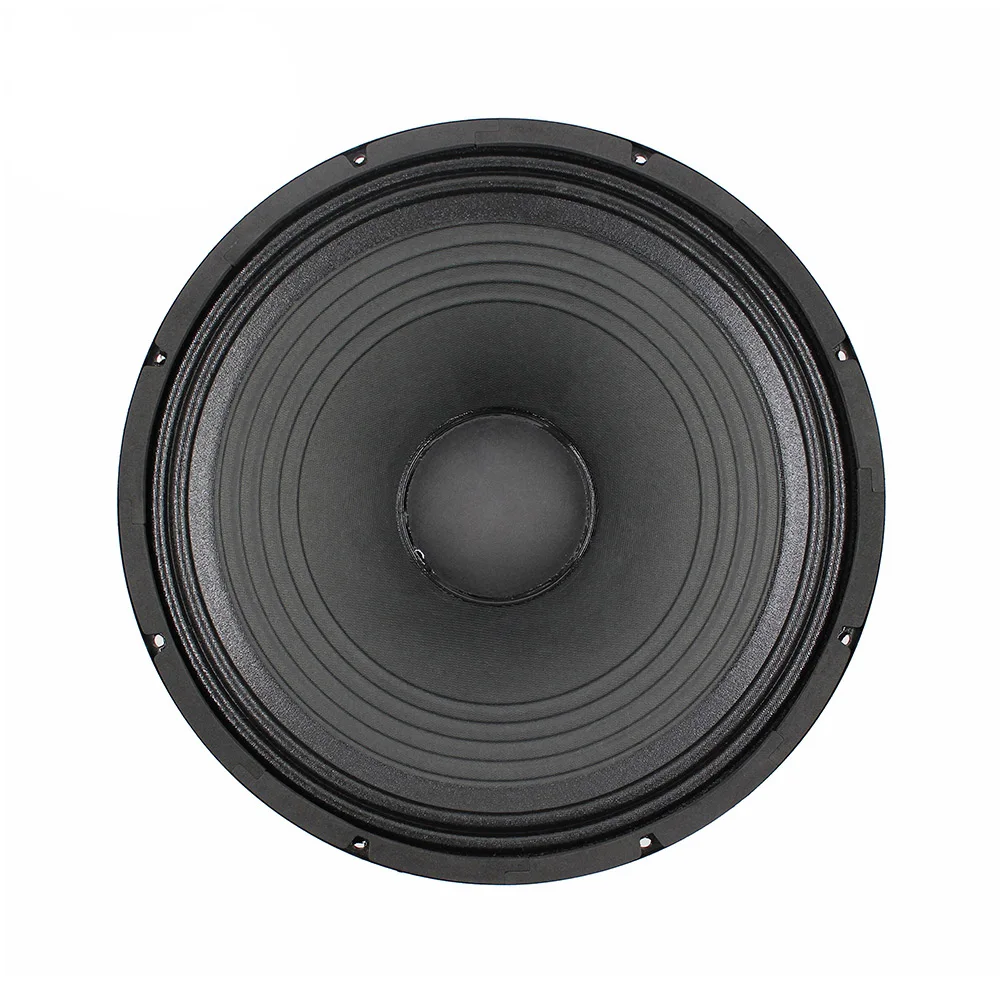

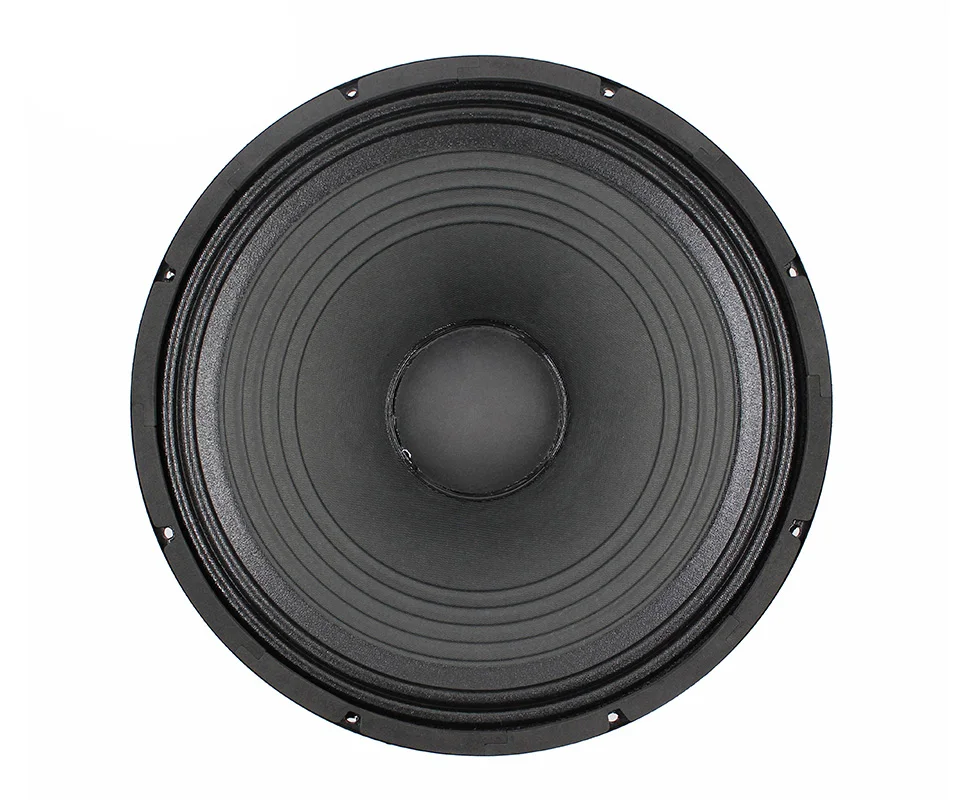

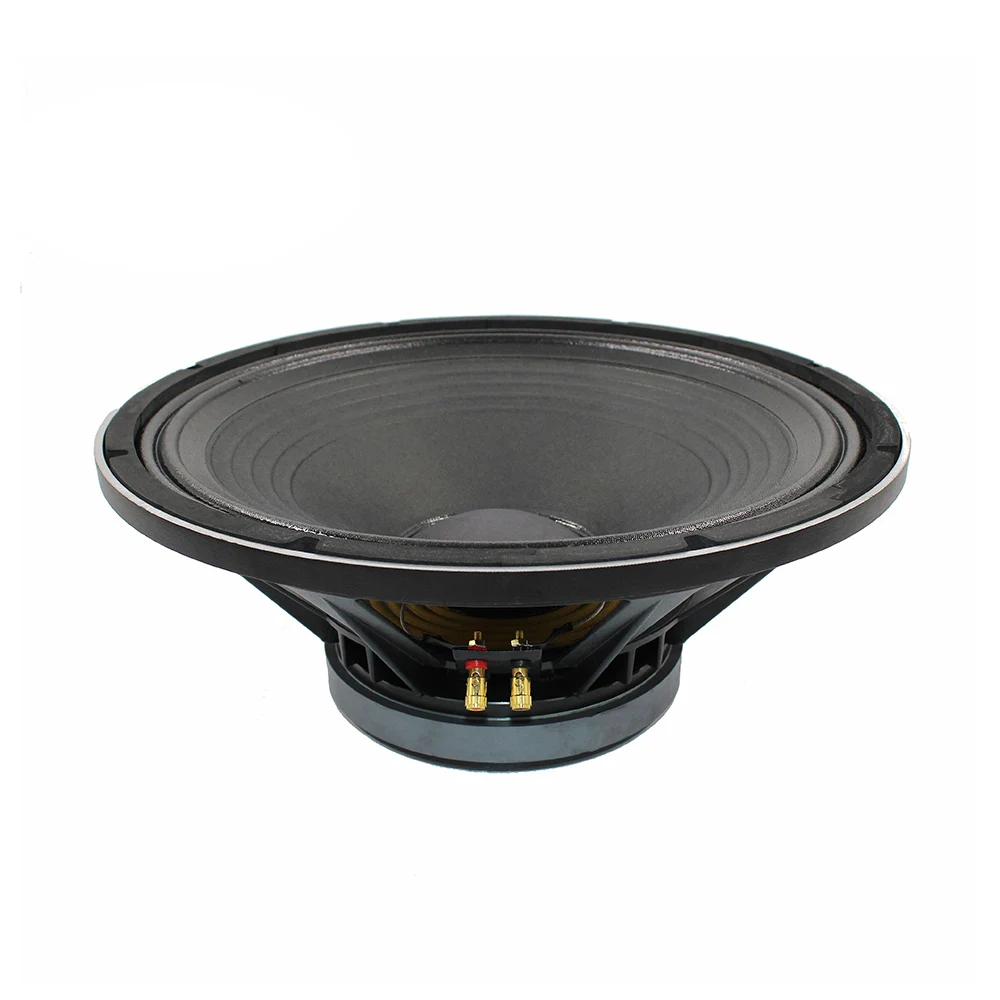

AIYIMA 15 Inch Subwoofer Speaker 600W 8 Ohm Professional Stage Home Theater Bookshelf Loudspeaker Audio Woofer Driver | Электроника

Характеристики

SPECIFICATIONS:

Nominal Diameter : 15 Inch

Rated Impedance : 8 Ω

Power Handling Capacity : 600 Watts

Sensitivity 1W 1M : 98.2 dB

Effective Piston Diameter : 330 mm

Voice Coil Diameter : 75.5 mm

Resonance Frequency : Fs 54 Hz

DC Resistance : Re 5.8 Ω

Mechanical Q Factor : Qms 8.041

Electrical Q Factor : Qes 0.404

Total Q Factor : Qts 0.385

BL Factor : BL 20.053 TM

Effective Moving Mass : Mms 82.638 gr

Equivalent Cas Air Load : Vas 109.150 liters

Effective Piston Area : Sd 0.086  ㎡

Half-Space Efficiency : Eff 4.112 %

Top Palte Thickness : Hag 10 mm

Voice Coil Height : Hvc 18 mm

Voice Coil Over-Hung : Xmax 7.0 mm

Magnet : 190×90×20   Ferrite

Voice Coil Winding Material : Copper Clad Aluminium

Cone Material : Pulp Paper

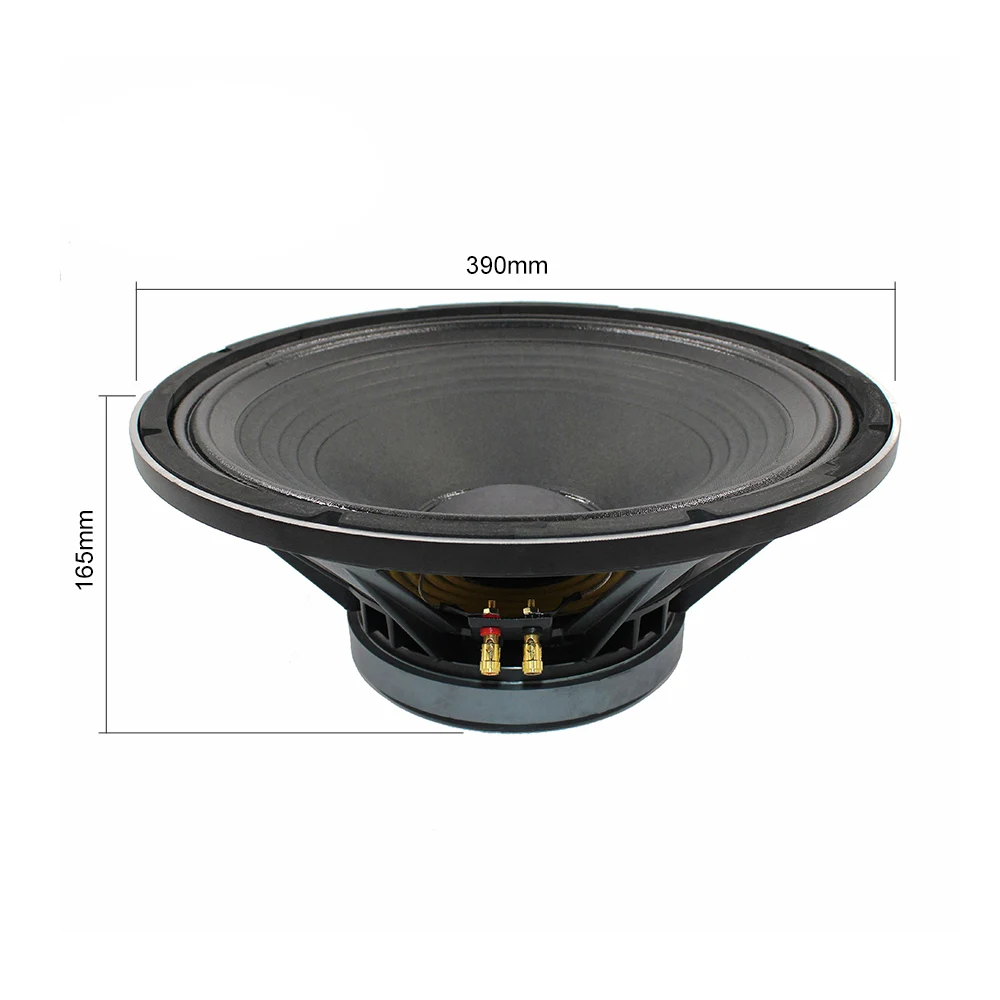

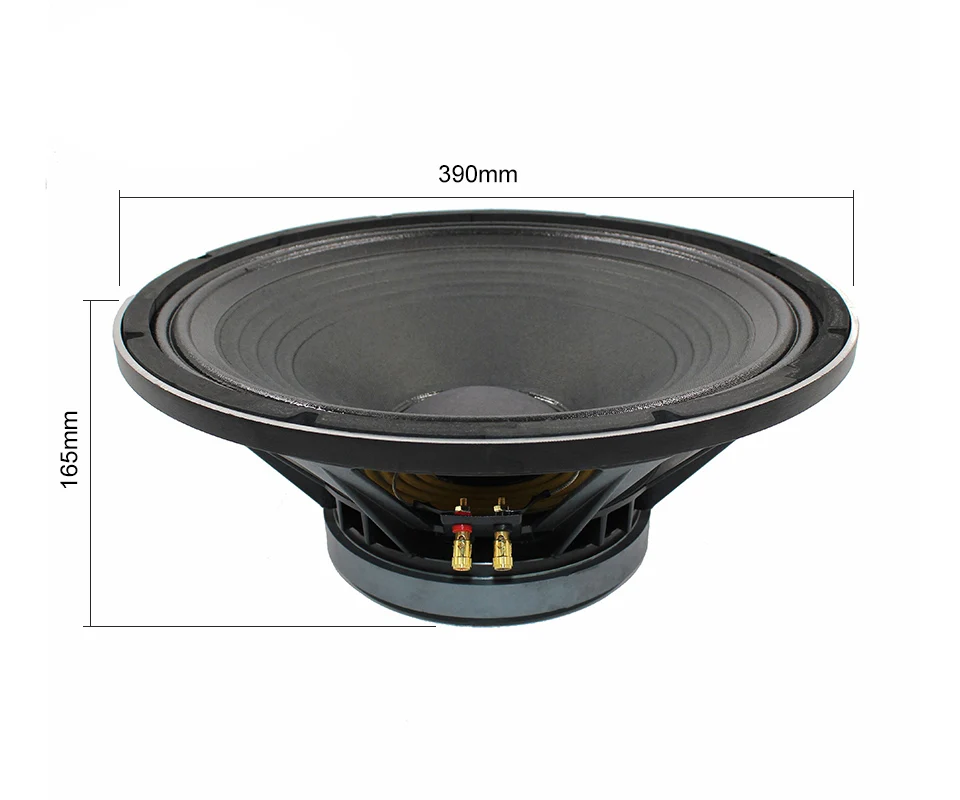

Overall Diameter : 390mm

Baffle Cutout Diameter : 351mm

Mounting Holes : 8 holes ∅ 370mm

Total Depth ：165mm

Packing List ：

1pcs
