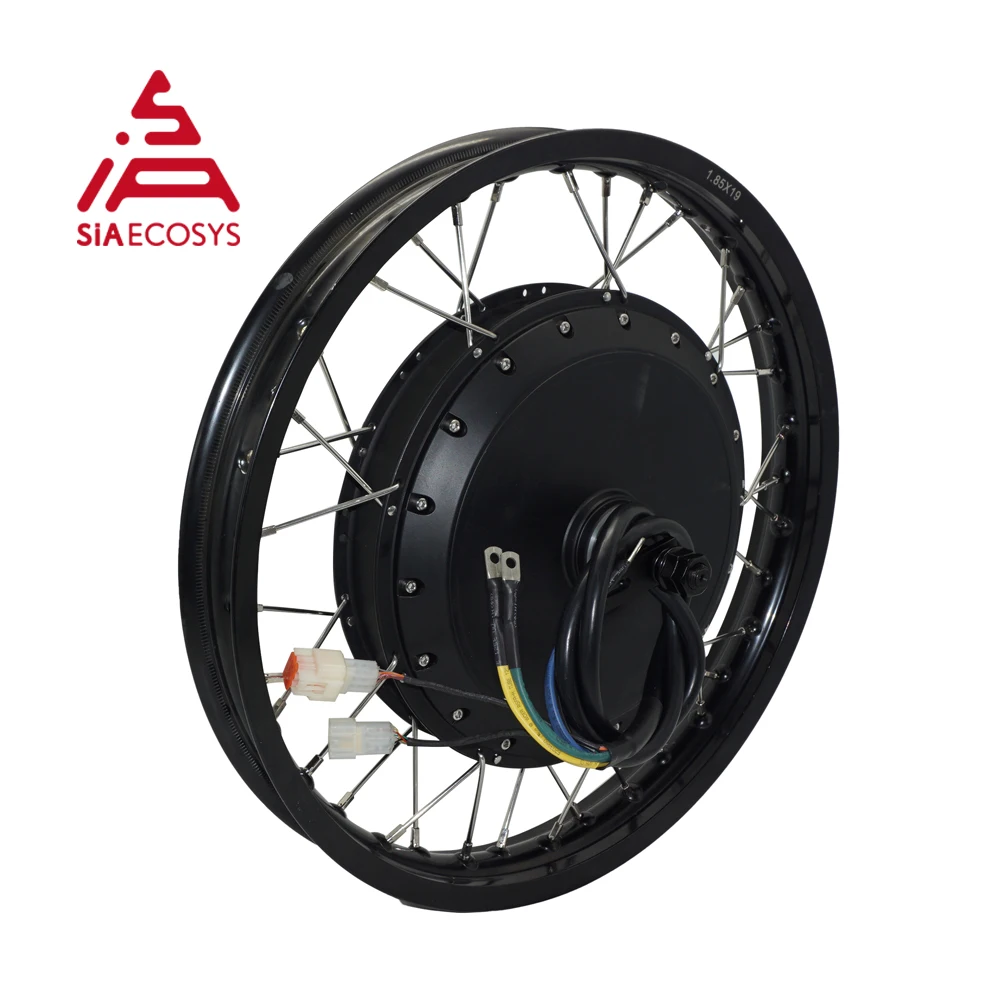

QS Motor 273 Spoke Hub Motor 4000W V3 90kph With SVMC72200 Sabvoton Controller For Electric Bicycle

Kits Including :

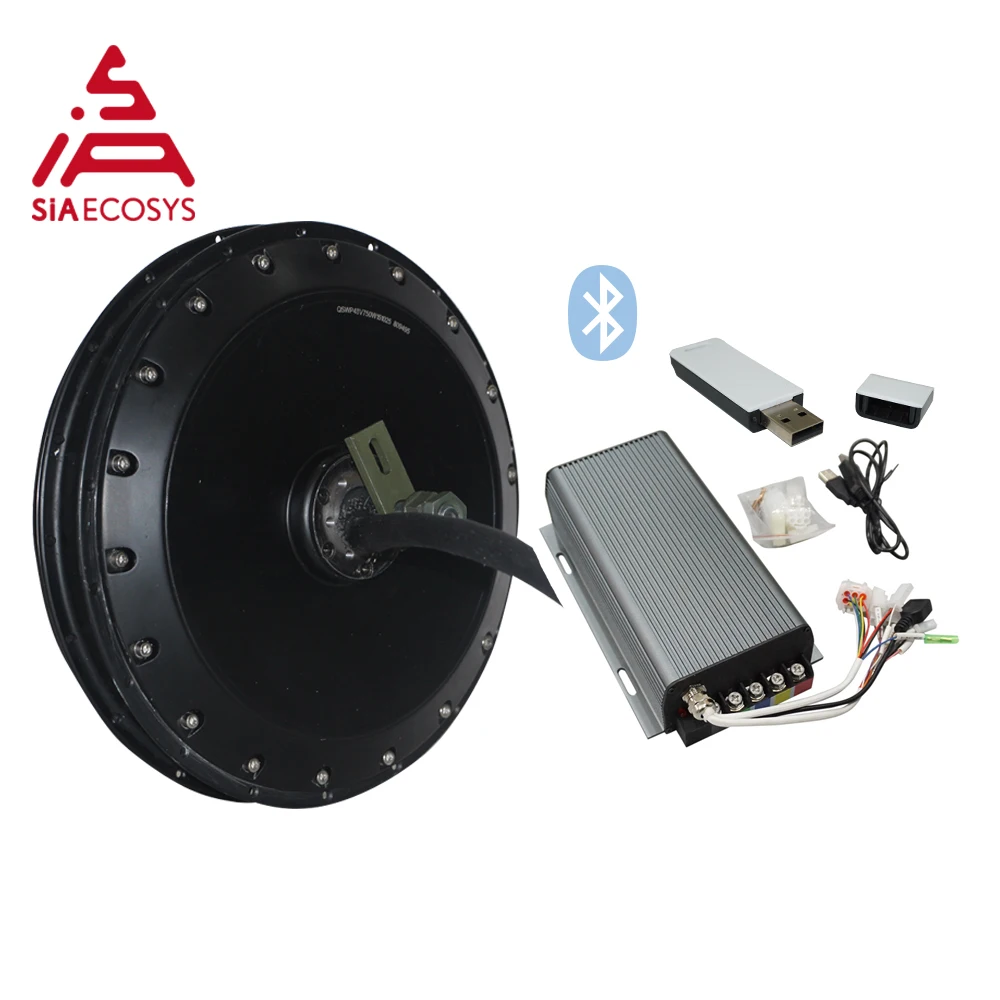

Combo 1:

1* 4kw Spoke hub motor

1*SVMC72200 Controller

1*Bluetooth Adapter for sabvoton controller

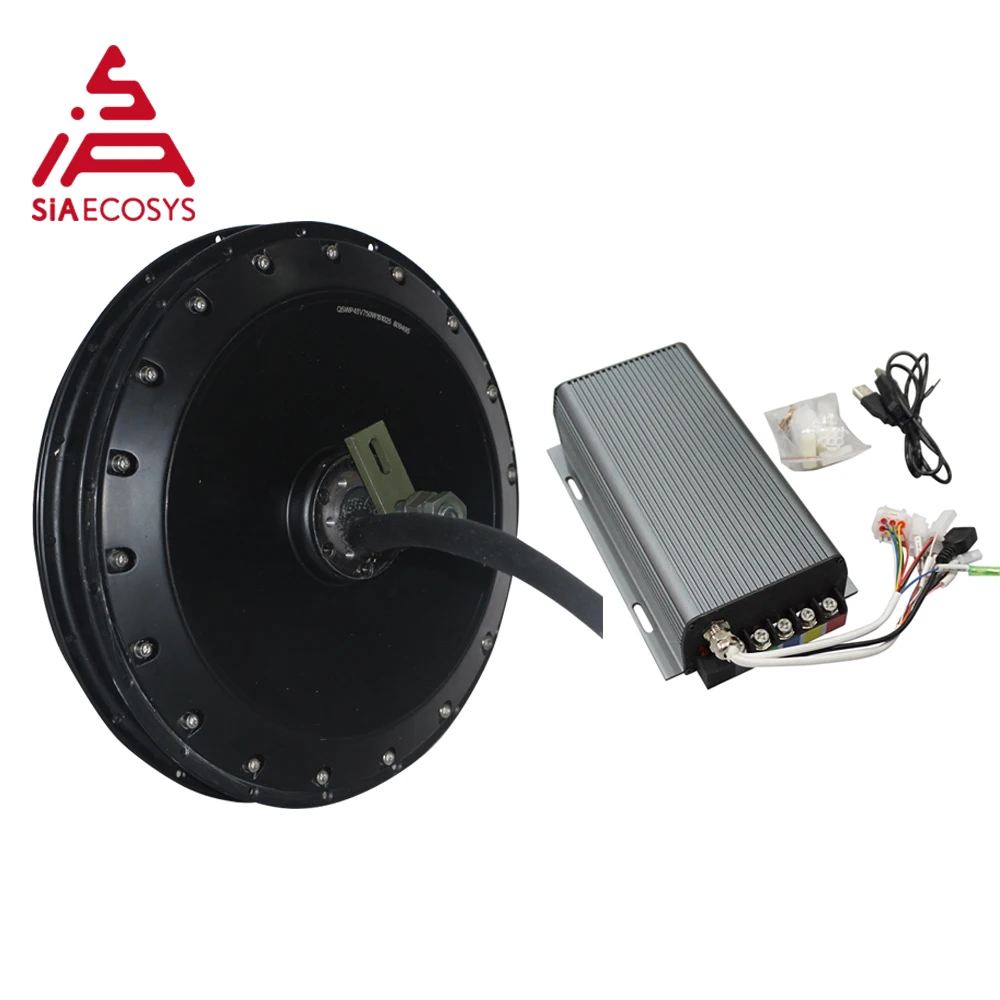

Combo 2:

1* 4kw Spoke hub motor

1*SVMC72200 Controller

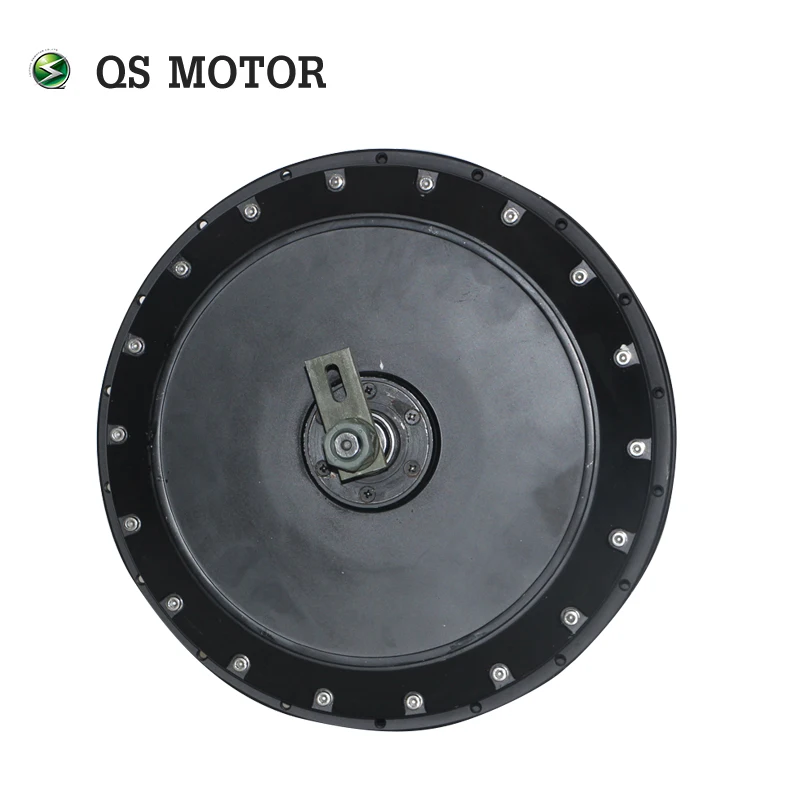

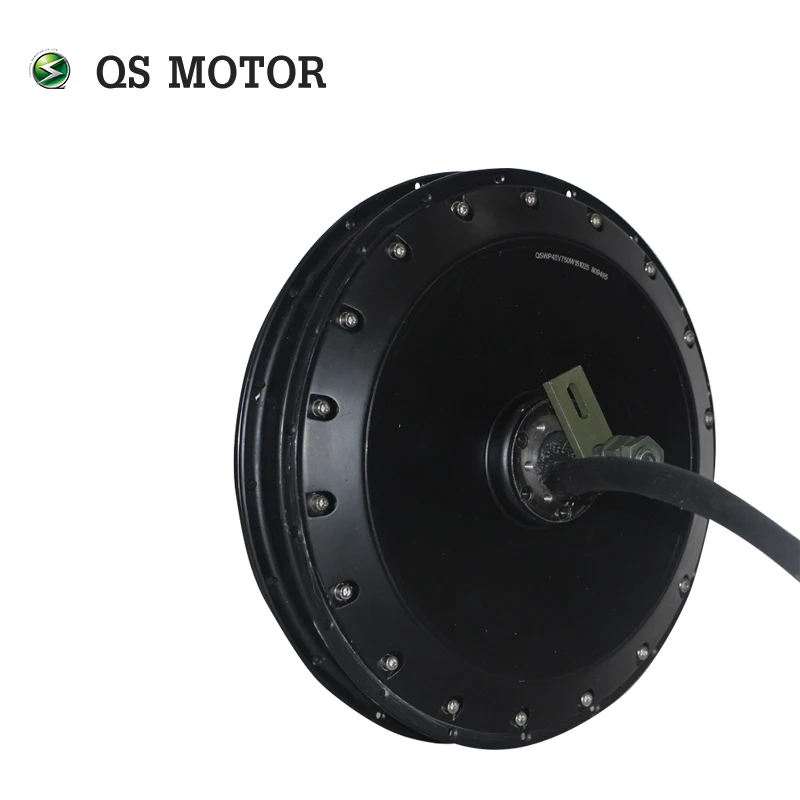

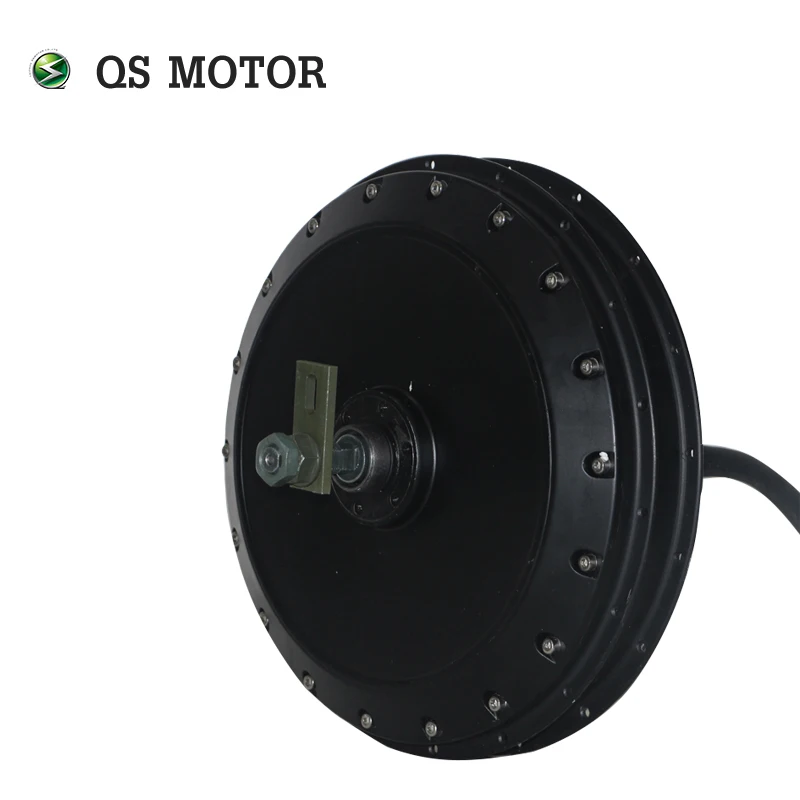

Generally SPEC Of Motor

• Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor

• Brand: QS Motor,QSMOTOR

• Motor Design: Double axle without rim (not integrated), 36 spoke holes, OD 4.2mm

• Matching Rim size: 24inch, 26inch E-Bike Wheel, 17inch, 18inch, 19inch moped wheel.

• Magnet Height: 40mm, 16 pole pairs

• Stator: Aluminmum Core

• Rated Power: 4000W

• Rated Voltage: 72V as default (48V-96V, optional)

• Speed:960rpm at 72V as default(else rpm, please contact seller or remark in order)

• Max Torque: approx 182N.m+

• Max Efficiency: 86-91%

• Continuous Battery Current:69A (72V)

• Peak Battery Current: 138A (72V)

• Suggest Peak Phase Current: 448-561A (depend on the kV)

• Thermic Probe: KTY83/122 (as default, optional)

• Working Temperature: 70-120℃ , peak 150 ℃

• Brake type: Bike Disc brake, PCD6*44mm(as default)

• Drop-outs/Rear Fork Width for installation: 152mm

• 14mm metric thread length for single speed freewheel

• 10mm axle flats

• Dual Hall Set with waterproof connectors

• 16mm⊃2; Cross Section of Phase Wire (not include insulation layer)

• Hall Sensor Phasing angle: 120 degree

• Waterproof Grade: IP54

• Color: Black (as default)

• N.W./G.W.: 18.2kg/20.0kg

• Package Dimension: 43cm*43cm*41cm/piece

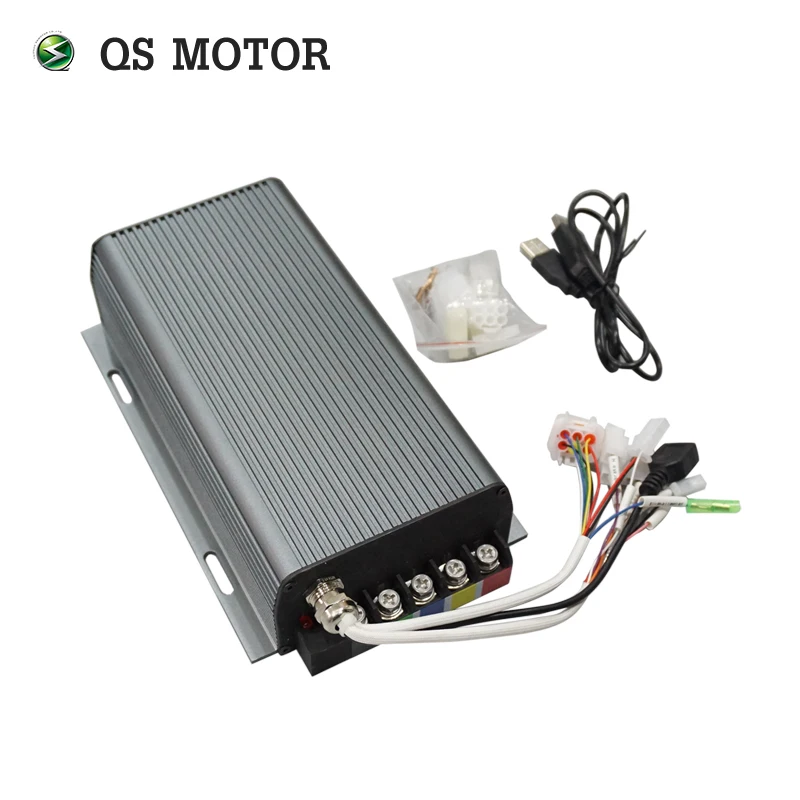

Generally SPEC Of Controller

1). Sine wave controller, programmable, with regen function

2). DC Current Limit: 200A

3). Max. Phase Current: 450A

4). Protect Phase Current: 550A

5). Battery Voltage: 24V-72V rated, Max. 95V

6). Thermic Probe: KTY83-122

7). Including one controller + USB convertor cable + matched plug

8). Controller size: 283mm*147mm*62mm

9). Net weight: 2.8kg

10). Default function: Hall, Throttle, Electric Lock, High Brake Level, Temp sensor, 0-5v e-brake, three speed Button, Hall speedometer, Reverse, Curise.

Drawing Of MotorBrake: PCD6*44mm for e-bicycle disc

Drop-outs:152mm

Spoke Hole:4.2mm hole suit 8G/9G/10G spoke

Else Kits You May Want, Please check :

Questions before order

273 E-Spoke Hub Motor Bicycle Application

It's QS electric In-Wheel Bicycle Spoke Hub Motor for Conversion Kits, which power range from 3000w to 4000w rated, drop-outs 152mm with bicycle disc brake.

Especially suit for electric bicycle, max. speed for 60km/h to 120km/h.
