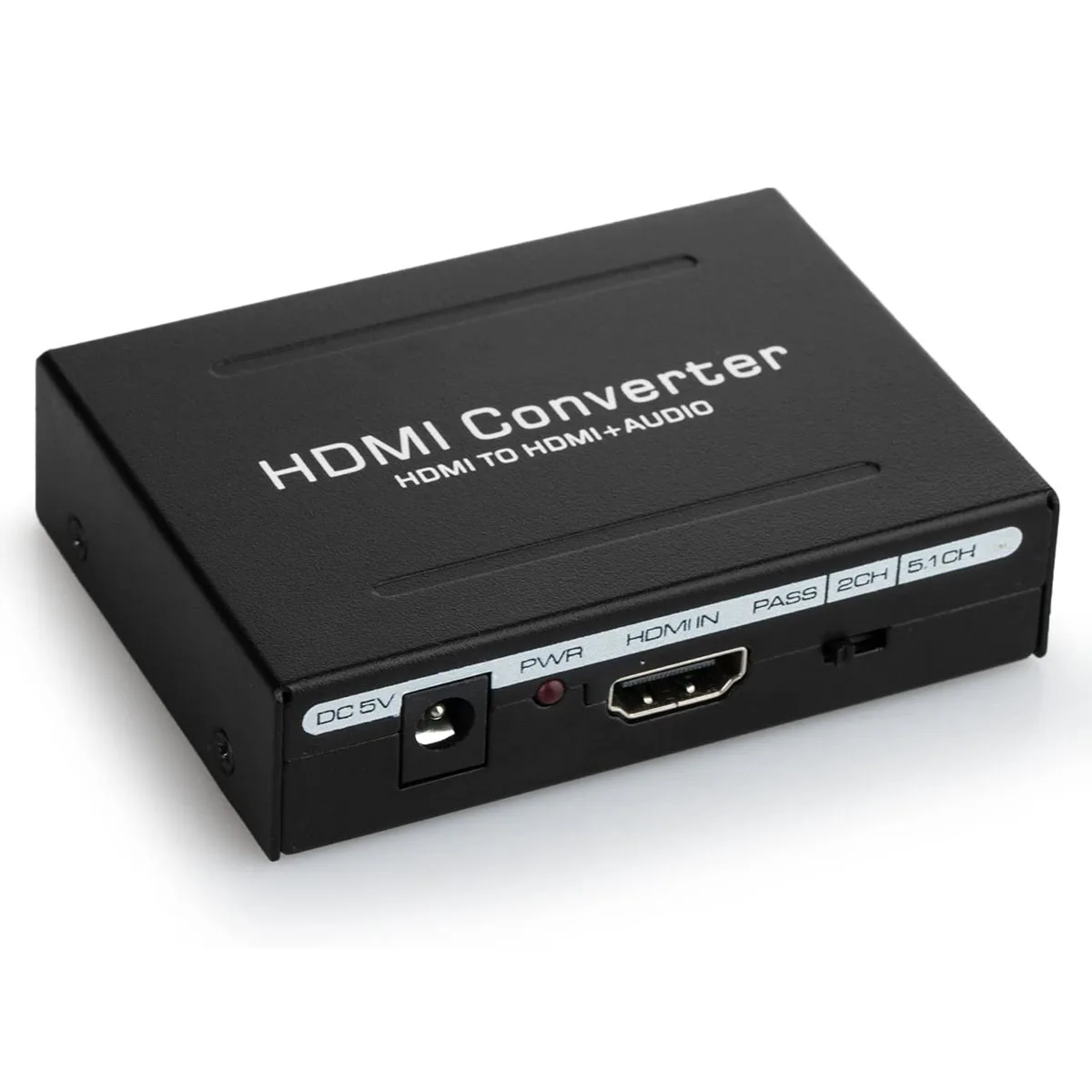

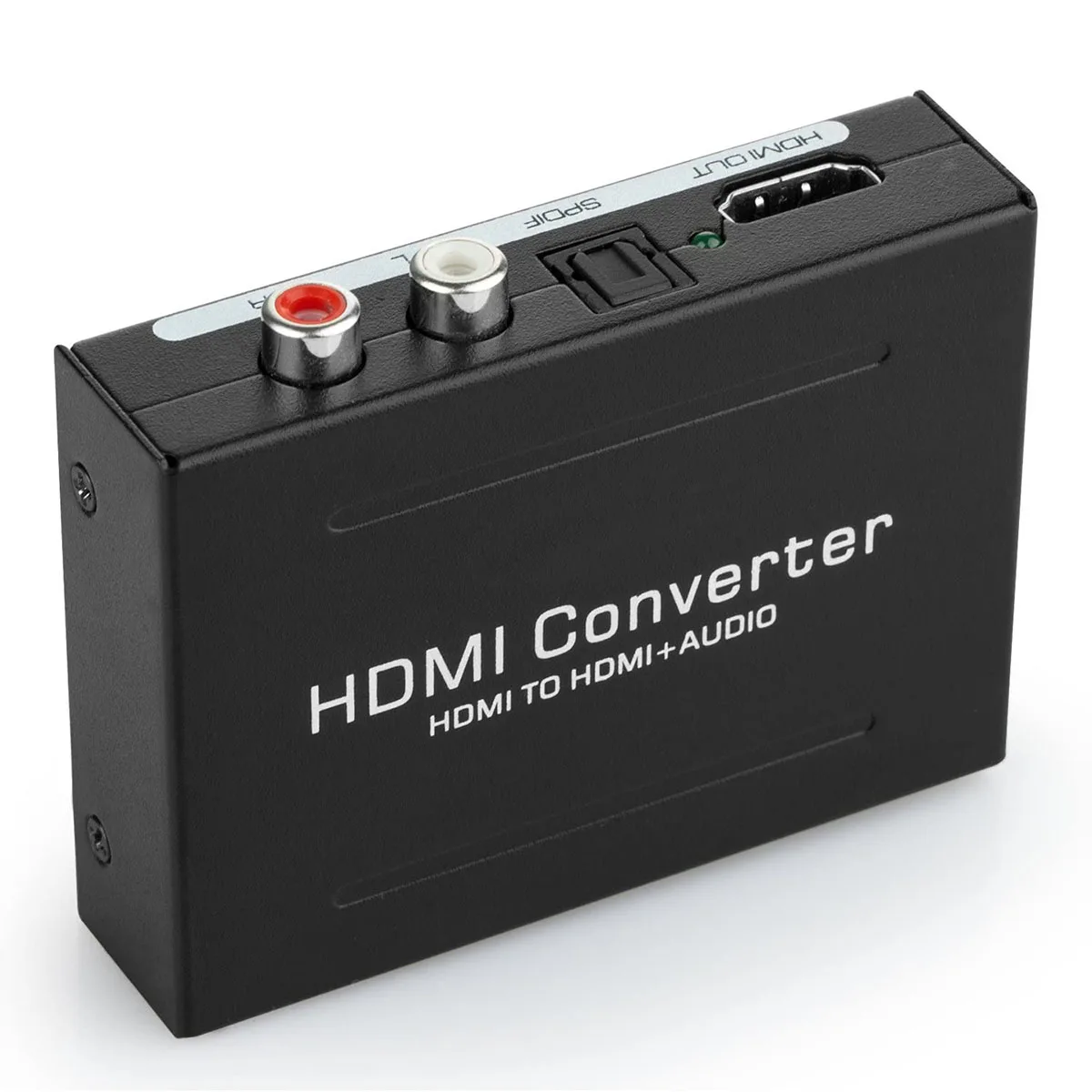

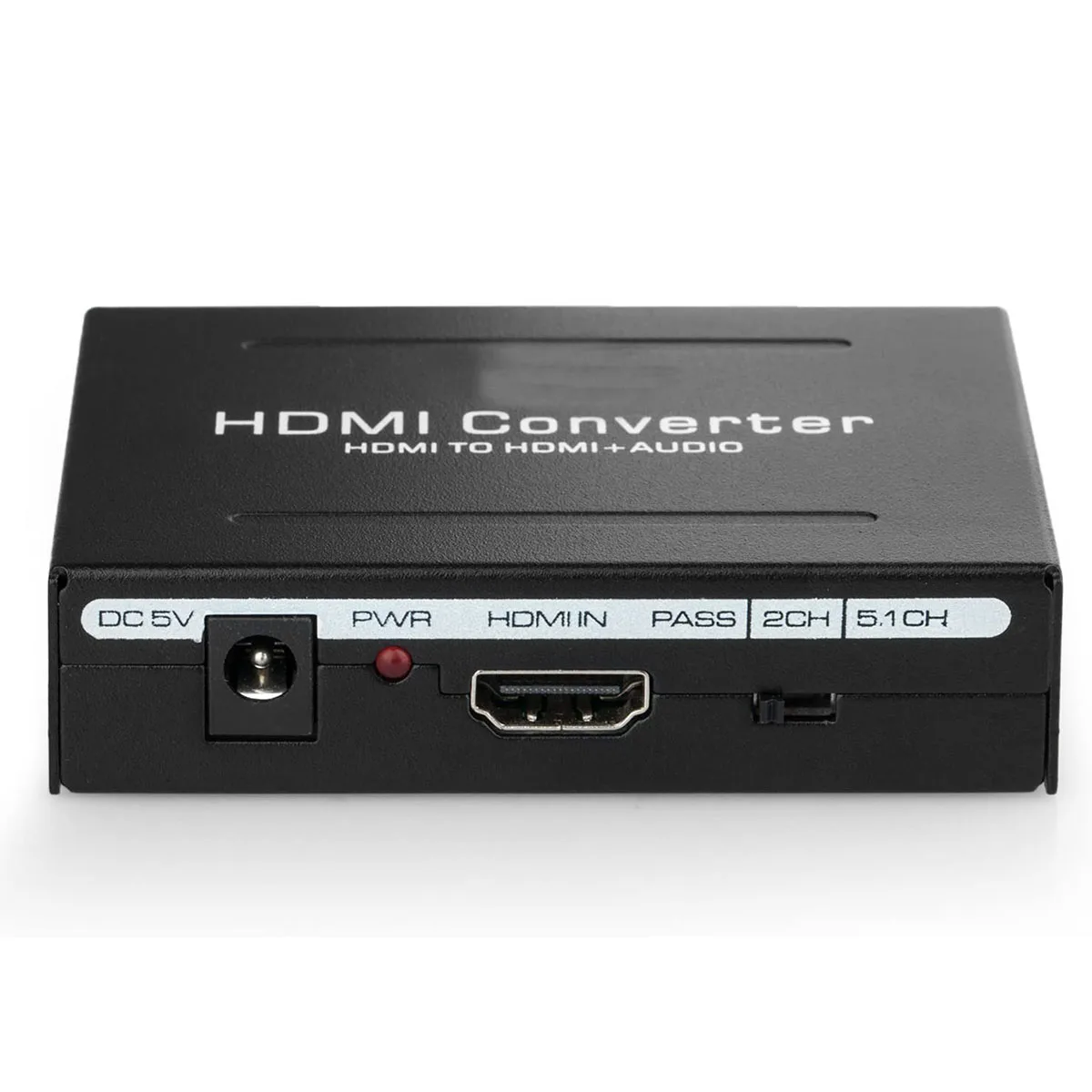

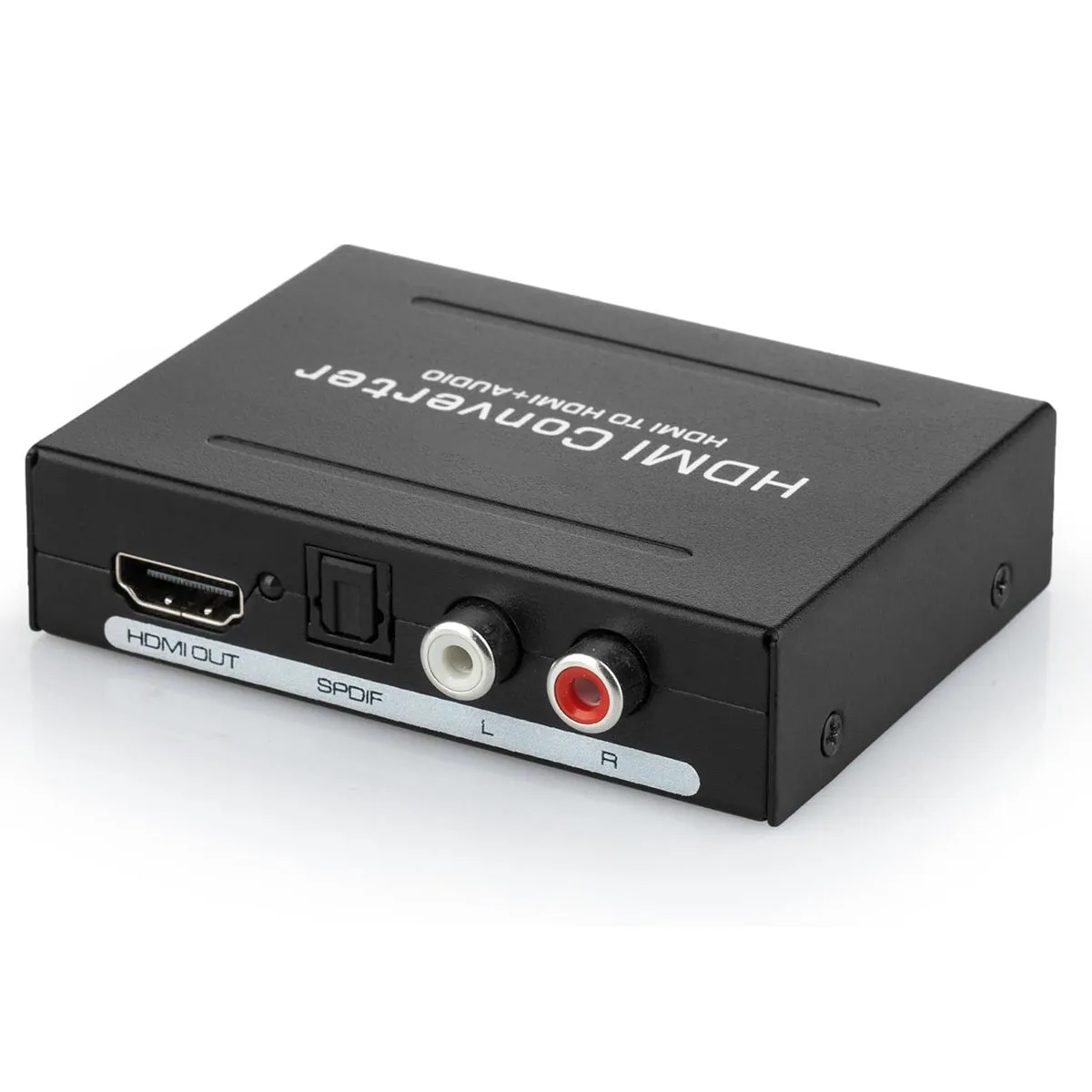

Musou HDMI Audio Extractor to + Optical Toslink(SPDIF) RCA(L/R) Stereo Analog Outputs Video Splitter Converter | Электроника

Характеристики

Product specifications:

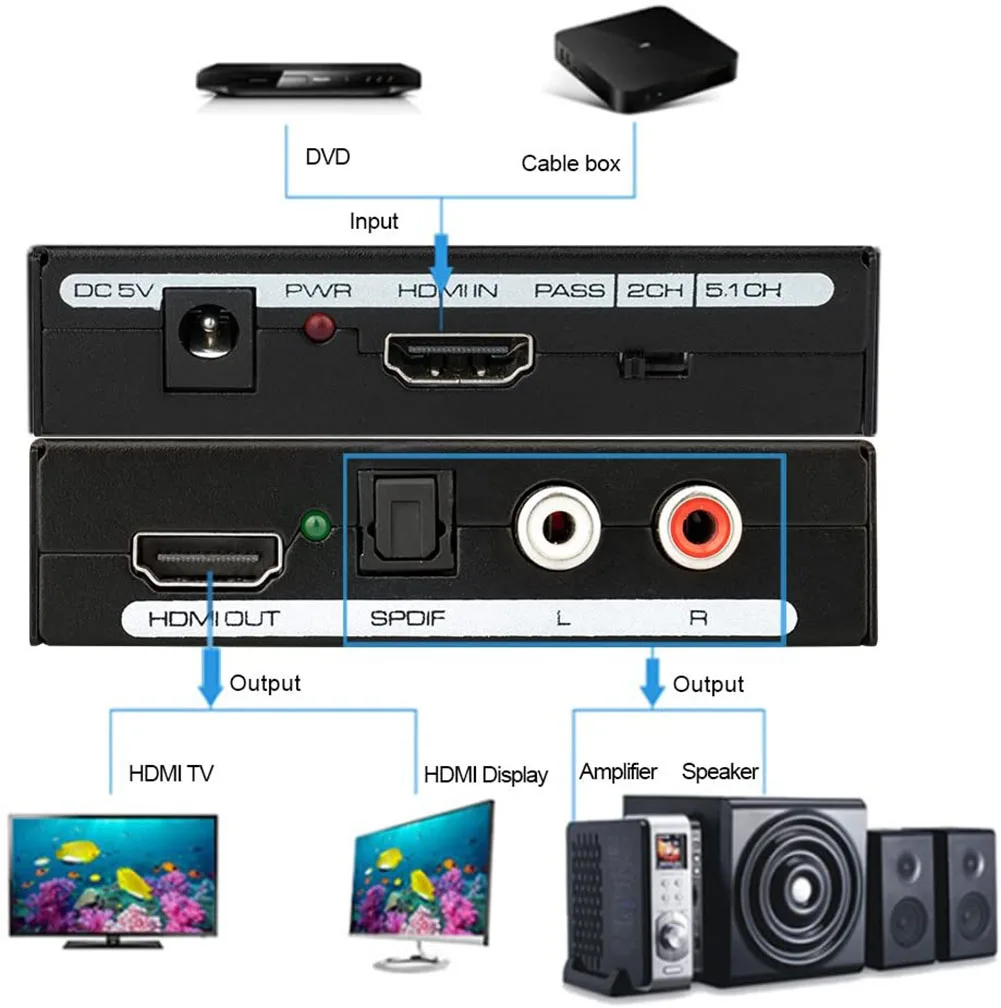

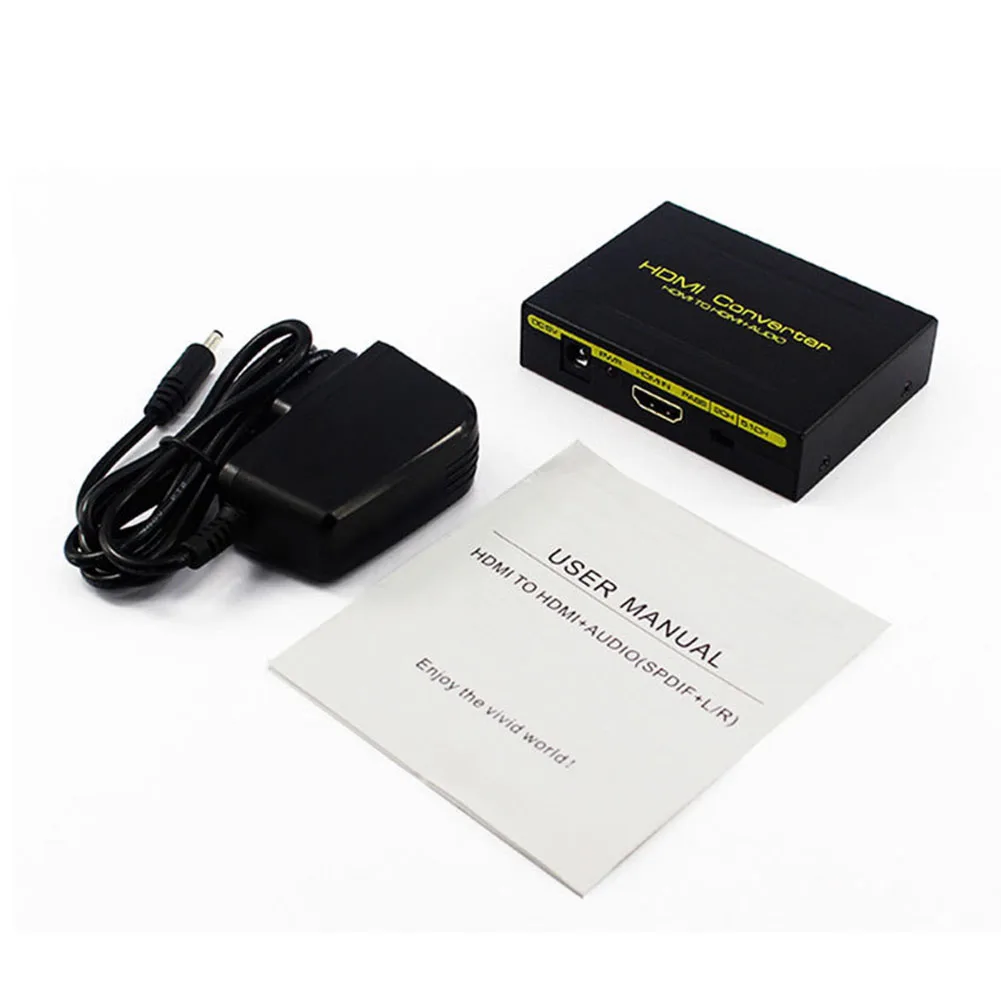

1. Support audio output: SPDIF+ analog R/L 2. Input support: up to 1080P (50/60 Hz) 3. Connect the HDMI signal source to a single HDMI display device (such as a TV, projector) and independently output the stereo +SPDIF signal to realize the audio synchronization separation of the HDMI signal. 4. It can realize audio synchronization and separate output, and there are three audio modes: PASS, 2.0CH and 5.1CH to choose from. 5. No signal loss. 6. Simple installation, external DC5V/1A power supply.

parameter:

1. HDMI resolution 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i 2. Support video color format. 24bit/deep color 30bit, 36bit 3. Audio output: left and right channels and optical fiber output 4. Maximum transmission bandwidth: 225MHz 5. Maximum baud rate: 6.75Gbps 6. Input/output TMDS signal 0.5~1.5Volts p-p 7. Input/output DDC signal 5Volts p-p (TTL) 8. Input cable length. ≤15m AWG26 HDMI standard cable 9. Output cable length≤20m AWG26 HDMI standard cable 10. Maximum working current: 500mA

Features:

One HDMI input convert to one HDMI+ Audio (SPDIF+R/L)output.Note:This HDMI Audio Extractor Can Not Work With HDMI Switch and HDMI Splitter SPDIF Output Supports Upto DD & DTS 5.1CH Audio; RCA Analog L/R Output Supports 2CH PCM Stereo Audio Supports 24 bit /deep color 30bit, 36bit per channel (36bit all channel) deep color. Supports HDCP, Video Pass Through; Plug & Play supports AppleTV and various Blu-ray player Audio Settings: 2CH for L/R or SPDIF stereo output; 5.1CH for SPDIF Output, Supports uncompressed audio such as LPCM. Supports compressed audio such as DTS Digital, Dolby Digital(Dolby Digital Plus not supported) Provides the Best Flexibility through Three NEW Audio EDID Settings: Pass, 2CH and 5.1CH, Support 3D video (To get 3D, all units connected to the splitter outputs must support 3D). This item supports Apple TV and various Blu-ray player and satellite receivers,Xbox one,Wii U/ PS3 PS4/raspberry.
