Reinforced front axle air suspension for gas GAZelle Next 3.5 (chassis/TMF) / 4.5 TMF, 4.6 chassis.
Task equipment:
- Increased smooth running,
- Extension of the life of the springs of the front axle suspension
- Adjustment of the clearance of the front swing as needed
Branded pneumatic elements are used in the kitAir-ride 400145Made of elastic rubber with Neilon cord and internal protective buffer.
{Tab kit composition}
N/A | Name | Qty |

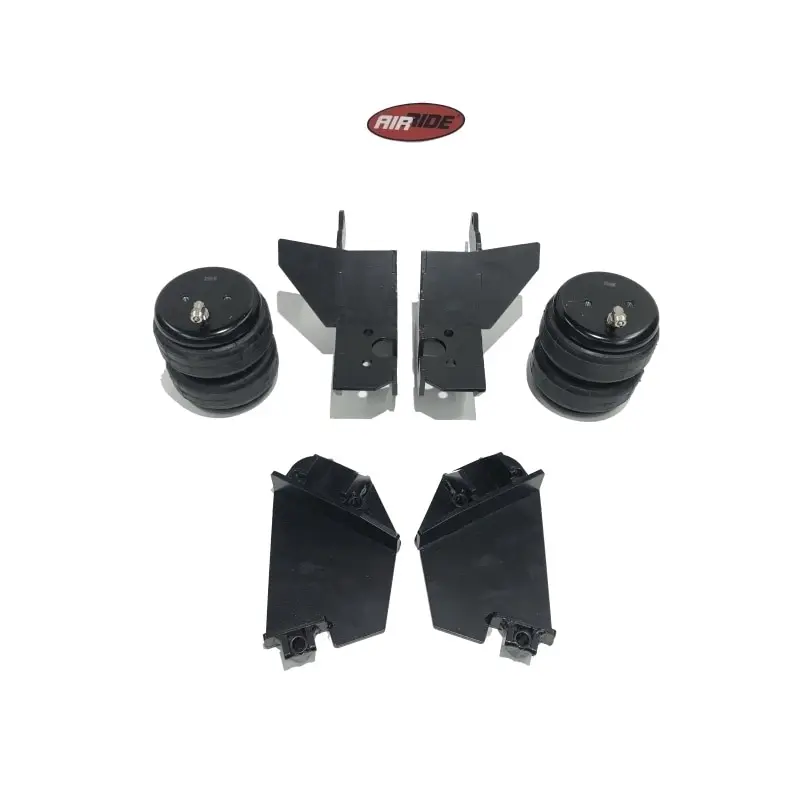

1. | Bracket top 102022/20 | 2 |
2. | Bracket bottom 102022/22 | 2 |

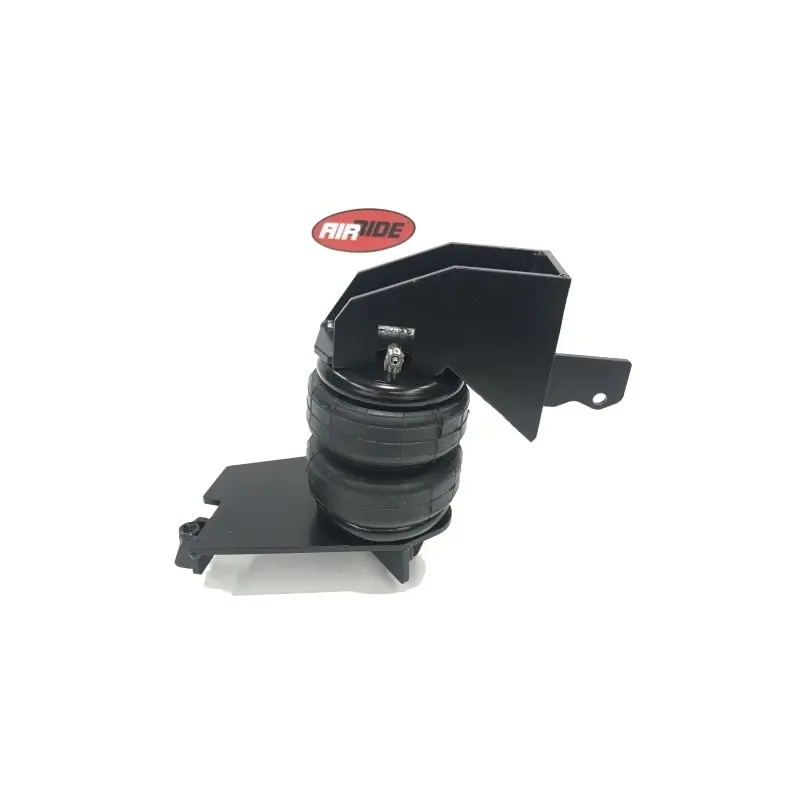

3. | Pneumatic element Ø 145 air-ride 400145 | 2 |
4. | Plate tie bottom bracket (2) Big 102022/24 | 2 |
5. | Plate tie bottom bracket (2) small 102022/26 | 2 |
6. | Set fastener пневмоэлементов | 1 |
7. | Screw M10 fixing bracket (2) on the lever | 6 |
8. | Screw M10 fixing bracket (1) on the frame | 2 |
9. | Washer D10 to bolts (7) and (8) | 8 |
10. | Nut with flange to bolts (8) mounting bracket (1) | 2 |
11. | * Fitting tee (not available with control system) | 1 |
12. | * Nipple (not available with control system) | 1 |
13. | Pneumatic line d6 (8 m); corrugated D10 (2 m); screed 10 PCs. Set | 1 |
14. | Instruction manual | 1 |
15. | Installation Instructions | 1 |
{Tab instruction}
Installation пневмоэлементов
1. lift the front of the car with a Jack or lift
2. unscrew the top Bolt nut of stabilizer mount
3. put the upper bracket of mounting the pneumatic elements on the Bolt of the stabilizer mount and pull the nut of the stabilizer Mount (do not tighten to the stop)
4. mark the hole on the frame as shown in the picture and drill the hole with D-11 drill
5. Fix the upper bracket on the drilled in the frame place using hardware
6. position the bottom bracket on the lever and secure it using the mounting plate and hardware
7. secure the pnemoelement between the upper and lower brackets using hardware
8. pull out all bolt connections. Make sure that there is enough space around the pneumatic element and it does not hurt other parts of the car. Install the supply lines on the fittings of the pneumatic elements. Depending on the control system, use the fittings in the kit
Inspection of installed equipment for tightness:
The inspection of equipment will require a soap solution of water in the tank and a brush for the spray with a soap solution of the threaded connections of the system.
• Pump the maximum pressure in the pneumatic elements (not less than 8 kg/cm2). Check pressure should not change within one hour. In case of pressure drop:
• Smear all available threaded connections and the pneumatic element itself. In the event of air leakage detection, the threaded connection must be redesigned. If a micropore is found on the most pneumatic element, it must be replaced with a new one.
• A drop in air pressure in the system (circuit) is allowed by 1.5 kg/cm2 in 48 hours.
• Do not allow long-term operation of air suspension with pressure in pneumatic elements less than 1.5 kg/cm2. Observe the rules of operation of the air suspension
