Hivi D10.8+F6+RT2C-A+DN-2.5/98 speaker kit

Without cabinet:
Hivi Band Tweeter RT2C-A*2 pcs
Hivi midrange F6*2 pcs,
Hivi bass D10.8*2 pcs

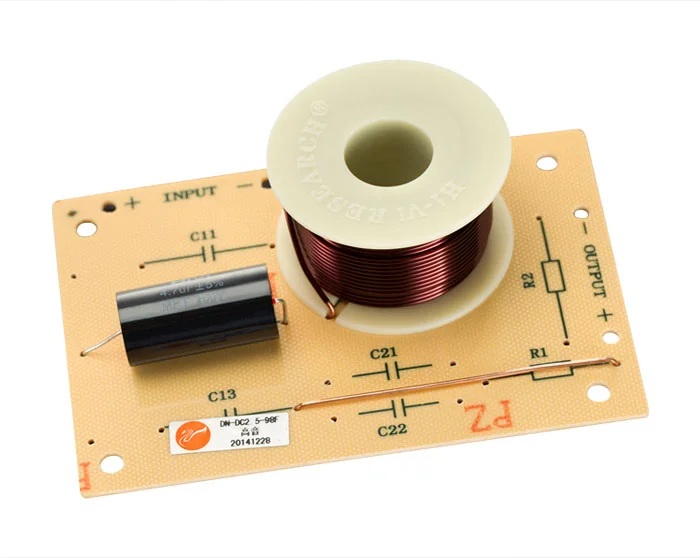

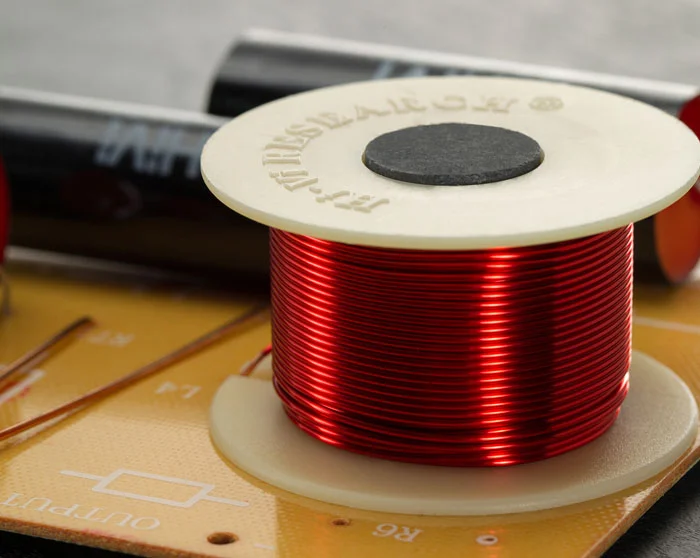

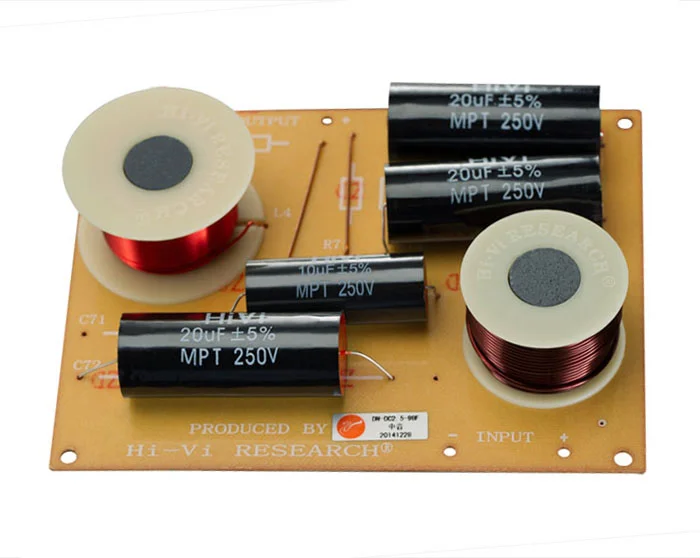

Hivi crossover DN-DC2.5/98F*6 boards/set
Hivi original 100 guide tube*2
All-copper four-position junction box*2
Speaker connection cable in the speaker 5 meters
Hexagon socket screws *50, speaker sealing strip *5 meters

Technical parameters of magnetic ribbon speaker such as RT2CA

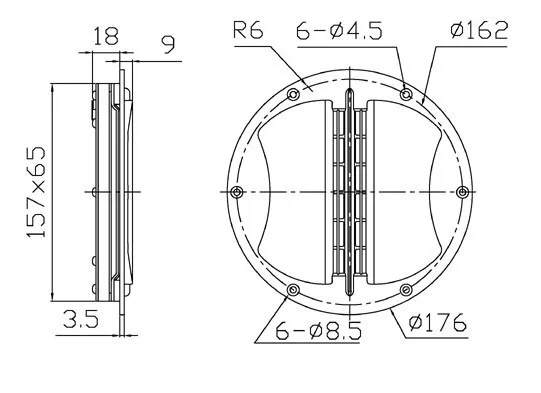

Rated impedance: 8ΩRated power: 30WMaximum power: 60WSensitivity (2.83v/1m): 93dbWeight: 0.63KgMagnetic circuit type: Neodymium strip matrix and other magnetic field anti-collision magnetic circuit systemRecommended crossover point: >3000HzRT2C-A mechanical dimension drawing:

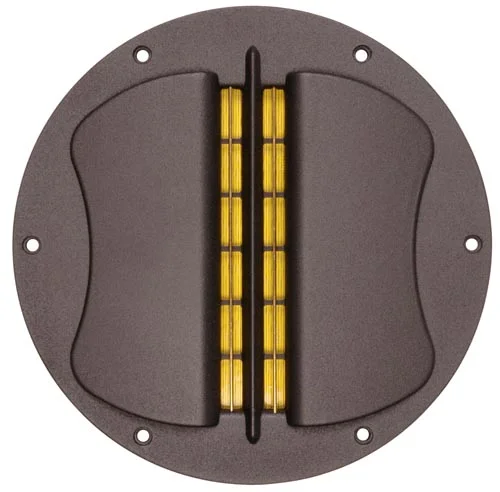

RT2C-A front view:

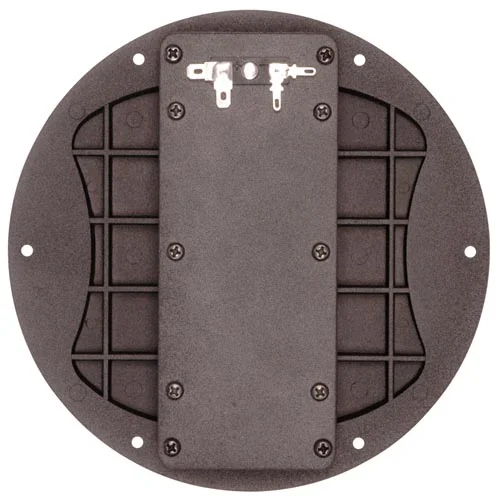

RT2C-A back view:

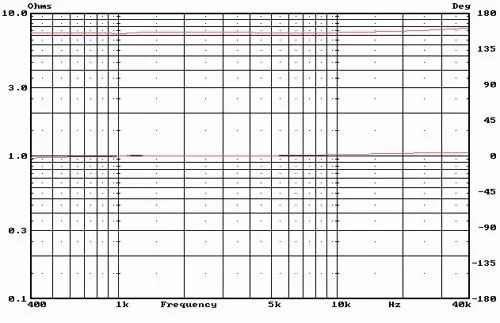

RT2C-A impedance curve:

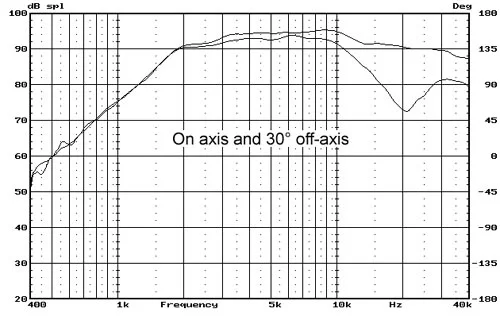

RT2C-A frequency response curve:

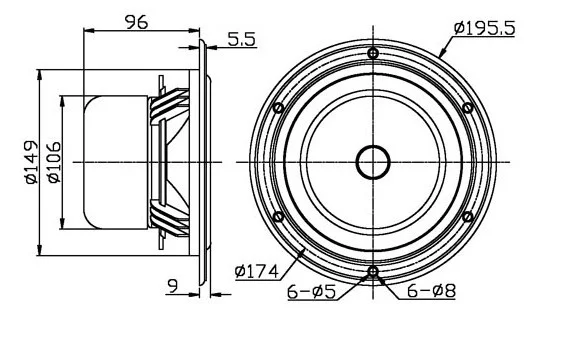

F6 low midrange speaker technical parameters：Rated impedance: 8ΩResonance frequency: 45HzRated power: 45WMaximum power: 90WSensitivity (2.83v/1m): 88dBWeight: 2.1kgVoice coil diameter: 25mmDC resistance: 6.5ΩVoice coil roll width: 14.5mmVoice coil wire: high temperature resistant SV wireVoice coil frame: high temperature resistant KMagnetic circuit type: shielded antimagnetic magnetic circuitMagnet material: high-performance ferriteForce coefficient (BL value): 9.0N/AMagnetic gap height: 6.0mmMaximum linear displacement: 4.3mmCompliance: 658uM/NMechanical Q value: 3.91-Electric Q value: 0.38-uM/N total Q value: 0.35-Vibration mass: 18.3gEquivalent volume: 16.4LCabinet type: lead phaseRecommended net volume of cabinet: 15LTuning frequency of phase guide tube: 45HzBox in free field-3db frequency: 42HzF6 Mechanical Dimensions:

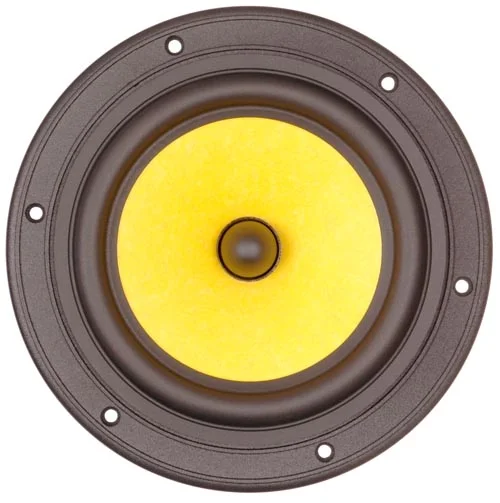

F6 front view:

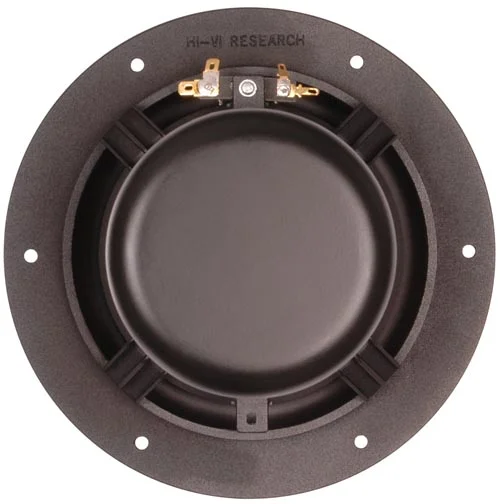

F6 back view:

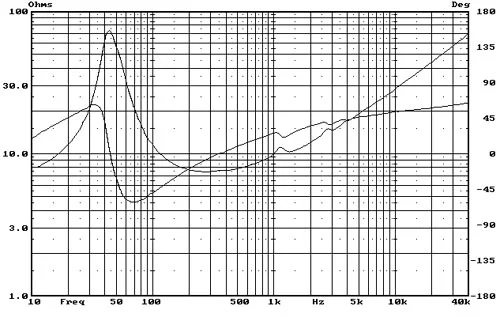

F6 impedance curve:

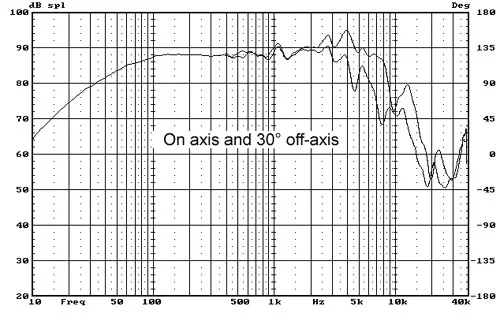

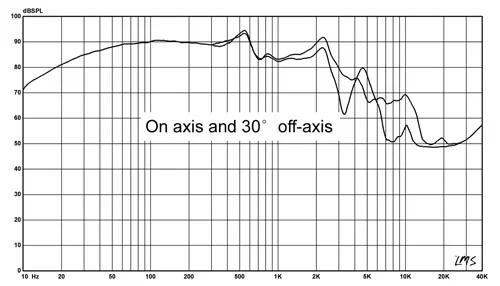

F6 frequency response curve:

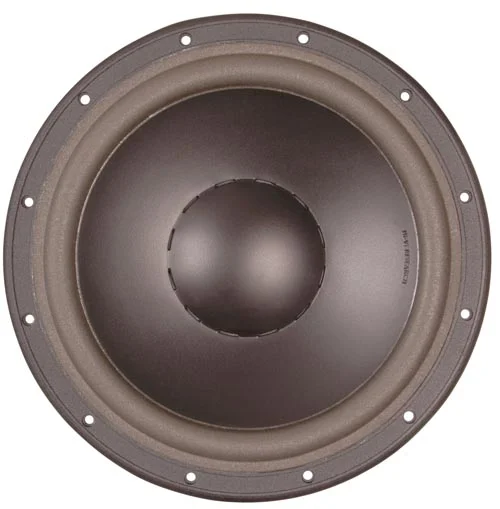

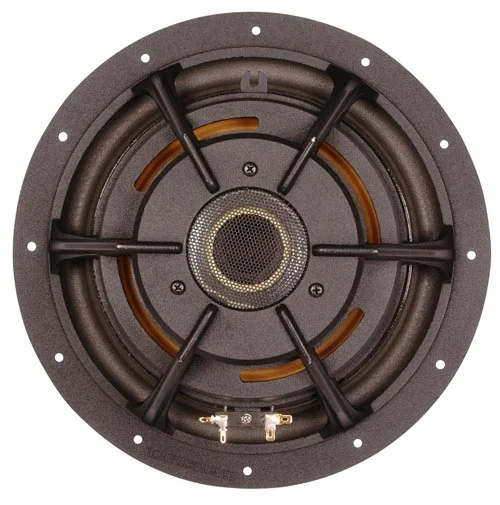

D10.8 Subwoofer technical parameters：Rated impedance: 8ΩResonance frequency: 24HzRated power: 150WMaximum power: 300WSensitivity (2.83v/1m): 90dBWeight: 4.0kgVoice coil diameter: 100mmDC resistance: 6.5ΩVoice coil roll width: 23mmVoice coil wire: high temperature resistant CCAWVoice coil frame: high temperature resistant KaptonMagnetic circuit type: internal magnetic magnetic circuitMagnet material: high performance neodymium iron boronForce coefficient (BL value): 13.4N/AMagnetic gap height: 7.0mmMaximum linear displacement: 8mmCompliance: 558UM/NMechanical Q value: 6.84uM/NElectric Q value: 0.44uM/NTotal Q value: 0.41uM/NVibration mass: 75.5gEquivalent volume: 147.3LBox type: closedRecommended net volume of cabinet: 80LBox in free field-3db frequency: 48Hz

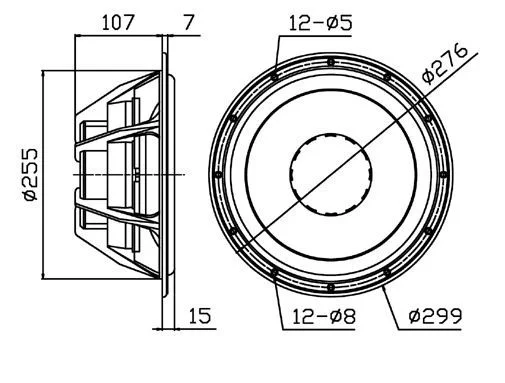

D10.8 Mechanical dimension drawing:
