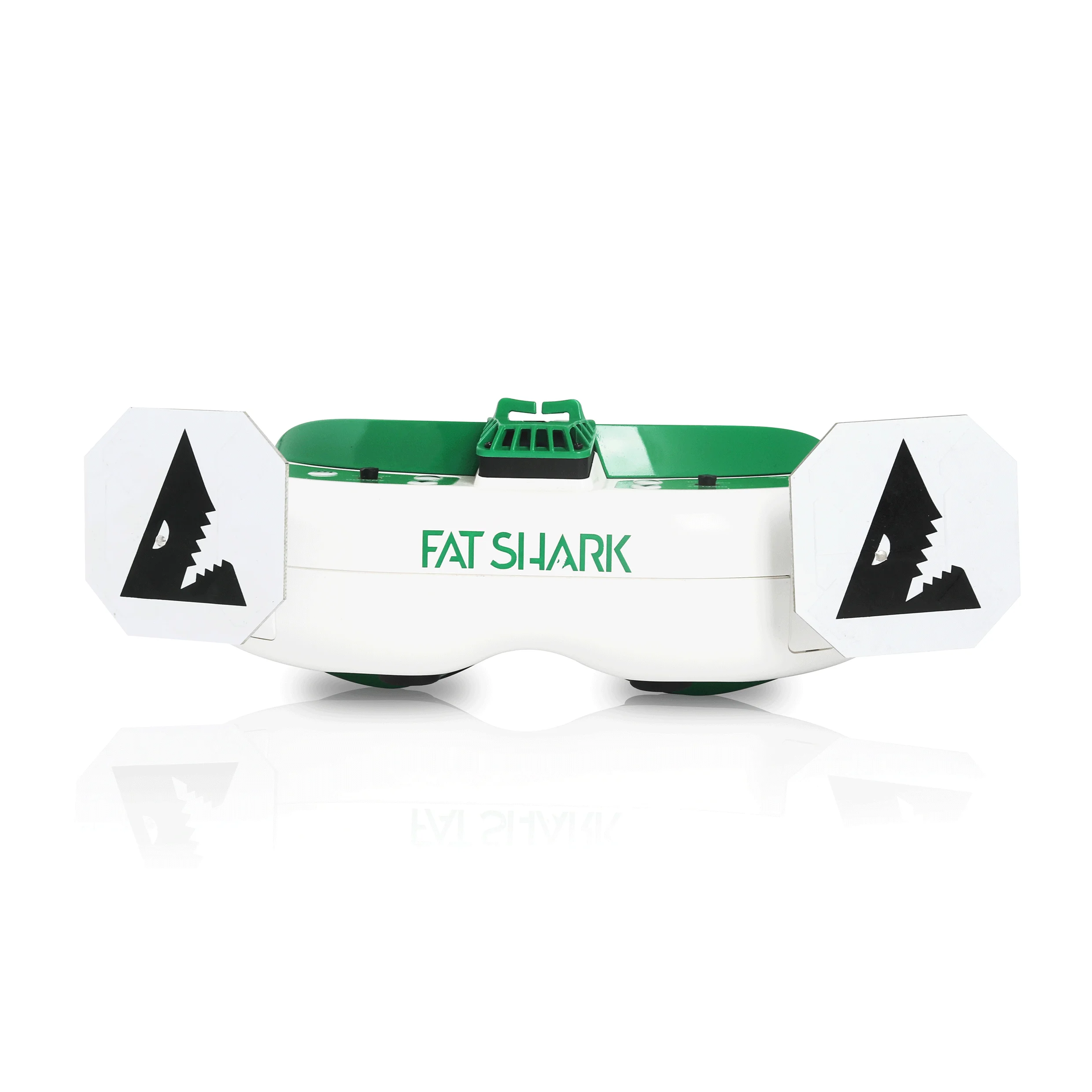

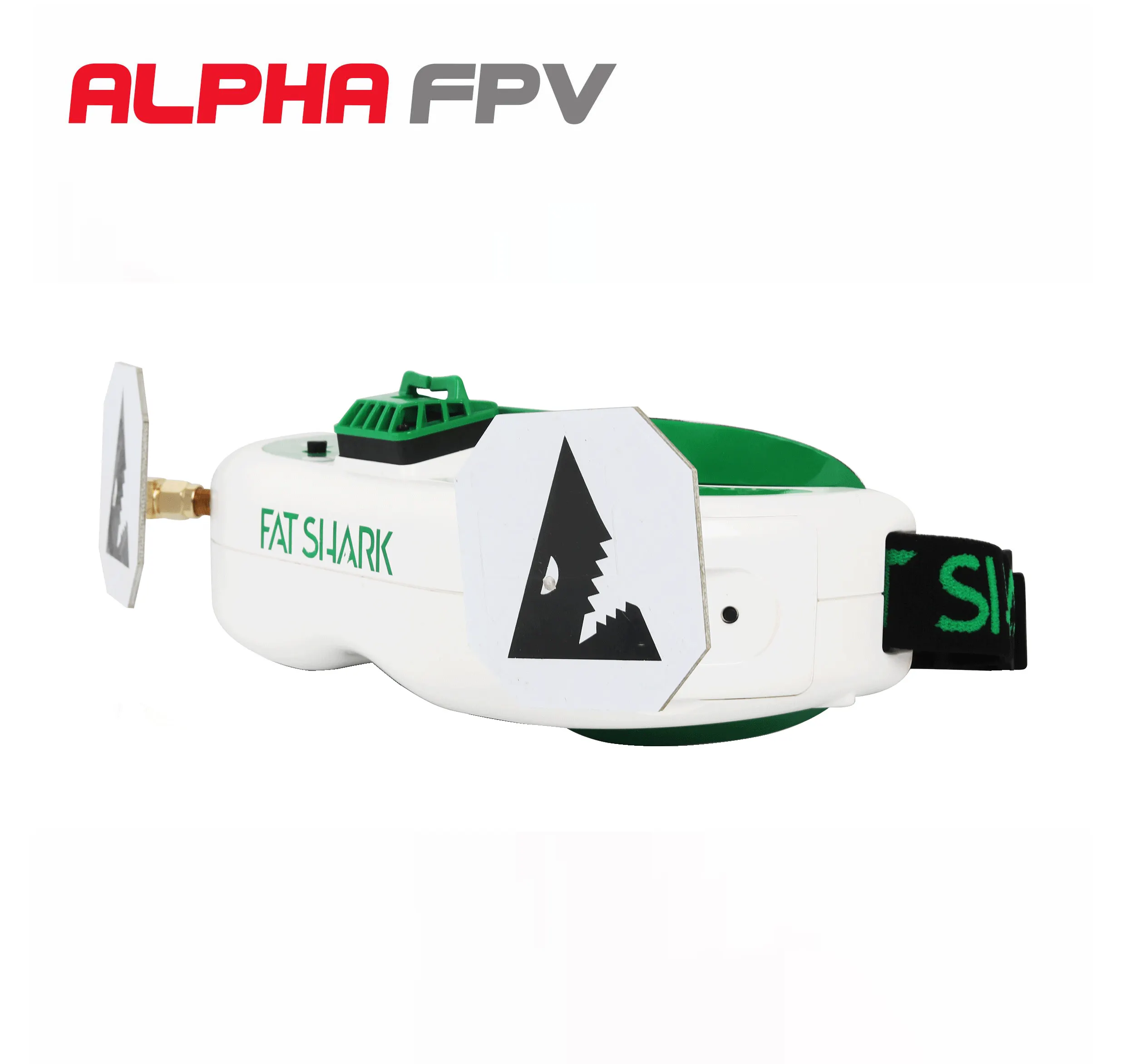

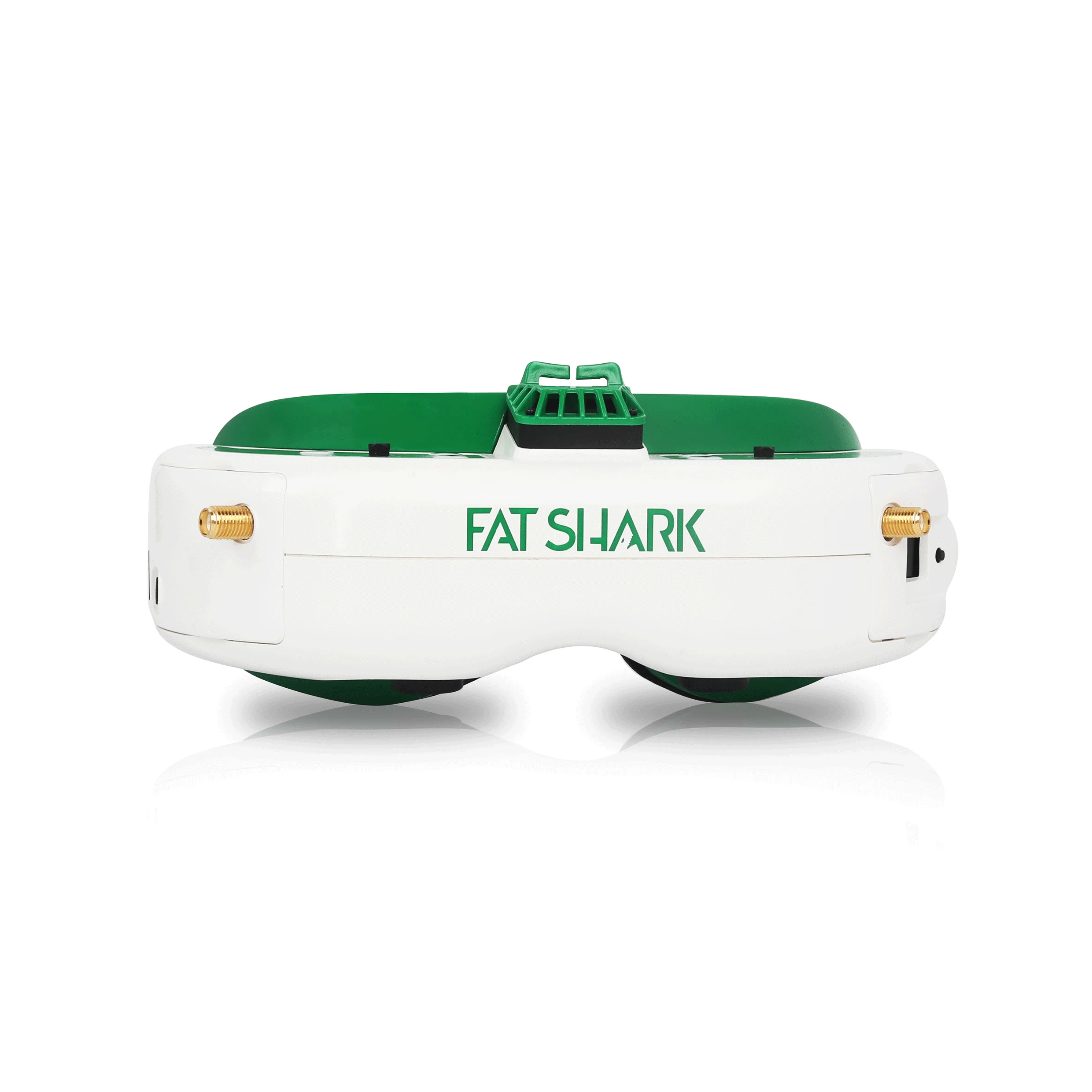

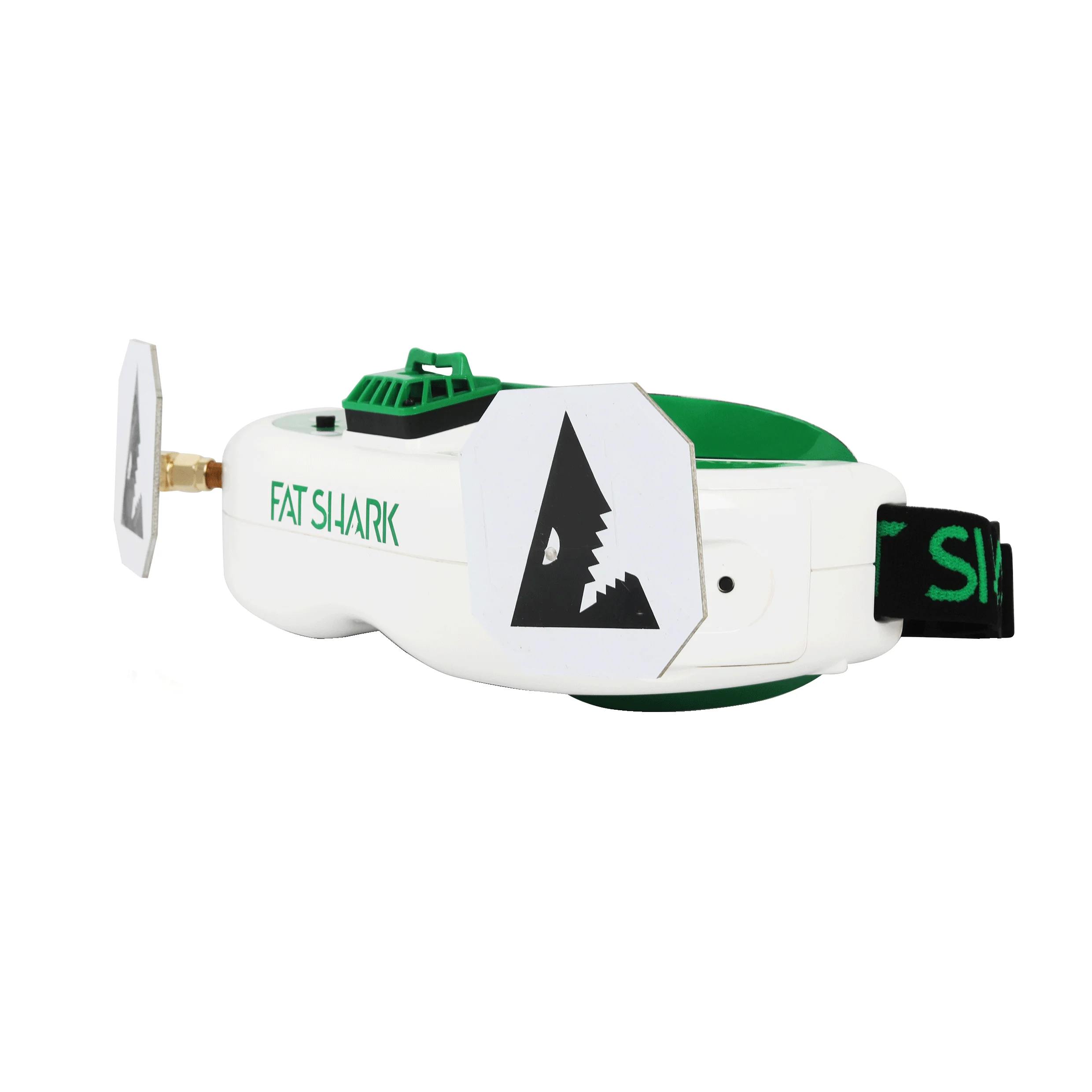

The Fat Shark Attitude V6 FPV Goggles (FSV1124). The modular UVGA LCOS FPV goggles with integrated DVR for analog recording.

Specifications

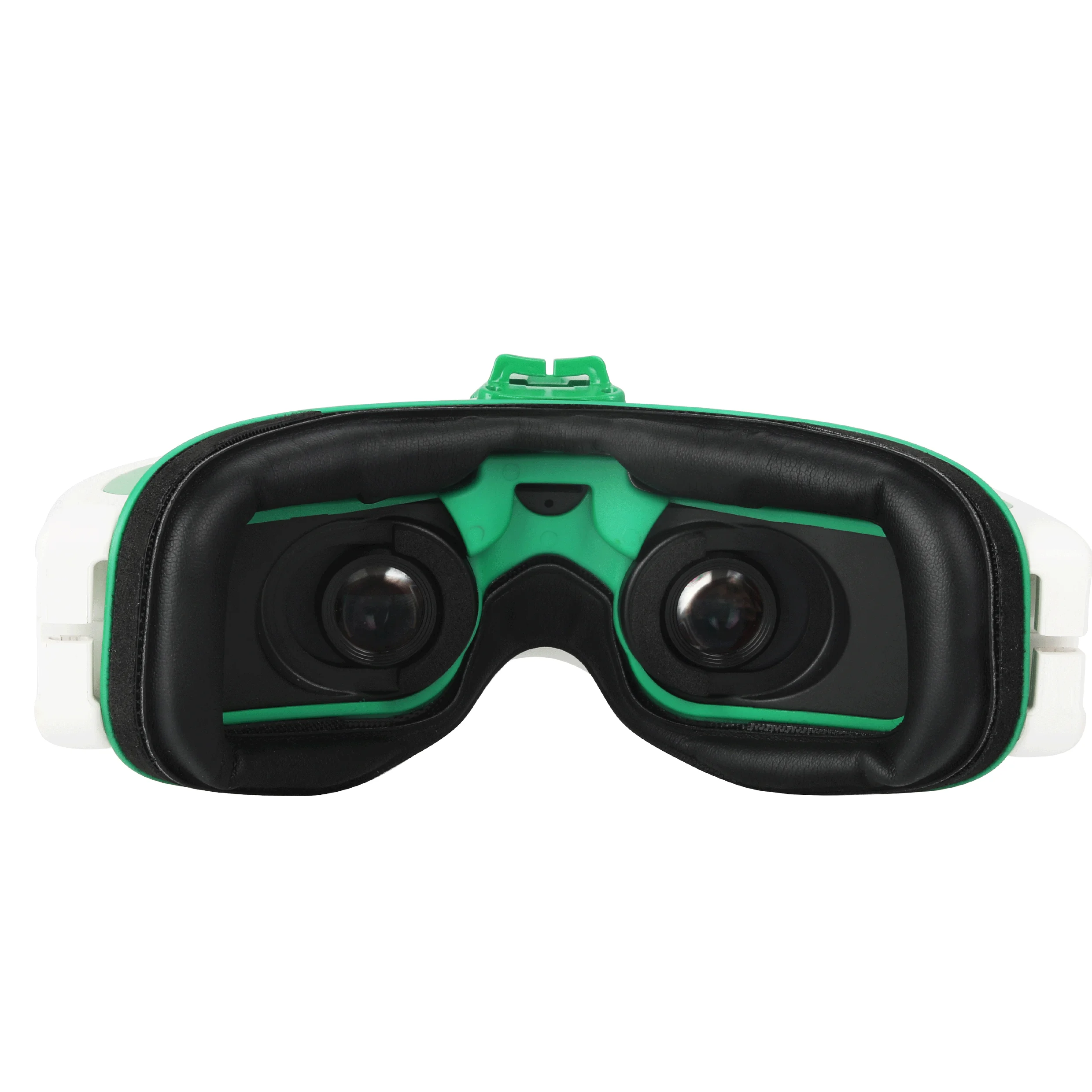

Optics:
FOV (field of view): 39 degrees diagonal

IPD (interpupillary distance): 54 to 74 mm (adjustable)

Focus: +2 to -6 diopters (adjustable)

Display: Two citizen 0.4” LCOS displays

Resolution 1280 X 960

NTCS/PAL auto selecting

AV Mode 4:3

AV Mode 16:9

HDMI Mode 16:9



Audio: Stereo

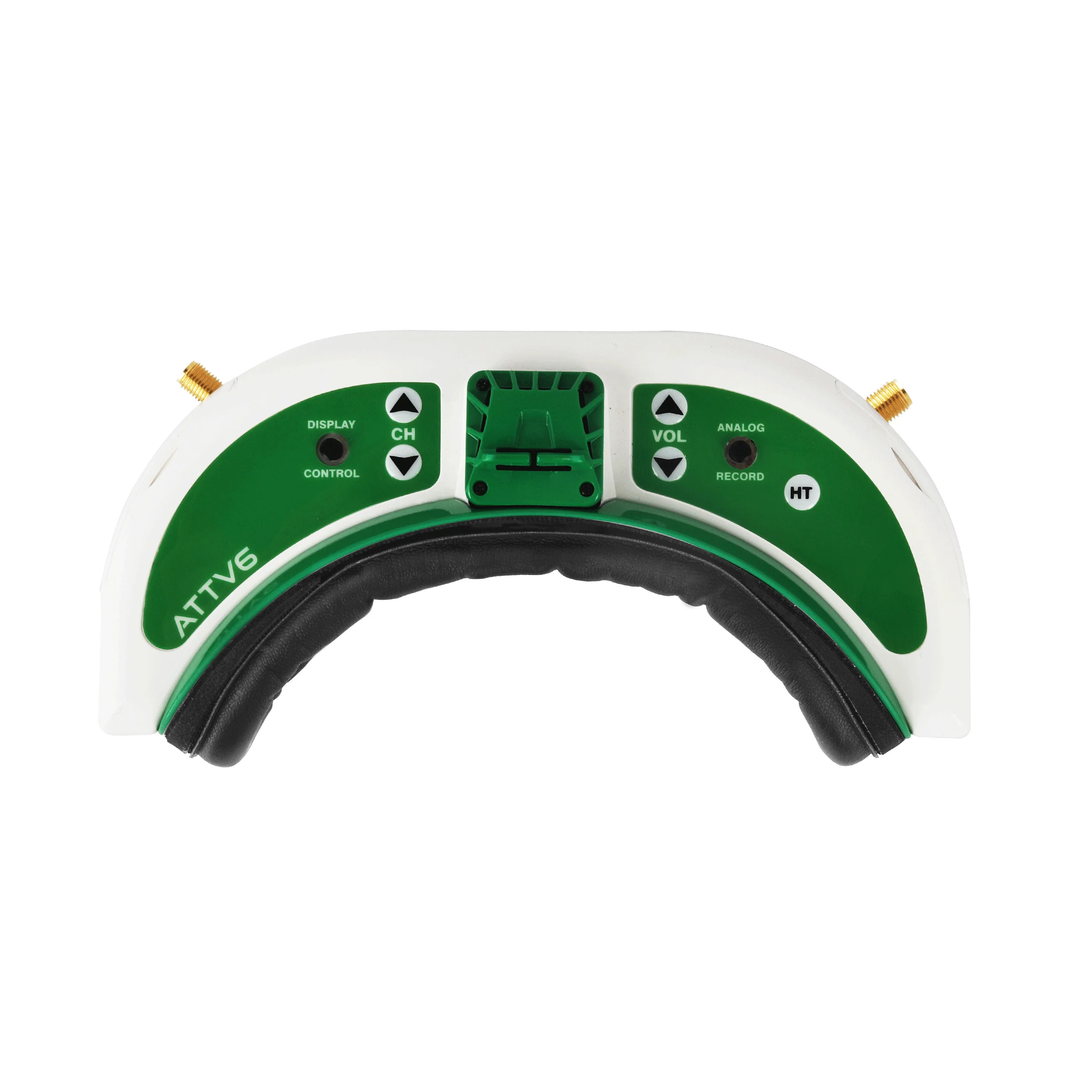

User Controls: Channel Selection

Volume Control

Mode Selection

Display Control (Brightness and Contrast)

DVR Control

Power Button / Fan Control

Electrical:

Power Supply: 7 – 13V input voltage (2S – 3S Supply)

Power Consumption: 320mA @ 7.5V input power (no RX module)

770mA @ 7.5V input power (Rapid

Analog DVR: MicroSD support to 32 GB

Record Rate: 6Mbps (MJPG compression, 30 fps, AVI)

File playback (native recording, no codec support)

Upgradeable via SD card



Battery: 7.4V, 1.8A 18650 Battery Case



Interface: 3.5mm AV in/out port

Power input port

3.5mm 3p earphone port

MicroSD

RF Module Bay

HT connector 3 pin internal connection

Power Button

Mechanical: Ergonomic molded headset w/ adjustable headband

Dimensions: 169.2 x 80 x 45.5 mm

Weight: 199g

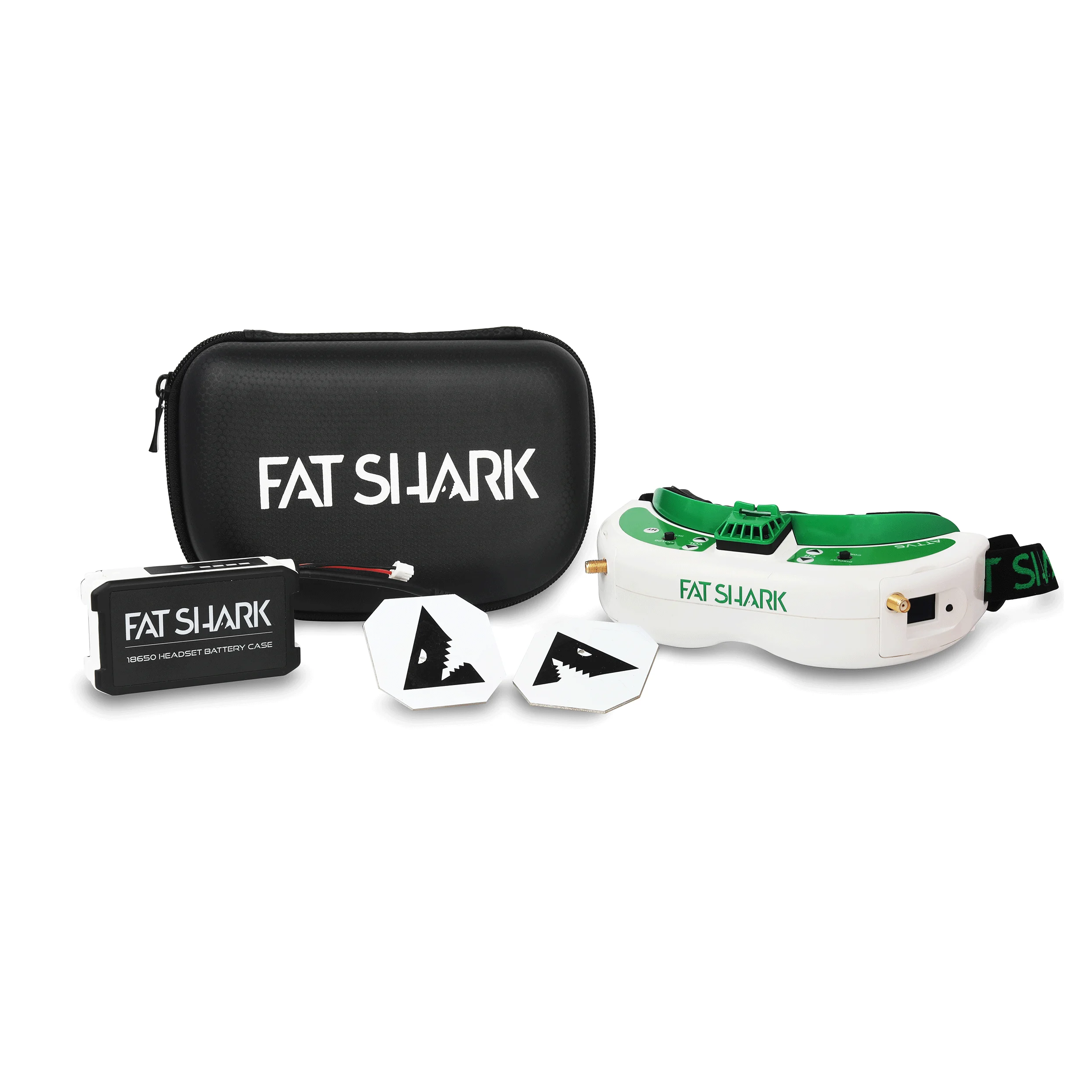

Includes
1x Fat Shark Attitude V6 FPV Goggles
1x Carry Case
1x 18650 Headset Battery Case (batteries not included)
1x True Diversity OLED Receiver already installed in the headset
2x Patch Antennas
