52mm Water Level Gauge with Sensor 0~190 ohm Boat Car Fuel Sender Unit Sensors 150mm 200mm 250mm 300mm 350mm | Автомобили и

Характеристики

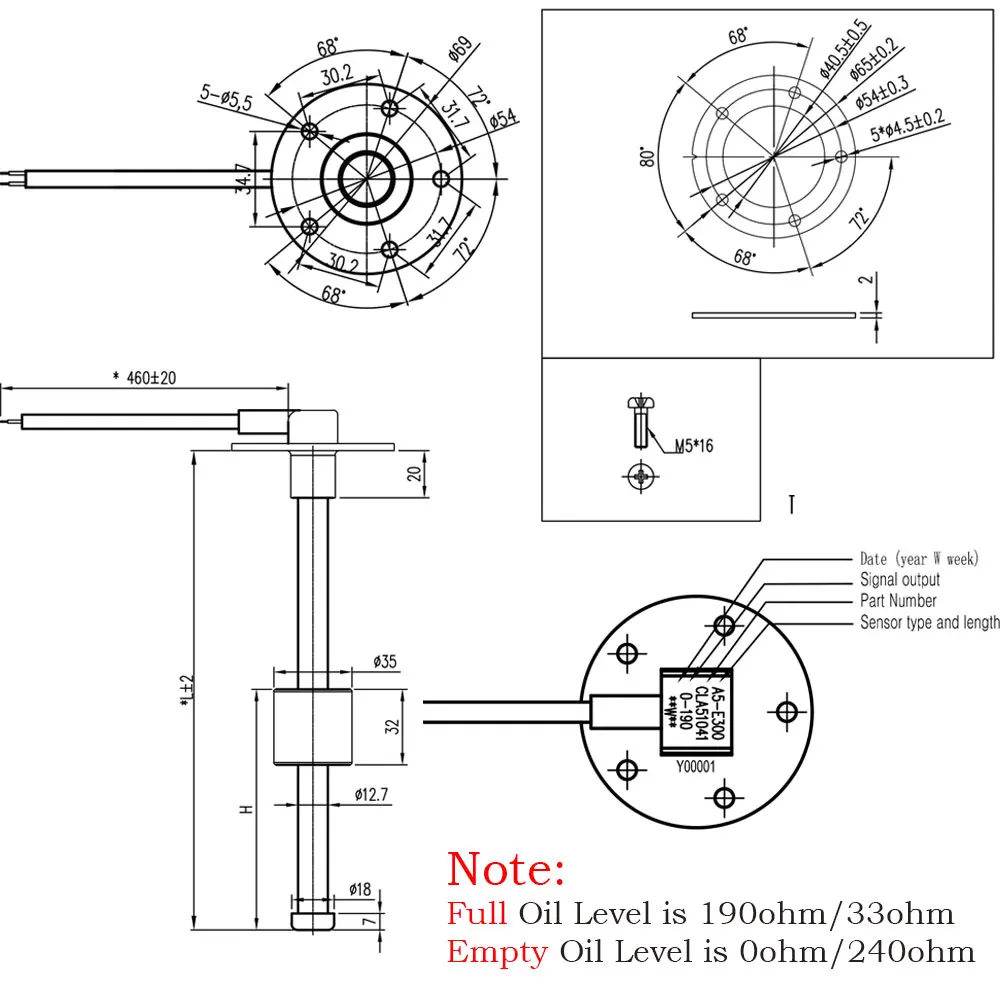

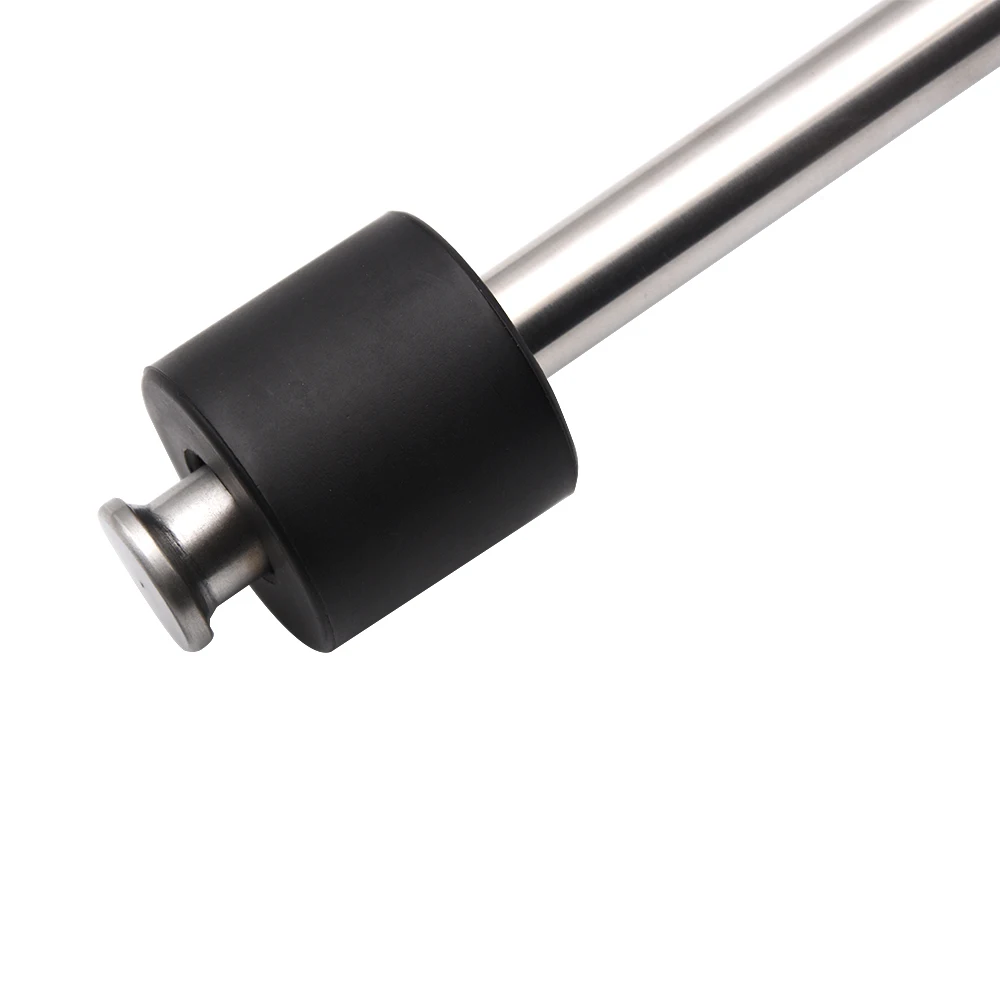

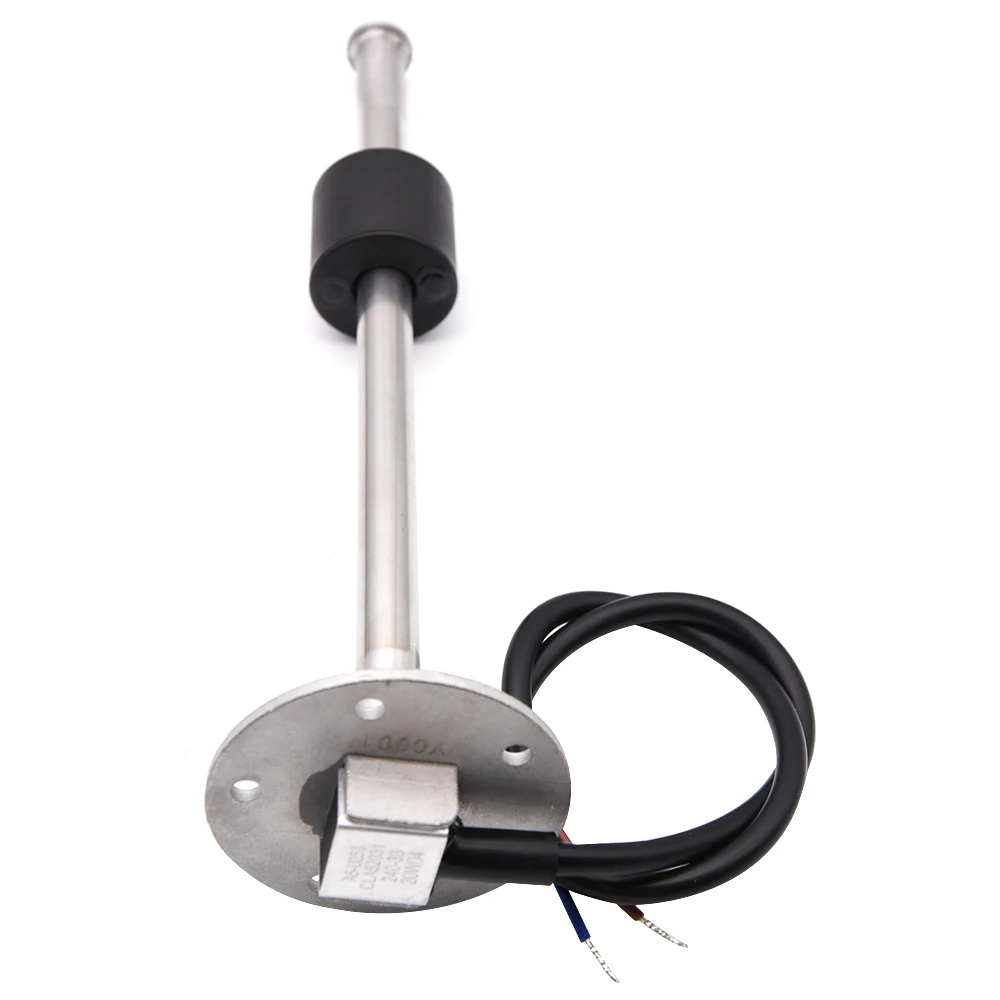

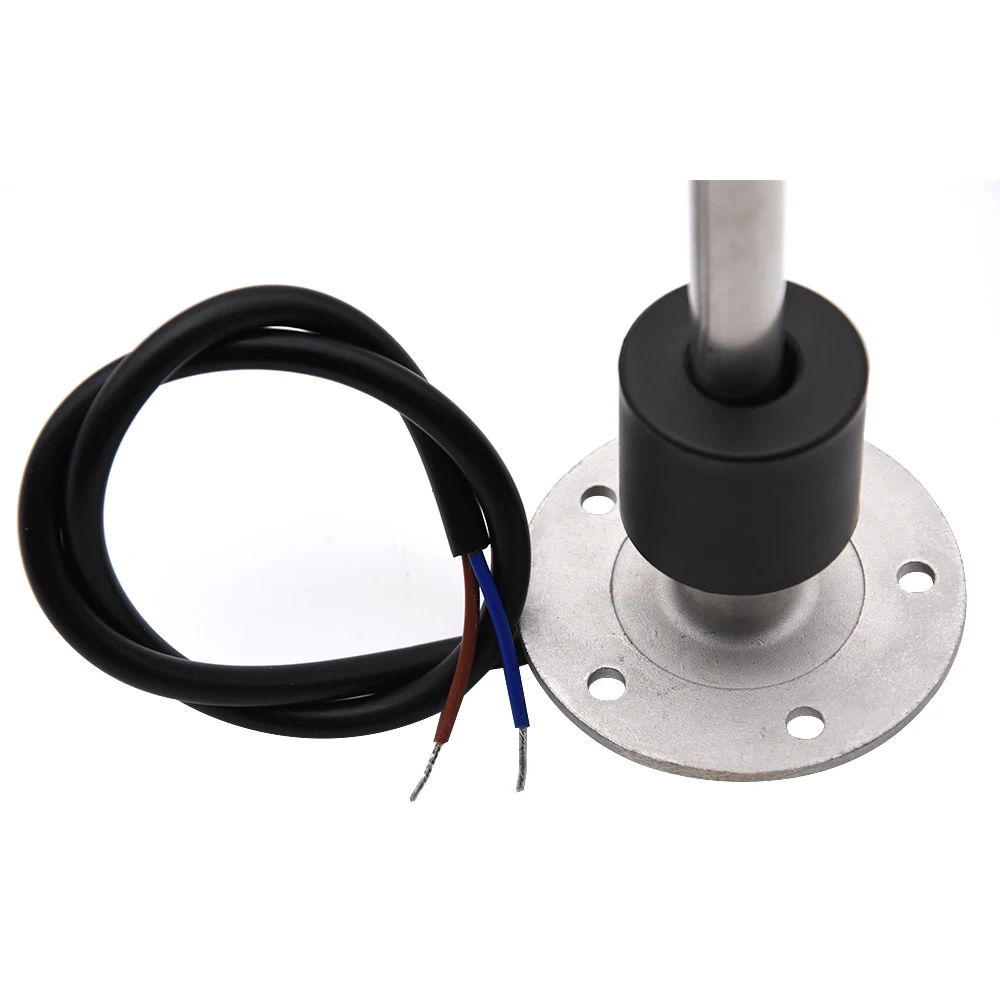

Sensor Specification:

- Resolution range: 21 mm
- Assembly: SAE standard 5 holes
- Operating temperatures: - 40 to 85
- Rated current for alarm switch: 500mA
- Operating temperatures: - 40 to 85 Celsius
- Level Sensor fit for Diesel & Gasoline Engine
- Fit for Fuel Level Gauge and Water Level Gauge

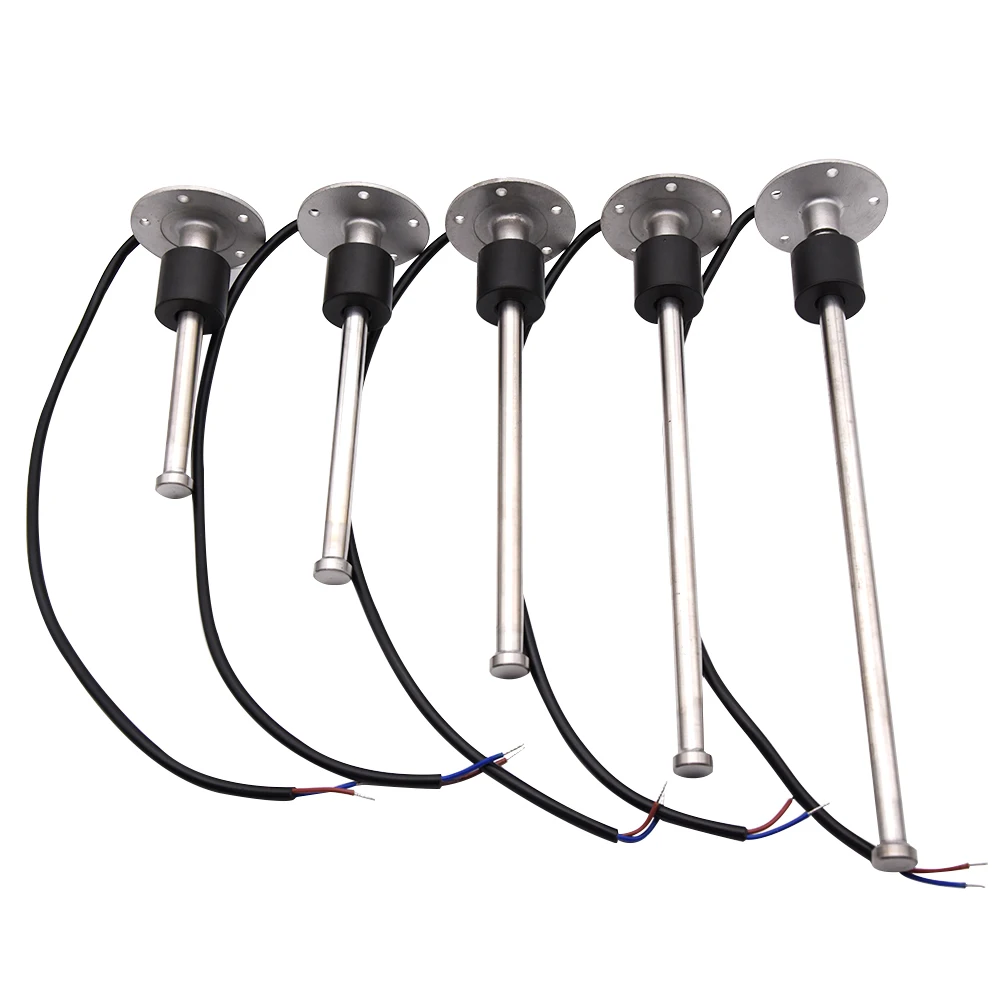

- Liquid level sensor length:100mm,125mm,150mm,200mm,250mm
300 mm ,350 mm ,400mm,and so on

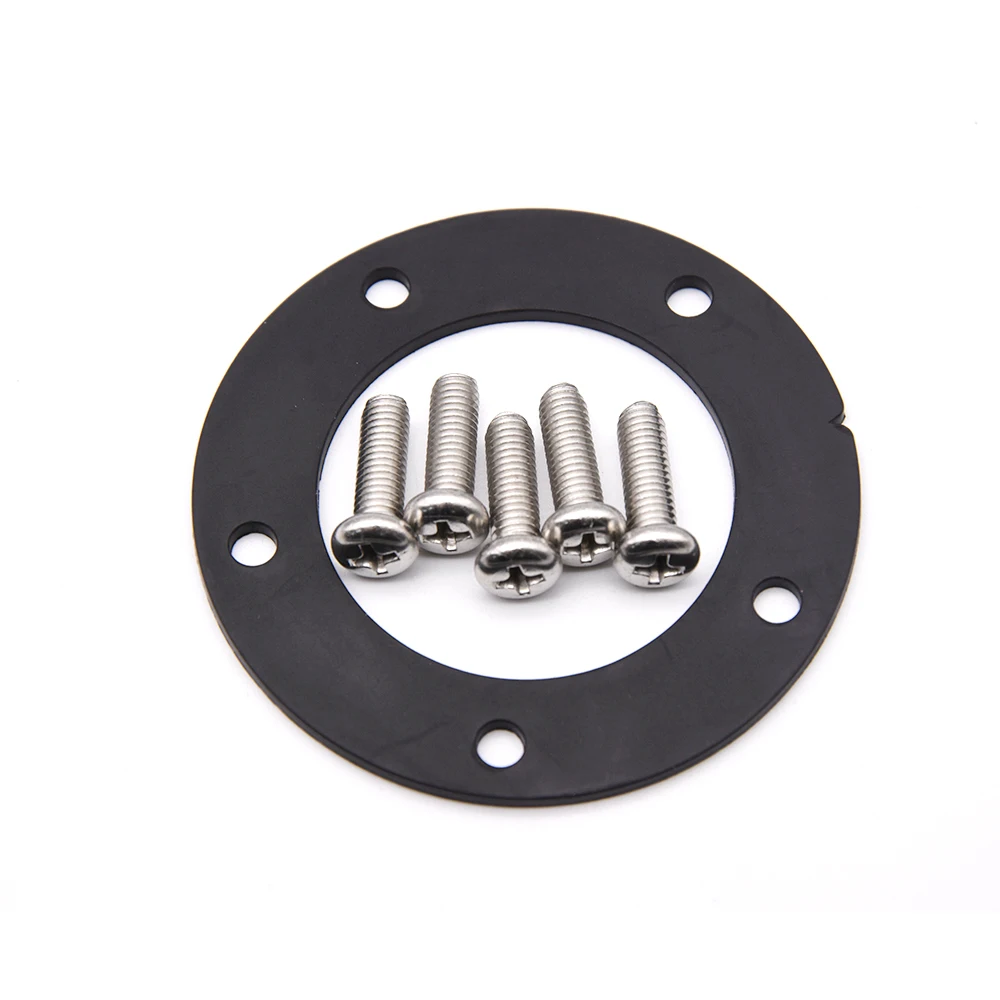

- Mounting: 5 pieces of M5 screws and 2 mm thick gasket

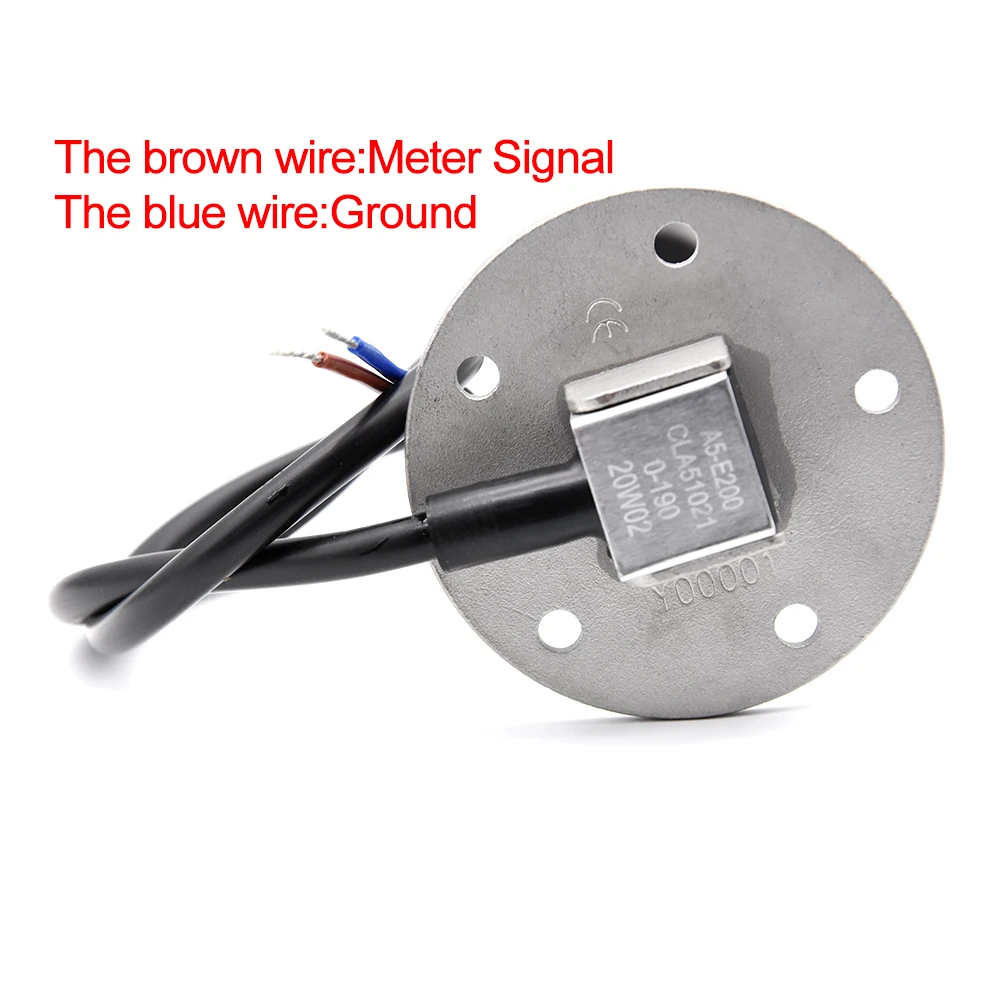

- Output signal: 0~190 ohm (Standard European)

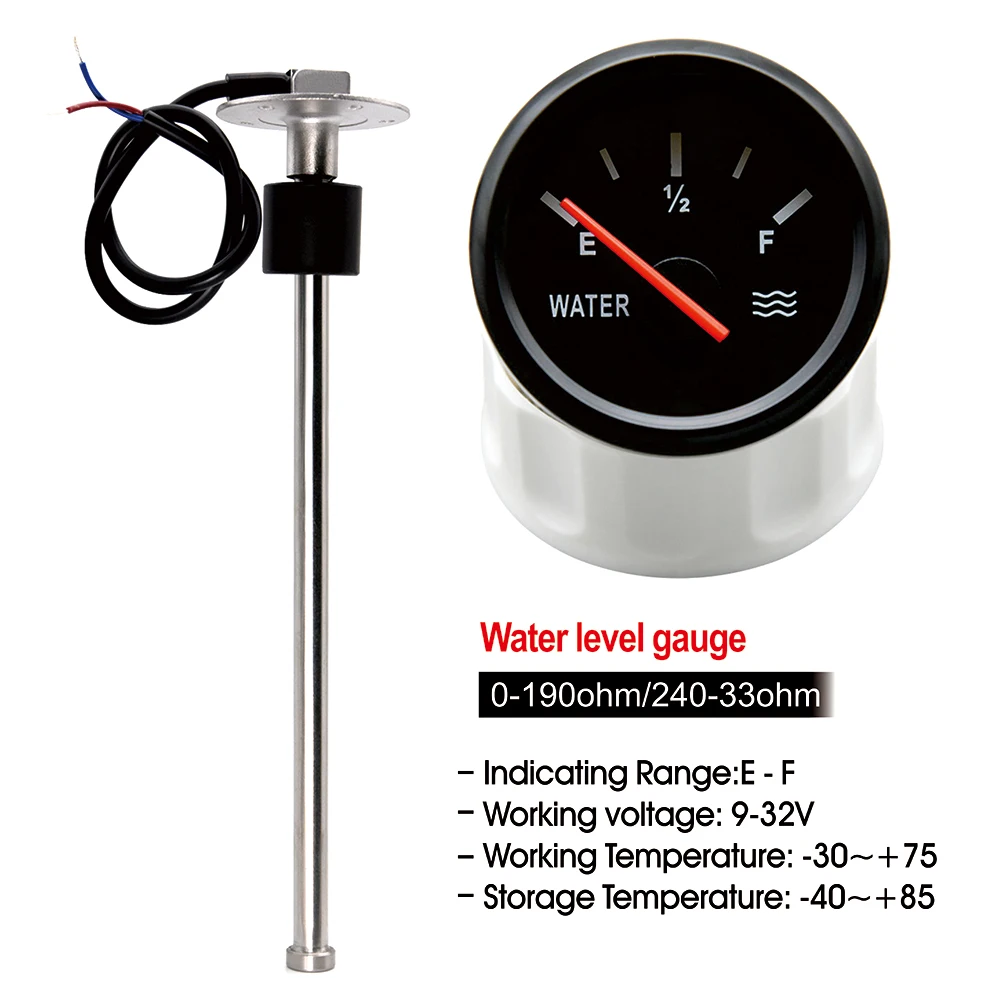

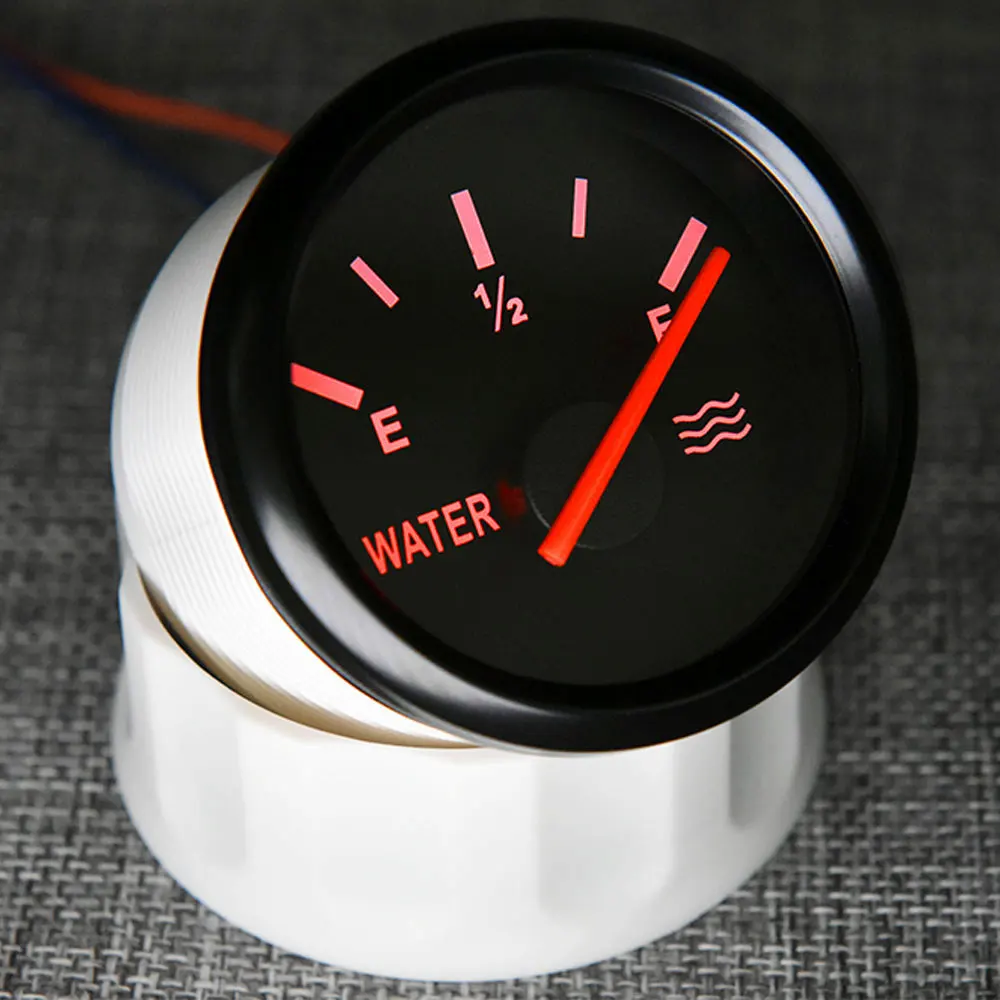

52mm Water Level Gauge Specification:

- Indicating Range: 0-100%
- Name: Water Level Gauge

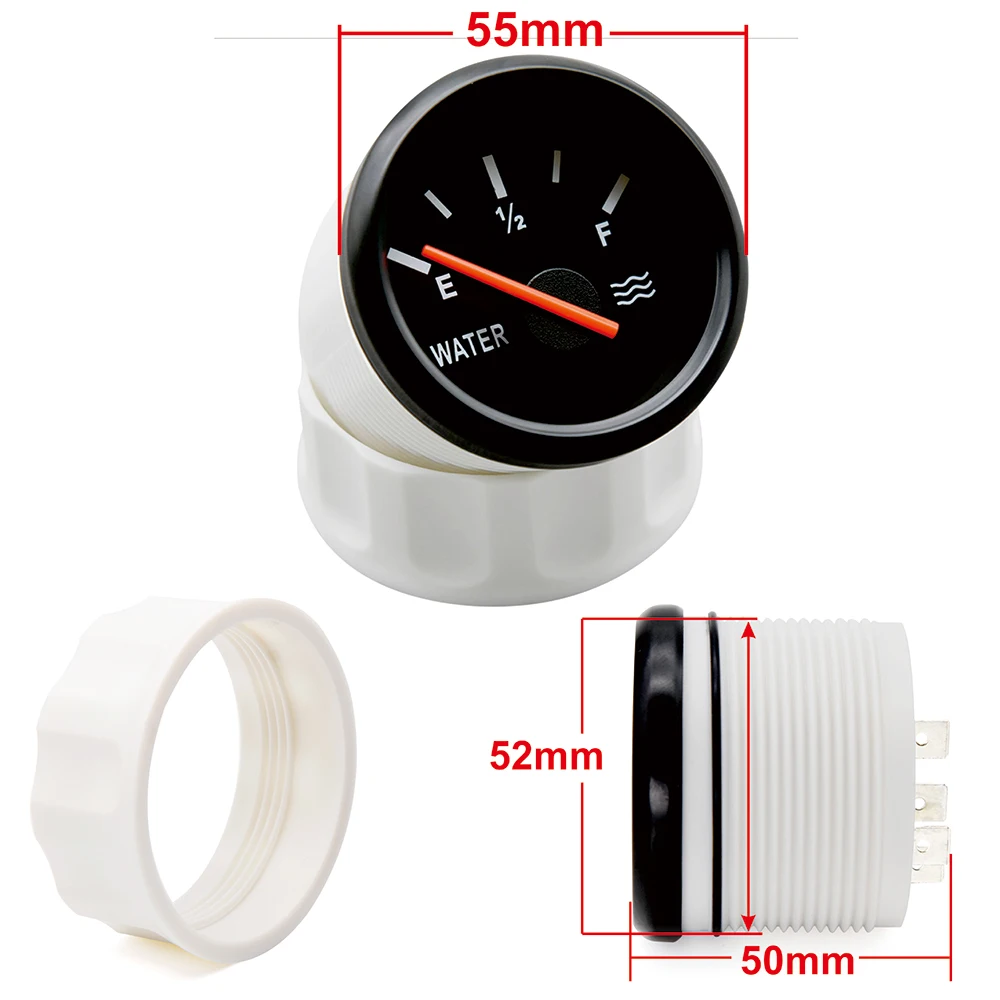

- Fixing dimension: 52mm or 2-1/16"

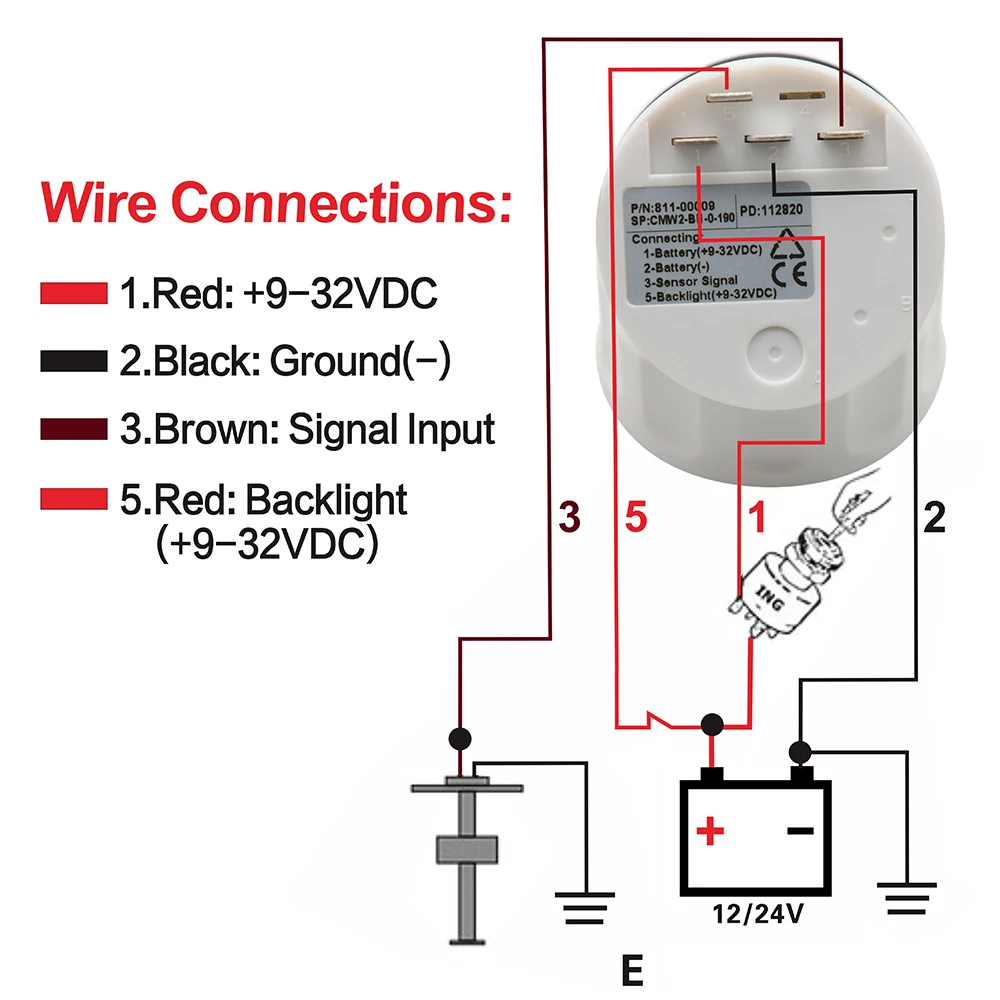

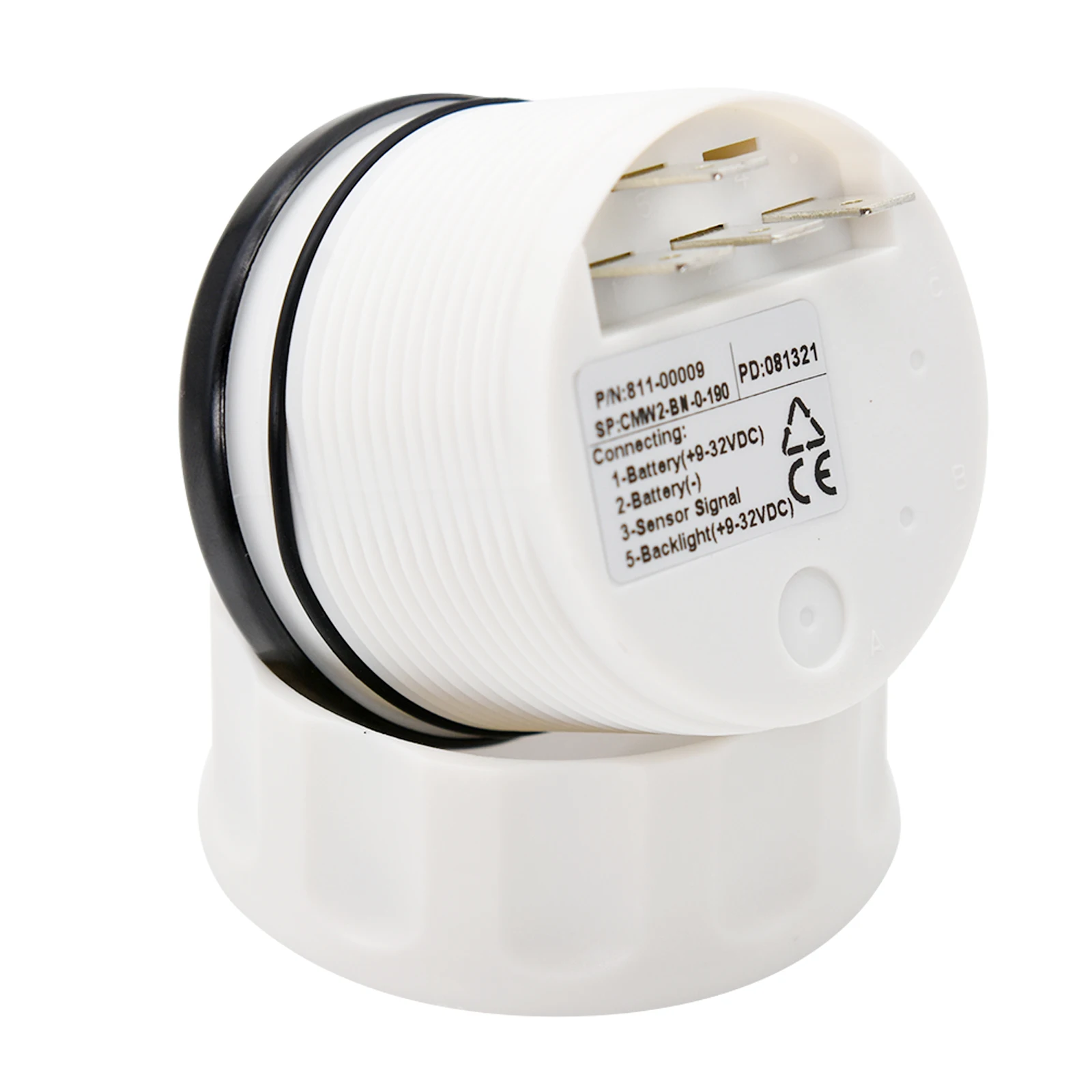

- Operating Voltage: 9-32V /fit 12V-24V
- Materials: stainless steel+nickel-plated plastic
- Input signal:0~190ohm (European standard),

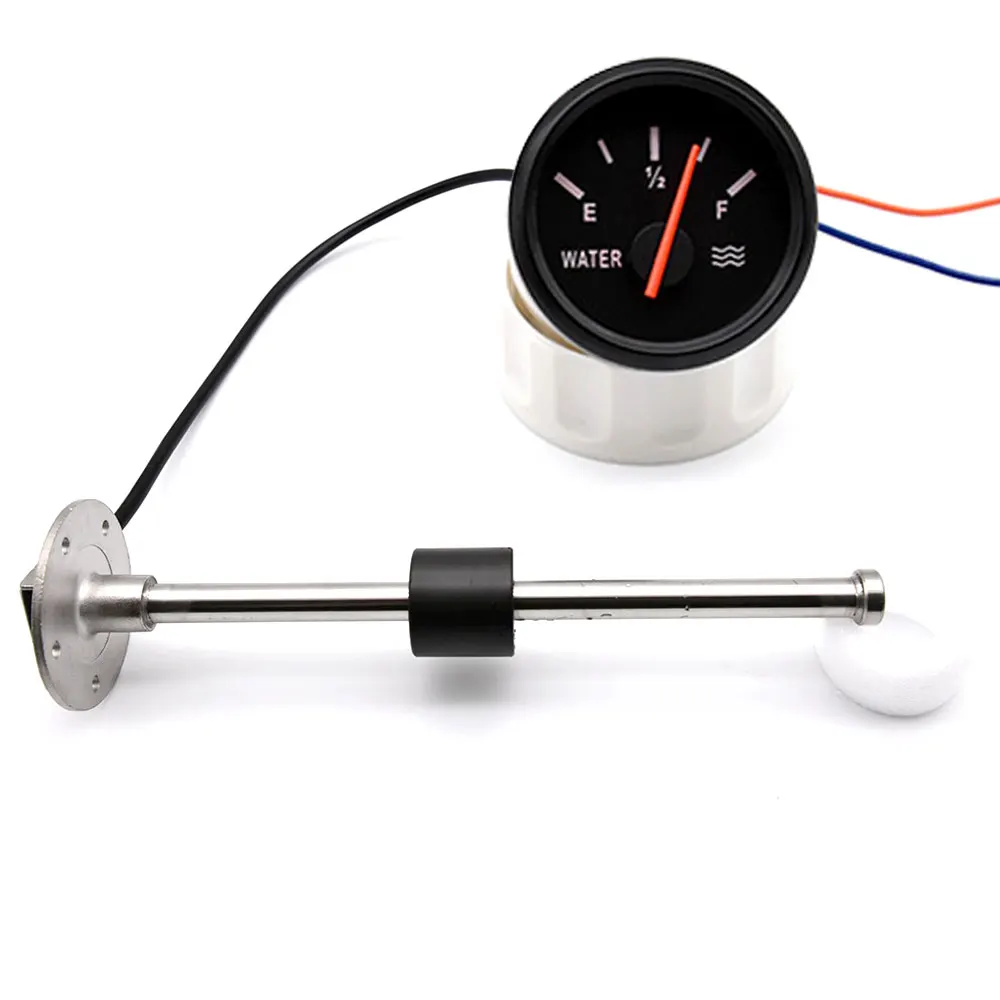

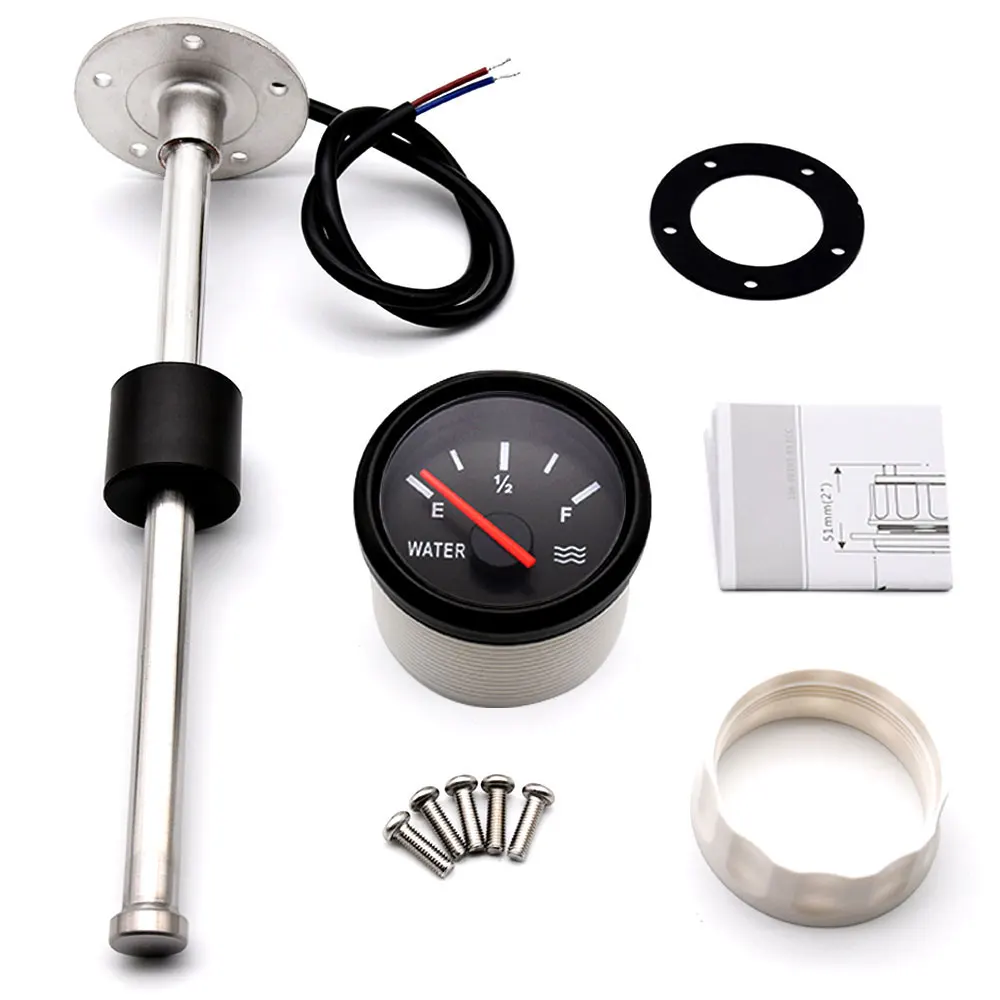

Package:

1 x Water Level Gauge(No Cable )
1 x sensor
