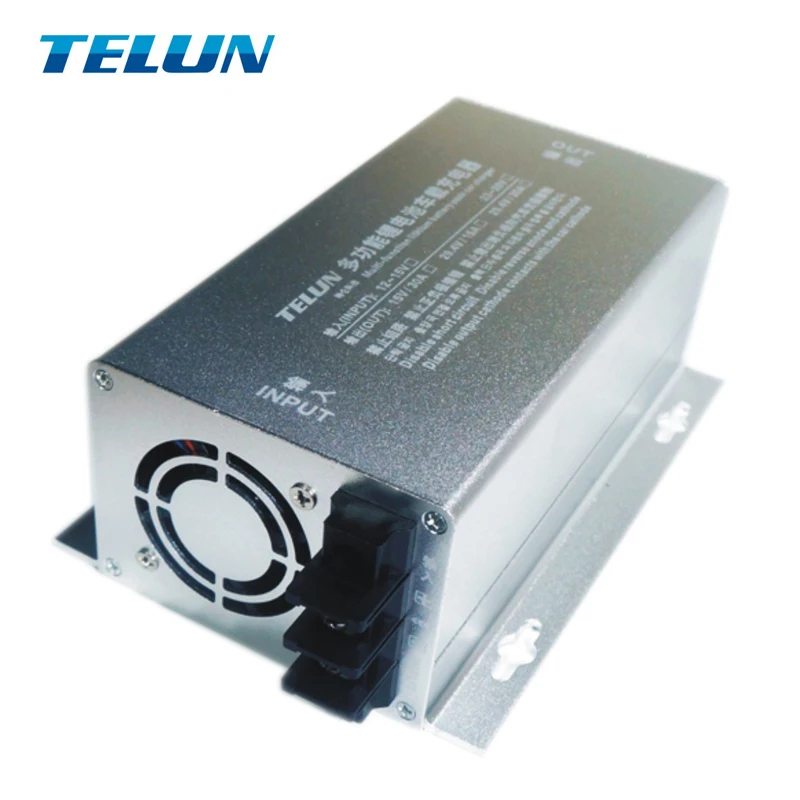

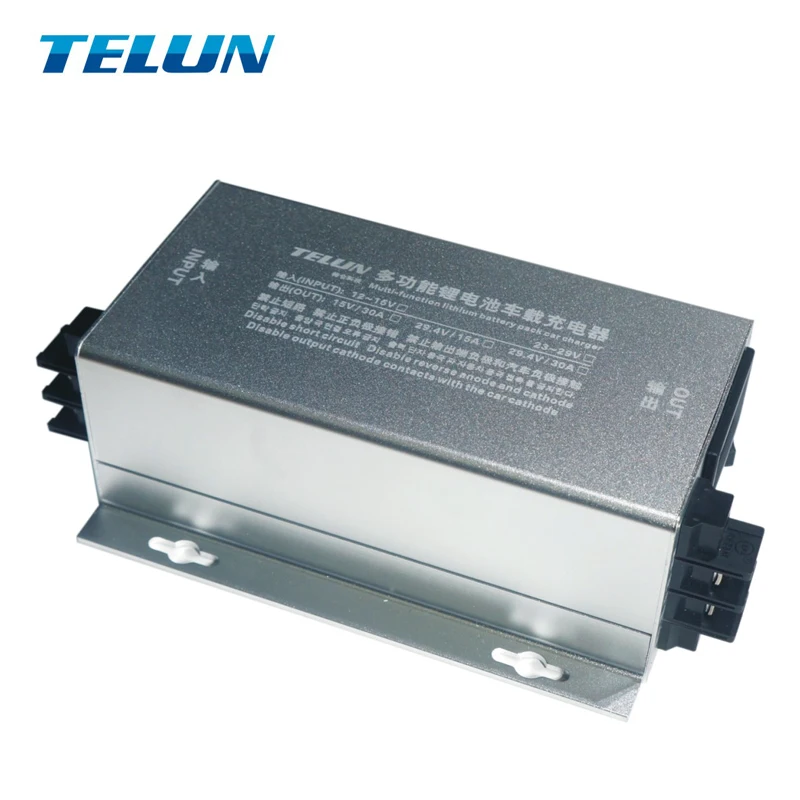

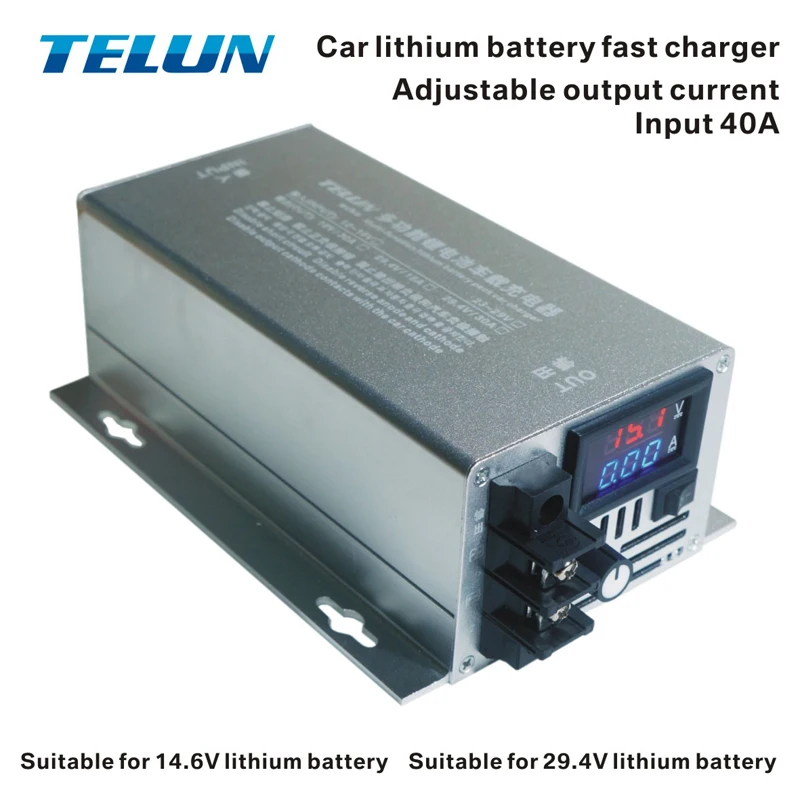

TELUN Input 40A car 12v 24V lithium battery fast charger suitable for 14.6V 15V 29.4V iron phosphate ternary | Обустройство дома

Характеристики

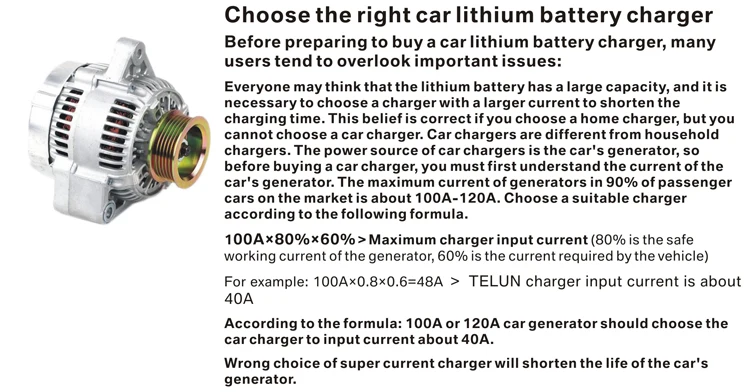

Choose the right car lithium battery charger

Before preparing to buy a car lithium battery charger, many users tend to overlook important issues:

Everyone may think that the lithium battery has a large capacity, and it is necessary to choose a charger with a larger current to shorten the charging time. This belief is correct if you choose a home charger, but you cannot choose a car charger. Car chargers are different from household chargers. The power source of car chargers is the car's generator, so before buying a car charger, you must first understand the current of the car's generator. The maximum current of generators in 90% of passenger cars on the market is about 100A-120A. Choose a suitable charger according to the following formula.

100A×80%×60%＞Maximum charger input current (80% is the safe working current of the generator, 60% is the current required by the vehicle)

For example: 100A×0.8×0.6=48A ＞ TELUN charger input current is about 40A

According to the formula: 100A or 120A car generator should choose the car charger to input current about 40A.

Wrong choice of super current charger will shorten the life of the car's generator.

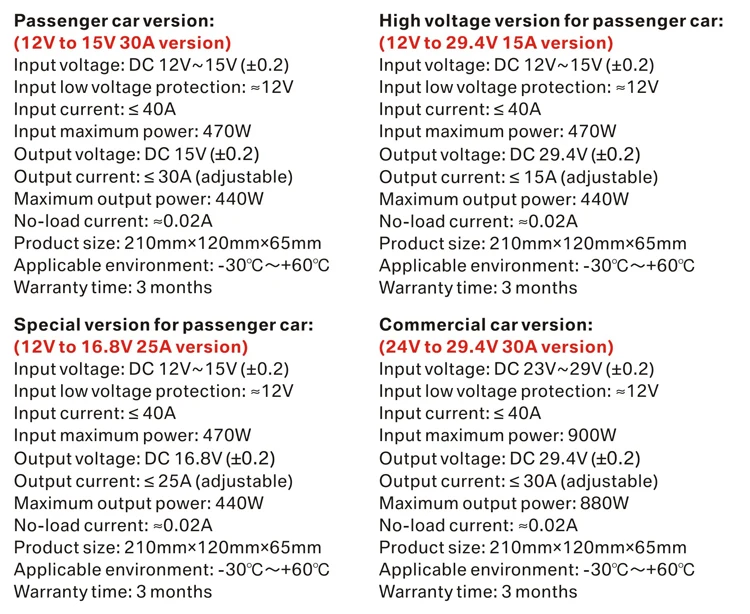

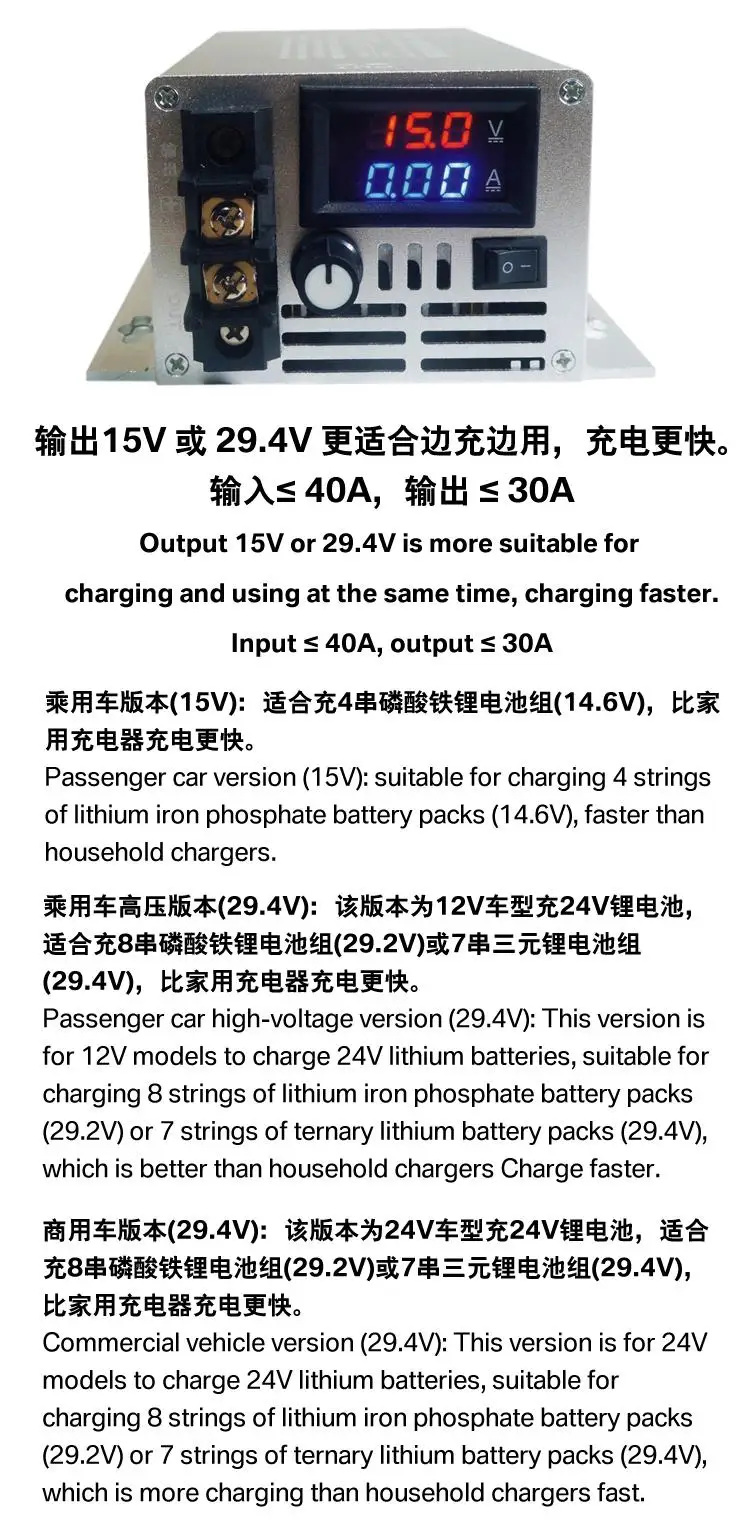

Passenger car version:

(12V to 15V 30A version)

Input voltage: DC 12V~15V (±0.2)

Input low voltage protection: ≈12V

Input current: ≤ 40A

Input maximum power: 470W

Output voltage: DC 15V (±0.2)

Output current: ≤ 30A (adjustable)

Maximum output power: 440W

No-load current: ≈0.02A

Product size: 210mm×120mm×65mm

Applicable environment: -30℃～+60℃

Warranty time: 3 months

High voltage version for passenger car:

(12V to 29.4V 15A version)

Input voltage: DC 12V~15V (±0.2)

Input low voltage protection: ≈12V

Input current: ≤ 40A

Input maximum power: 470W

Output voltage: DC 29.4V (±0.2)

Output current: ≤ 15A (adjustable)

Maximum output power: 440W

No-load current: ≈0.02A

Product size: 210mm×120mm×65mm

Applicable environment: -30℃～+60℃

Warranty time: 3 months

Special version for passenger car:

(12V to 16.8V 25A version)

Input voltage: DC 12V~15V (±0.2)

Input low voltage protection: ≈12V

Input current: ≤ 40A

Input maximum power: 470W

Output voltage: DC 16.8V (±0.2)

Output current: ≤ 25A (adjustable)

Maximum output power: 440W

No-load current: ≈0.02A

Product size: 210mm×120mm×65mm

Applicable environment: -30℃～+60℃

Warranty time: 3 months

Commercial car version:

(24V to 29.4V 30A version)

Input voltage: DC 23V~29V (±0.2)

Input low voltage protection: ≈12V

Input current: ≤ 40A

Input maximum power: 900W

Output voltage: DC 29.4V (±0.2)

Output current: ≤ 30A (adjustable)

Maximum output power: 880W

No-load current: ≈0.02A

Product size: 210mm×120mm×65mm

Applicable environment: -30℃～+60℃

Warranty time: 3 months
