1Pieces Origin Hivi S5N 5-Inch Fever Mid-Bass High-Power Speaker Impedance 8 Ohms Pmax 70W Unit Metal | Электроника

Характеристики

S5N Low Midrange Speaker Technical Parameters

Rated impedance: 8Ω

Resonance frequency: 49Hz

Rated power: 35W

Maximum power: 70W

Sensitivity (2.83v/1m): 87dB

Weight: 2kg

Voice coil diameter: 25mm

DC resistance: 6.5Ω

Voice coil roll width: 10.4mm

Voice coil wire: high temperature resistant SV wire

Voice coil frame: high temperature resistant Kapton

Magnetic circuit type: shielded antimagnetic magnetic circuit

Magnet material: high-performance ferrite

Force coefficient (BL value): 7.7N/A

Magnetic gap height: 5.0mm

Maximum linear displacement: 2.7mm

Compliance: 1000uM/N

Mechanical Q value: 6.17-

Electric Q value: 0.35-

Total Q value: 0.34-

Vibration mass: 10.5g

Equivalent volume: 8.9L

Cabinet type: lead phase

Recommended net volume of cabinet: 6L

Tuning frequency of phase guide tube: 52Hz

The cabinet is in free field-3db frequency: 49Hz

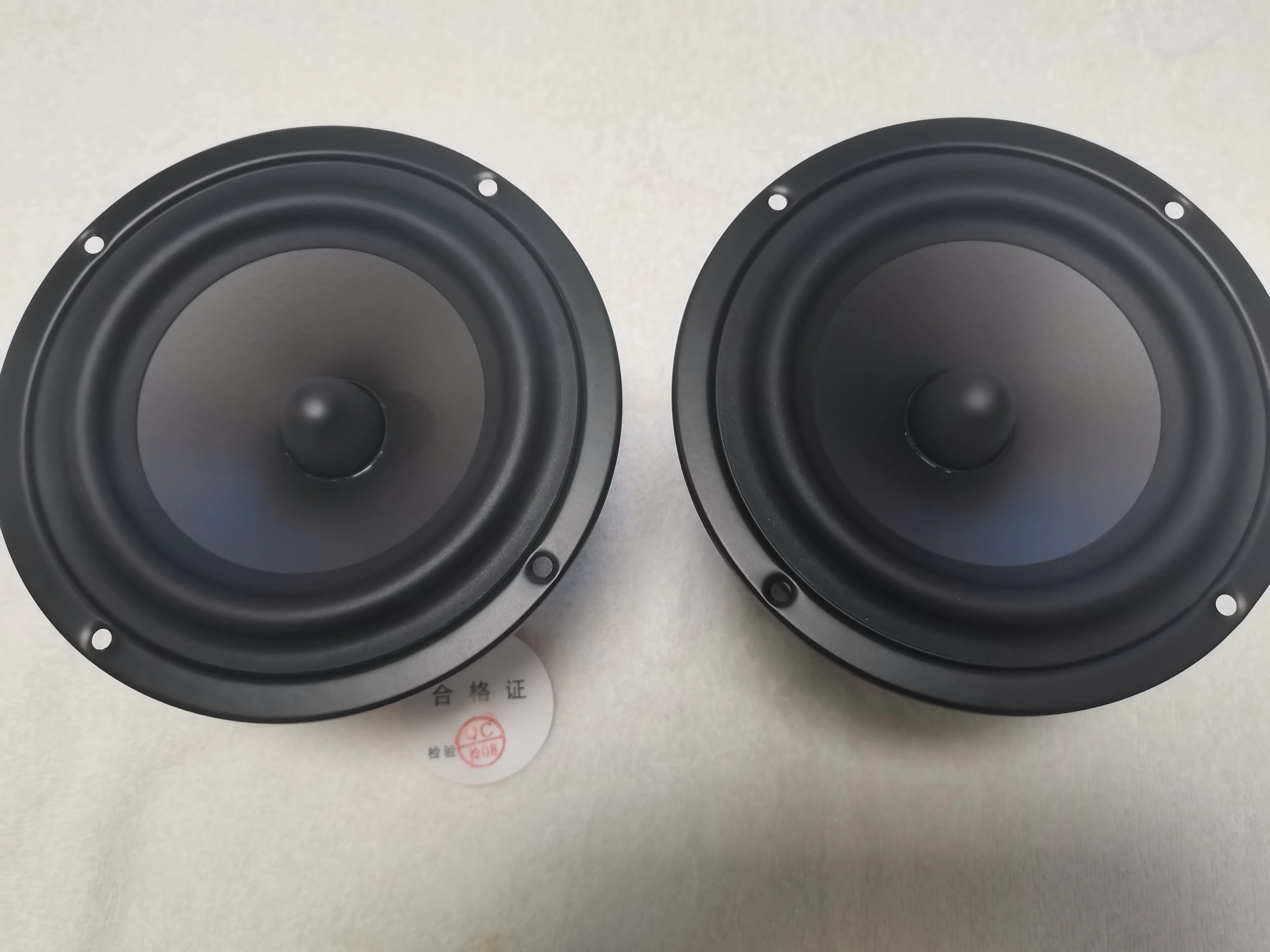

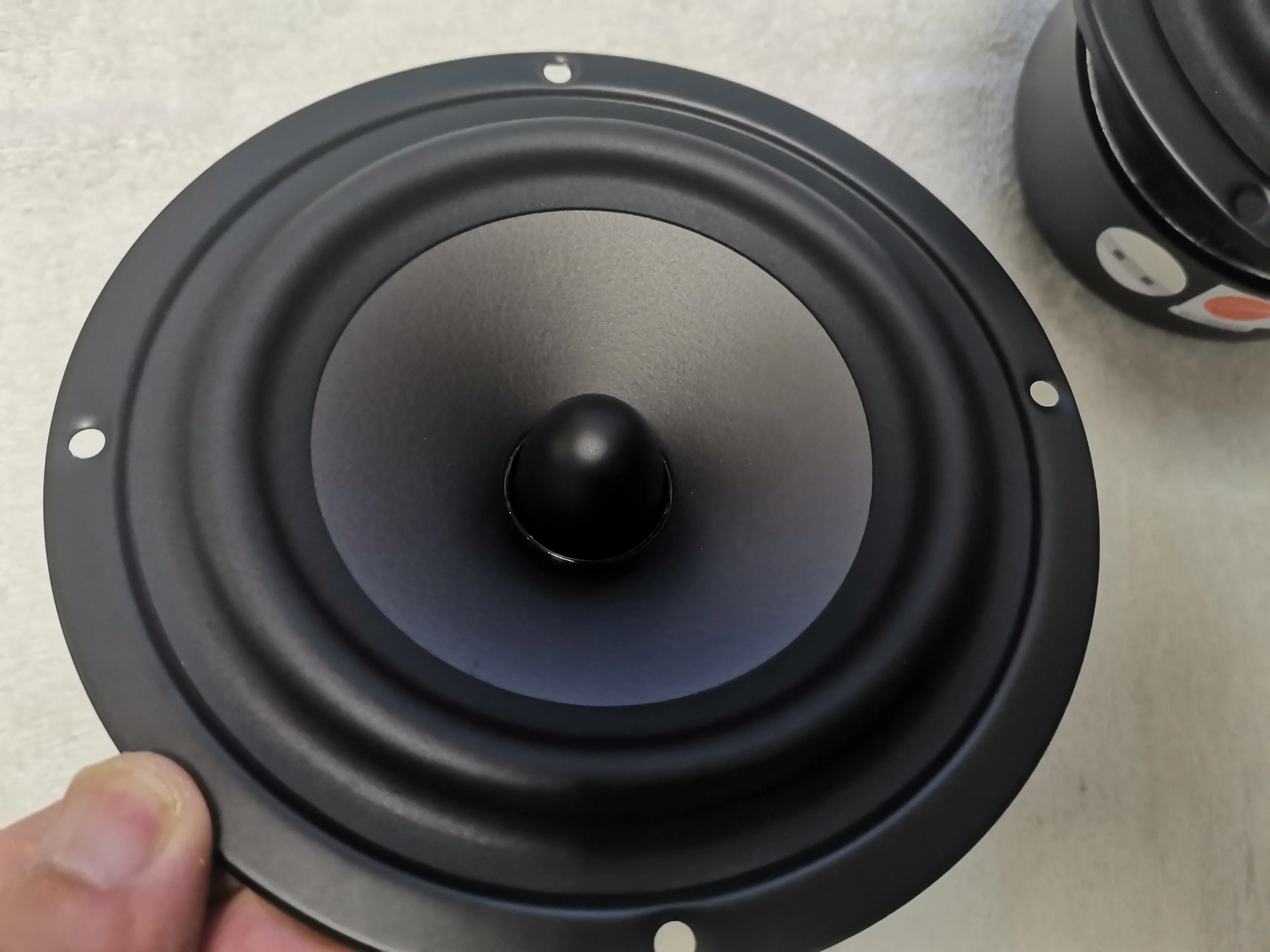

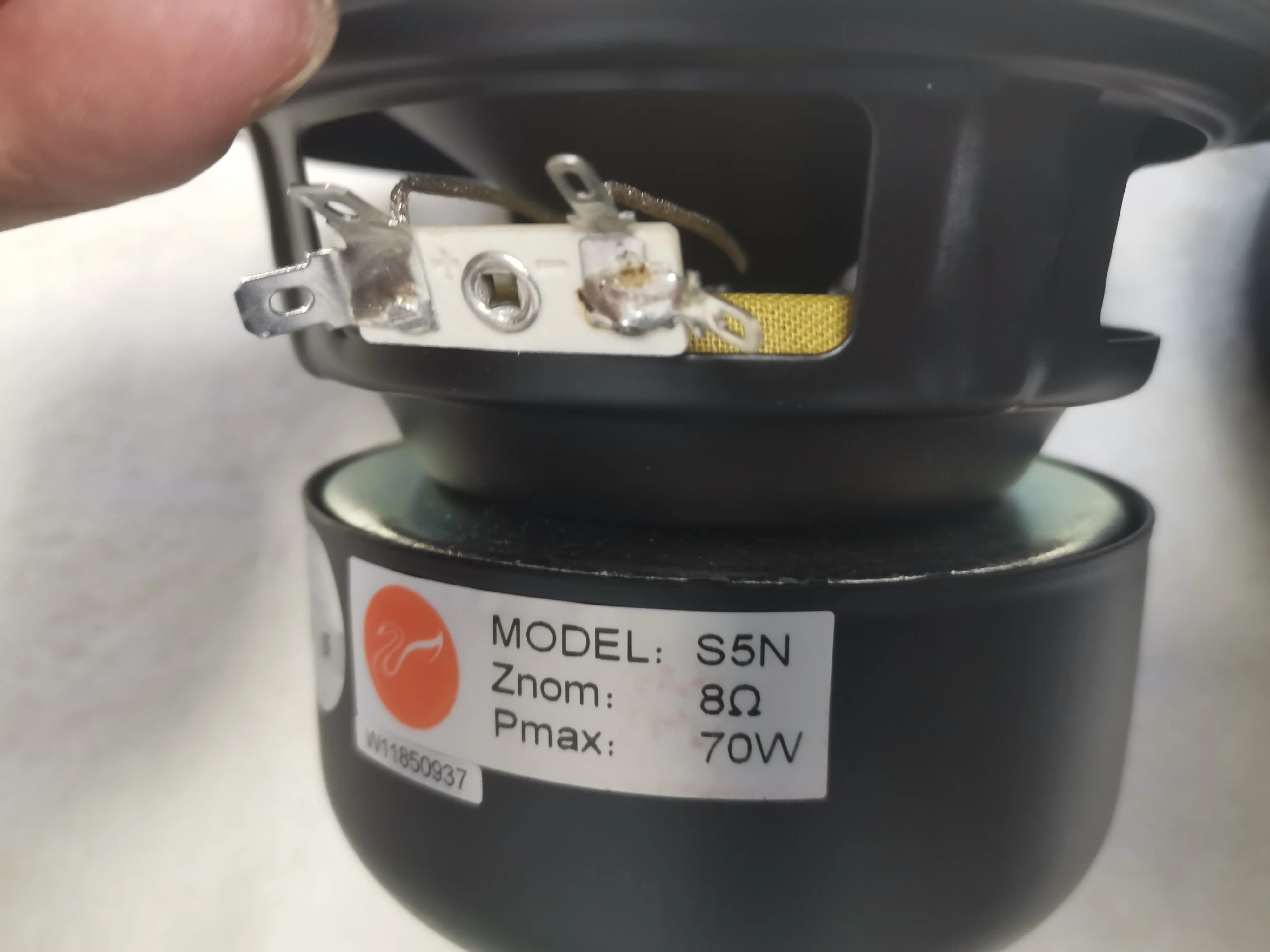

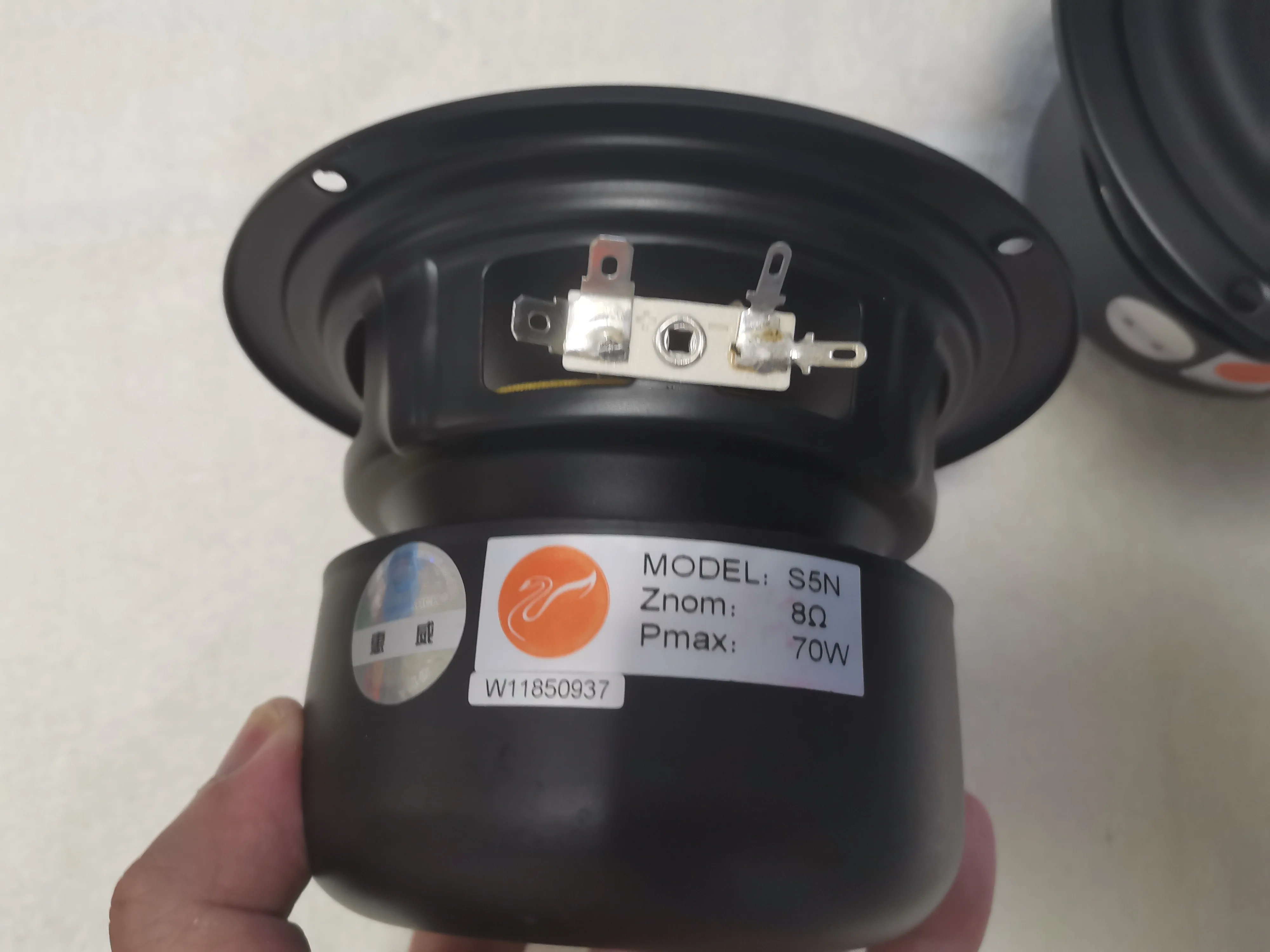

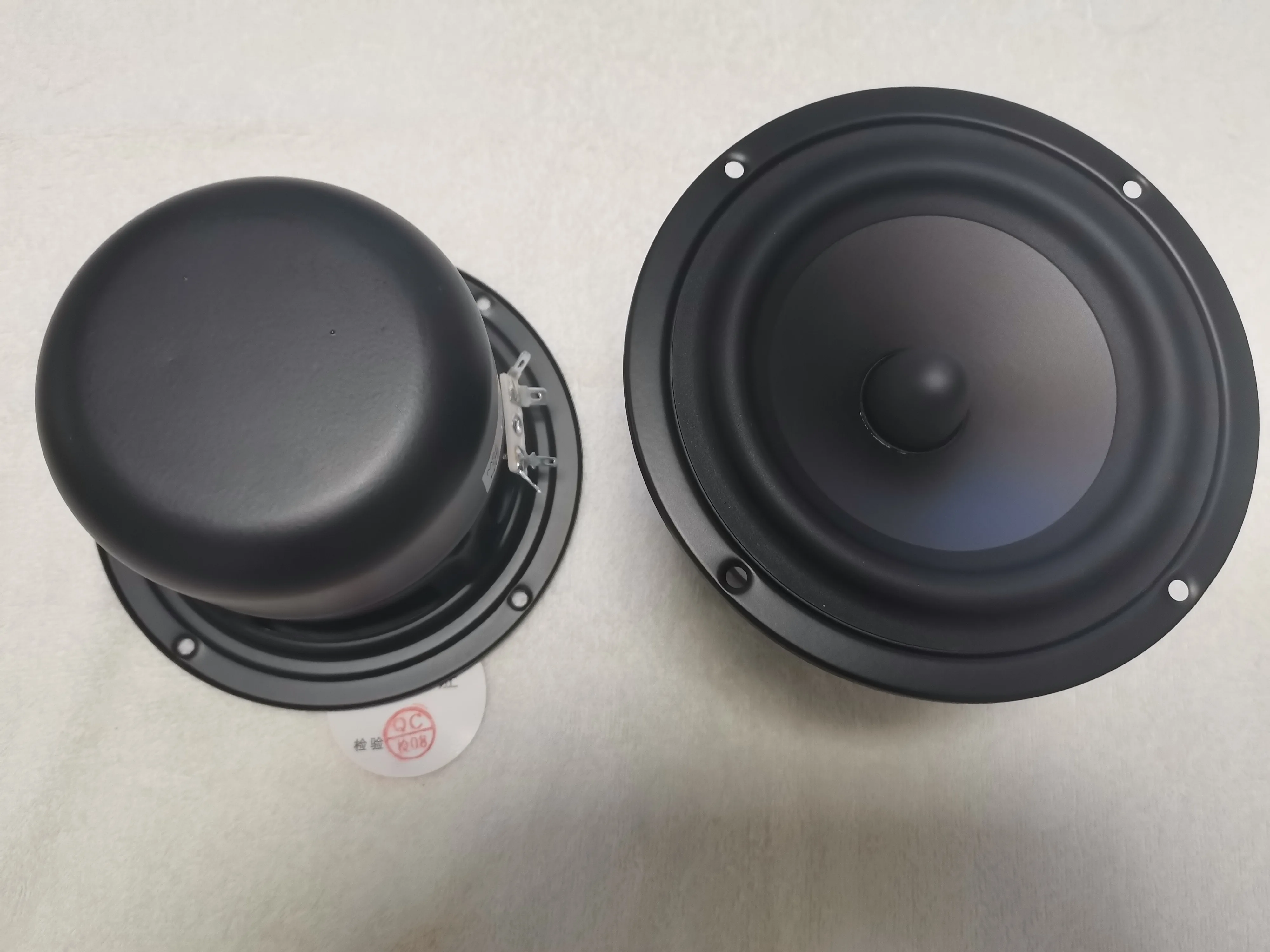

Produk ditémbak nyata:
