1Pieces Origin Hivi K1 4.5" Tweeter Speaker Horn Diameter 116mm Impedance 5 Ohms Power 30W Unit Metal | Электроника

Характеристики

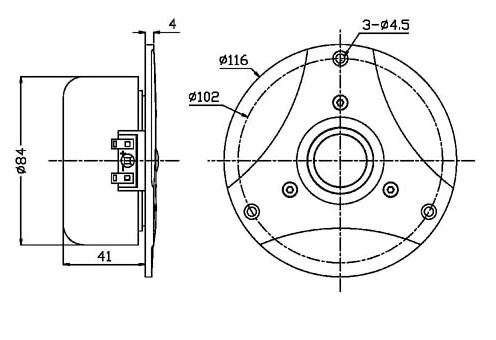

[Speaker parameters] Panel diameter 116mm, diagonal screw hole distance 102mm, speaker opening diameter>=88-95mm, total height 45mm, magnet diameter 84mm, magnet thickness 41mm, please be optimistic about the size before placing an order! Impedance is 5 ohms (DC resistance is about 4.6 ohms), rated power is 15W, peak power is 30W, sensitivity is 92dB, resonance frequency is 800HZ, recommended frequency point is >2500Hz, voice coil diameter is 25mm, and net weight is about 1KG.

K1 tweeter technical parameters

Rated impedance: 5Ω

Resonance frequency: 800Hz

Rated power: 15W

Maximum power: 30W

Sensitivity (2.83v/1m): 92dB

Weight: 0.9kg

Voice coil diameter: 25mm

DC resistance: 4.6Ω

Voice coil wire: high temperature resistant copper clad aluminum wire

Voice coil frame: High temperature resistant Aluminum

Magnetic circuit type: shielded antimagnetic magnetic circuit

Magnet material: high-performance ferrite

Recommended crossover point: >2500Hz
