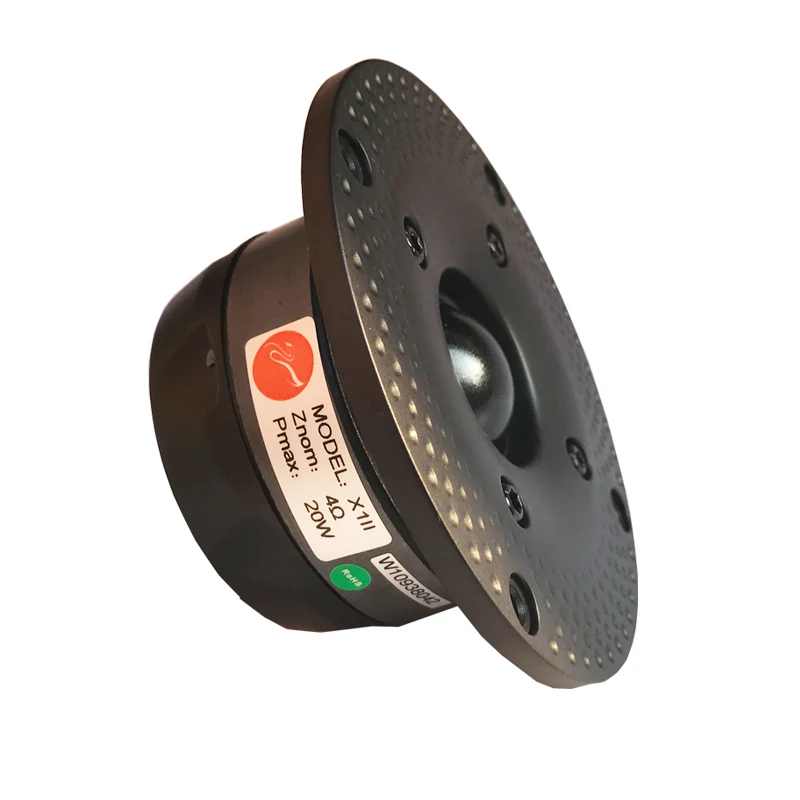

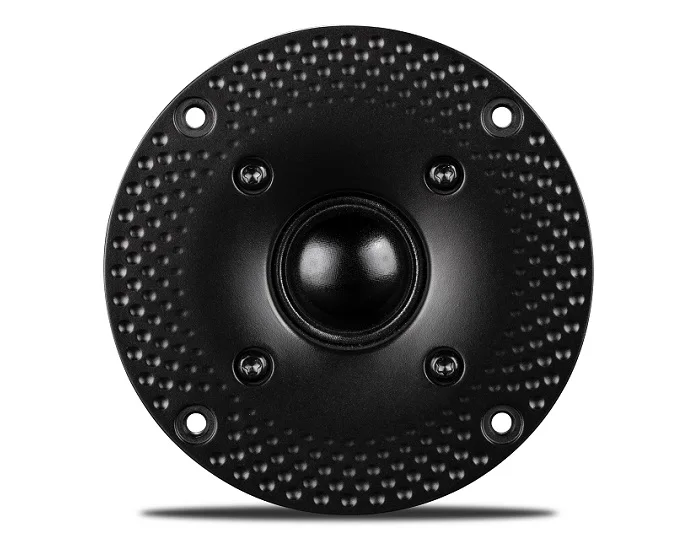

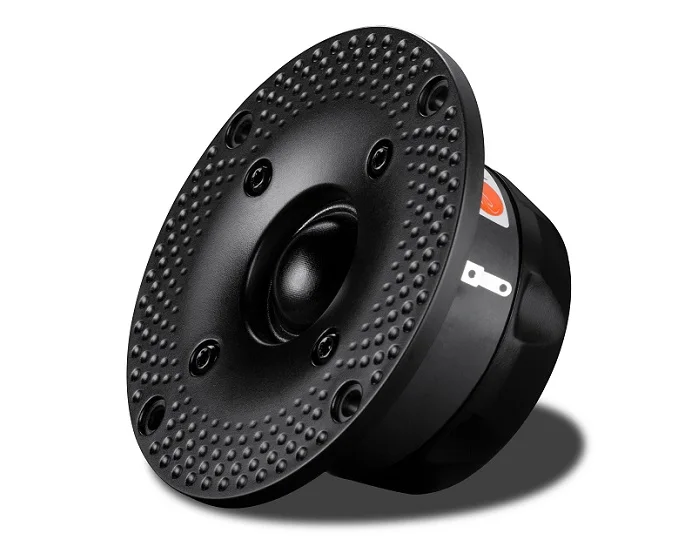

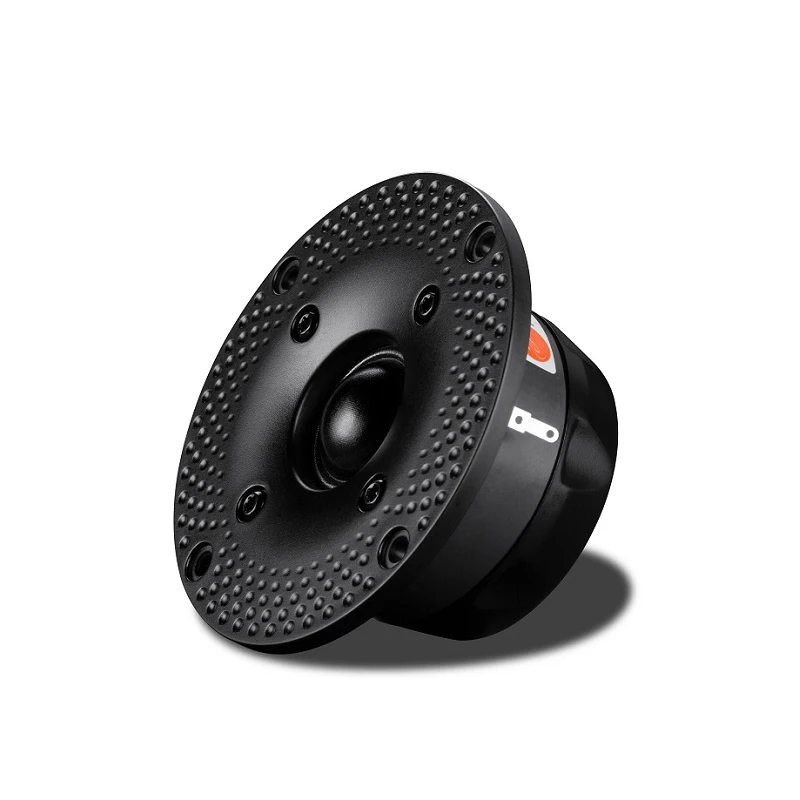

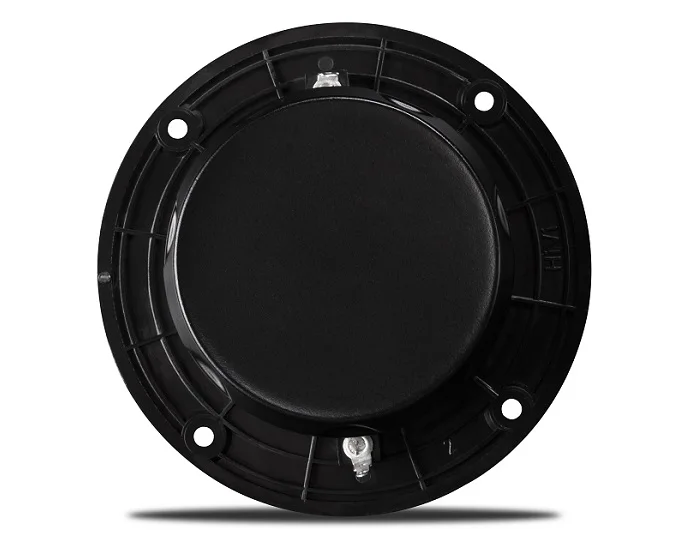

1Pieces origin Hivi X1II 4" Dome-shaped Diaphragm Tweeter Speaker Opening Diameter 72 - 85mm Impedance 4 Ohm Power 20W | Электроника

Характеристики

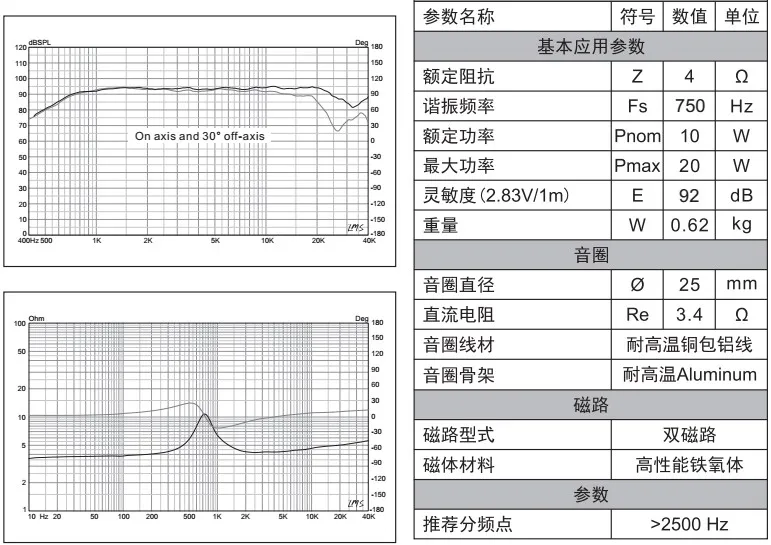

X1II [horn parameters] panel diameter 103.5mm, diagonal screw hole spacing 92mm, speaker opening diameter>=72-85mm (on both sides of the wiring) can be installed, total height 41mm, magnet diameter 72mm, magnet thickness 37.5mm Please be optimistic about the quantity and size before placing an order! Impedance is 4 ohms (DC resistance is about 3.4 ohms), rated power is 10W, peak power is 20W, sensitivity is 92dB, resonance frequency is 800HZ, recommended crossover point is >2200Hz, voice coil diameter is 26mm, and net weight is about 0.8KG.

1. Horn frame diameter: 102MM

2. The diagonal diameter of the speaker mounting hole is: 90MM

3. Screw hole position: 4.2*4MM

4. The opening diameter of the wooden box with speakers: between 81.5-82.5MM

5. Speaker depth: 45MM

6. Magnet diameter: 81.45MM

7. The depth of the counterbore of the wooden box: 4.6MM
