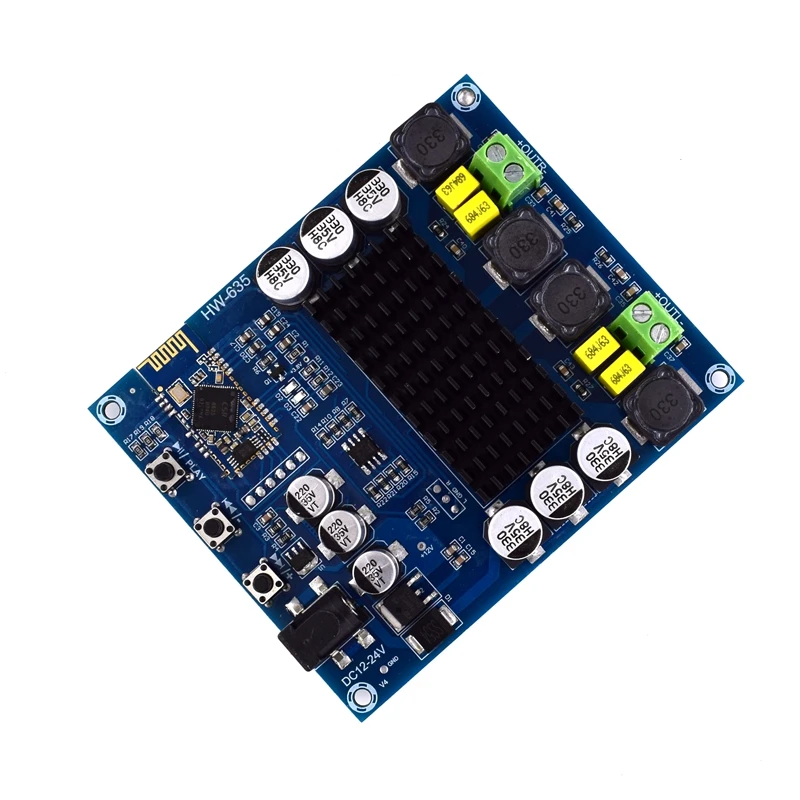

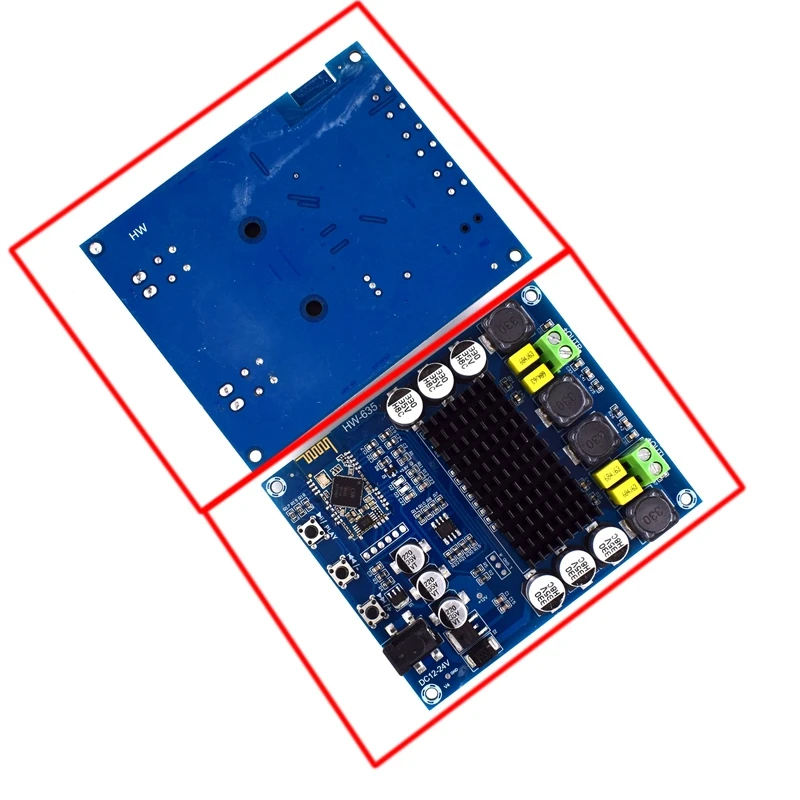

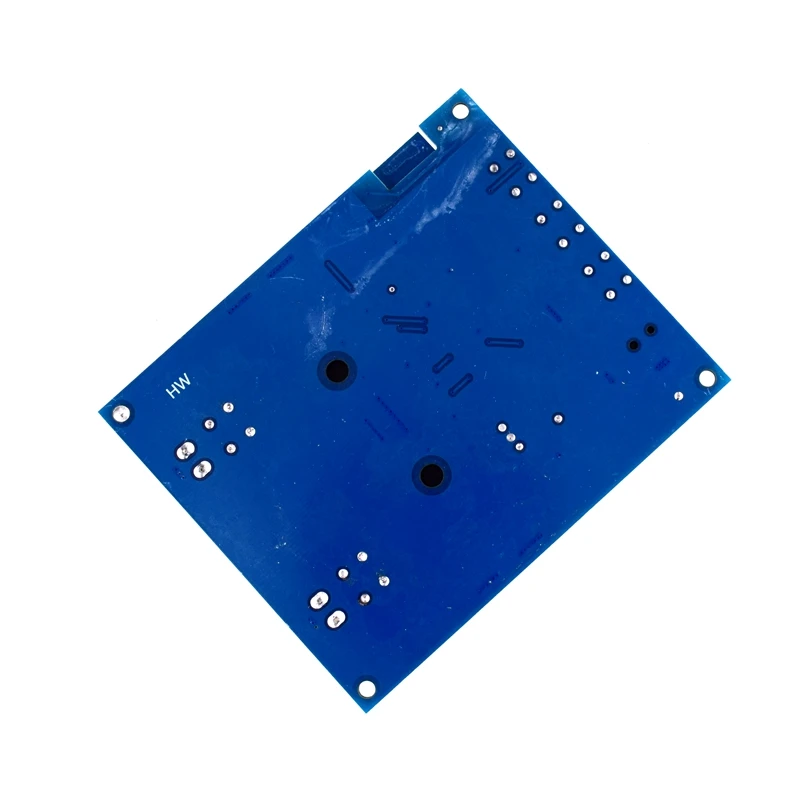

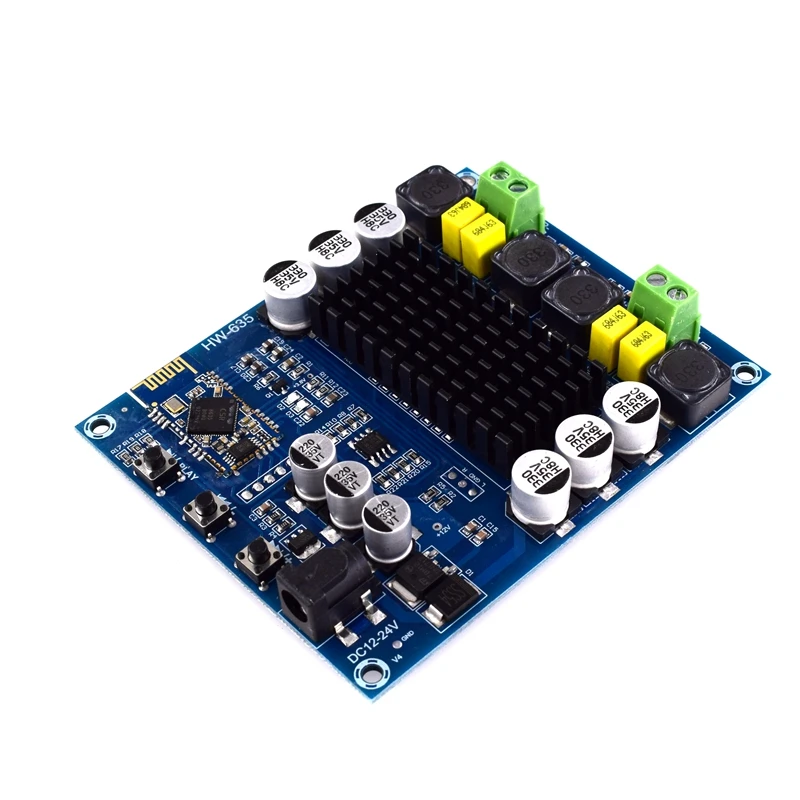

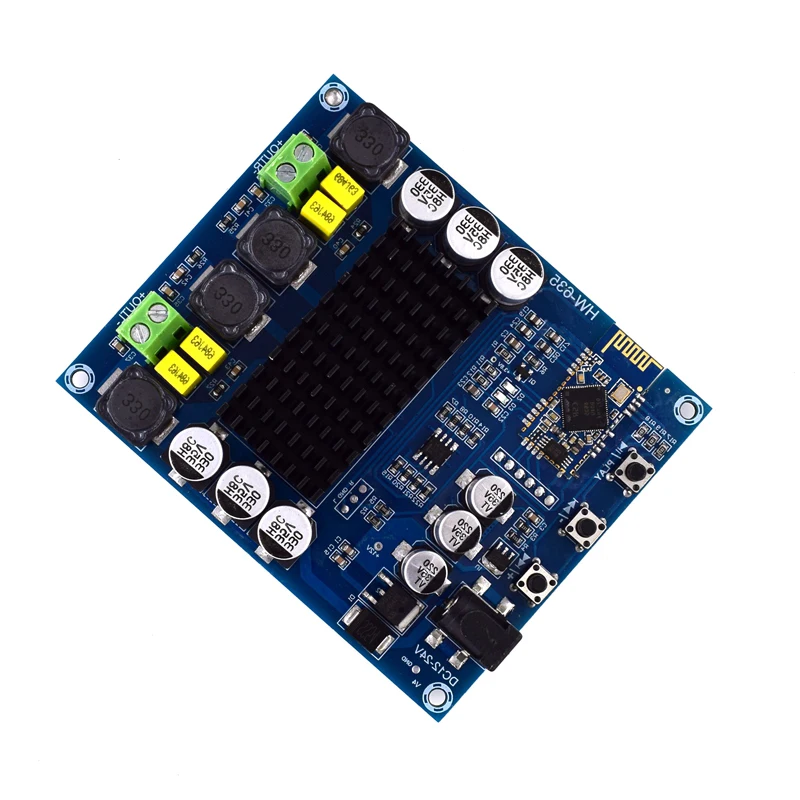

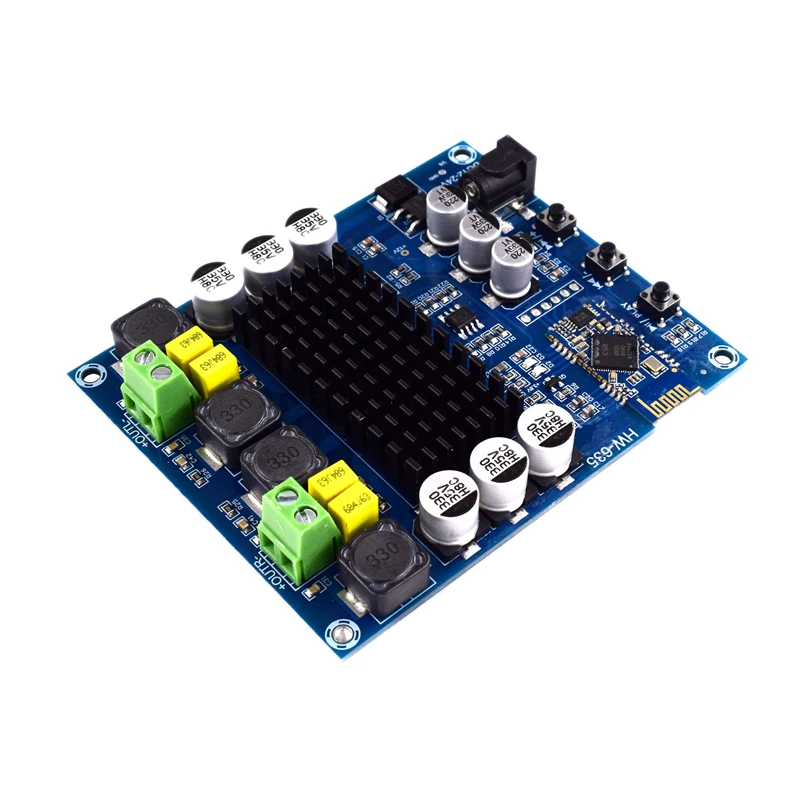

TPA3116D2 Dual-Channel Stereo High Power Digital o Amplifier Board 2x120W Bluetooth 4.0 |

Характеристики

Using CSR8635 Bluetooth chip,Bluetooth V4.0,high software compatibility.
Product Parameters:
Model:XH-M548
Chip Type:TPA3116D2
Bluetooth module:btm835/csr8635(4.0)
Material: ABS
Photo Color
Transmission distance:Max 10m
Voltage:DC12-24V
Current:Greater than 3A
Output Power:120Wx2
Efficiency ratio:Greater than 90%
Sound track:Dual track
Size:98*80*16mm
Bluetooth module Parameters:
Specification:Bluetooth V4.0
Modulation Mode:GFSK π/4 DQPSK,8DPSK
Voltage:3.3-4.2V
Suppotr Bluetooth Protocol:HFP V1.6,HSP V1.2,A2DP V1.2,AVRCP V1.4,DI V1.3
Work Current:≤30mA
Standby Current:Less than 50uA
Temperature range:-40° to +80°
Wireledd Transmission Distance:10m
Transmit Power:Support CLASS1/CLASS2/CLASS3 8dBm Max
Sensitivity:-80dBmLess than 0.1%BER
Frequency Range:2.4GHz-2.480GHz
External Interface:PIO,SPI,o in/out and PCM,USB
o Support:AAC,MPA,SBC,Stereo
Distortion Factor:≤0.1%
Module Size:21.9*14.1*1.8mm
Package Contents:
1*Development Board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
