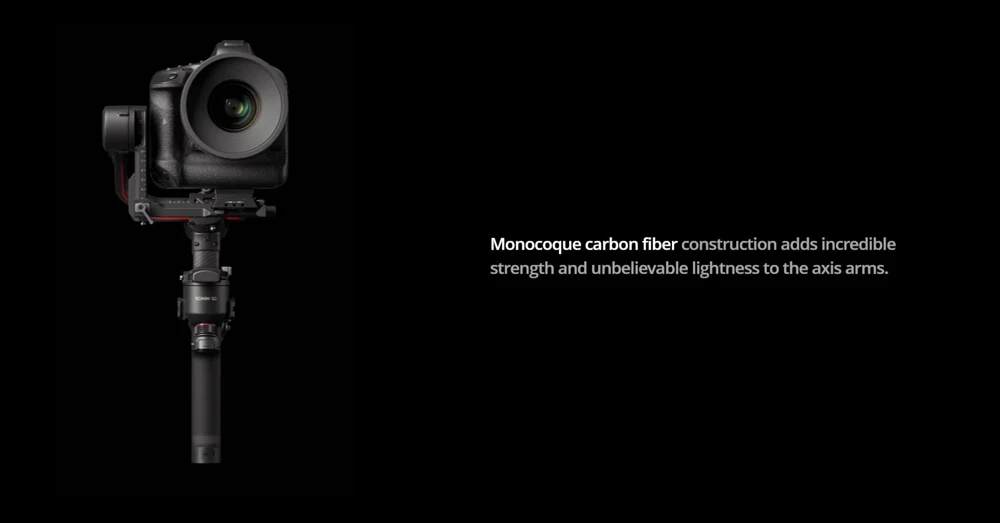

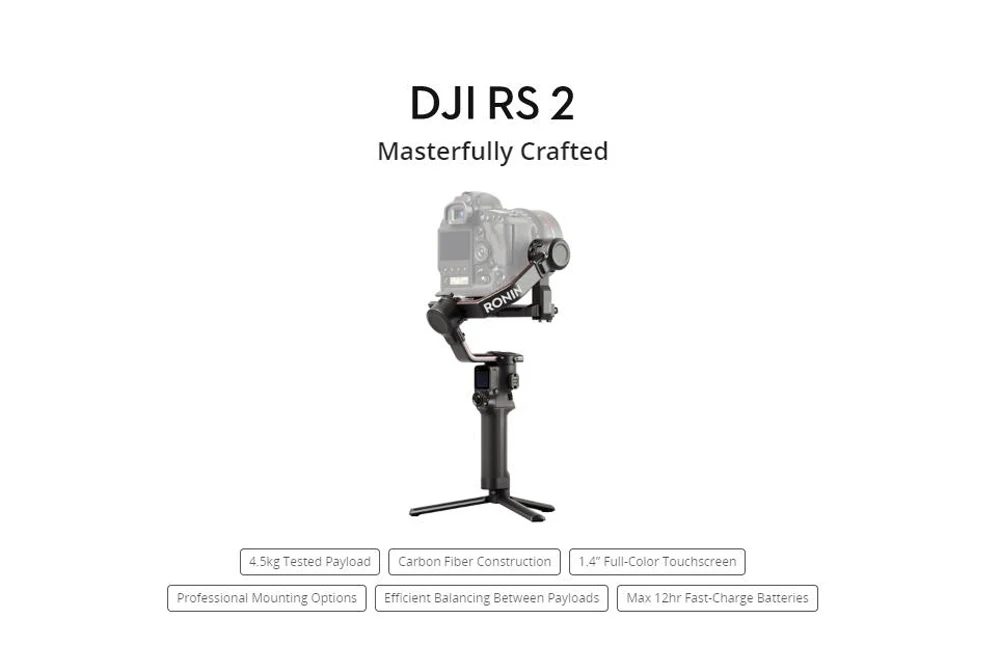

DJI RS 2 Tripod Gimbal Stabilizer for Camera Ronin S2 4.5kg Tested Payload Carbon Fiber Construction 1/4 Full Color Touchscreen |

Характеристики

DJI RS 2

Peripheral

Accessory Connections

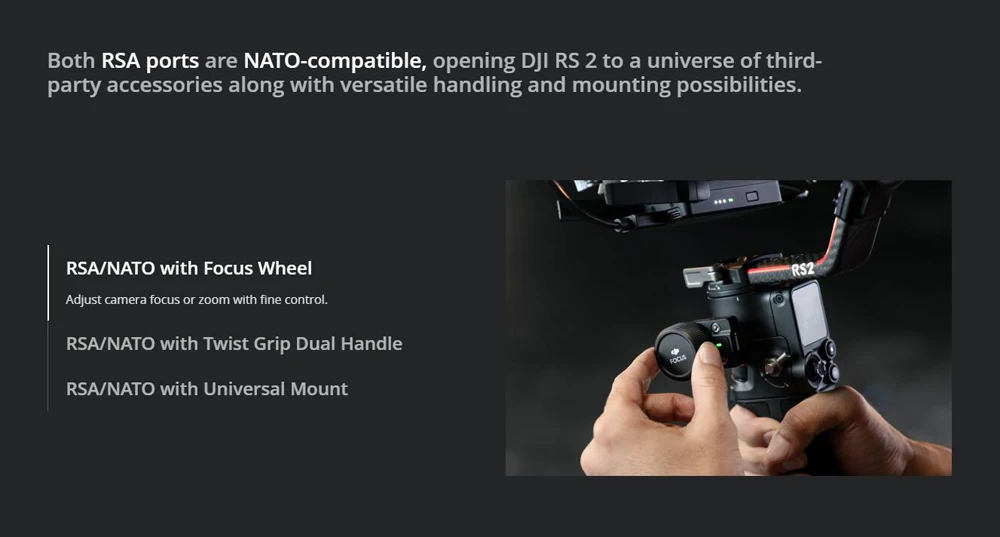

RSA/NATO ports
1/4"-20 mounting hole
Cold shoe mount
Video transmission/follow focus motor port (USB-C)
RSS camera control port (USB-C)
Follow focus motor port (USB-C)

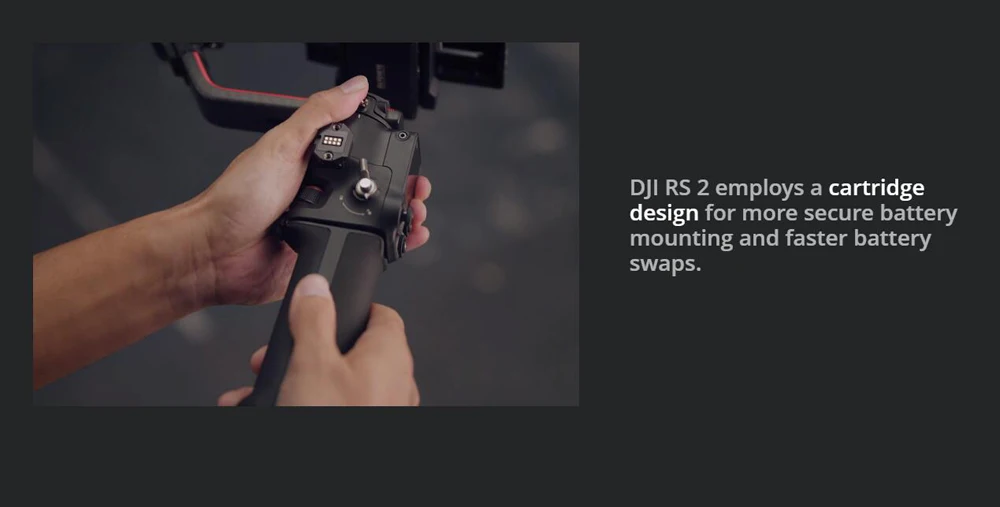

Battery
Model: BG30-1950mAh-15.4V
Type: LiPo 4S
Capacity: 1950 mAh
Power: 30.03 Wh
Max. Battery Life: 12 h
Charging Time: 1.5 h (24W USB adapter using the QC 2.0 or PD protocol)
Suggested Charging Temperature: 5°C to 40°C
Connections
Bluetooth 5.0; USB-C
Mobile Assistant Software Requirements
iOS 11 or above;
Android 7.0 or above

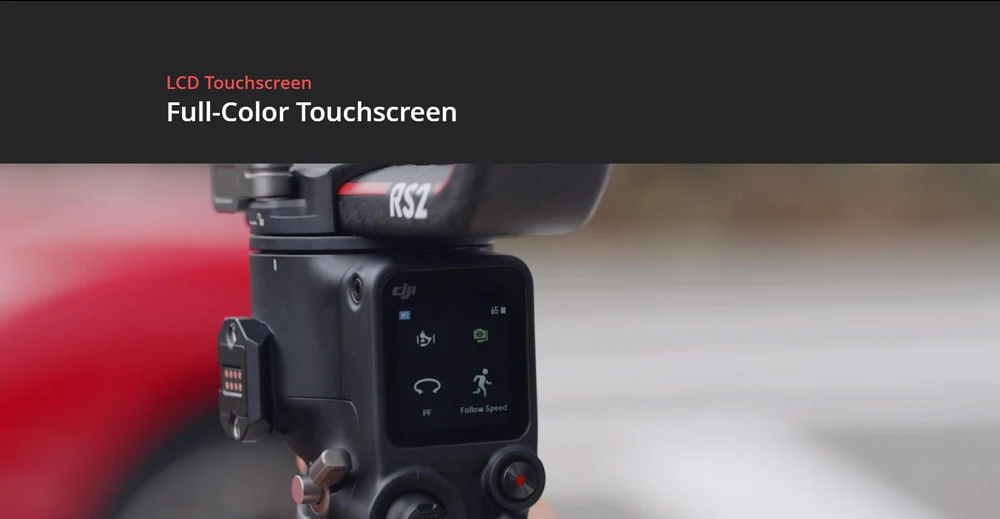

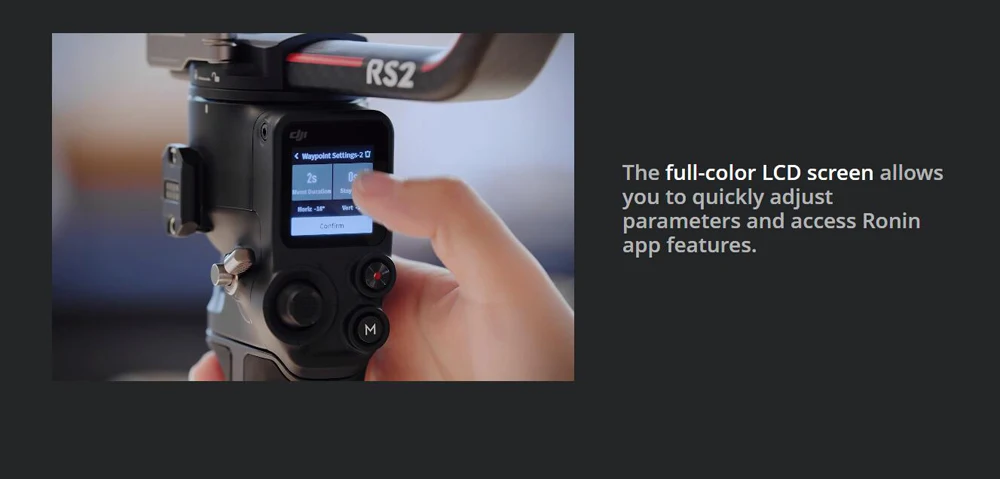

Languages supported by the touchscreen
English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai

Working Performance

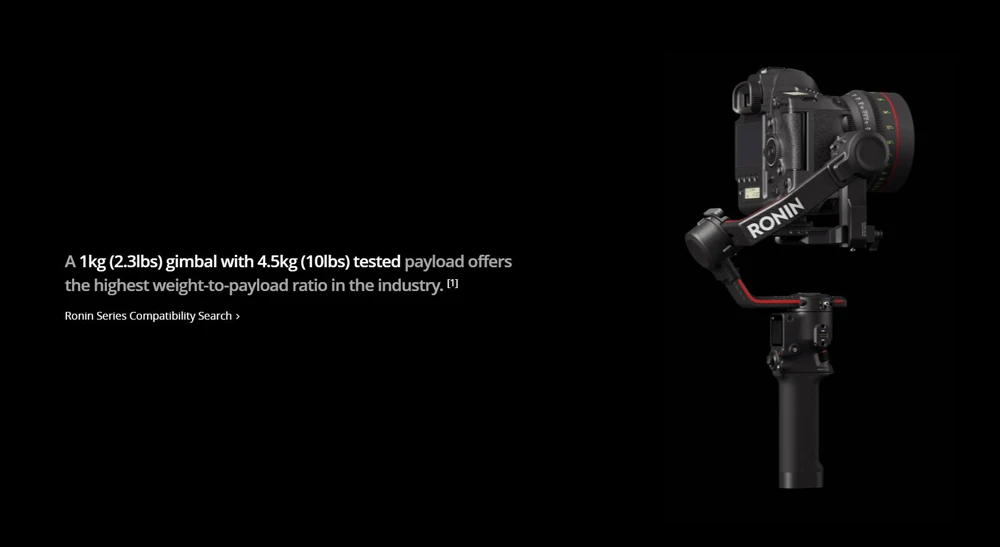

Tested Payload
4.5 kg (10.0 lbs)
Maximum Controlled Rotation Speed
Pan: 360°/s
Tilt: 360°/s
Roll: 360°/s
Mechanical Endpoint Range
Pan axis control: 360° continuous rotation
Roll axis control: -95° to +240°
Tilt axis control: -112° to +214°

Mechanical & Electrical Characteristics

Operating Frequency
2.4000 GHz - 2.4835 GHz
Transmission Power
<8 dBm
Operating Temperature
-20° to 45° C (-4° to 113° F)
Weight
Gimbal: Approx. 960 g (2.12 lbs) (excluding the Quick-Release Plates and Camera Mounting Plate)
Camera Mounting Plate: Approx. 150 g (0.33 lbs)
BG30 Grip: Approx. 265 g (0.58 lbs)
Extended Grip/Tripod: Approx. 226 g (0.50 lbs)
Upper and Lower Quick-Release Plates: Approx. 105 g (0.23 lbs)
Gimbal Dimensions
Folded: 260×265×70 mm (excluding the BG30 grip)
Unfolded: 410×260×195 mm (including the BG30 grip, excluding the extended grip/tripod)
