2020 Best 150m H.265 4K HDMI Extender Over IP Network 4K HDMI IR Extender By Ethernet RJ45 CAT5/5e/6 Cable Like HDMI Splitter

Description:

 4K HDMI extender provides extension of HDMI signals long distances over a single CAT5/5e/6 cable, it supports high resolution up to 4Kx2K@30Hz, HDMI loop out and unidirectional 38 KHz IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features:

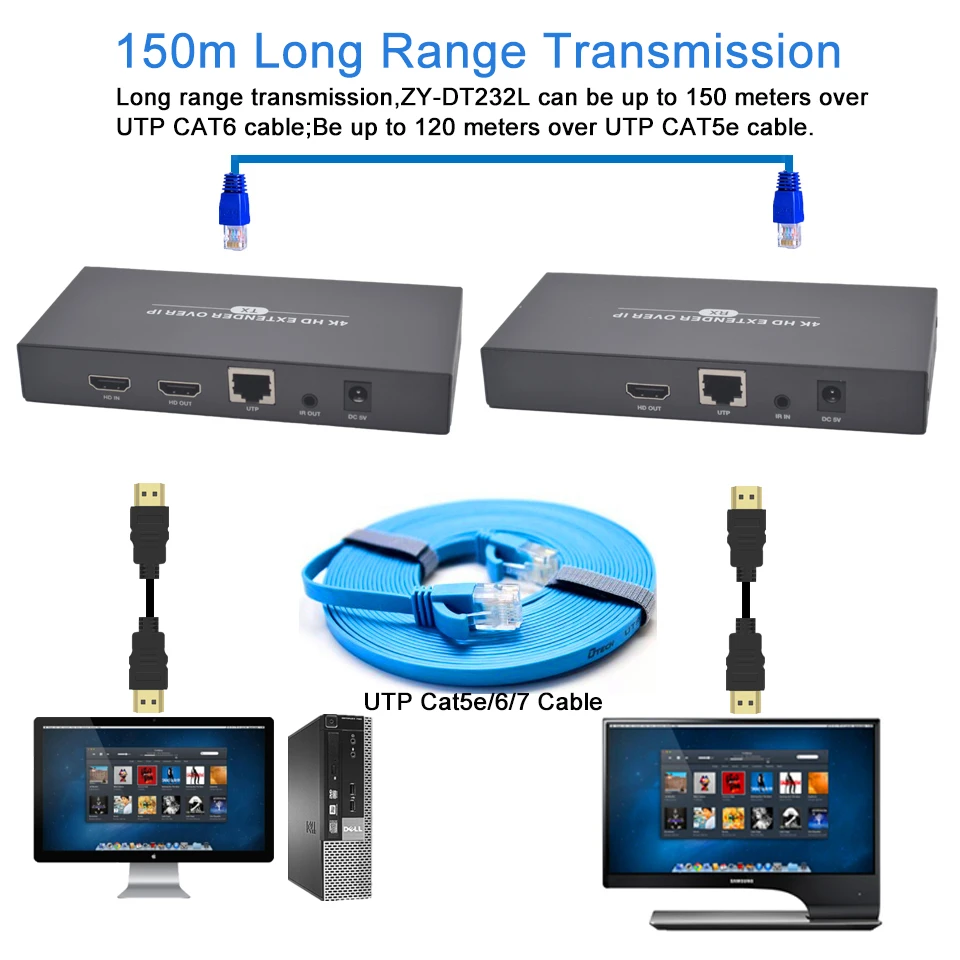

• Long range transmission:up to150m/500ft over a single CAT6 cable;
• Video resolution: up to 1920*1080P@60Hz,3840x2160@30Hz;
• Audio sampling rate: 32kHz, 44.1kHz and 48kHz ;
• Audio Format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;

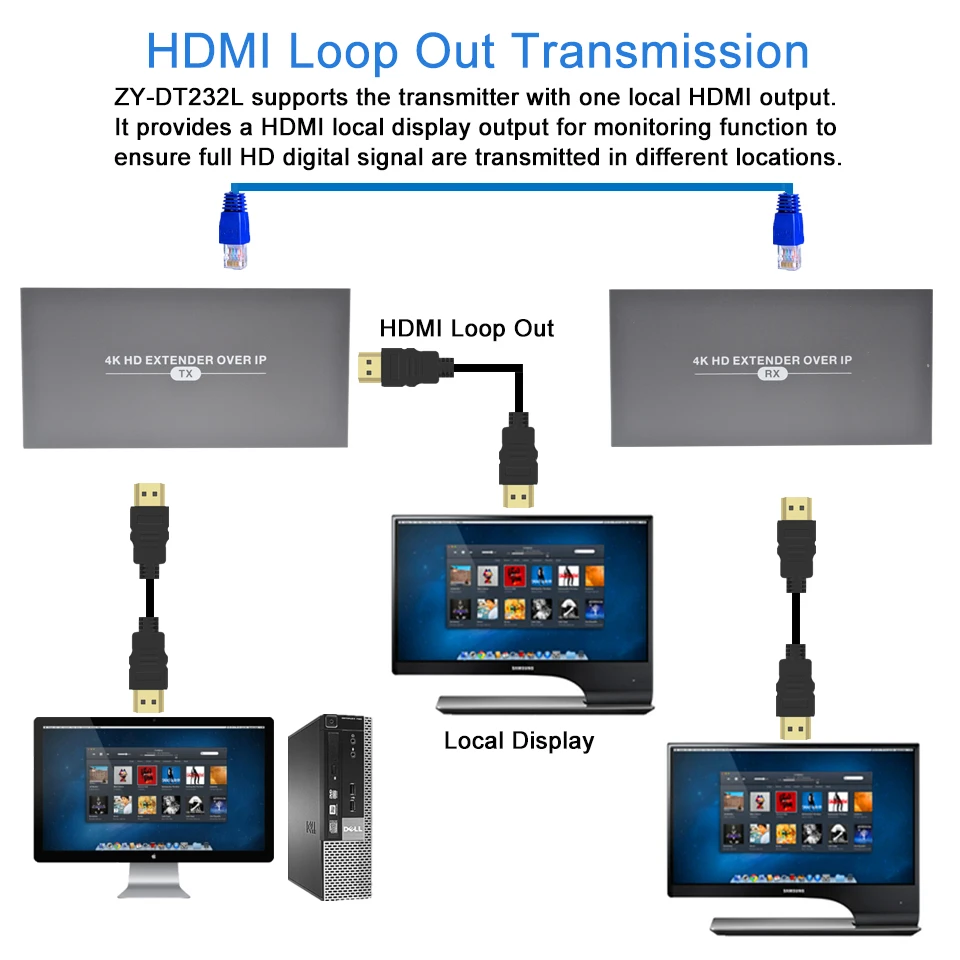

• HDMI loop out function:The transmitter with one HDMI local loop out;
• Compressed mode:H.265 technology;

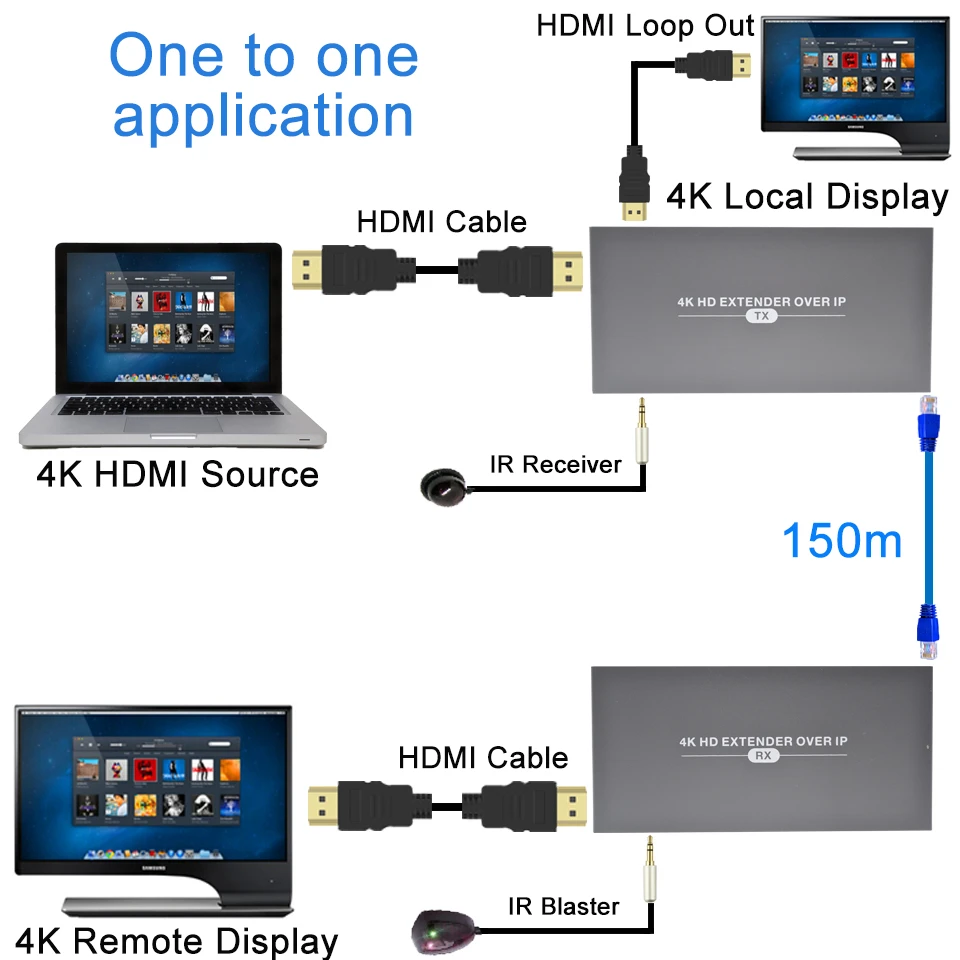

• Male to male: one TX to one RX applicataion;

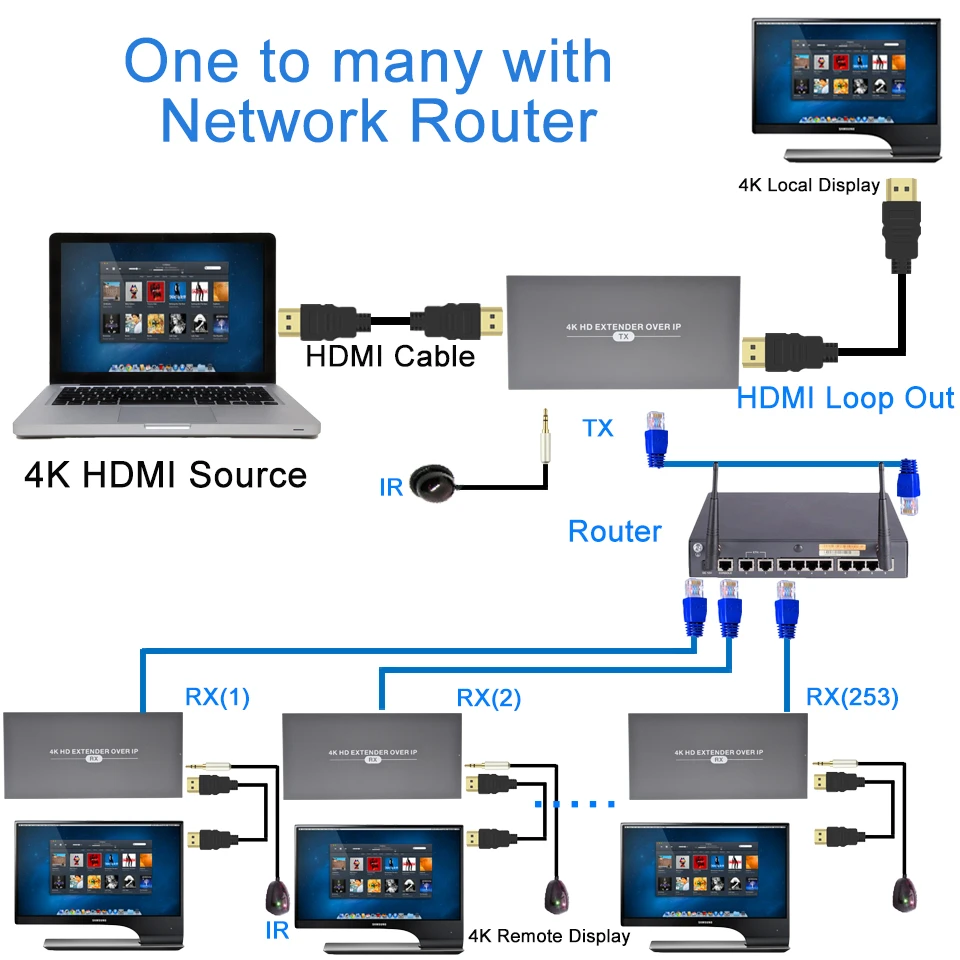

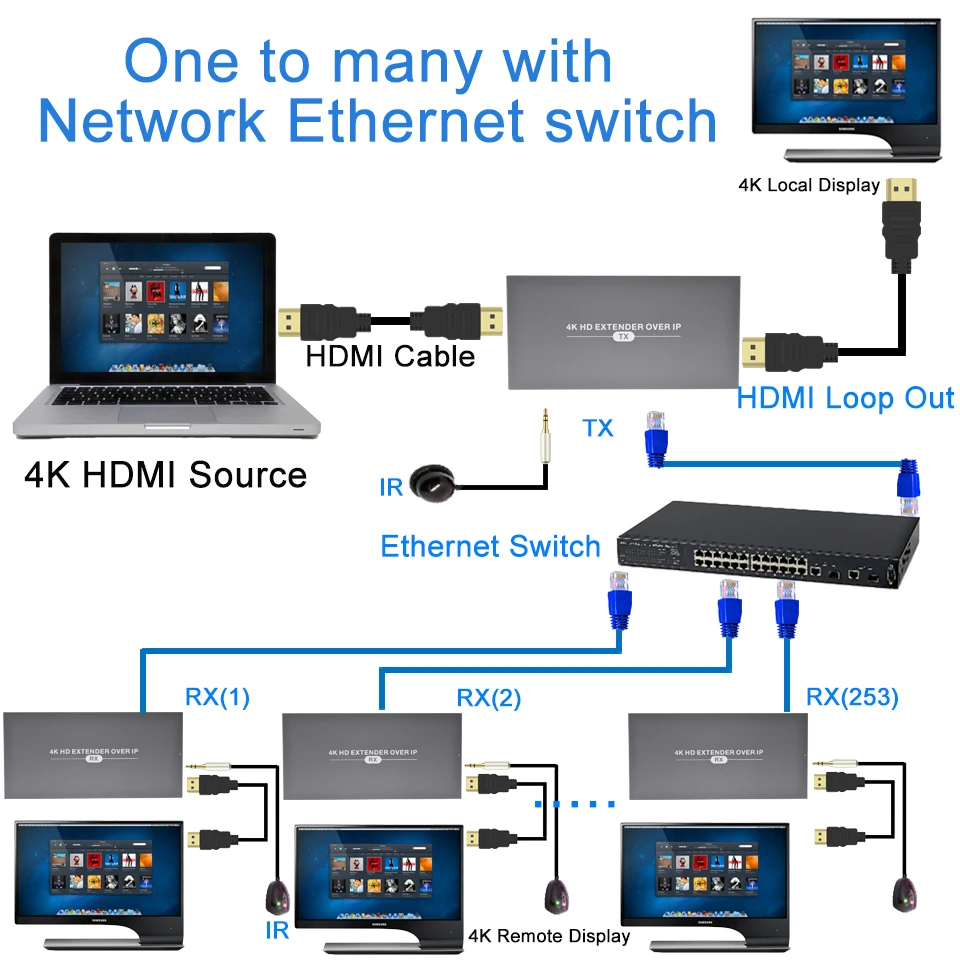

• Male to female:TCP/IP,one TX to N RX(Max:253 pcs RX) application with Ethernet switch/Router;
• IEEE-568B:standard 802.3 Ethernet 10/ 100/ 1000Mbps;

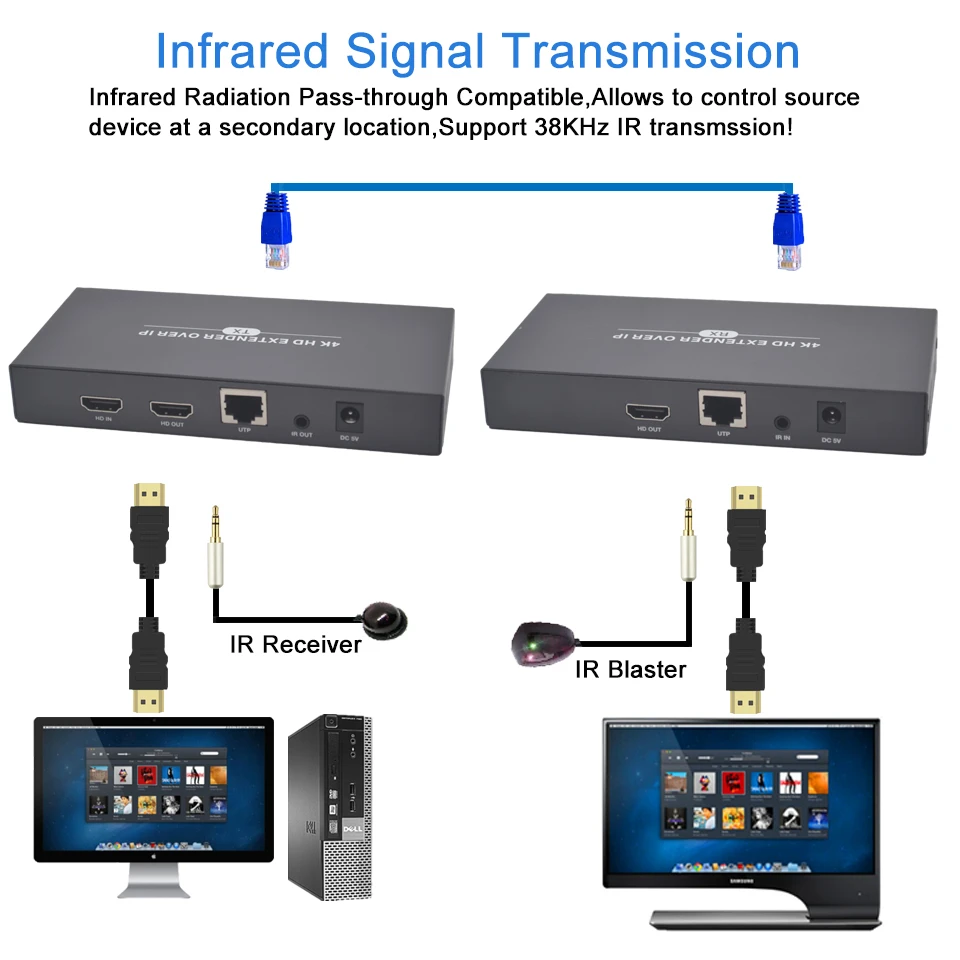

• Infrared control:unidirectional 20~60 KHz IR romote control;
• Video standard:compliance with HDMI 1.3 and HDCP 1.2 standard;
• Local EDID function : match many kinds of display devices;
• Built-in automatic adjustment system: make the image smooth, clear and stable;
• Built-in ESD protection system：make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;plug and play
• Simple to install, plug and play

​Note:4K HDMI extender need to work well with single Ethernet switch or single Router for application,If you use it with Internet Ethernet switch or Internet Router,the speed of network will be slow,Because the bandwidth is about 70M to affect work with network.

Specifications:

1.Video

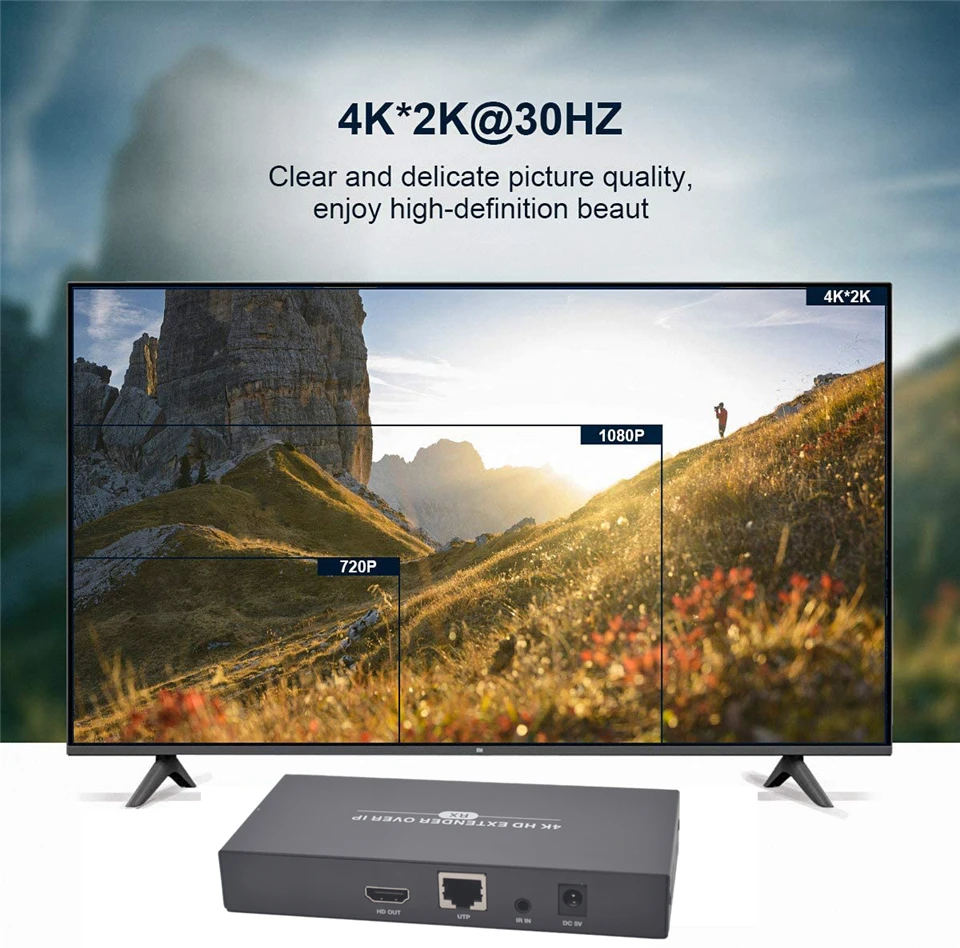

◇ Resolution ---3840*2160@30Hz

◇ Standards---HDMI 1.4; HDCP1.2

◇ Connector---HDMI-A

◇ Maximum pixel clock---165MHz

◇ Maximum data rate---6.75Gbps

2.IR

Interface---3.5mm

Frequency---38kHz

3.Ethernet

◇ Interface --- RJ45

◇ Transmission distance--- CAT6/7 ---150m/500ft ( CAT5E--100m/328ft)

◇ Network switch ---Support over TCP/IP protocol, one to many applications with switch

4.Others

◇ Power adapter--- Input:110~220V, Output:5V/2A

◇ Power dissipation---MAX 8W

◇ Temperature---Operating: -5℃ ~ +70℃

◇ Humidity---Operating: 5% ~ 90%

◇ Dimension---149.5*73.5*23mm

◇ The warranty---1 year free warranty

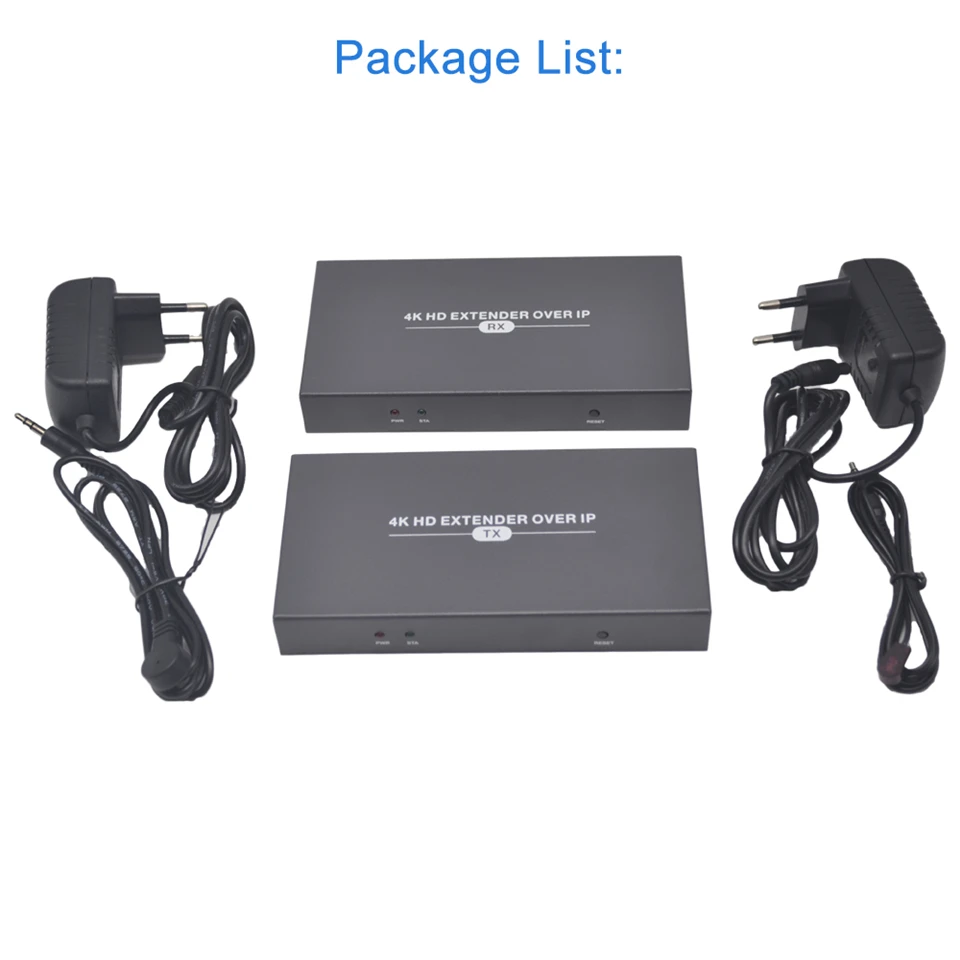

5.Packing list

◇ HDMI transmitter ---1 pcs

◇ HDMI receiver ---1 pcs

◇ IR TX cable---1 pcs

◇ IR RX cable---1 pcs

◇ Power adapter---2 pcs

◇ User manual-----1 pcs
