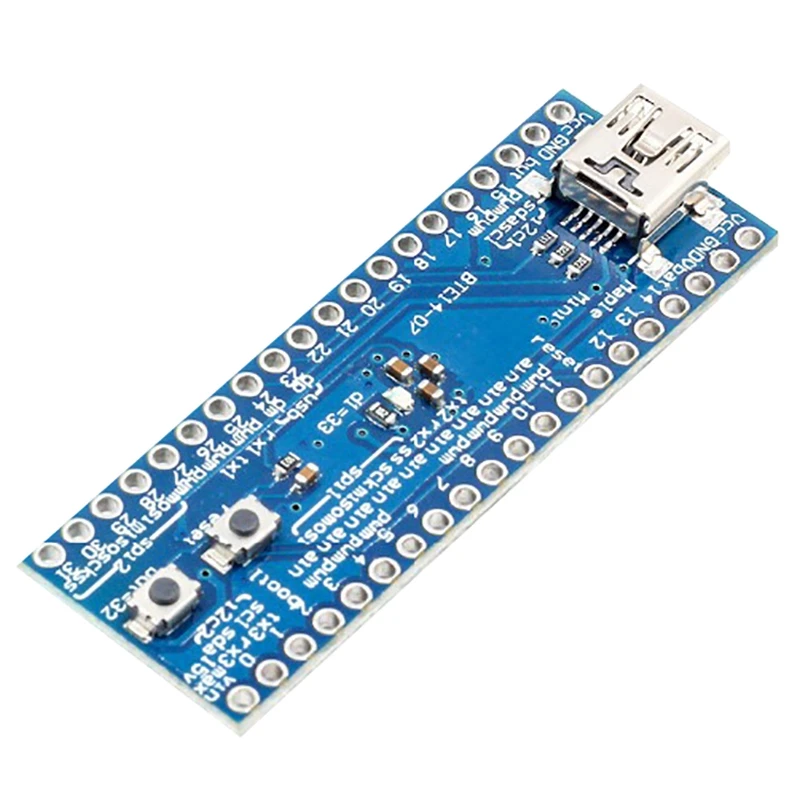

Stm32F103Cbt6 Maple Mini Arm Stm32 Cortex-M3 Main Control Board | Электроника

Характеристики

Application:Computer
Condition:New
Supply voltage:3.3V
Type:Voltage Regulator
Processor:STM32F103CBT6,32 ARM Cortex-M3 processor
Frequency:72 MHz
128 KB Flash and 20 KB SRAM
34 digital io ports (GPIOs)
12 16-bit precision PWM port
9 12 precision analogue input (ADC) port
2 SPI channel
2 I2C channel
7-channel direct memory access (DMA) (dma.H)
3 USART (serial) channel
An improved and three general purpose timers
Can be downloaded directly via the USB port and communication program
An external JTAG
Nested Vectored Interrupt Controller (NVIC) (including GPIOs on the external interrupt)
Support for low-power,sleep and standard mode (Less than 500 A)
Operating voltage:3.3 V
Input voltage (recommended):3 V-12 V
Maple Mini has a total of 34 input / output pins,numbered from D0 to D33.
colour:blue
Material:Metal + plastic
Size:2.02 inch x 0.72 inch
Package Contents:
1 * Main control board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
