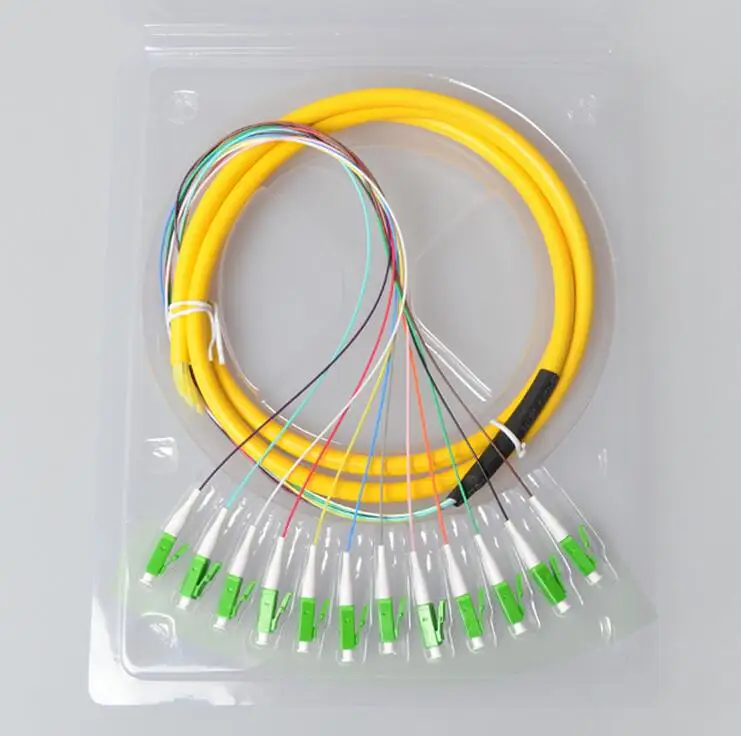

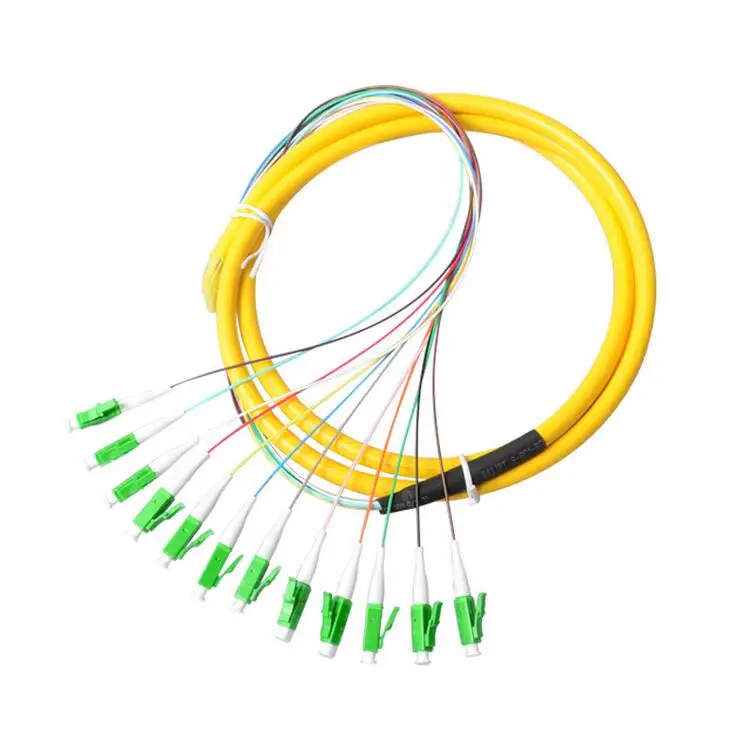

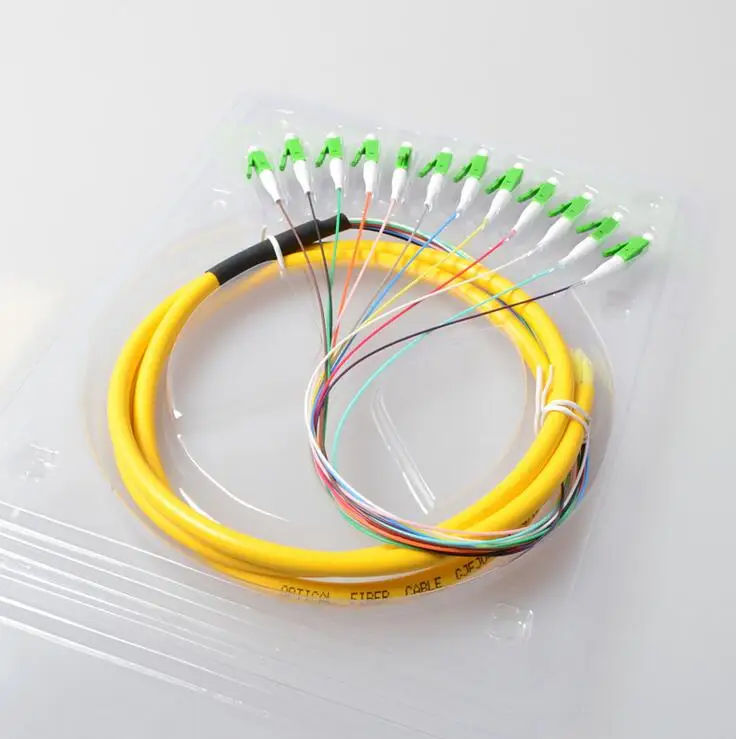

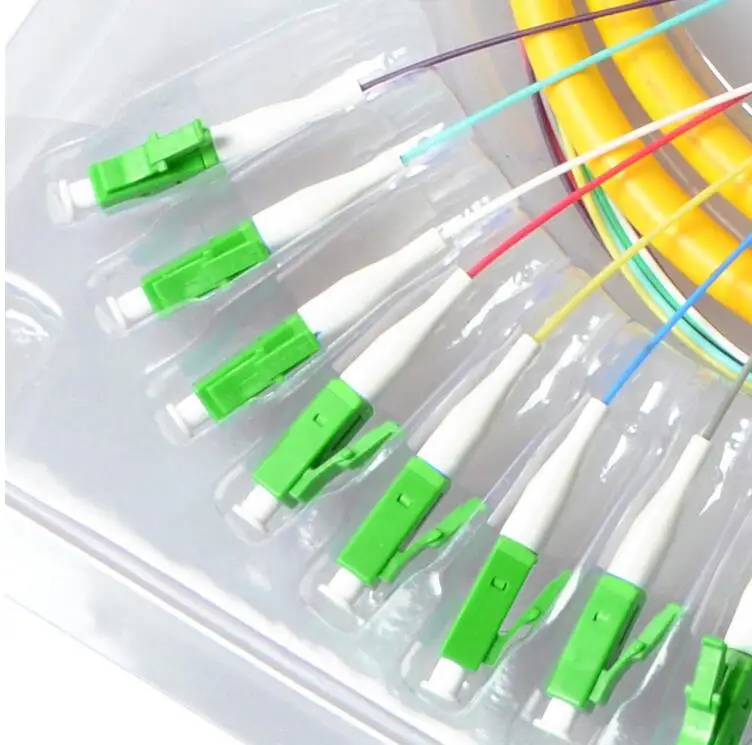

Fiber Optic Bundle Pigtail LC Single Mode 12 Core Pigtail LC APC CATV 1.5m Patch Cord Free Shipping
Fiber pigtails are a great solution for fusion splicing inside of a fiber optic enclosure. The ribbon fan-out fiber pigtails come with a partial outer jacket to help protect the tight buffer fibers from being damaged. If space is a premium, the outer jacket can easily be removed, allowing the pigtails to have a tighter bend radius and take up less space.
12 Strand 9/125 Fiber Optic Pigtail 1.2m SC/APC Single Mode,12 fiber pigtail
Note: If you need customization solution either LC,ST,FC With different size jut message us. Support wholesale, if you have larger order,we can offer you factory price, contact us.
-
These Single mode 12 fiber pigtails with 900 micron buffer are ready for splicing.
-
Each fiber strand in the kit has a color-coded buffer for easy identification and the colors are industry standard.
-
In this 12-pack, twelve strands of fiber are terminated on one end with SC connectors.
-
Connectors are ceramic with physical contact (APC) finish. Each cable comes with test results and a lifetime guarantee.
Specifications:
|
Parameter: |
Single mode |
Multi mode(optional) |
|
Insertion Loss |
≤0.3dB |
≤0.20dB |
|
Return Loss |
≥45 dB (PC) ≥50 dB (UPC) ≥60 dB (APC) |
≥35 dB (PC) ≥45 dB (UPC) |
|
Wavelength |
1310nm,1550nm |
850nm,1310nm |
|
Repeatability |
≤0.1 |
|
|
Durability |
≤0.2 dB typical change, 1000 matings |
|
|
Interchangeability |
≤0.2dB |
|
|
Cord diameter |
3.0mm |
|
|
Connector Available |
SC,FC,ST,LC,MU,MTRJ |
|
|
Fiber core available |
4,6,8,12,24 fiber… |
|
Features:
- High Return Loss
- Low Insertion Loss
- Good reliability and stability
- Polishing type: PC, UPC, and APC
- Various interfaces: FC, SC, ST, LC…
- Core of cable: 4, 6, 8, 12, 24…
