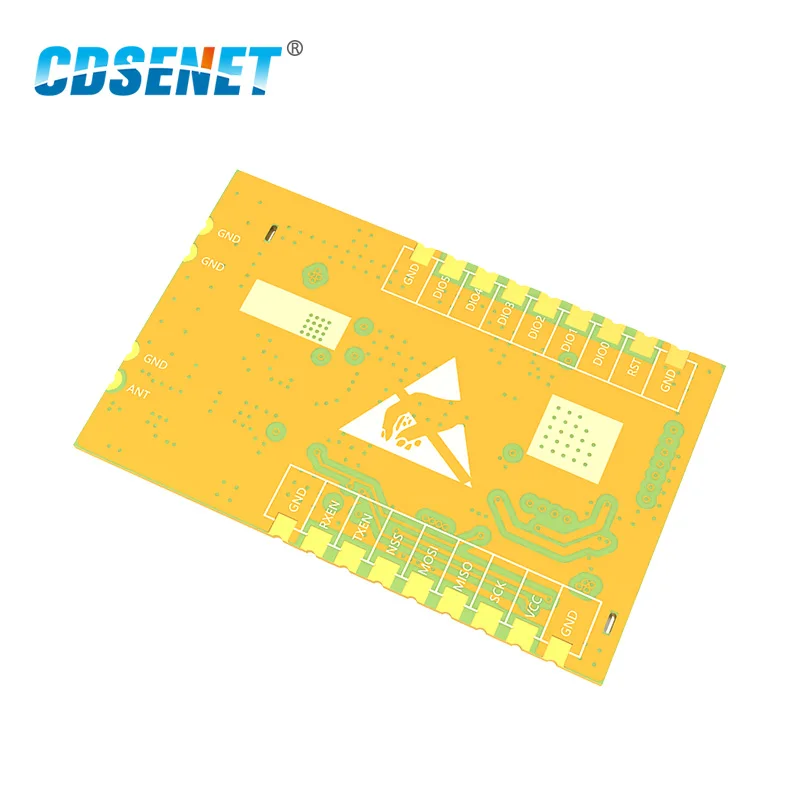

SX1276 LoRa 915MHz SMD Data Transmission RF Module 30dBm LNA Long Range 915 mhz Transmitter and Receiver CDSENET E19-915M30S | Мобильные

RF Parameter

Value

Remark

Working frequency

900~931 MHz

Default:  915MHz (32MHz oscillator)

Transmitting power

30 dBm

Max. Power (1W)

Receiving sensitivity

-148 dBm

Air data rate: 0.3kbps

Air data rate

0.018k~37.5kbps

Default: 0.3kbps

Test distance

10000m

In open and clear air, with maximum power, 5dBi antenna gain, height of 2m,

air data rate: 0.3kbps

Hardware Parameter

Value

Remark

Size

25 * 40 mm

Antenna type

Stamp hole / IPEX

Communication interface

SPI

Package

SMD

Electronic parameter

Min.

Typ.

Max.

Unit

Condition

Power supply

3.3

5.0

5.5

V

Communication level

1.8

3.3

3.6

V

Transmitting current

570

630

690

mA

30dBm（1W）

Receiving current

21

23

25

mA

Sleep current

1.5

3.0

4.5

μA

Operating temperature

-40

20

+85

℃

Operating humidity

10

60

90

%

Storage temperature

-40

20

+125

℃
