7012B 2 Din Car FM Bluetooth radio 7 inch Auto Audio Stereo Support Rear View Camera USB SD AUX IN Video MP5 Player Mirror Link |

Характеристики

Kindly attention: This car radio do not BUILT IN and include any Memory card or SD card inside. There is not CD room for the CD Player. This is not Support CD/DVD Player. This is car radio MP5 player support the USB TF card. And its music quality is better than CD/DVD Player

DON'T SUPPORT GPS!!

General Features:

1. 7 inch 2 din HD car radio player with digital touch screen.

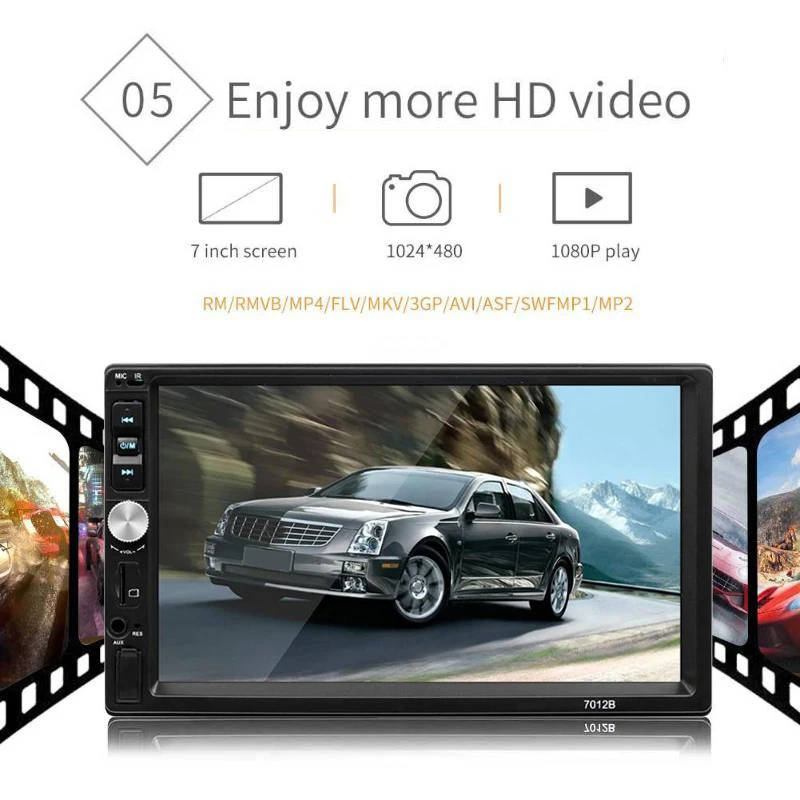

2. 1080P high resolution movie player.

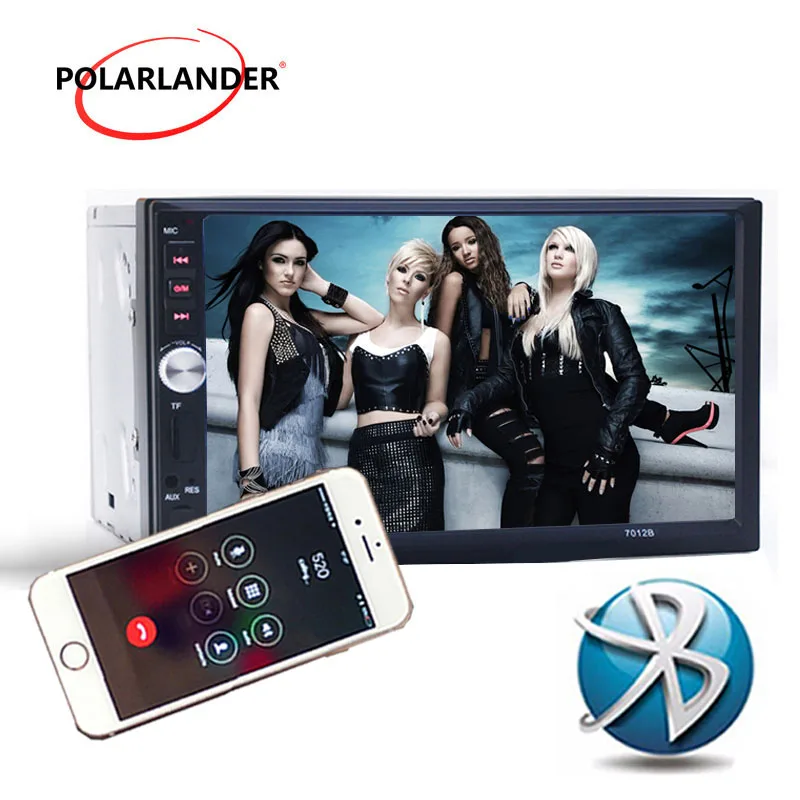

3. Support Bluetooth and hand free function.

4. Support FM and built-in Aux Input.

5. Support TF card(up to 32GB) slot and standard USB interface.

6. Support rear view camera input function.( optional)

7. 24 hours digital display clock and date.

8. Can charge for mobile phone or other USB device.

9. Bass & Treble,L & R channel stabilizer

10. AUX IN Function

11. Video input Function

Specifications:

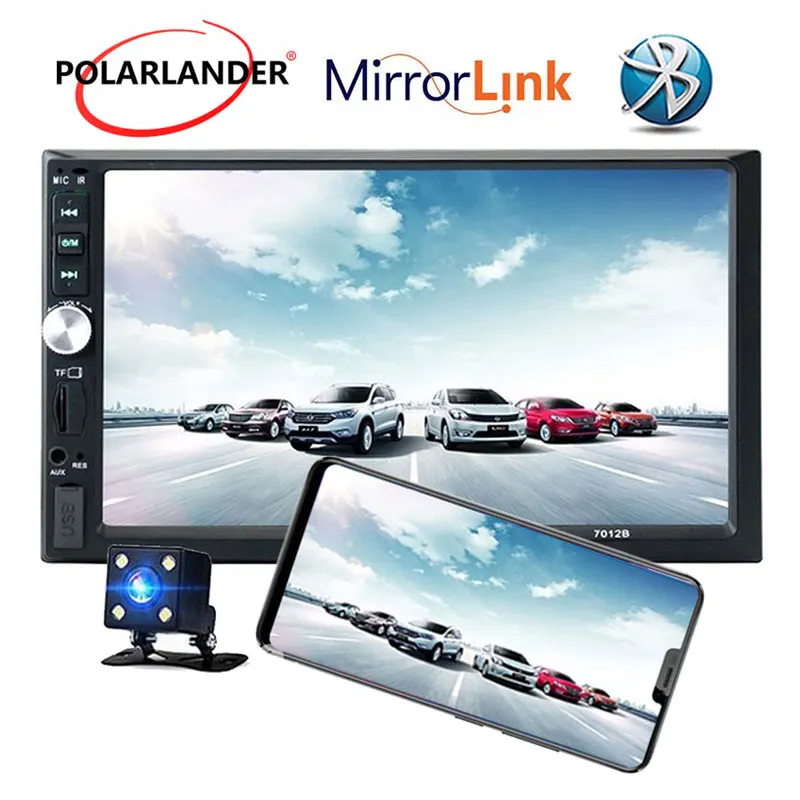

Main function:MP5, USB/TF interface, FM, Bluetooth, rear camera input, Aux In, Mirror link

Screen size: 7 inch

Screen resolution: 800 * 480

Video format: RMVB/RM/FLV/3GP/MPEG/DIVX/XVID/DAT/VOB/AVI/MP4

Audio format: MP3/WMA/WAV

Picture format: JPG

Amplifier output power/channel qty.: 45W * 4

Interface: USB/TF/AUX IN

Input voltage: 12V

Bluetooth pairing password: "0000"

Frequency response: 20Hz - 20KHz

Loudspeaker impedance: 4 - 8 Ohm

Remote Control

- Build-in lithium cell: CR2025 3V (not including the battery)

- Remote range: 5m

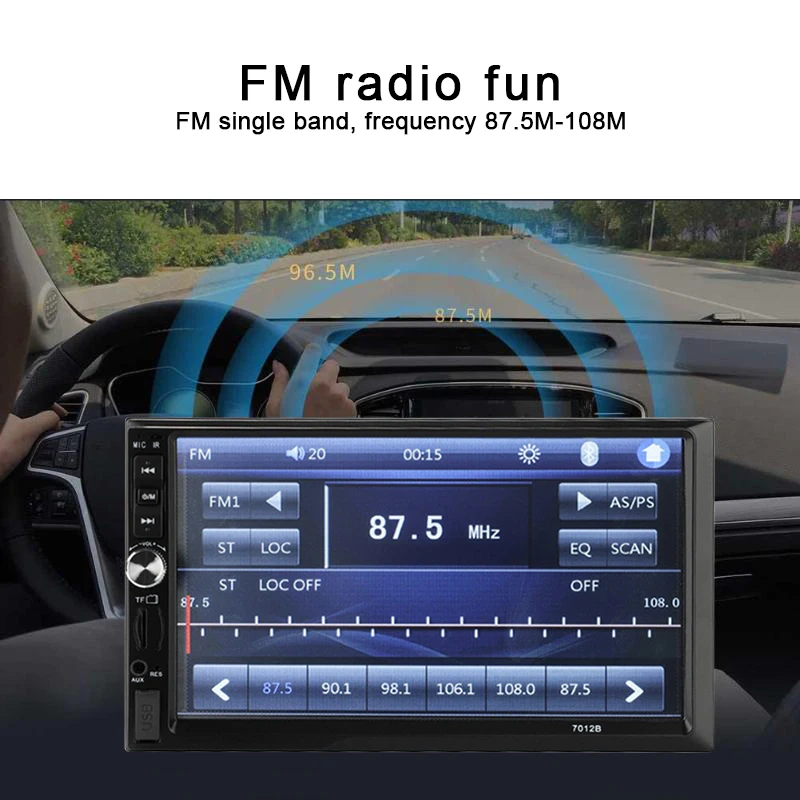

FM

- FM frequency: 87.5 - 108MHz

- Sensitivity: 25dB

- Selectivity: 60dB

- Separation: 35dB

Menu Languages:

English, Traditional Chinese, Spanish, Portuguese, Russian, Italian, German, French, Japanese, Polish, Turkish, Czech, Simplified Chinese.

Package Contents:

1 x 7 inch Car Stereo Touch Screen MP5 Player,

1 x Remote Control    (   not included battery   )   ,

2 x Power Cable,

1 x English User Manua

If you want to the camera, pls choose the option “with camera”.

Note:

1.This car multimedia player is compatible with all cars. Please check the Installation Dimension.

2.The installation requires a little knowledge of electronic products. Please install it with the help of professional.

3.If you are unsure whether this model is suitable for your car or not, you can contact our customer service for help.

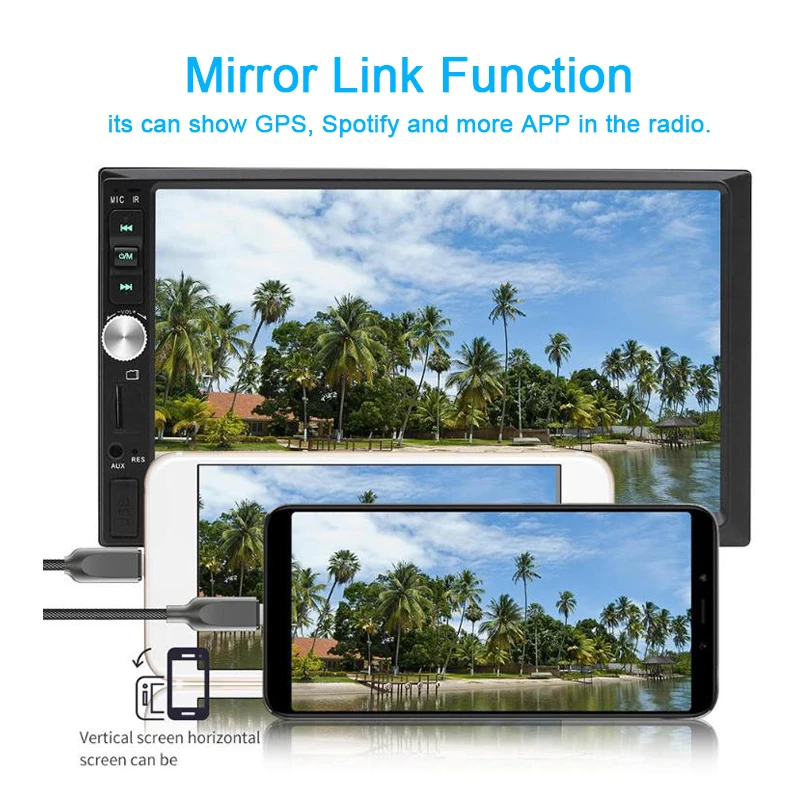

4.The mirror link function applies to Android Version 5.0~8.0.(some of Android 4.4 and Samsung phone might not be able to fit perfectly)

It does not apply to iPhone.

Important notice before installation: Please read carefully!!!

Yellow line (for memory wire) connected to the battery constant current positive, the machine will have memory function.

Red line pick the key to the ACC line, this line is also positive, control power switch. Black wire connected to the negative power supply.

Blue line connected lift the antenna or subwoofer REM control line, if not have do not connected, wrapped up with rubberized fabric.

The remaining eight wires(gray white green purple) are speaker line, a group of colors corresponding to a pair of speaker lines (positive and negative).

Please pay attention to check whether the original car speaker cable if contact iron (the original car speaker wire welding to the metal, or a speaker only a line thow out, called contact iron). contact iron will cause our high-power machine without sound, please test it with a multimeter before install, if contact iron, please disconnect and then install.

The following conditions may cause the machine to burned:

1. Can not use the original car plug directly connected to our new machine, do not match will lead to the machine burned, part of the machine can be shared please consult customer service.

2. If you buy a 12V voltage product do not install to 24V voltage models, otherwise it will cause the machine burned.

3. When wiring, speaker cable and power cord together, will cause a short circuit, lead the machine burned/unable to boot or machine without sound
