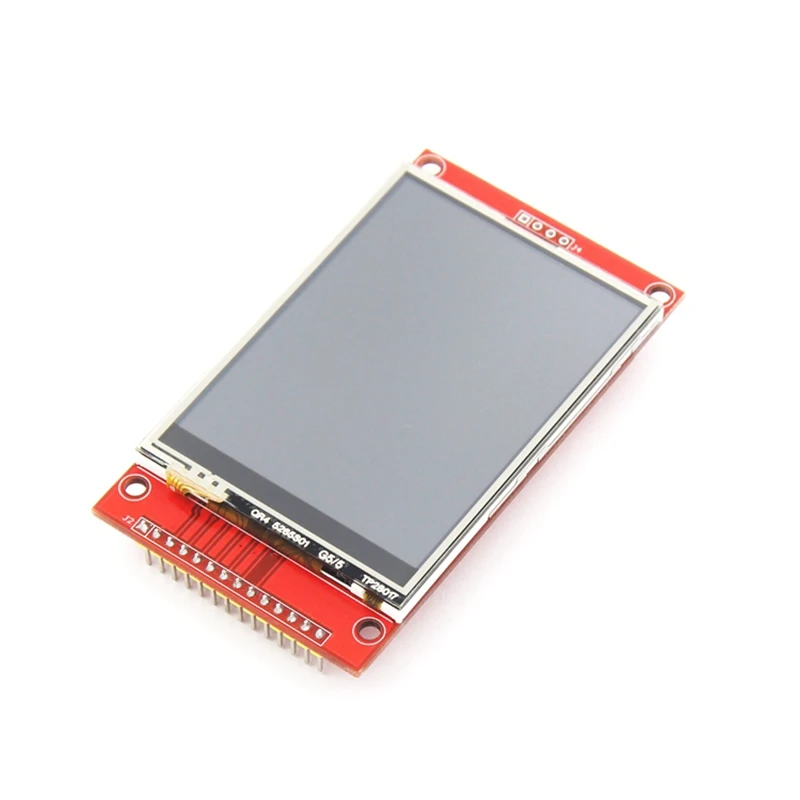

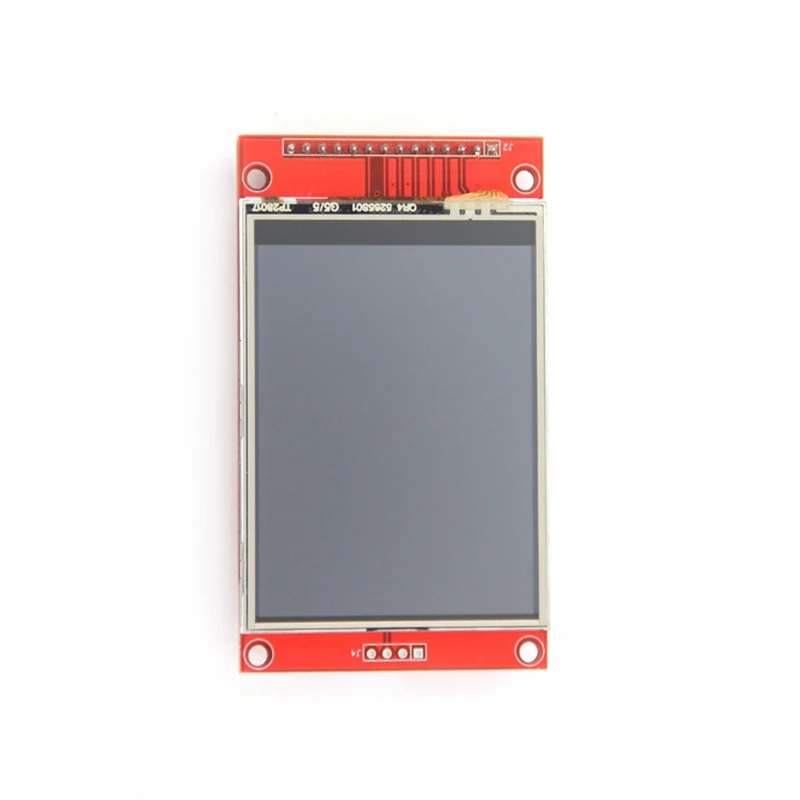

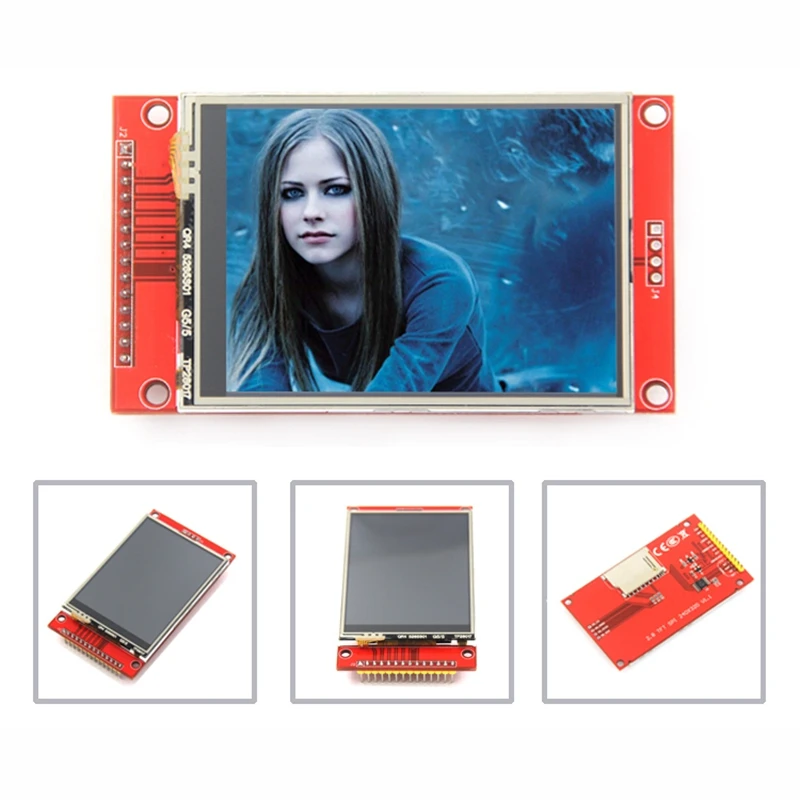

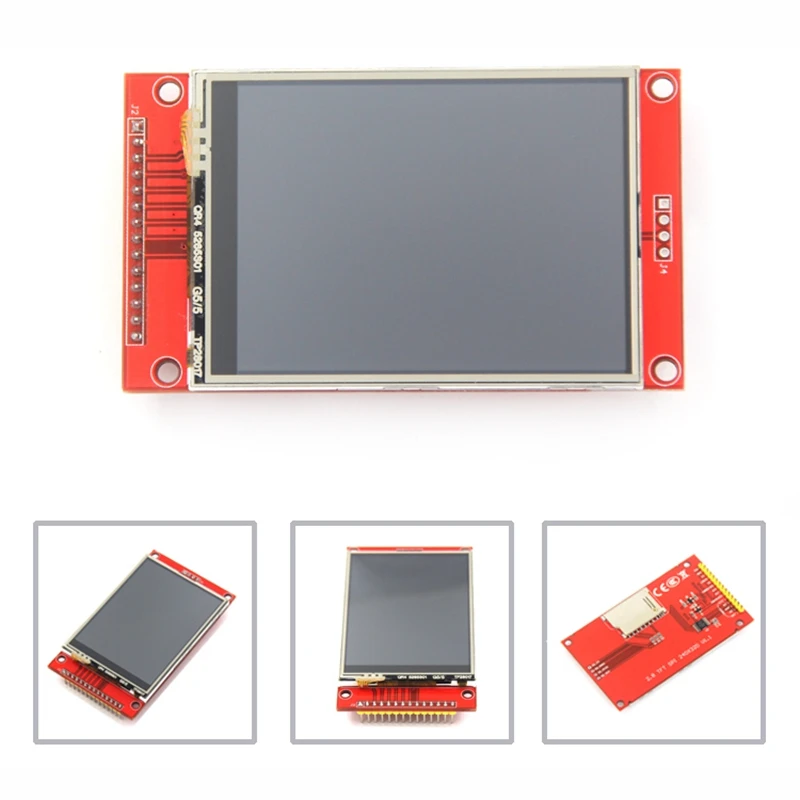

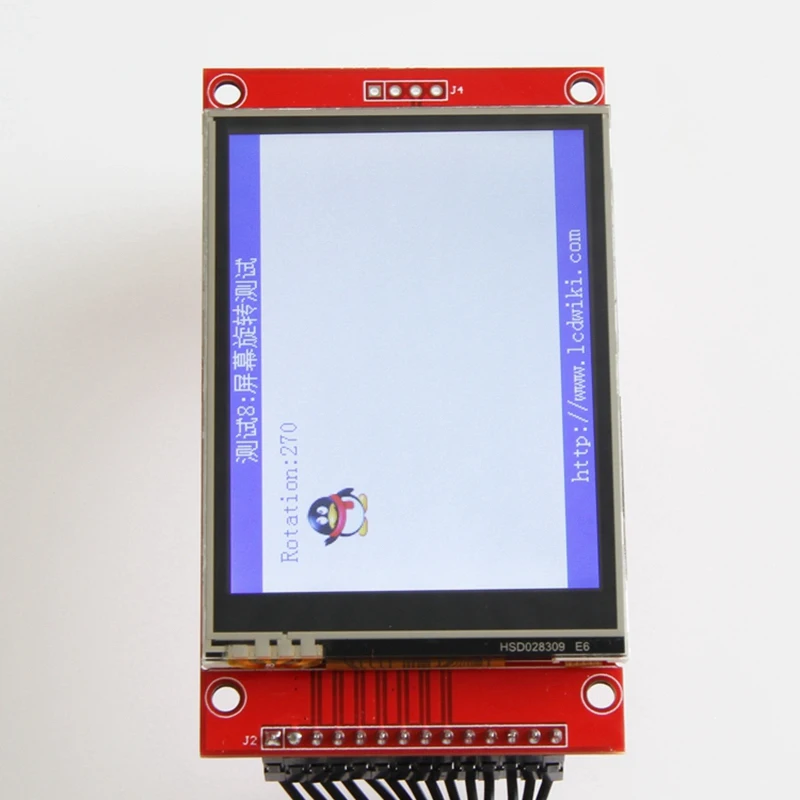

2.8 Inch 240x320 SPI Serial TFT LCD Module Display Sn Without Press Panel Driver IC ILI9341 for MCU | Электроника

Характеристики

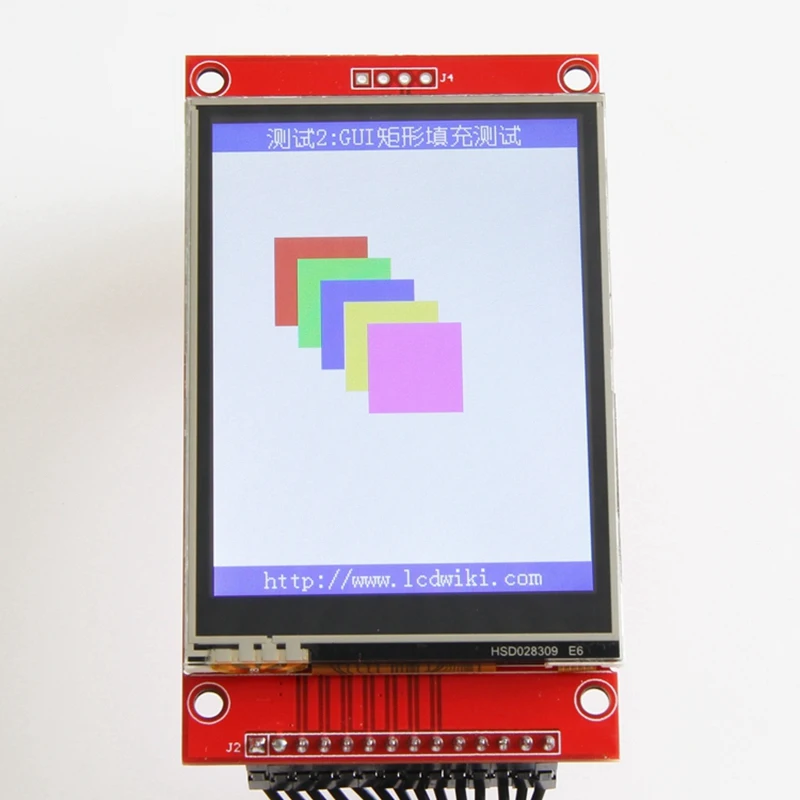

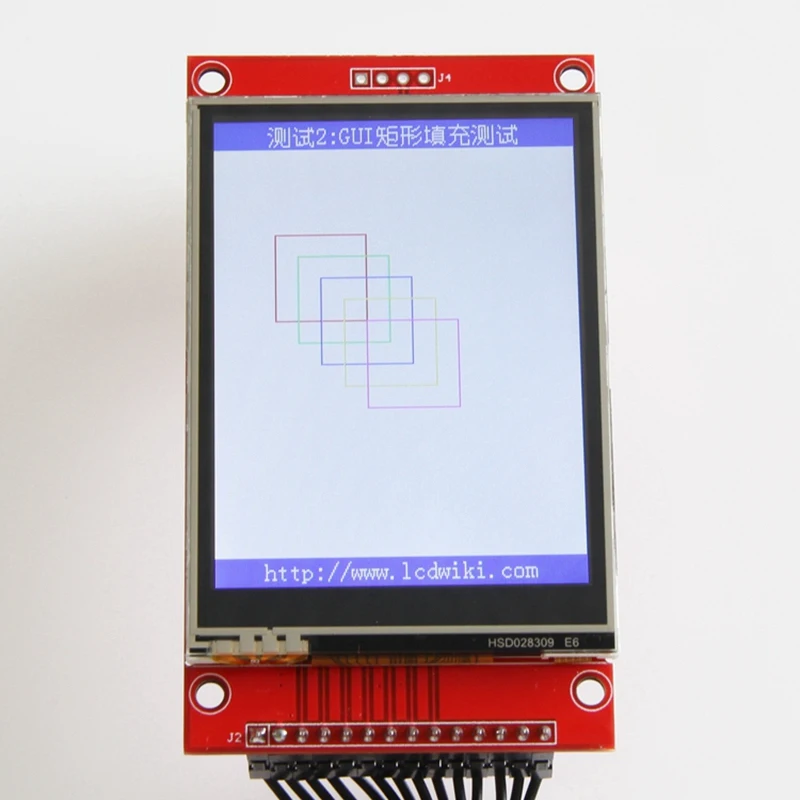

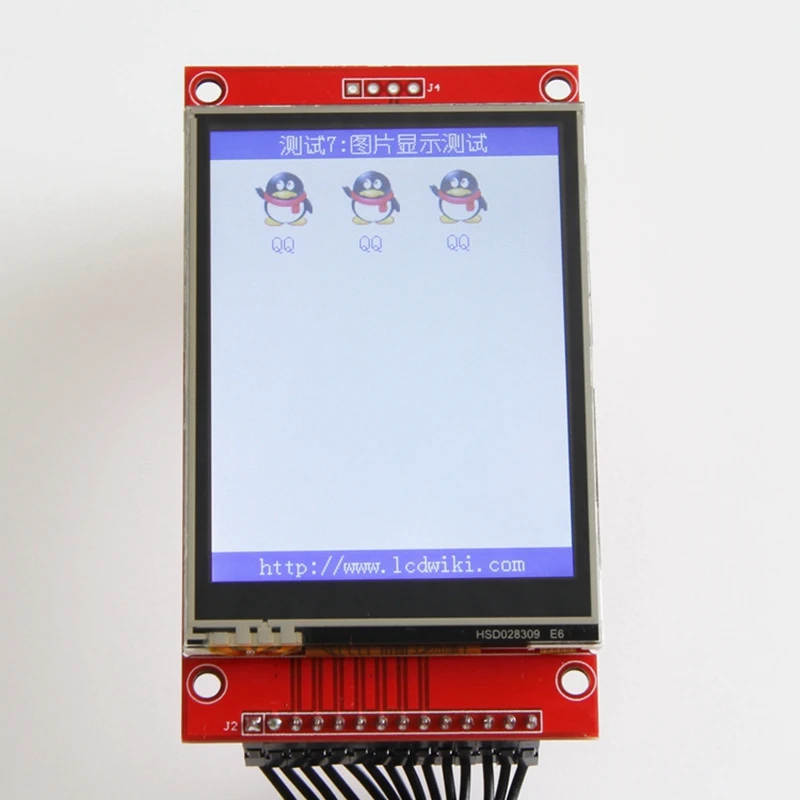

2.8 Inch 240x320 SPI Serial TFT LCD Module Display Sn Without Press Panel Driver IC ILI9341 for MCU Product Description: 2.8-inch color sn,support 65K color display,display rich colors
320X240 resolution, no Press function
Using the SPI serial bus, it only takes a few IOs to illuminate the display
color: red
Material: metal + pc

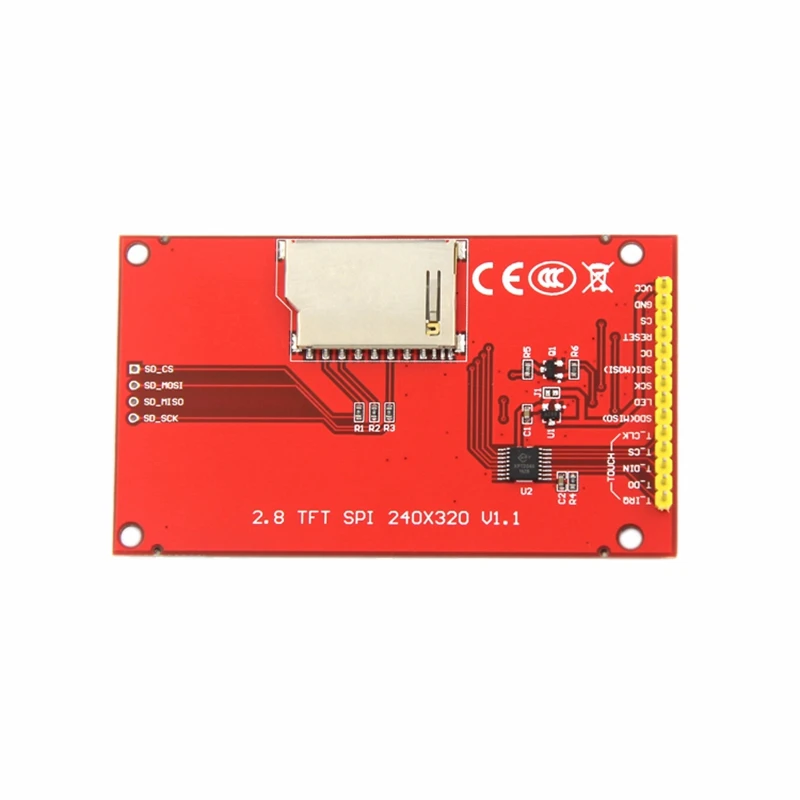

Easy to expand the experiment with SD card slot
Provide a rich sample program
process standards, long-term stable work
Provide underlying driver technical support
Product Parameters:
Name : Parameter
Display Color: RGB 65K color
SKU : have no Press sn: MSP2806
Sn Size: 2.8(inch)
Type : TFT
Driver IC : ILI9341
Resolution : 320*240 (Pixel)
Module Interface: 4-wire SPI interface
Active Area (AA area): 43.2x57.6(mm)
Module PCB Size : 50.0x86.0(mm)
Operating Temperature: -20��~60��
Storage Temperature : -30��~70��
VCC power voltage : 3.3V~5V
Logic IO port voltage: 3.3V(TTL)
Power Consumption : TBD
Rough Weight(Package containing): No touch: 34(g)
Package Contents:1* 2.8 inch 240*320 SPI Serial TFT LCD Module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
