Car 52MM Air Fuel Ratio Gauge 12V Racing Meter Indicator with Narrow O2 Oxygen Sensor 0258006028 Pod CUp | Автомобили и мотоциклы

Характеристики

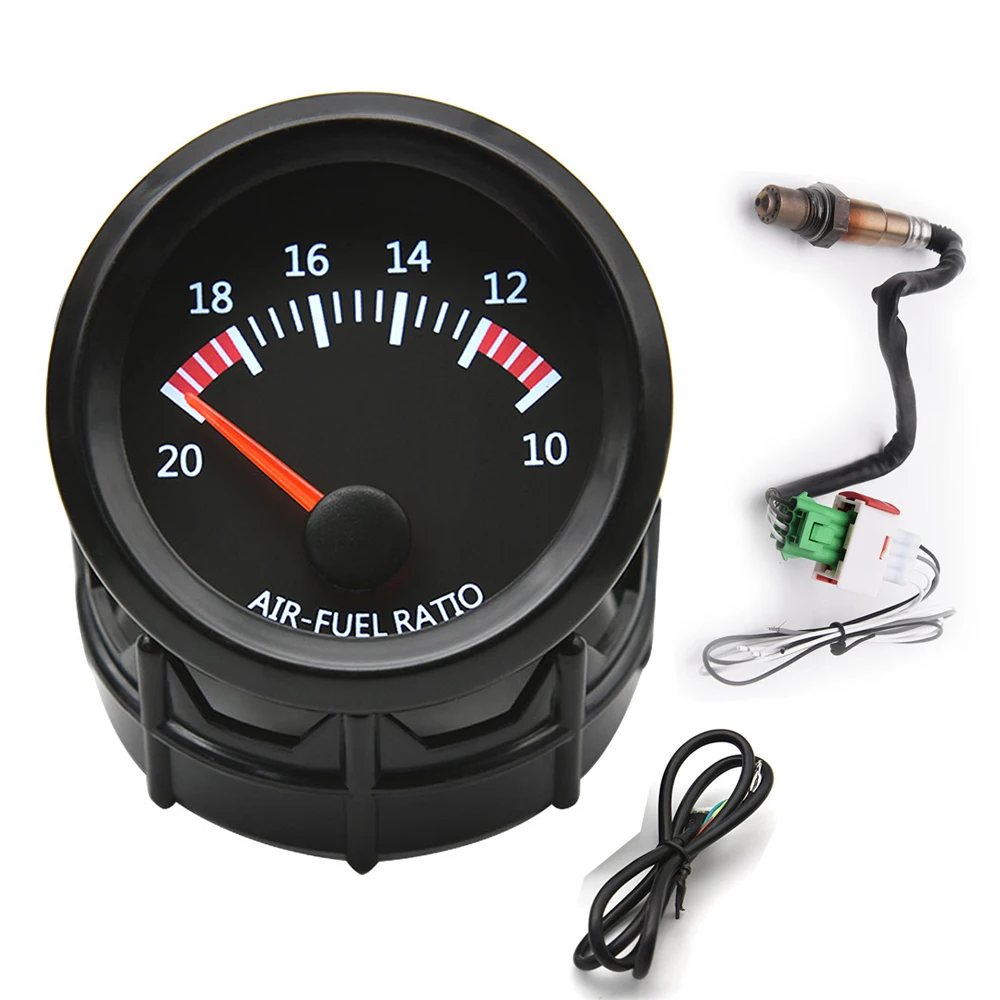

Car Auto Air Fuel Ratio Gauge 12V Racing Air Fuel Meter Indicator with Narrow O2 Oxygen Sensor 0258006028 52MM Gauge Pod CUp

Type:

2.Air Fuel Ratio (10~20)

Specification:

Color:Black

Voltage:DC 12V

Diameter:52mm/2“

Material:Plastic

Quantity: 1 Set

Connection:

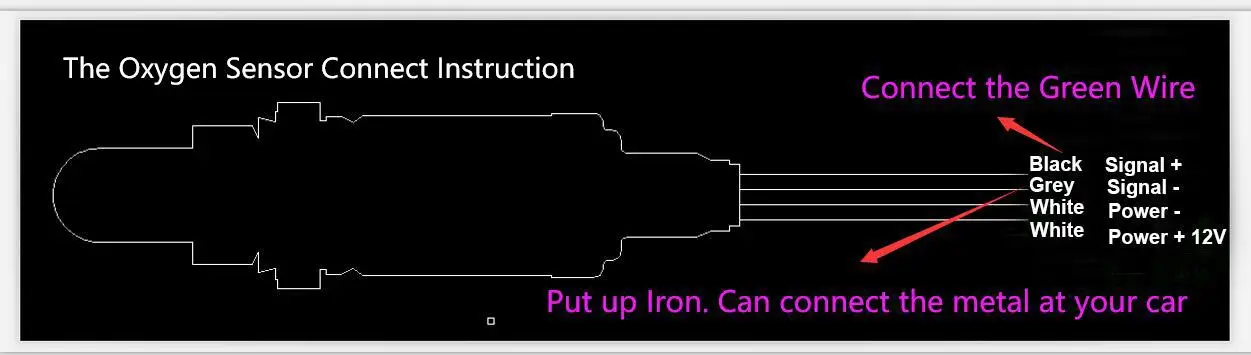

Connection :

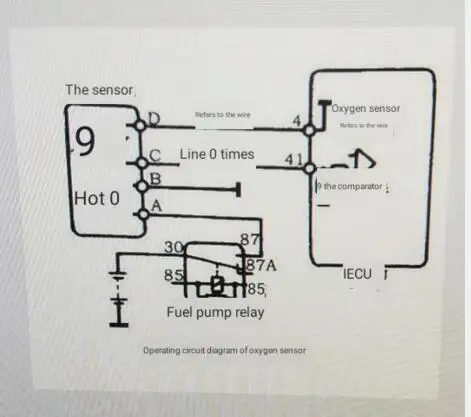

The white line is at heater ab


Black line signal line C, gray line signal ground D

The green wire of the instrument is connected with the black wire of the sensor. The gray line is connected to the negative pole of the battery.


One white wire connect with the car shell or battery negative pole.
Another white wire connect to the ACC line of ignition switch


The white line is the heater and does not distinguish between positive and negative electrodes

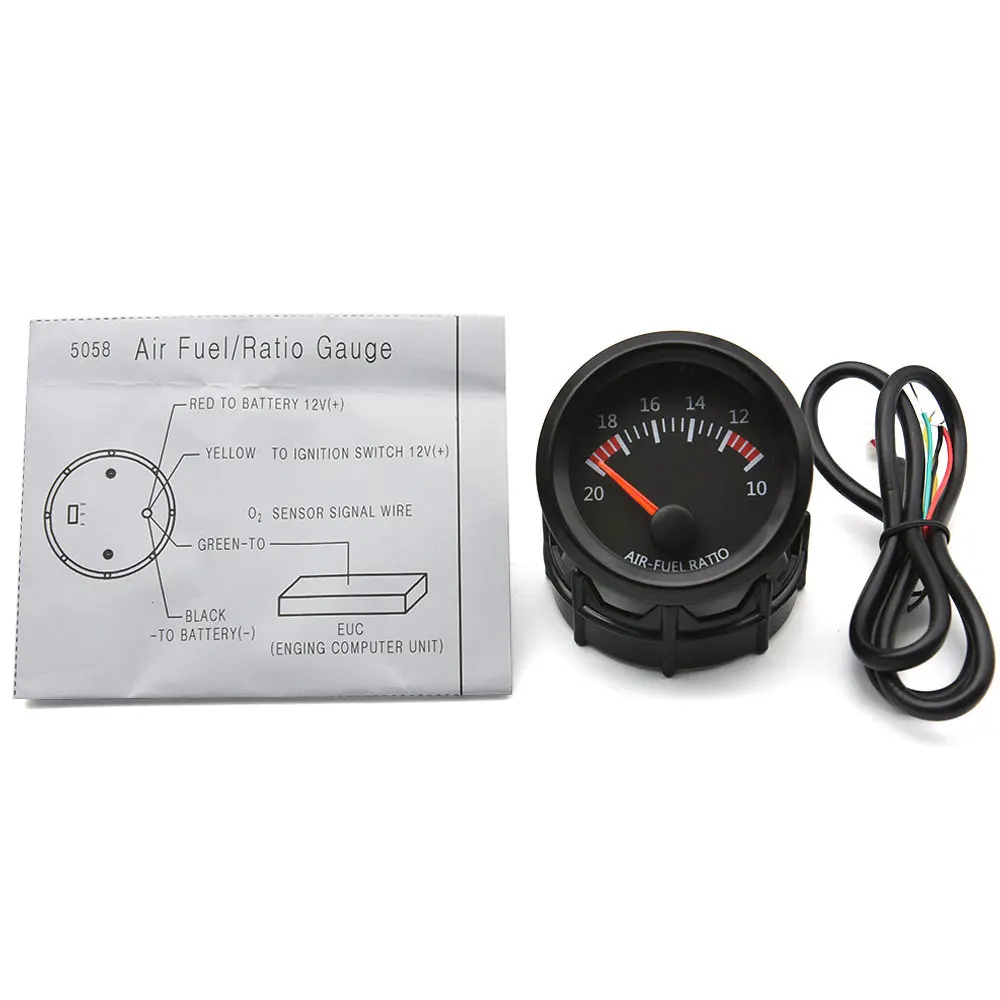

About the air fuel gauge, please see the installation instructions.

Package:

1 x gauge
or
1x sensor
or
1x gauge and sensor
