IWISTAO HIFI 6/6.5 Inches Full Range Speaker Empty Cabinet Kits 1 Pair MDF Labyrinth Structure for Tube Amplifier

Please note that its lead time is about  2 weeks after the payment verified.

Model No: JPFRLIBY4T6-13

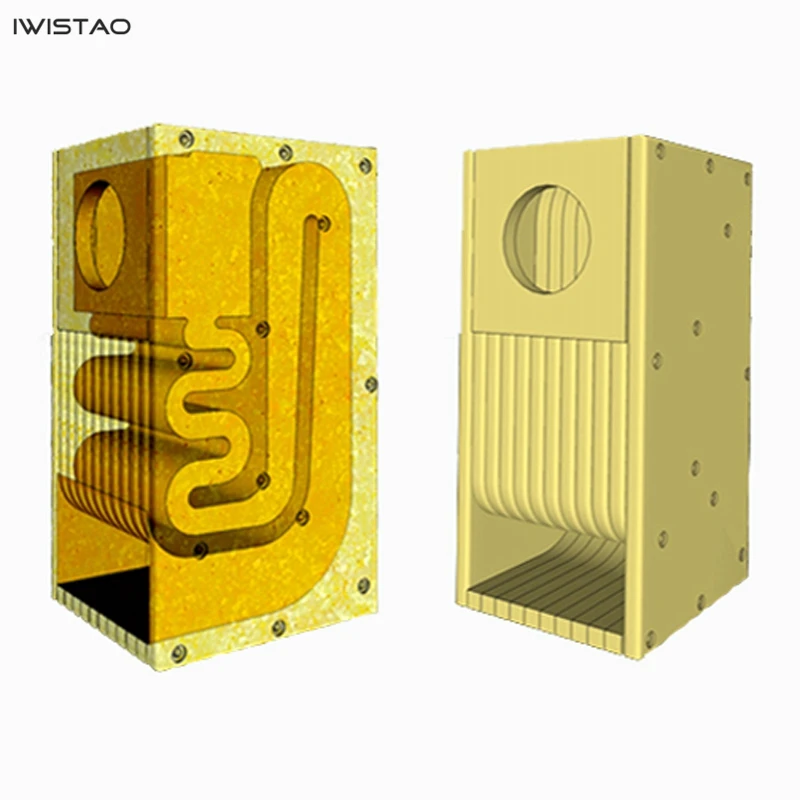

This speaker cabinet is made of MDF or you may select solid wood for 2 side plate and front panel. Built-in a labyrinth structure, it can enhance the low-frequency radiant energy, make low-frequency dive deeper, effectively overcoming insufficient bass of commend full range speaker cabinet, make the speaker cabinet the full-frequency be more full and rich.

As you know, the greater the material density of the speaker enclosure, the less the vibration produced by the enclosure. Solid wood is more reflective of sound than other materials, and tightness of the wood is higher, and the sound can be effectively expressed by the vibration of the air inside the box. We often say that the sound of wooden speakers is warm, in fact, the word warm means the balance of tri-band that are low, medium and high frequency; if the frequency is too low or too high, it will make people feel uncomfortable. The advantage of wooden speaker is that its playback effect is good, the vibration of the sound inside the box is stable, and the sound effect will be balanced and full.

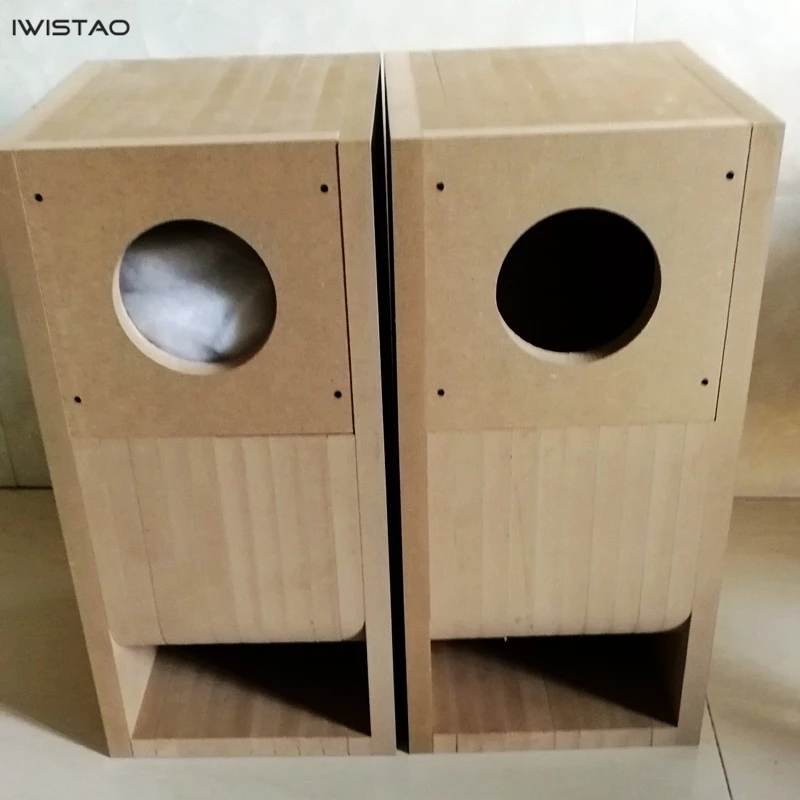

MDF Board

（This is WHFSC-JPFRLIBY4T6-13A --- Assembled Empty Cabinet)

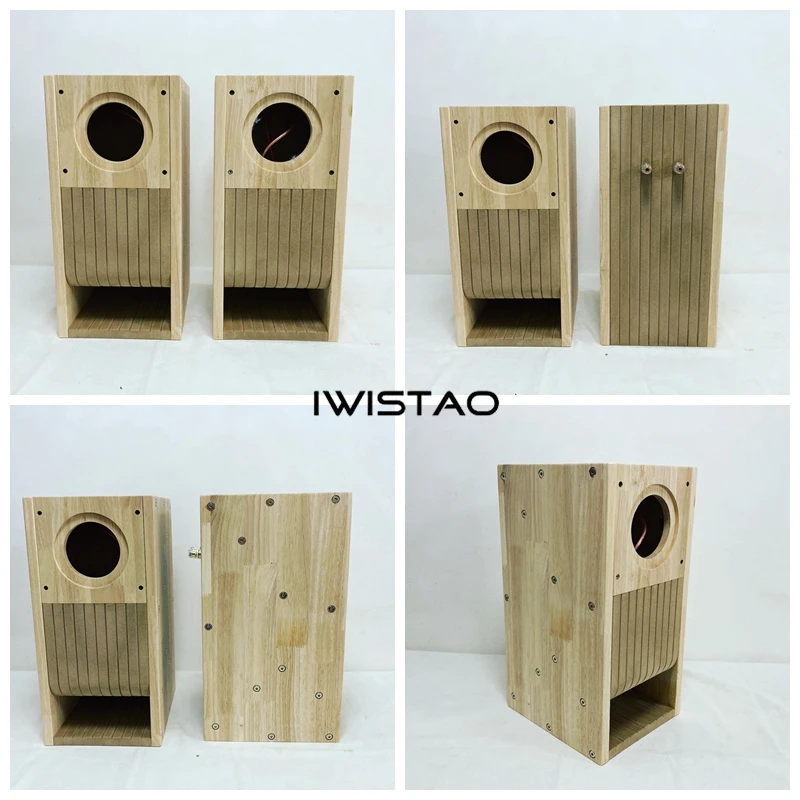

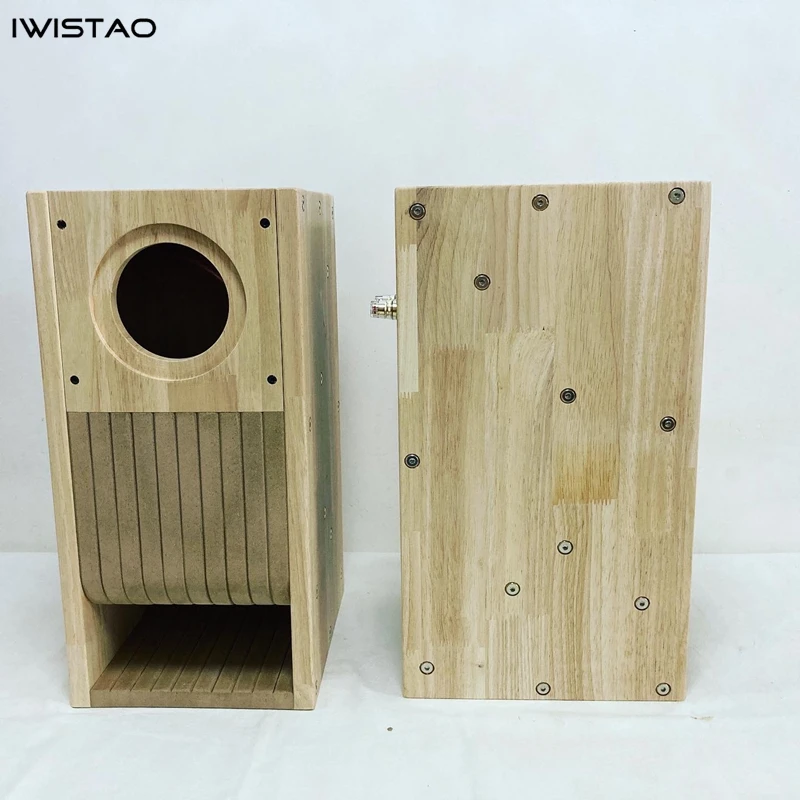

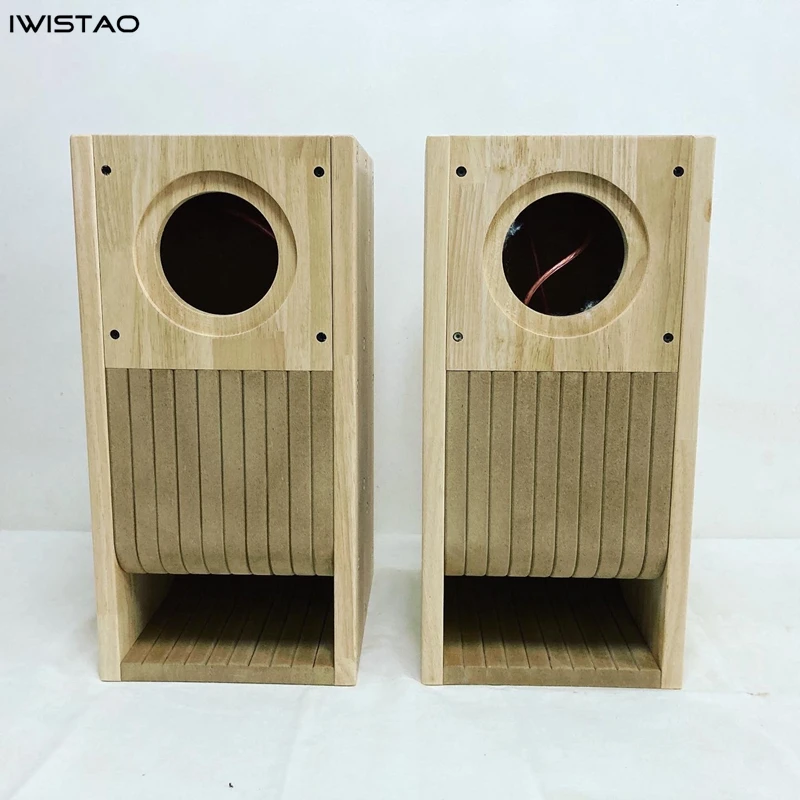

Solid wood for 2 side plate and front panel

(This is WHFSC-JPFRLIBY4T6-13AU--- Assembled Empty Cabinet with solid wood side and front panel）

Details

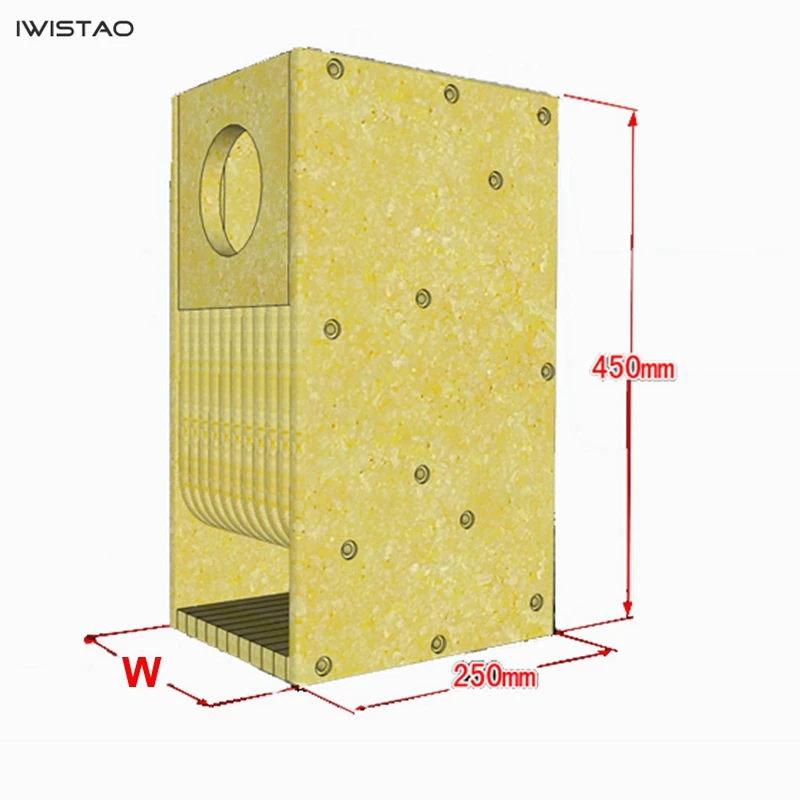

Models vs Size

Features

1. Solid wood structure, full of sound quality, warm, three-stage balance. strong bass by labyrinth structure.

2. he interior of the cabinet is filled with high-quality sound-absorbing cotton, which can absorb the sound waves radiated by the speaker unit and reduce the refraction and reflection of the sound wave dance. Eliminate the confusion and ambiguity of the sound.

3. The cabinet is suitable for 3~4 inch full range speaker unit.

4. You may select the speaker driver unit  according to its diameter.

JPFRLIBY4T6-13 for 6 to 6.5 inches

Options

        Empty Cabinet Kits --- please select   "JPFRLIBY4T6-13

        Assembled Empty Cabinet --- please select   "JPFRLIBY4T6-13A"

        Assembled Empty Cabinet with solid wood side and front panel  --- please select   "JPFRLIBY4T6-13AU"

Specifications

1. Material: 15mm MDF

2. Quantities: 1 pair

3. Dimension: see the table,

4. Weight: 22 kg

5. Dimension:

Diameter 96mm through hole for 4 inches driver as default.

If you need to customize the opening, please leave a message and send us your speaker unit's drawing. Otherwise, we will drill the holes in the front panel as default.

6. Accessories

Note:

Natural wood will have natural defects such as crusting and texture; there will be color difference in the plate. Hand-made and back-light may use slight scratch marks. If you are a perfectionist, please do not buy it. The pictures are for reference only and are subject to the actual product.

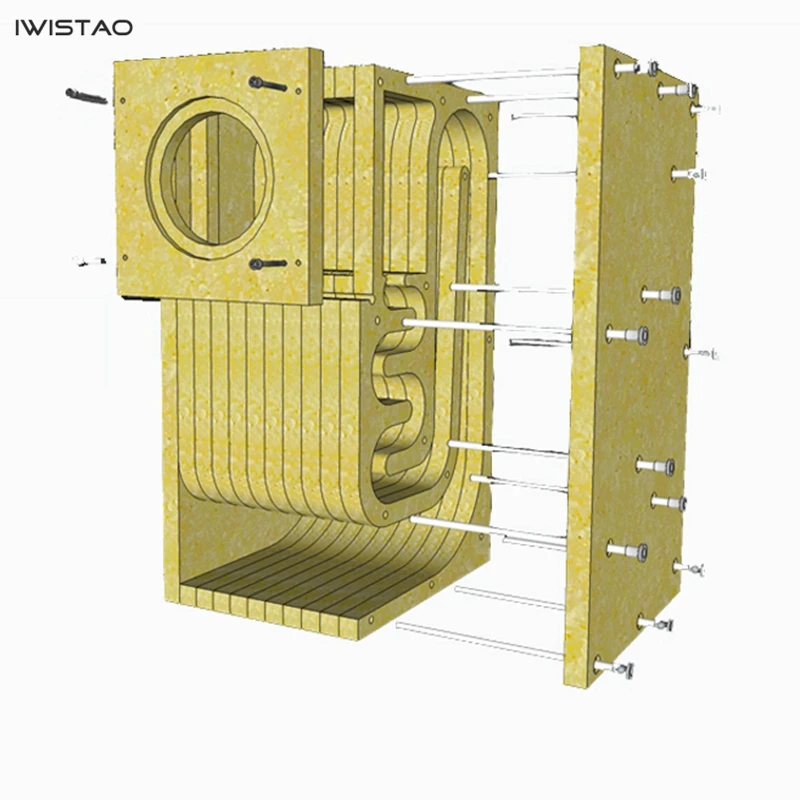

Assembling Manual

Applications

(Don't include the speaker unit, the photo only for you information )

WHFSC-JPFRLIBY4T6-11 for Mark 4 inches Speaker unit

WHFSC-JPFRLIBY4T6-12 for Fostex 4 inches speaker unit
